AD5141
Single Channel, 256-Position, I2C / SPI, Nonvolatile Digital Potentiometer
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 10 kΩ and 100 kΩ resistance options
- Resistor tolerance: 8% maximum
- Wiper current: ±6 mA
- Low temperature coefficient: 35 ppm/°C
- Wide bandwidth: 3 MHz
- Fast start-up time < 75 μs
- Linear gain setting mode
- Single- and dual-supply operation
- Independent logic supply: 1.8 V to 5.5 V
- Wide operating temperature: −40°C to +125°C
- 3 mm × 3 mm LFCSP
- Qualified for automotive applications
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

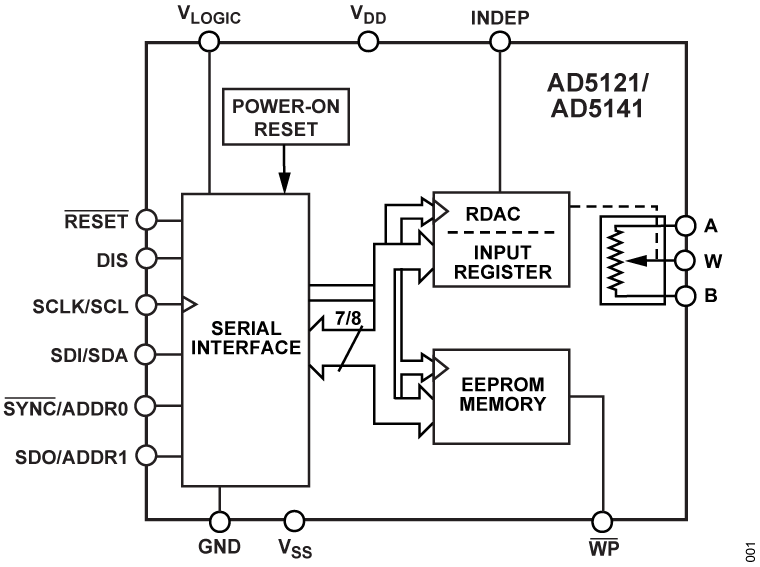

The AD5121/AD5141 potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins.
The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.
The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through RAW and RWB string resistors, allowing very accurate resistor matching.
The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making it suitable for filter design.
The low wiper resistance of only 40 Ω at the ends of the resistor array allows for pin-to-pin connection.
The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.

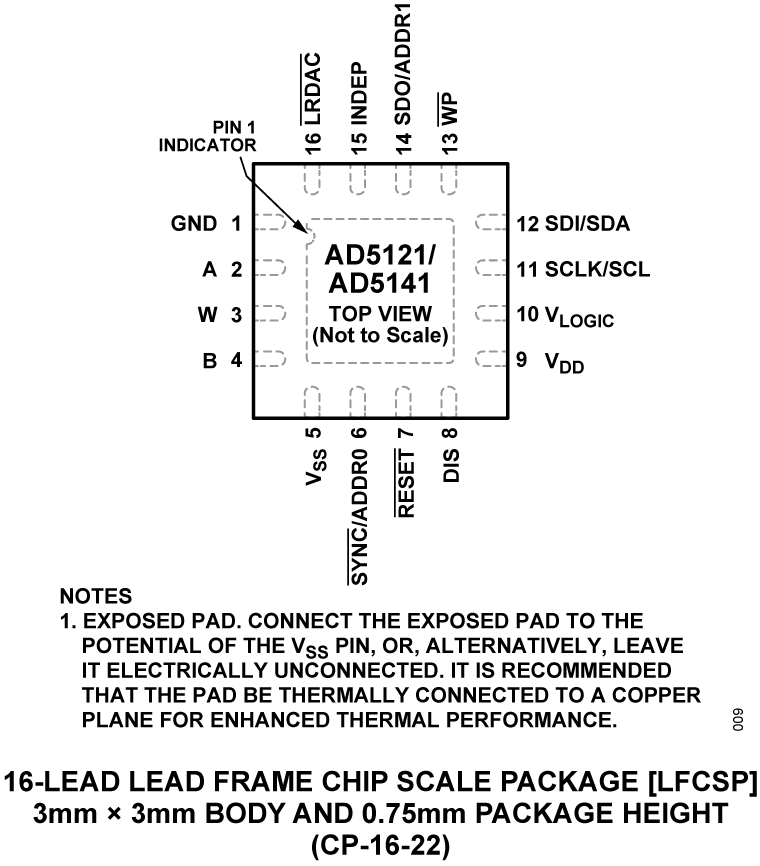

The AD5121/AD5141 is available in a compact, 16-lead, 3 mm × 3 mm LFCSP. The devices are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.
Applications
- Portable electronics level adjustment
- LCD panel brightness and contrast controls
- Programmable filters, delays, and time constants
- Programmable power supplies
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5141
Documentation
Filters
1 Applied
-
All
-
Application Note
-
User Guide
-
Data Sheet
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
2
Application Note
6
HTML
HTML
HTML
User Guide
2
676 kB
Documentation
Data Sheet 1
User Guide 1
Application Note 2
Analog Dialogue 1
Webcast 1
Video
1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5141BCPZ10-RL7 |
16-Lead LFCSP (3mm x 3mm w/ EP)
|
|
|
| AD5141BCPZ100-RL7 |
16-Lead LFCSP (3mm x 3mm w/ EP)
|
|
|
| AD5141WBCPZ10-RL7 |
16-Lead LFCSP (3mm x 3mm w/ EP)
|
|
- AD5141BCPZ10-RL7
- Pin/Package Drawing
-
16-Lead LFCSP (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5141BCPZ100-RL7
- Pin/Package Drawing
-
16-Lead LFCSP (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5141WBCPZ10-RL7
- Pin/Package Drawing
-
16-Lead LFCSP (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 21, 2024
- 24_0167
AD5121/AD5141 Test Program Change
AD5141BCPZ10-RL7
PRODUCTION
AD5141BCPZ100-RL7
PRODUCTION
AD5141WBCPZ10-RL7
PRODUCTION
Mar 27, 2016
- 16_0048
Change to Ilogic Maximum and Typical Specifications in the AD5121/AD5141 Datasheet
AD5141BCPZ10-RL7
PRODUCTION
AD5141BCPZ100-RL7
PRODUCTION
Aug 6, 2014
- 13_0223
Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China
AD5141BCPZ10-RL7
PRODUCTION
AD5141BCPZ100-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 21, 2024
- 24_0167
AD5121/AD5141 Test Program Change
AD5141BCPZ10-RL7
PRODUCTION
AD5141BCPZ100-RL7
PRODUCTION
AD5141WBCPZ10-RL7
PRODUCTION
Mar 27, 2016
- 16_0048
Change to Ilogic Maximum and Typical Specifications in the AD5121/AD5141 Datasheet
Aug 6, 2014
- 13_0223
Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China
AD5141BCPZ10-RL7
PRODUCTION
AD5141BCPZ100-RL7
PRODUCTION
Evaluation Kits 1

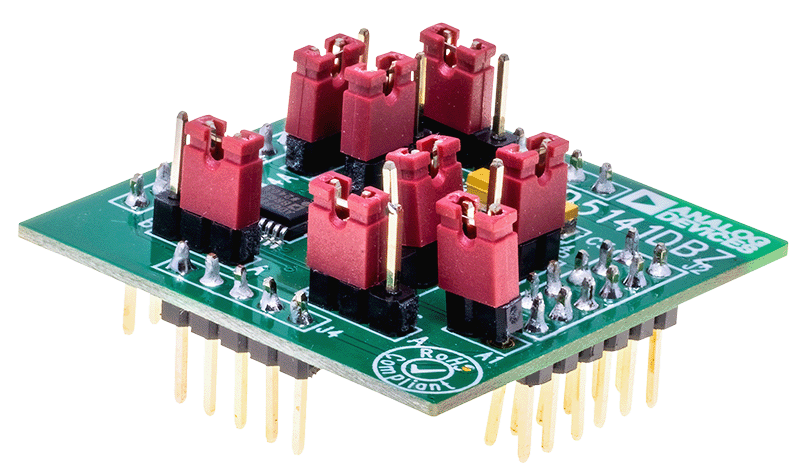

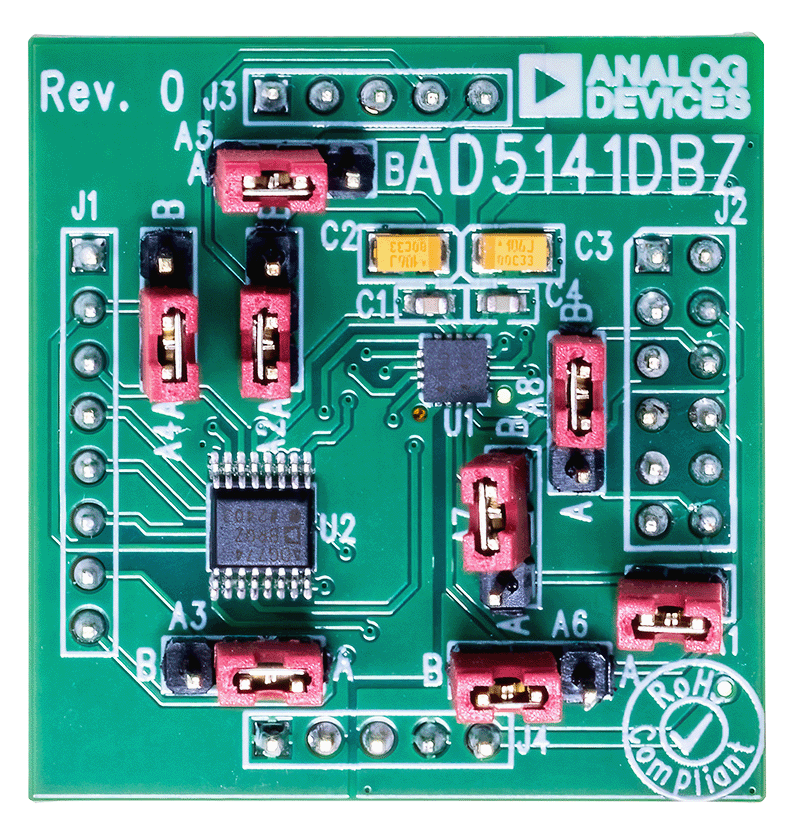

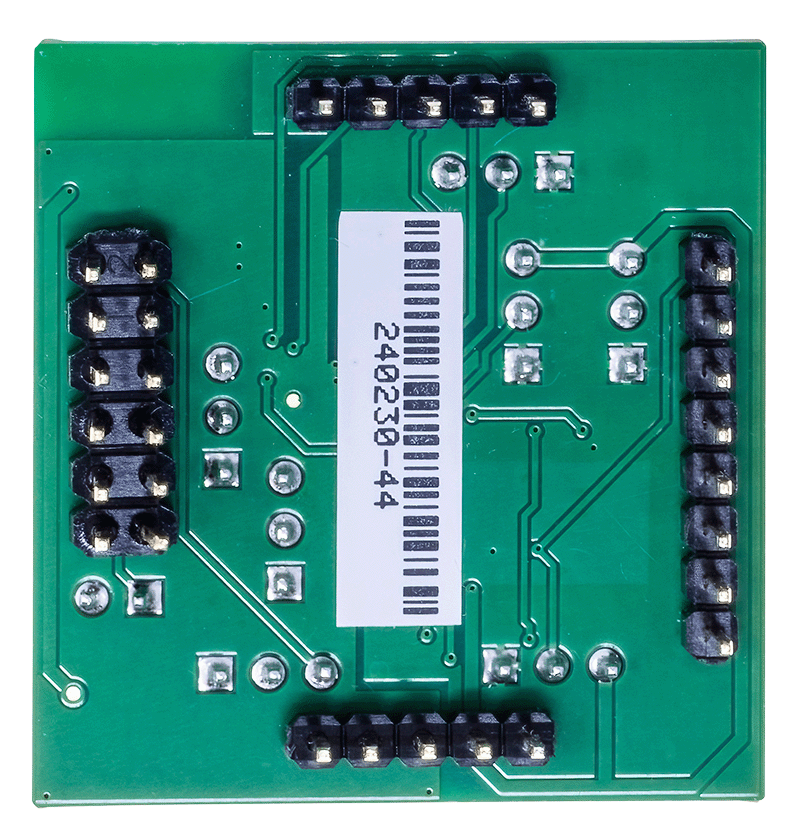

EVAL-AD5141
AD5141 Evaluation Board
Product Detail
The AD5141 allows multiple modes of operation, including read/write access in the RDAC and EEMEM registers, increment/decrement of resistance, resistance changes in ±6 dB scales, wiper setting read-back, and extra EEMEM for storing user-defined information, such as memory data for other components or a lookup table.
The AD5141 supports a dual-supply ±2.25 V to ±2.75 V operation and a single-supply 2.3 V to 5.5 V operation, making the device suitable for battery-powered applications and many other applications. In addition, the AD5141 can be configured as a versatile I2C or SPI serial interface. The EVAL-AD5141DBZ can operate in single-supply or dual-supply mode and incorporates an internal power supply from the USB.
Complete specifications for the AD5141 can be found in the AD5141 datasheet.
Resources
Evaluation Kits1
Tools & Simulations 1
IBIS Model 1
IBIS Model
