Features
- Single-channel, high-linearity transmit VGA for RF DACs, transceivers, and SoCs to power amplifier interface
- Single 5 V supply
- Multiple versions covering frequencies of 500 MHz to 5200 MHz
- Power gain: 37.4 dB (ADL6337-A), 35.5 dB (ADL6337-B), 34 dB (ADL6337-C), 35.5 dB (ADL6337-D)
- OIP3: 42.0 dBm (ADL6337-A), 42.5 dBm (ADL6337-B), 38 dBm (ADL6337-C), 40 dBm (ADL6337-D)
- OIP2: 50 dBm (ADL6337-A), 55 dBm (ADL6337-B), 68 dBm (ADL6337-C), 74 dBm (ADL6337-D)
- Noise figure: 3.7 dB (ADL6337-A), 4.5 dB (ADL6337-B), 5.2 dB (ADL6337-C)
- OP1dB: 26.1 dBm (ADL6337-A), 26.0 dBm (ADL6337-B), 25.5 dBm (ADL6337-C)
- RF DSA attenuation range: 31.5 dB with 0.5 dB resolution
- 50 Ω/100 Ω differential inputs and 50 Ω single-ended output
- Fully programmable via a 3-/4-wire SPI
- 32-lead, 5 mm × 5 mm LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADL6337 belongs to a family of transmit variable gain amplifiers (VGAs). It provides an interface from RF digital-to-analog converters (DACs), transceivers, and systems on a chip (SoC) to power amplifiers. It also includes an integrated RF balun and can be configured as a differential input, single-ended output to allow high-performance RF capability in the 500 MHz to 5200 MHz frequency range.
To optimize performance vs. power level, the ADL6337 includes high linearity amplifiers and a glitch free digital step attenuator (DSA). All of the ADL6337 components are programmable via a 3- or 4-wire serial port interface (SPI).
The ADL6337 is manufactured on an advanced silicon germanium (SiGe), bipolar complementary metal-oxide semiconductor (BiCMOS) process.
Applications
- 2G/3G/4G/long-term evolution (LTE) in FDD/TDD broadband
- Communication systems
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADL6337
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
All
-
English
Data Sheet
1
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADL6337-EVALZC | LGA/CASON/CH ARRY SO NO LD |
|
|
| ADL6337ACRZA |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
|
| ADL6337ACRZA-R7 |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
|
| ADL6337ACRZB |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
|
| ADL6337ACRZB-R7 |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
|
| ADL6337ACRZC |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
|
| ADL6337ACRZC-R7 |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
|
| ADL6337ACRZD |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
|
| ADL6337ACRZD-R7 |
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
|
|
- ADL6337-EVALZC
- Pin/Package Drawing
- LGA/CASON/CH ARRY SO NO LD
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZA
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZA-R7
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZB
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZB-R7
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZC
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZC-R7
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZD
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL6337ACRZD-R7
- Pin/Package Drawing
-
32-Lead LFCSP-RT (5 mm × 5 mm × 0.58 mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADL6337
Evaluating the ADL6337, 35 dB Gain, 0.5 GHz to 5.2 GHz Transmitter VGA
Product Detail

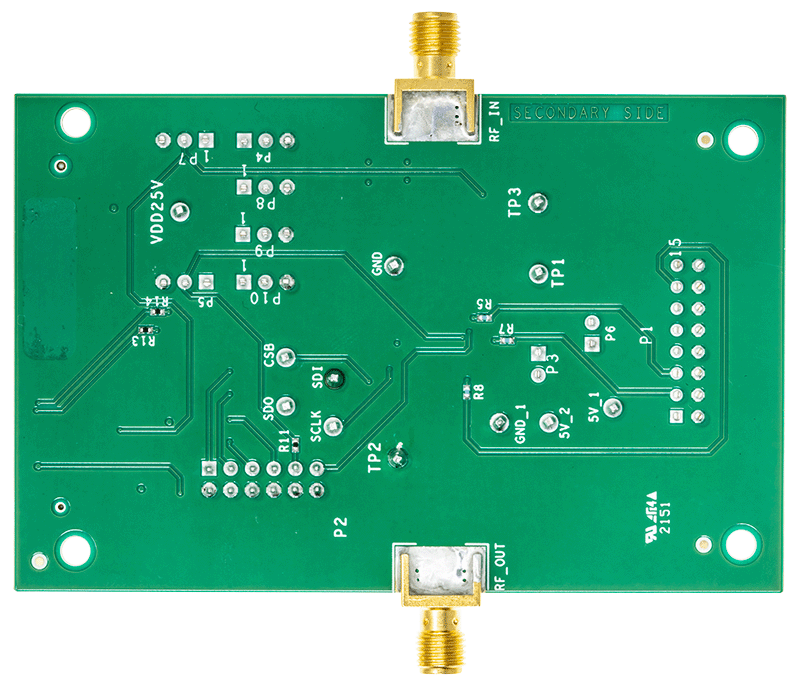

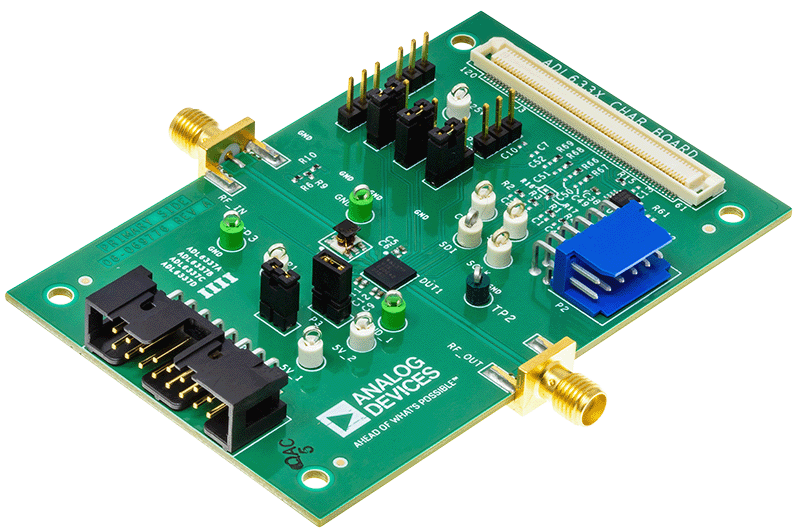

The ADL6337-EVALZA, ADL6337-EVALZB, and ADL6337-EVALZC evaluation boards allow the manual control of the ADL6337 through the USB port on a Microsoft® Windows® PC via a SDP-S interface board.
Additional information on the ADL6337 is provided in the ADL6337 data sheet. Consult the data sheet in conjunction with the user guide when using the ADL6337-EVALZA, ADL6337-EVALZB, and ADL6337-EVALZC evaluation board.
