Overview

Features and Benefits

  • Nonvolatile memory maintains wiper settings
  • 256-position

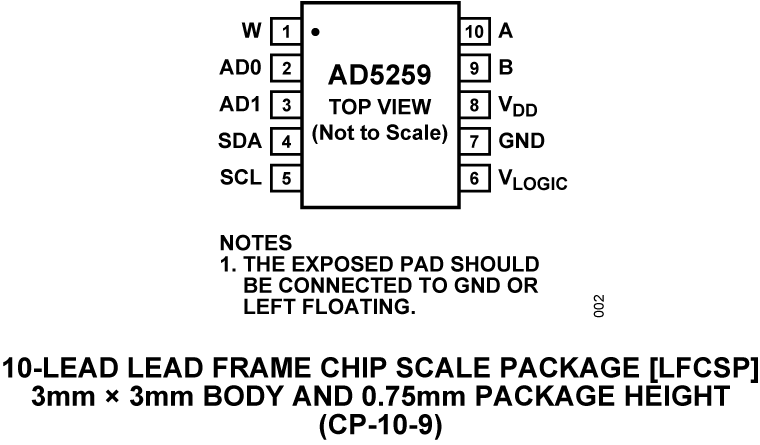

  • Thin LFCSP-10 (3 mm x 3 mm x 0.8 mm) package

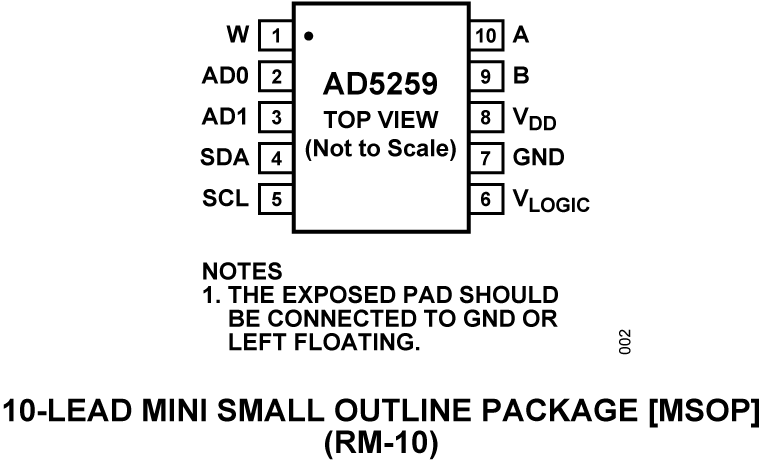

  • Compact MSOP-10 (3 mm × 4.9 mm × 1.1 mm) package
  • I2C-compatible interface
  • VLOGIC pin provides increased interface flexibility
  • End-to-end resistance 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
  • Resistance tolerance stored in EEPROM (0.1% accuracy)
  • Power-on EEPROM refresh time < 1ms
  • Software write protect command
  • Address Decode Pin AD0 and Pin AD1 allow 4 packages per bus
  • 100-year typical data retention at 55°C
  • Wide operating temperature −40°C to +125°C
  • 3 V to 5 V single supply

Product Details

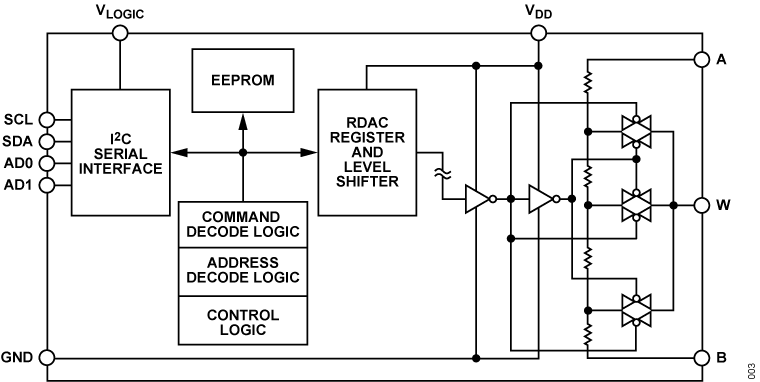

The AD5259 provides a compact, nonvolatile LFCSP-10 (3 mm x 3 mm) or MSOP-10 (3 mm x 4.9 mm) packaged solution for 256-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers1 or variable resistors, but with enhanced resolution and solid-state reliability. The terms digital potentiometer, VR (variable resistor), and RDAC are used interchangeably.

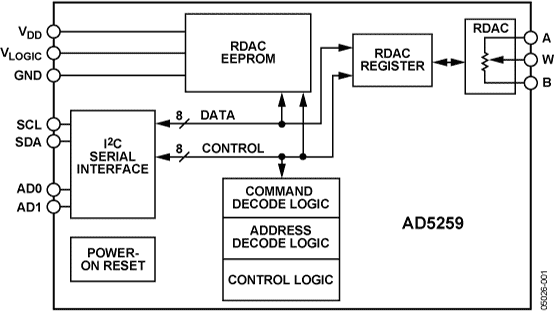

The wiper settings are controllable through an I2C-compatible digital interface that is also used to read back the wiper register and EEPROM content. Resistor tolerance is also stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%.

A separate VLOGIC pin delivers increased interface flexibility. For users who need multiple parts on one bus, Address Bit AD0 and Address Bit AD1 allow up to four devices on the same bus

APPLICATIONS

  • LCD panel VCOM adjustment
  • LCD panel brightness and contrast control
  • Mechanical potentiometer replacement in new designs
  • Programmable power supplies
  • RF amplifier biasing
  • Automotive electronics adjustment
  • Gain control and offset adjustment
  • Fiber to the home systems
  • Electronics level settings

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

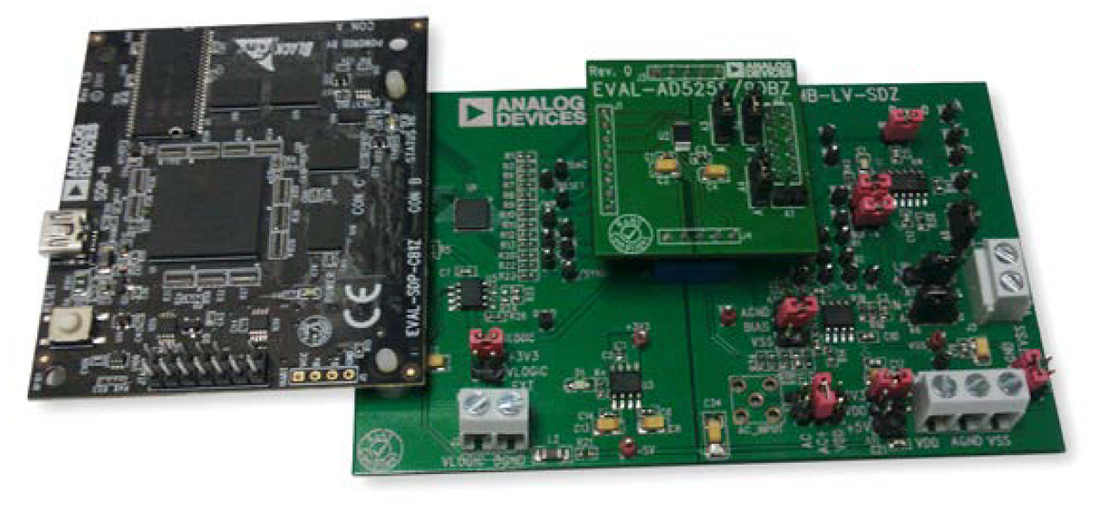

Evaluation Kits (1)
