AD7091

1 MSPS, Ultralow Power 12-Bit ADC in 8-Lead LFCSP

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $1.97
Features
  • Fast throughput rate: 1 MSPS
  • Specified for VDD of 2.09 V to 5.25 V
  • INL of ±1 LSB maximum
  • Analog input range of 0 V to VDD
  • Ultralow power
    367 µA typical at 3 V and 1 MSPS
    324 nA typical at 3 V in power-down mode
  • Reference provided by VDD
  • Flexible power/throughput rate management
  • High speed serial interface:
    SPI®-/QSPI-/MICROWIRE-/DSP-compatible
  • Busy indicator
  • Power-down mode

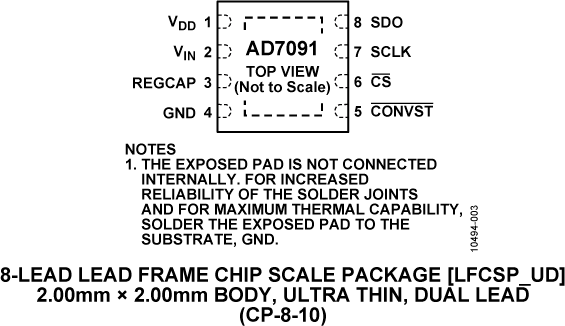

  • 8-lead, 2 mm × 2 mm LFCSP package
  • Temperature range: −40°C to +125°C
Additional Details
show more Icon

The AD7091 is a 12-bit successive approximation register analog-to-digital converter (SAR ADC) that offers ultralow power consumption (typically 367 μA at 3 V and 1 MSPS) while achieving fast throughput rates (1 MSPS with a 50 MHz SCLK). The AD7091 operates from a single 2.09 V to 5.25 V power supply. The AD7091 also features an on-chip conversion clock and a high speed serial interface.

The conversion process and data acquisition are controlled using a CONVST signal and an internal oscillator. The AD7091 has a serial interface that allows data to be read after the conversion while achieving a 1 MSPS throughput rate. The AD7091 uses advanced design and process techniques to achieve very low power dissipation at high throughput rates.

The reference is derived internally from VDD. This design allows the widest dynamic input range to the ADC; that is, the analog input range for the AD7091 is from 0 V to VDD.

PRODUCT HIGHLIGHTS

  1. Lowest power 12-bit SAR ADC available.
  2. High Throughput Rate with Ultralow Power Consumption.
  3. Flexible Power/Throughput Rate Management.
    Average power scales with the throughput rate. Power-down mode allows the average power consumption to be reduced when the device is not performing a conversion.
  4. Reference Derived from the Power Supply.
  5. Single Supply Operation.

APPLICATIONS

  • Battery-powered systems
    Handheld meters
    Medical instruments
    Mobile communications
  • Instrumentation and control systems
  • Data acquisition systems
  • Optical sensors
  • Diagnostic/monitoring functions
  • Energy harvesting
Part Models 2
1ku List Price Starting From $1.97

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD7091BCPZ-RL
  • HTML
  • HTML
AD7091BCPZ-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

Oct 18, 2016

- 16_0036

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

May 31, 2016

- 16_0039

AD7091 and AD7091R Die Revision and AD7091R Specification Change

Aug 6, 2014

- 13_0244

Assembly and Test Transfer of Select 2x2 and 1.6x1.6 mm Mini-LFCSP Products to STATS ChipPAC China

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

Oct 18, 2016

- 16_0036

arrow down

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

May 31, 2016

- 16_0039

arrow down

AD7091 and AD7091R Die Revision and AD7091R Specification Change

Aug 6, 2014

- 13_0244

arrow down

Assembly and Test Transfer of Select 2x2 and 1.6x1.6 mm Mini-LFCSP Products to STATS ChipPAC China

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

EVAL-AD7091

AD7091 Evaluation Board

zoom

EVAL-AD7091

AD7091 Evaluation Board

AD7091 Evaluation Board

Product Detail

The EVAL-AD7091SDZ is a fully featured evaluation kit for the AD7091. This board operates in stand alone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z . When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the System Development Platform . When operated in standalone mode the ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.

The SDP Controller board is a separate list item in the ordering guide below (EVAL-SDP-CB1Z). If you have not previously purchased an SDP Controller board, please do so to ensure a full evaluation setup.

EVAL-AD7091R

AD7091R Evaluation Board

zoom

EVAL-AD7091R

AD7091R Evaluation Board

AD7091R Evaluation Board

Product Detail

The EVAL-AD7091RSDZ is a fully featured evaluation kit for the AD7091R. This board operates in stand alone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z . When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the System Development Platform . When operated in standalone mode the ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.


The SDP Controller board is a separate list item in the ordering guide below (EVAL-SDP-CB1Z). If you have not previously purchased an SDP Controller board, please do so to ensure a full evaluation setup.
