Features and Benefits
- 14-bit resolution - AD5556
- 16-bit resolution - AD5546
- 2- or 4-quadrant multiplying DAC
- ±1 LSB DNL
- ±1 LSB INL
- Operating supply voltage: 2.7 V to 5.5 V
- Low noise: 12 nV/√Hz
- Low power: IDD = 10 μA
- 0.5 µs Settling Time
- Built-in RFB Facilitates Voltage Conversion
- Built-in 4-quadrant resistors allow 0 V to –10 V,
0 V to +10 V, or ±10 V outputs
- 2 mA Full Scale Current ± 20%, with VREF = 10 V
- See data sheet for additional features
The AD5546 / AD5556 are precision 16-/14-bit, multiplying, low power, current output, parallel input D/A converters. They operate from a single 2.7 V to 5.5 V supply with ±10 V multi- plying references for 4-quadrant outputs. Built-in 4-quadrant resistors facilitate the resistance matching and temperature tracking that minimize the number of components needed for multiquadrant applications. The feedback resistor (RFB) simplifies the I-V conversion with an external buffer. The AD5546 / AD5556 are packaged in compact TSSOP-28 packages with operating temperatures from –40°C to +125°C.
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

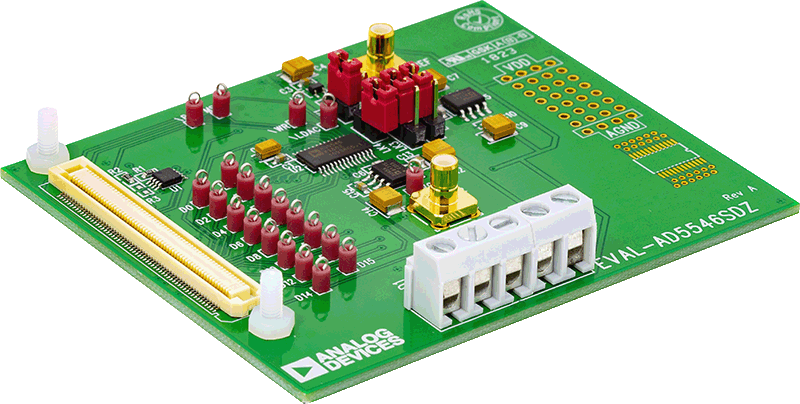

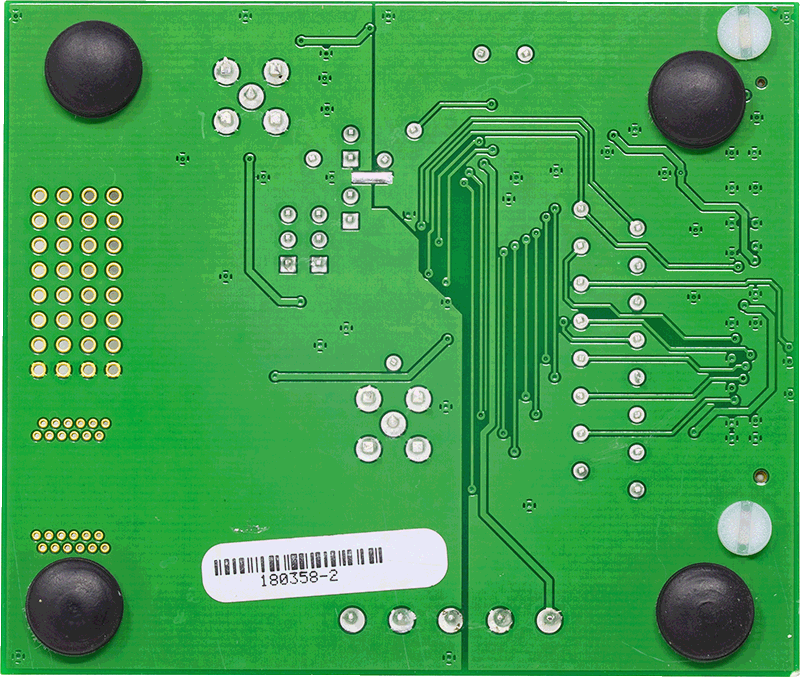

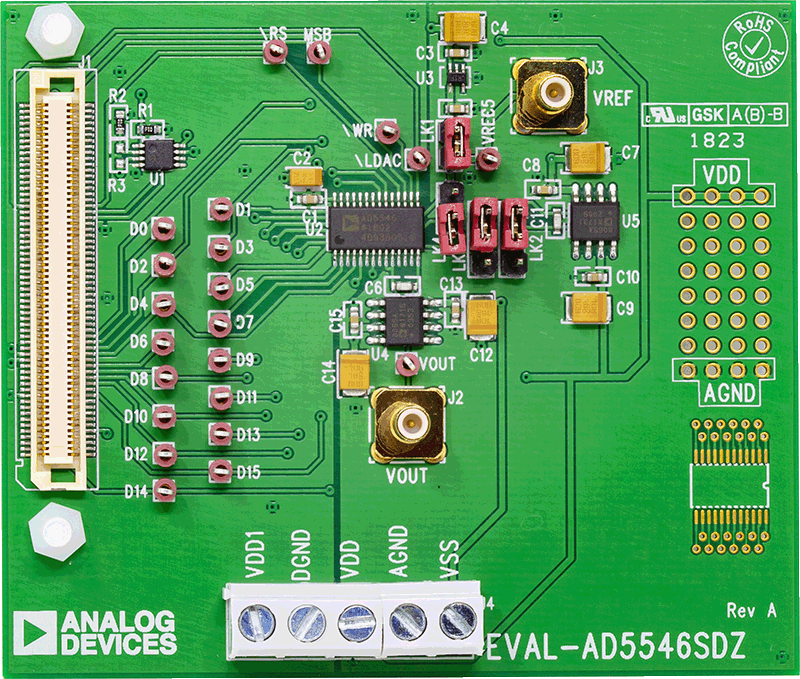

The Evaluation board for the AD5546 contains a SDP-B connection and software allowing the AD5546 to be controlled from a SDP-B board.
Documentation & Resources
AN-1488: Precision, AC Reference Signal Attenuator Using the AD5546/AD5556 Multiplying DAC (Rev. A)12/21/201779 K
AN-1486: Precision, Unipolar, Noninverting Configuration for the AD5546/AD5556 DAC (Rev. C)11/24/2017100 K
AN-1487: Precision, Bipolar Configuration for the AD5546/AD5556 DAC (Rev. C)11/21/201796K
AN-1426: Precision, Unipolar, Inverting Conversion Using the AD5546/AD5556 DAC (Rev. B)12/1/201699K
AN-912: Driving a Center-Tapped Transformer with a Balanced Current-Output DAC (Rev. 0)5/21/2007246 kB
AN-320A: CMOS Multiplying DACs and Op Amps Combine to Build Programmable Gain Amplifier, Part 110/15/20041295 kB
AN-137: A Digitally Programmable Gain and Attenuation Amplifier Design9/26/200252 kB
Multiplying DACs Flexible Building Blocks11/30/20152 M
Digital to Analog Converters ICs Solutions Bulletin, Volume 11, Issue 511/9/2011
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
AD5556 Companion Parts
Recommended Voltage References
- For a 10V reference: ADR01.
- For a 2.5V reference: ADR421, ADR4525.
- For a 5V reference: ADR435, ADR4550.
Recommended Output Amplifiers
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|AD5556CRUZ||Material Declaration||Reliability Data||28-Lead TSSOP (4.4mm x 9.7mm)|
|Wafer Fabrication Data|
