ADA4528-1

Precision, Ultralow Noise, RRIO, Zero-Drift Single Op Amp

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.F)
Documentation View All Documentation
SPICE Model ADA4528 SPICE Macro Model Download 3.11 KB LTspice ADA4528-1 - Operational Amplifiers (Op Amps) Download 1.42 KB
Part Models 6
1ku List Price Starting From $1.21
Features
  • Low offset voltage: 2.5 μV maximum
  • Low offset voltage drift: 0.015 μV/°C maximum
  • Low noise
    • 5.6 nV/√Hz at f = 1 kHz, AV = +100
    • 97 nV p-p at f = 0.1 Hz to 10 Hz, AV = +100
  • Open-loop gain: 130 dB minimum
  • CMRR: 135 dB minimum
  • PSRR: 130 dB minimum
  • Unity-gain crossover: 4 MHz
  • Gain bandwidth product: 3 MHz at AV = +100
  • −3 dB closed-loop bandwidth: 6.2 MHz
  • Single-supply operation: 2.2 V to 5.5 V
  • Dual-supply operation: ±1.1 V to ±2.75 V
  • Rail-to-rail input and output
  • Unity-gain stable
Additional Details
show more Icon

The ADA4528-1/ADA4528-2 are ultralow noise, zero-drift operational amplifiers featuring rail-to-rail input and output swing. With an offset voltage of 2.5 μV, offset voltage drift of 0.015 μV/°C, and typical noise of 97 nV p-p (0.1 Hz to 10 Hz, AV = +100), the ADA4528-1/ADA4528-2 are well suited for applications in which error sources cannot be tolerated.

The ADA4528-1/ADA4528-2 have a wide operating supply range of 2.2 V to 5.5 V, high gain, and excellent CMRR and PSRR specifications, which make it ideal for applications that require precision amplification of low level signals, such as position and pressure sensors, strain gages, and medical instrumentation.

The ADA4528-1/ADA4528-2 are specified over the extended industrial temperature range (−40°C to +125°C). The ADA4528-1 and ADA4528-2 are available in 8-lead MSOP and 8-lead LFCSP packages.

For more information about the ADA4528-1/ADA4528-2, see the AN-1114 Application Note, Lowest Noise Zero-Drift Amplifier Has 5.6 nV/√Hz Voltage Noise Density.

Applications

  • Thermocouple/thermopile
  • Load cell and bridge transducers
  • Precision instrumentation
  • Electronic scales
  • Medical instrumentation
  • Handheld test equipment
Show More Arrow image
file View Data Sheet (Rev.F)
Documentation View All Documentation
SPICE Model ADA4528 SPICE Macro Model Download 3.11 KB LTspice ADA4528-1 - Operational Amplifiers (Op Amps) Download 1.42 KB
Part Models 6
1ku List Price Starting From $1.21
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADA4528-1

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Technical Articles
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 08/02/2012
English

ADA4528-1/ADA4528-2: Precision, Ultralow Noise, RRIO, Zero-Drift Op Amp Data Sheet (Rev.F)

Open PDF File

redirect
684.4 K
download

Download PDF

Technical Articles

2

PDF Vector

pdf

UPDATED 11/01/2010
English
MS-2066: Low Noise Signal Conditioning for Sensor-Based Circuits redirect icon

425 kB

download

Download PDF

PDF Vector

PDF

UPDATED 11/01/2010
Chinese
MS-2066：传感器电路的低噪声信号调理 redirect icon

1.12 M

download

Download PDF

Application Note

2

PDF Vector

HTML

UPDATED 07/24/2024
English
AN-1114: Lowest Noise Zero-Drift Amplifier Has 5.6 nV/√Hz Voltage Noise Density redirect icon

PDF Vector

HTML

UPDATED 08/05/2024
English
AN-1118: Calibrating a Single-Phase Energy Meter Based on the ADE7953 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

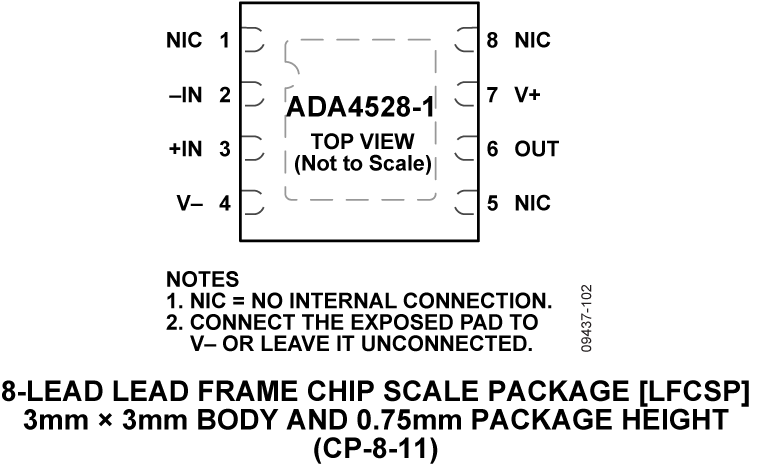

ADA4528-1ACPZ-R2 8-Lead LFCSP (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4528-1ACPZ-R7 8-Lead LFCSP (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4528-1ACPZ-RL 8-Lead LFCSP (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

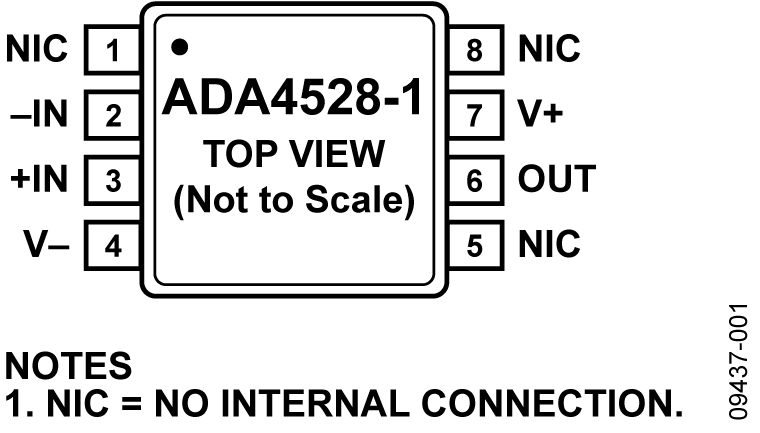

ADA4528-1ARMZ 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4528-1ARMZ-R7 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADA4528-1ARMZ-RL 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 6, 2014

- 13_0223

Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China

ADA4528-1ACPZ-R2

ADA4528-1ACPZ-R7

PRODUCTION

ADA4528-1ACPZ-RL

PRODUCTION

pdf

PCN13_0223_Form

external-icon

xls

Material_Report

Download

Detailed Change Description

pdf

Qualification Results Summary

external-icon

pdf

Test Correlation Report

external-icon

Feb 6, 2017

- 16_0234

Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.

ADA4528-1ACPZ-R7

PRODUCTION

ADA4528-1ACPZ-RL

PRODUCTION

pdf

PCN16_0234_Form

external-icon

xls

Material_Report

Download

Detailed Change Description

Detailed Change Description

pdf

Qualification Results Summary

external-icon

Test Correlation Report

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

ADA4528-1ARMZ-R7

PRODUCTION

pdf

PCN10_0006_Form

external-icon

xls

Material_Report

Download

Qualification Report Summary

Qualification Report Summary

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 6, 2014

- 13_0223

arrow down

Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China

ADA4528-1ACPZ-R2

ADA4528-1ACPZ-R7

PRODUCTION

ADA4528-1ACPZ-RL

PRODUCTION

pdf

PCN13_0223_Form

external-icon

xls

Material_Report

Download
Detailed Change Description

pdf

Qualification Results Summary

external-icon

pdf

Test Correlation Report

external-icon
Feb 6, 2017

- 16_0234

arrow down

Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.

ADA4528-1ACPZ-R7

PRODUCTION

ADA4528-1ACPZ-RL

PRODUCTION

pdf

PCN16_0234_Form

external-icon

xls

Material_Report

Download
Detailed Change Description
Detailed Change Description

pdf

Qualification Results Summary

external-icon
Test Correlation Report
May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

ADA4528-1ARMZ-R7

PRODUCTION

pdf

PCN10_0006_Form

external-icon

xls

Material_Report

Download
Qualification Report Summary
Qualification Report Summary

Software & Part Ecosystem

Evaluation Kits 2

reference details image

EVAL-CN0216-ARDZ

Arduino Compatible High Gain Weigh Scale Design (CN0216)

zoom

EVAL-CN0216-ARDZ

Arduino Compatible High Gain Weigh Scale Design (CN0216)

download icon

Download

 print icon

Print
EVAL-CN0216-ARDZ
Arduino Compatible High Gain Weigh Scale Design (CN0216)

Features and Benefits

  • Form Factor Compatible with Arduino
  • Usable for 4- or 6- wire sensors
  • High gain of 400, for wide bridge sensor ranges
  • Low power, single supply operation
Buy Now View Details

Product Detail

CN-0216 is a precision weigh scale signal conditioning system. It uses the AD7791, a low power buffered 24-bit sigma-delta ADC along with dual external ADA4528-1 zero-drift amplifiers. This solution allows for high dc gain with a single supply.

This circuit allows great flexibility in designing a custom low-level signal conditioning front end that gives the user the ability to easily optimize the overall transfer function of the combined sensor-amplifier-converter circuit.

Resources

pdf icon

ZIP

EVAL-CN0216-ARDZ Design & Integration Files Download

2.92 M

pdf icon

WIKI

CN0216 Shield Evaluation Board User Guide reference design link

Show More Arrow image

Software

pdf icon

ZIP

CN0216 C Project using ADICUP360 reference design link

pdf icon

ZIP

Example Projects using CN0216 reference design link

EVAL-OPAMP-1

EVAL-OPAMP-1 Evaluation Board

zoom

EVAL-OPAMP-1

EVAL-OPAMP-1 Evaluation Board

download icon

Download

 print icon

Print
EVAL-OPAMP-1
EVAL-OPAMP-1 Evaluation Board
Buy Now View Details

Product Detail

The Universal Precision Op Amp Evaluation Boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs Compliant. See references below on what board to order by lead count and package.

  • EVAL-PRAOPAMP-1KSZ (Single 5-Lead SC70) KS-5
  • EVAL-PRAOPAMP-1RJZ (Single 5-Lead SOT 23) RJ-5
  • EVAL-PRAOPAMP-1RMZ (Single 8-Lead MSOP) RM-8
  • EVAL-PRAOPAMP-1RZ (Single 8-Lead SOIC) R-8

Evaluation Kits2

evaluation kit item images

EVAL-CN0216-ARDZ

Arduino Compatible High Gain Weigh Scale Design (CN0216)

EVAL-OPAMP-1

EVAL-OPAMP-1 Evaluation Board

Tools & Simulations 5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

ADA4528-1 - Operational Amplifiers (Op Amps) Download

1.42 K

Reference Designs 4

Weigh Scale System Using the AD7791

CN0216

Precision Weigh Scale Design Using the AD7791 24-Bit Sigma-Delta ADC with External ADA4528-1 Zero-Drift Amplifiers

zoomopens a dialog

CN0216

Precision Weigh Scale Design Using the AD7791 24-Bit Sigma-Delta ADC with External ADA4528-1 Zero-Drift Amplifiers

download icon

Download

 print icon

Print
CN0216

Circuits from the lab

tooltip Info:Circuits from the lab
Precision Weigh Scale Design Using the AD7791 24-Bit Sigma-Delta ADC with External ADA4528-1 Zero-Drift Amplifiers

Features and Benefits

  • High gain of 400 using zero drift amps
  • Typical connection to weigh scales with low output signals
  • Performance metrics maintained through 120 Hz
  • Precision weigh scale application circuit
  • Low power and low noise
View Detailed Reference Design external link

Part Used 3

AD7791 reference design link

ADA4528-1 reference design link

ADP3301 reference design link

Resources

WIKI

AD7791 IIO Low Power Sigma-Delta ADC Linux Driver link icon

URL

ARM<sup>&reg;</sup>mbed Driver link icon

Show More Arrow image

Design & Integration Tools

pdf icon

zip

CN0216 Design & Integration Files link icon

2330 kB

Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Lock-In Amplifiers

CN0363

Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Digital Synchronous Detection

zoomopens a dialog

CN0363

Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Digital Synchronous Detection

download icon

Download

 print icon

Print
CN0363

Circuits from the lab

tooltip Info:Circuits from the lab
Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Digital Synchronous Detection

Features and Benefits

  • Dual channel RGB colorimeter
  • High sensitivity low noise transimpedance amplifier
  • Programmable gain TIA
  • Digital synchronous detection
View Detailed Reference Design external link

Part Used 9

AD7175-2 reference design link

ADA4528-1 reference design link

AD8615 reference design link

AD5201 reference design link

ADA4805-1 reference design link

ADG633 reference design link

ADG733 reference design link

ADG704 reference design link

ADG819 reference design link

Design & Integration Tools

pdf icon

ZIP

CN0363: Design and Integration Files link icon

4.42 M

NDIR Gas Sensing Circuit

CN0338

NDIR Thermopile-Based Gas Sensing Circuit

Dual Gas Sensor Simplified Schematic

CN0396

Dual Electrochemical Gas Sensor with Temperature Compensation

Reference Designs4

Weigh Scale System Using the AD7791

CN0216

Precision Weigh Scale Design Using the AD7791 24-Bit Sigma-Delta ADC with External ADA4528-1 Zero-Drift Amplifiers

Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Lock-In Amplifiers

CN0363

Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Digital Synchronous Detection

NDIR Gas Sensing Circuit

CN0338

NDIR Thermopile-Based Gas Sensing Circuit

Dual Gas Sensor Simplified Schematic

CN0396

Dual Electrochemical Gas Sensor with Temperature Compensation

Recently Viewed

Part Details
Documentation
Evaluation Kit
Tools & Simulations
Reference Designs
Latest Discussions
