Features and Benefits
- Offset voltage:
- 25 μV maximum at 25°C (B grade, 8-lead SOIC, single/ dual)
- 50 μV maximum at 25°C (A grade, 8-lead SOIC, single/ dual)
- 50 μV maximum at 25°C (A grade, 14-lead SOIC, quad)
- Offset voltage drift:
- 0.25 μV/°C maximum (B grade, 8-lead SOIC, single/dual)
- 0.55 μV/°C maximum (A grade, 8-lead SOIC, single/dual)
- 0.75 μV/°C maximum (A grade, 14-lead SOIC, quad)
- MSL1 rated
- Low input bias current: 1 nA maximum at TA = 25°C
- Low voltage noise density: 6.9 nV/√Hz typical at f = 1000 Hz
- CMRR, PSRR, and AV > 120 dB minimum
- Low supply current: 400 μA per amplifier typical
- Wide gain bandwidth product: 3.9 MHz at ±5 V
- Dual-supply operation:
- Specified at ±5 V to ±15 V
- Operates at ±2.5 V to ±15 V
- Unity gain stable
- No phase reversal
- Long-term offset voltage drift (10,000 hours): 0.5 μV typical
- Temperature hysteresis: 1 μV typical
ADA4077-EP supports defense and aerospace applications (AQEC standard)
- Download ADA4077-2-EP Data Sheet (pdf)
- Extended industrial temperature range: −55°C to +125°C
- Controlled manufacturing baseline
- 1 assembly/test site
- 1 fabrication site
- Product change notification
- Qualification data available upon request
- V62/17604 DSCC Drawing Number

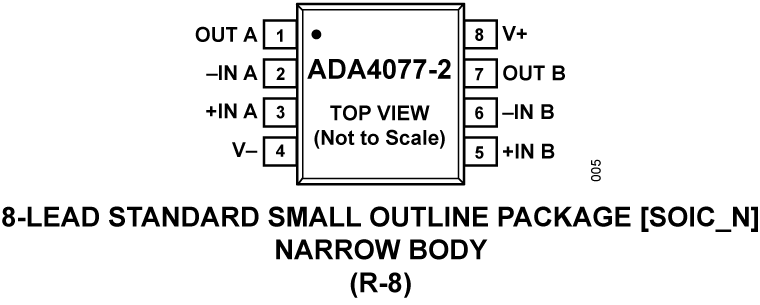

The single ADA4077-1, dual ADA4077-2, and quad ADA4077-4 amplifiers feature extremely low offset voltage and drift, and low input bias current, noise, and power consumption. Outputs are stable with capacitive loads of more than 1000 pF with no external compensation.
Applications for this amplifier include sensor signal conditioning (such as thermocouples, resistance temperature detectors (RTDs), strain gages), process control front-end amplifiers, and precision diode power measurement in optical and wireless transmission systems. The ADA4077-1/ADA4077-2/ADA4077-4 are useful in line powered and portable instrumentation, precision filters, and voltage or current measurement and level setting.
Unlike other amplifiers, the ADA4077-1/ADA4077-2/ADA4077-4 have an MSL1 rating that is compliant with the most stringent of assembly processes, and they are specified over the extended industrial temperature range from −40°C to +125°C for the most demanding operating environments.
- Process control front-end amplifiers
- Optical network control circuits
- Precision sensors and controls
- Precision filters
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.
- EVAL-PRAOPAMP-2CPZ (dual 8-lead LFCSP) CP-8
- EVAL-PRAOPAMP-2RMZ (dual 8-lead MSOP) RM-8
- EVAL-PRAOPAMP-2RZ (dual 8-lead SOIC) R-8
