AD8542

PRODUCTION

CMOS Rail-to-Rail General-Purpose Amplifiers

Data Sheet (Rev. H) Product Selection Table

Part Models: 7
1ku List Price: Starting From $0.47

Viewing:

Overview

Single-supply operation: 2.7 V to 5.5 V
Low supply current: 45 μA/amplifier
Wide bandwidth: 1 MHz
No phase reversal
Low input currents: 4 pA
Unity gain stable
Rail-to-rail input and output
AEC-Q100 qualified for automotive applications

The AD8541/AD8542/AD8544 are single, dual, and quad rail-to-rail input and output single-supply amplifiers featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. These parts provide 1 MHz bandwidth at a low current consumption of 45 μA per amplifier.

Very low input bias currents enable the AD8541/AD8542/AD8544 to be used for integrators, photodiode amplifiers, piezoelectric sensors, and other applications with high source impedance. The supply current is only 45 μA per amplifier, ideal for battery operation.

Rail-to-rail inputs and outputs are useful to designers buffering ASICs in single-supply systems. The AD8541/AD8542/AD8544 are optimized to maintain high gains at lower supply voltages, making them useful for active filters and gain stages.

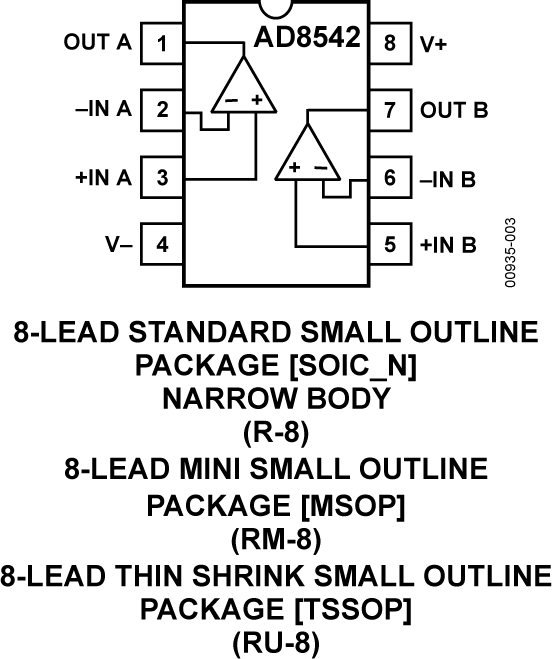

The AD8541/AD8542/AD8544 are specified over the extended industrial temperature range (–40°C to +125°C). The AD8541 is available in 8-lead SOIC, 5-lead SC70, and 5-lead SOT-23 packages. The AD8542 is available in 8-lead SOIC, 8-lead MSOP, and 8-lead TSSOP surface-mount packages. The AD8544 is available in 14-lead narrow SOIC and 14-lead TSSOP surface-mount packages. All MSOP, SC70, and SOT versions are available in tape and reel only.

Applications

ASIC input or output amplifiers

Sensor interfaces

Piezoelectric transducer amplifiers

Medical instrumentations

Mobile communications

Audio outputs

Portable systems

Data Sheet, Rev. F, 1/08

Part Models: 7
1ku List Price: Starting From $0.47

Documentation

Data Sheet 1

AD8541/AD8542/AD8544: CMOS Rail-to-Rail General-Purpose Amplifiers (Rev.H) 01/16/2024

Application Note 4

AN-357: Operational Integrators 02/14/2015

AN-581: Biasing and Decoupling Op Amps in Single Supply Applications 09/14/2023

AN-1583: High Precision, Low Power, Low Cost Pulse Oximeter Infrared and Red Current Sinks Using the ADA4505-2 10 μA, Zero Input, Crossover Distortion Op Amp, the ADR1581 Precision Shunt Voltage Reference, and the ADG1636 Dual SPDT Switches 03/07/2025

AN-938: Digital and Analog Measurement Units for Digital CMOS Microphone Preamplifier ASICs 12/01/2007

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8542ARMZ	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8542ARMZ-REEL	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8542ARUZ	8-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8542ARUZ-REEL	8-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8542ARZ	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8542ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8542ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
AD8542ARMZ	PRODUCTION
AD8542ARMZ-REEL	PRODUCTION
Jul 18, 2011 - 10_0133 AD8541, AD8542, and AD8544 Die Revision, limited BOM Changes to Halide Free, and limited Assembly Site changes to ASE Shanghai.
		PCN10_0133_Form Material_Report Qualification Report Summary Qualification Report Summary Detailed Change Description Qualification Report Summary
AD8542ARMZ	PRODUCTION
AD8542ARMZ-REEL	PRODUCTION
AD8542ARUZ	PRODUCTION
AD8542ARUZ-REEL	PRODUCTION
AD8542ARZ	PRODUCTION
AD8542ARZ-REEL	PRODUCTION
AD8542ARZ-REEL7	PRODUCTION
Aug 10, 2021 - 21_0035 Amkor Philippines as an Alternate Site for TSSOP_4.4
		PCN21_0035_Form Material_Report Qualification Results Summary Other
AD8542ARUZ	PRODUCTION
AD8542ARUZ-REEL	PRODUCTION
Jan 20, 2012 - 11_0218 Halogen Free Material Change for Certain TSSOP Products at Carsem
		PCN11_0218_Form Material_Report Qualification Report Summary
AD8542ARUZ	PRODUCTION
AD8542ARUZ-REEL	PRODUCTION
Jul 1, 2025 - 25_0162 Gold to Copper Wire Conversion
		PCN25_0162_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
AD8542ARZ	PRODUCTION
AD8542ARZ-REEL	PRODUCTION
AD8542ARZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

AD8542

Analog Photodiode Wizard

Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

Open Tool

Signal Chain Designer

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

SPICE Model 1

AD8542 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

EVAL-OPAMP-2 Evaluation Board

Buy Now View Details

Product Details

The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.
