AD5543

PRODUCTION

16-Bit DAC in µSOIC-8 Package

Data Sheet (Rev. H) Product Selection Table

Part Models: 6
1ku List Price: Starting From $11.04

Viewing:

Part Details

16-bit resolution
±1 LSB DNL
±1 LSB INL
Low noise: 12 nV/√Hz
Low power: I_DD = 10 μA
0.5 μs settling time
4-quadrant multiplying reference input
2 mA full-scale current ± 20%, with V_REF= 10 V
Built-in R_FB facilitates voltage conversion
3-wire interface
Ultracompact 8-lead MSOP and 8-lead SOIC packages

AD5543-EP supports defense and aerospace applications (AQEC standard)

Download AD5543-EP Data Sheet (pdf)
Military temperature range (−55°C to +125°C)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request

Part Models: 6
1ku List Price: Starting From $11.04

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD5543BRMZ	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD5543BRMZ-REEL7	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD5543BRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD5543CRMZ	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD5543CRMZ-REEL7	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD5543SRMZ-EP	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Jan 5, 2015 - 14_0246 Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
		PCN14_0246_Form Material_Report Detailed Change Description Qualification Results Summary
AD5543BRMZ	PRODUCTION
AD5543BRMZ-REEL7	PRODUCTION
AD5543CRMZ	PRODUCTION
AD5543CRMZ-REEL7	PRODUCTION
May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
AD5543BRMZ	PRODUCTION
AD5543BRMZ-REEL7	PRODUCTION
AD5543CRMZ	PRODUCTION
AD5543CRMZ-REEL7	PRODUCTION
Oct 28, 2011 - 11_0265 Metal Mask Change to the AD5543 B Grade Product
		PCN11_0265_Form Material_Report
AD5543BRMZ	PRODUCTION
AD5543BRMZ-REEL7	PRODUCTION
AD5543BRZ	PRODUCTION
May 14, 2010 - 10_0083 Addition of Polyimide layer for the AD5543, AD5545, AD5546 and AD5547 generics.
		PCN10_0083_Form Material_Report Reliability Report
AD5543BRMZ	PRODUCTION
AD5543BRMZ-REEL7	PRODUCTION
AD5543BRZ	PRODUCTION
AD5543CRMZ	PRODUCTION
AD5543CRMZ-REEL7	PRODUCTION
Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
AD5543BRMZ	PRODUCTION
AD5543BRMZ-REEL7	PRODUCTION
AD5543BRZ	PRODUCTION
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
AD5543BRMZ	PRODUCTION
AD5543BRMZ-REEL7	PRODUCTION
AD5543BRZ	PRODUCTION
Nov 23, 2010 - 10_0004 Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor
		PCN10_0004_Form Material_Report ADI0012 Reliability Report
AD5543BRZ	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

FPGA/HDL 2

Can't find the software or driver you need?

Tools & Simulations

Precision DAC Error Budget Tool

The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.

Open Tool

Evaluation Kits

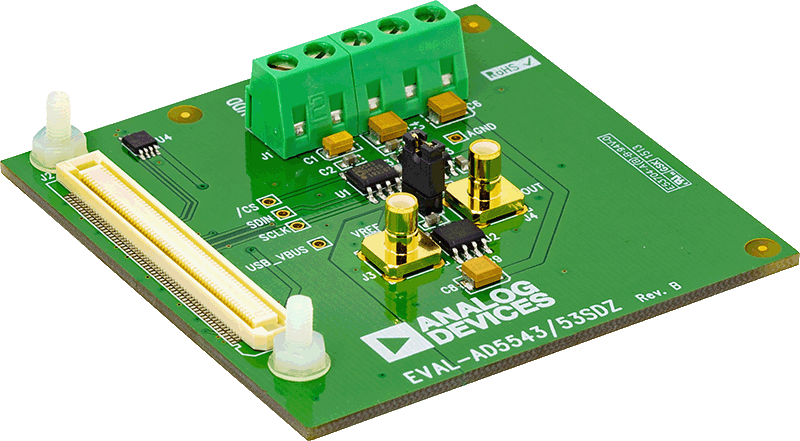

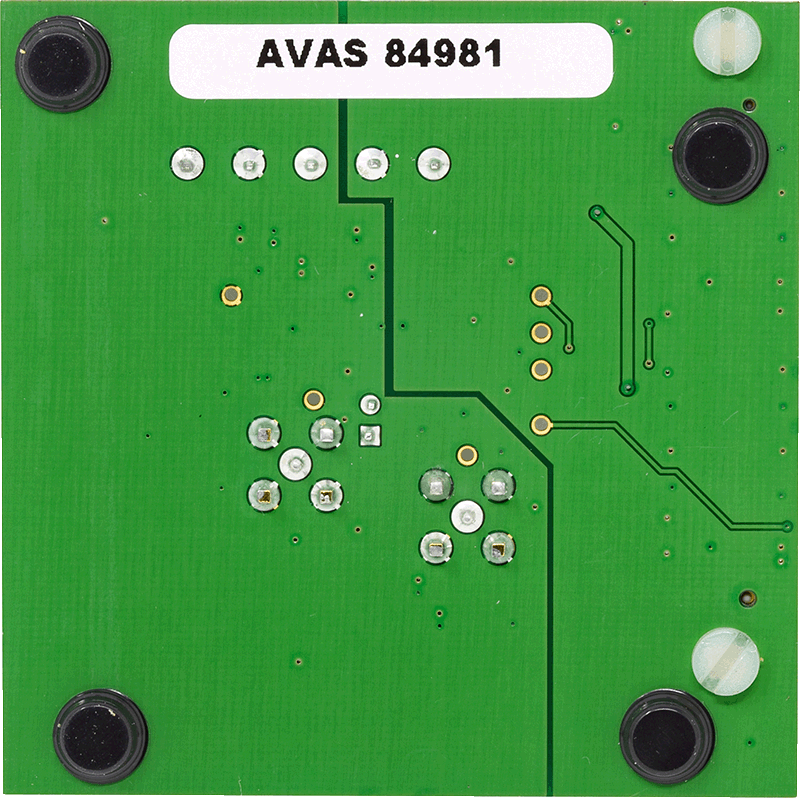

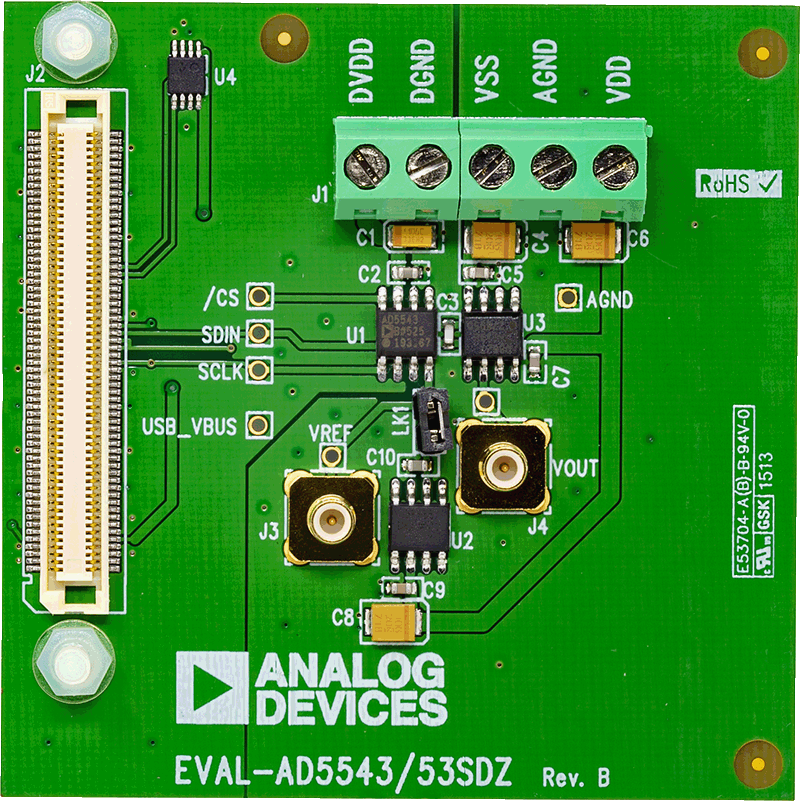

AD5543 Evaluation Board

Buy Now View Details

Features and Benefits

Full-featured evaluation board for the AD5543
Graphic user interface software for board control and data analysis
Connector to EVAL-SDP-CB1Z system development platform board
Various power supply options

Product Details

The AD5543 is a precision, 16-bit, low power, current output, small form factor, digital-to-analog converter (DAC). It is designed to operate from a single 5 V supply with a ±10 V multiplying reference. The applied external reference, V_REF, determines the full-scale output current. An internal feedback resistor (RFB) facilitates the R-2R and temperature tracking for voltage conversion when combined with an external op amp.

A serial data interface offers high speed, 3-wire, microcontrollercompatible inputs using serial data input (SDI), clock (CLK), and chip select (CS).

The AD5543 is packaged in ultracompact (3 mm × 4.7 mm) 8-lead MSOP and 8-lead SOIC packages. The EVAL-AD5543 board is used in conjunction with the EVAL-SDP-CB1Z system development platform (SDP) board available from Analog Devices, Inc., which is purchased separately from the evaluation board. The USB-to-SPI communication to the AD5543 is completed using this Blackfin^®-based development board. The software offers a waveform generator.

The EVAL-AD5543 can also be used for the AD5553 by changing the number of bits written (14 bits) in the input.
