Features
- 3-Bit Digital Gain Control in Three Gain-Code Options
- Rail-to-Rail Input Range
- Rail-to-Rail Output Swing
- Single or Dual Supply: 2.7V to 10.5V Total
- 11MHz Gain Bandwidth Product
- Input Noise Down to 8nV/√Hz
- System Dynamic Range to 120dB
- Input Offset Voltage: 1.5mV
- 8-Pin Low Profile (1mm) SOT-23 (ThinSOT™) Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC6910 family are low noise digitally programmable gain amplifiers (PGAs) that are easy to use and occupy very little PC board space. The inverting gain is adjustable using a 3-bit digital input to select gains of 0, 1, 2, 5, 10, 20, 50 and 100V/V in the LTC6910-1; 0, 1, 2, 4, 8, 16, 32 and 64V/V in the LTC6910-2; and 0, 1, 2, 3, 4, 5,6 and 7V/V in the LTC6910-3.
The LTC6910-Xs are inverting amplifiers with rail-to-rail output. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V, the LTC6910-X family is offered in an 8-lead SOT-23 package.
Applications
- Data Acquisition Systems
- Dynamic Gain Changing
- Automatic Ranging Circuits
- Automatic Gain Control
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC6910
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
Data Sheet
-
User Guide
-
Design Note
-
All
-
English
-
Japanese
Data Sheet
2
Reliability Data
1
32.68 K
User Guide
1
202.00K
Design Note
1
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Design Note 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
- LTC6910-1CTS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-1CTS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-1HTS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-1HTS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-1ITS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-1ITS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-2CTS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-2CTS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-2HTS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-2HTS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-2ITS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-2ITS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-3CTS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-3CTS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-3HTS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-3HTS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-3ITS8#TRMPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC6910-3ITS8#TRPBF
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Precision Resistor Network1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Quad Matched Resistor Network |
|||
Evaluation Kits 3
DC566A-B
LTC6910-2CTS8 | Digitally Controlled Programmable-Gain Amplifier
Product Detail

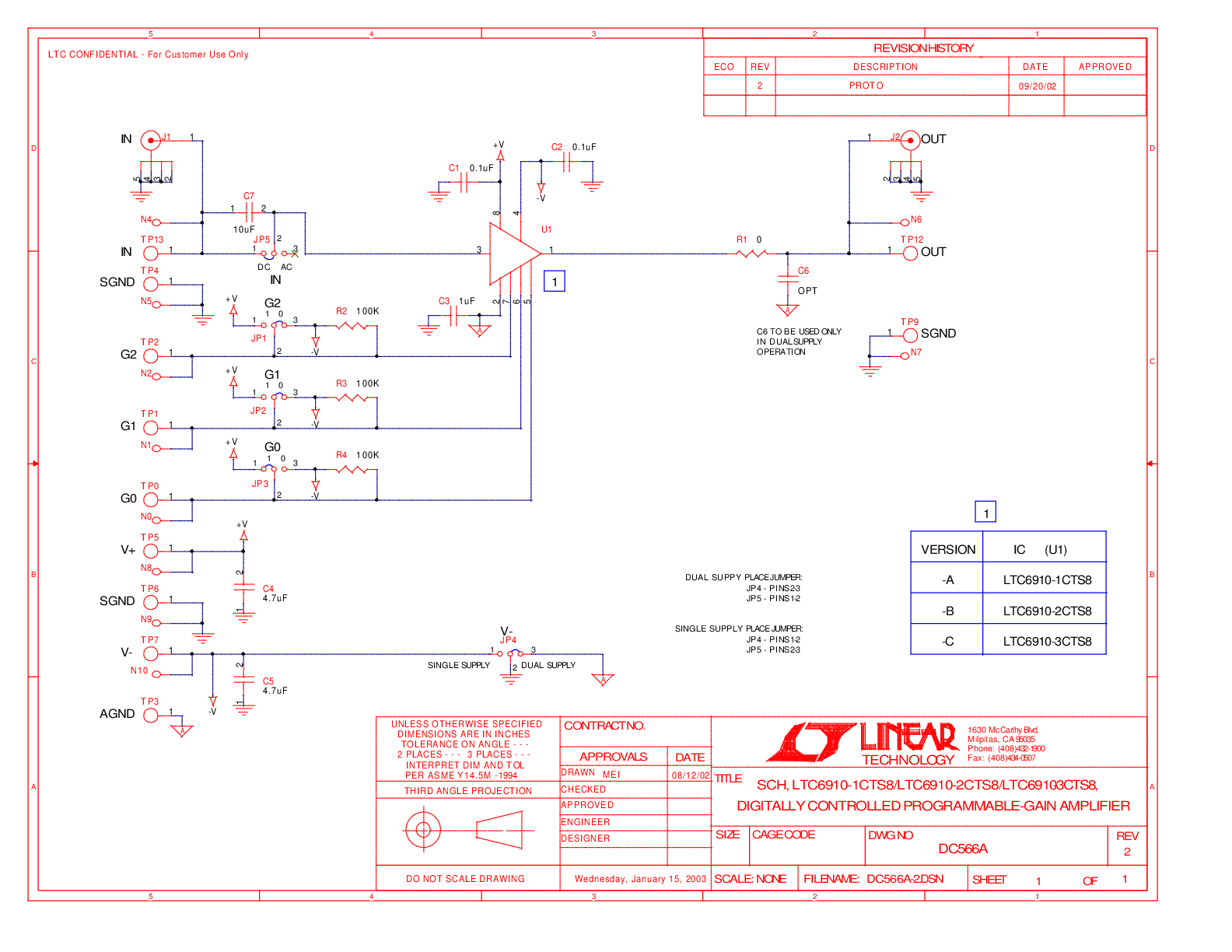

DC566A-B: Demo Board for the LTC6910 Digitally Controlled Programmable Gain Amplifiers in SOT-23.
Resources
DC566A-A
LTC6910-1CTS8 | Digitally Controlled Programmable-Gain Amplifier
Product Detail
DC566A-A: Demo Board for the LTC6910 Digitally Controlled Programmable Gain Amplifiers in SOT-23.
Resources
DC566A-C
LTC6910-3CTS8 | Digitally Controlled Programmable-Gain Amplifier
Product Detail
DC566A-C: Demo Board for the LTC6910 Digitally Controlled Programmable Gain Amplifiers in SOT-23.
Resources
Tools & Simulations 1
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Lt Spice
Reference Designs 1
CN0582
USB 3.0 Quad-Channel IEPE Vibration Sensor Measurement System
Circuits from the lab
Info:Circuits from the lab
Part Used 22
