ADP7142

40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 27
1ku List Price Starting From $1.29
Features
  • Low noise: 11 μV rms independent of fixed output voltage
  • PSRR of 88 dB at 10 kHz, 68 dB at 100 kHz, 50 dB at 1 MHz, VOUT ≤ 5 V, VIN = 7 V
  • Input voltage range: 2.7 V to 40 V
  • Maximum output current: 200 mA
  • Initial accuracy: ±0.8%
  • Accuracy over line, load, and temperature
    • −1.2% to +1.5%, TJ = −40°C to +85°C
    • ±1.8%, TJ = −40°C to +125°C
  • Low dropout voltage: 200 mV (typical) at a 200 mA load, VOUT = 5 V
  • User programmable soft start (LFCSP and SOIC only)
  • Low quiescent current, IGND = 50 μA (typical) with no load
  • Low shutdown current: 1.8 μA at VIN = 6 V, 3.0 μA at VIN = 40 V
  • Stable with a small 2.2 μF ceramic output capacitor
  • Fixed output voltage options: 1.8 V, 2.5 V, 3.3 V, 3.8 V, and 5.0 V
    • 15 standard voltages between 1.2 V and 5.0 V are available
  • Adjustable output from 1.2 V to VIN – VDO, output can be adjusted above initial set point
  • Precision enable
  • 2 mm × 2 mm, 6-lead LFCSP, 8-Lead SOIC, 5-Lead TSOT
  • AEC-Q100 qualified for automotive applications
Additional Details
show more Icon

The ADP7142 is a CMOS, low dropout (LDO) linear regulator that operates from 2.7 V to 40 V and provides up to 200 mA of output current. This high input voltage LDO is ideal for the regulation of high performance analog and mixed signal circuits operating from 39 V down to 1.2 V rails. Using an advanced proprietary architecture, the device provides high power supply rejection, low noise, and achieves excellent line and load transient response with a small 2.2 μF ceramic output capacitor. The ADP7142 regulator output noise is 11 μV rms independent of the output voltage for the fixed options of 5 V or less.

The ADP7142 is available in 15 fixed output voltage options. The following voltages are available from stock: 1.2 V (adjustable), 1.8 V, 2.5 V, 3.3 V, 3.8 V, and 5.0 V. Additional voltages available by special order are 1.5 V, 1.85 V, 2.0 V, 2.2 V, 2.75 V, 2.8 V, 2.85 V, 3.0 V, 4.2 V, and 4.6 V.

Each fixed output voltage can be adjusted above the initial set point with an external feedback divider. This allows the ADP7142 to provide an output voltage from 1.2 V to VIN − VDO with high PSRR and low noise.

User programmable soft start with an external capacitor is available in the LFCSP and SOIC packages.

The ADP7142 is available in a 6-lead, 2 mm × 2 mm LFCSP making it not only a very compact solution, but it also provides excellent thermal performance for applications requiring up to 200 mA of output current in a small, low profile footprint. The ADP7142 is also available in a 5-lead TSOT and an 8-lead SOIC.

APPLICATIONS

  • Regulation to noise sensitive applications
    • ADC, DAC circuits, precision amplifiers, power for VCO VTUNE control
  • Communications and infrastructure
  • Medical and healthcare
  • Industrial and instrumentation
  • Automotive
Part Models 27
1ku List Price Starting From $1.29

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP7142ACPZN-R7
  • HTML
  • HTML
ADP7142ACPZN1.8-R7
  • HTML
  • HTML
ADP7142ACPZN2.5-R7
  • HTML
  • HTML
ADP7142ACPZN3.3-R7
  • HTML
  • HTML
ADP7142ACPZN3.8-R7
  • HTML
  • HTML
ADP7142ACPZN5.0-R7
  • HTML
  • HTML
ADP7142ARDZ
  • HTML
  • HTML
ADP7142ARDZ-1.8
  • HTML
  • HTML
ADP7142ARDZ-1.8-R7
  • HTML
  • HTML
ADP7142ARDZ-2.5
  • HTML
  • HTML
ADP7142ARDZ-2.5-R7
  • HTML
  • HTML
ADP7142ARDZ-3.3
  • HTML
  • HTML
ADP7142ARDZ-3.3-R7
  • HTML
  • HTML
ADP7142ARDZ-5.0
  • HTML
  • HTML
ADP7142ARDZ-5.0-R7
  • HTML
  • HTML
ADP7142ARDZ-R7
  • HTML
  • HTML
ADP7142AUJZ-1.8-R7
  • HTML
  • HTML
ADP7142AUJZ-2.5-R7
  • HTML
  • HTML
ADP7142AUJZ-3.3-R7
  • HTML
  • HTML
ADP7142AUJZ-5.0-R7
  • HTML
  • HTML
ADP7142AUJZ-R2
  • HTML
  • HTML
ADP7142AUJZ-R7
  • HTML
  • HTML
ADP7142WAUJZ-1.8-R7
  • HTML
  • HTML
ADP7142WAUJZ-2.5-R7
  • HTML
  • HTML
ADP7142WAUJZ-3.3-R7
  • HTML
  • HTML
ADP7142WAUJZ-5.0-R7
  • HTML
  • HTML
ADP7142WAUJZ-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADP7142ACPZN-R7

PRODUCTION

ADP7142ACPZN1.8-R7

PRODUCTION

ADP7142ACPZN2.5-R7

PRODUCTION

ADP7142ACPZN3.3-R7

PRODUCTION

ADP7142ACPZN3.8-R7

PRODUCTION

ADP7142ACPZN5.0-R7

PRODUCTION

Oct 18, 2016

- 16_0036

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

ADP7142ACPZN-R7

PRODUCTION

ADP7142ACPZN1.8-R7

PRODUCTION

ADP7142ACPZN2.5-R7

PRODUCTION

ADP7142ACPZN3.3-R7

PRODUCTION

ADP7142ACPZN5.0-R7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADP7142ACPZN-R7

PRODUCTION

ADP7142ACPZN1.8-R7

PRODUCTION

ADP7142ACPZN2.5-R7

PRODUCTION

ADP7142ACPZN3.3-R7

PRODUCTION

ADP7142ACPZN3.8-R7

PRODUCTION

ADP7142ACPZN5.0-R7

PRODUCTION

Oct 18, 2016

- 16_0036

arrow down

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

ADP7142ACPZN-R7

PRODUCTION

ADP7142ACPZN1.8-R7

PRODUCTION

ADP7142ACPZN2.5-R7

PRODUCTION

ADP7142ACPZN3.3-R7

PRODUCTION

ADP7142ACPZN5.0-R7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

AD-FMCXMWBR1-EBZ

FMC X-Microwave Compatible Level Translator and Power Supply Kit

zoom

AD-FMCXMWBR1-EBZ

FMC X-Microwave Compatible Level Translator and Power Supply Kit

FMC X-Microwave Compatible Level Translator and Power Supply Kit

Features and Benefits

  • FMC-compatible form factor
  • Powered from FMC connector with external supply possibility
  • Provides level translation and various supply values
  • Compatible with RaspberryPi X-MW controller

Product Detail

The AD-FMCXMWBR1-EBZ is a level translator and power supply board, with FMC-compatible form factor. It is powered from the FMC connector, with the possibility to add an external supply, for application that require higher load currents. In this case, the external supply is prioritized.

AD-FMCXMWBR1-EBZ allows multiple level translated digital communications paths between a controller/FPGA device and X-MW blocks. The module provides multiple supply voltages with high current capability, that can be used to bias the X-MW blocks or other IC’s in a prototype design.

APPLICATIONS

  • RF and Microwave designs
  • Voltage level translation
  • General-purpose software radios
  • Radar systems
  • Point to point communication systems
  • Multiple input/multiple output (MIMO) radios
  • Automated test equipment
reference details image

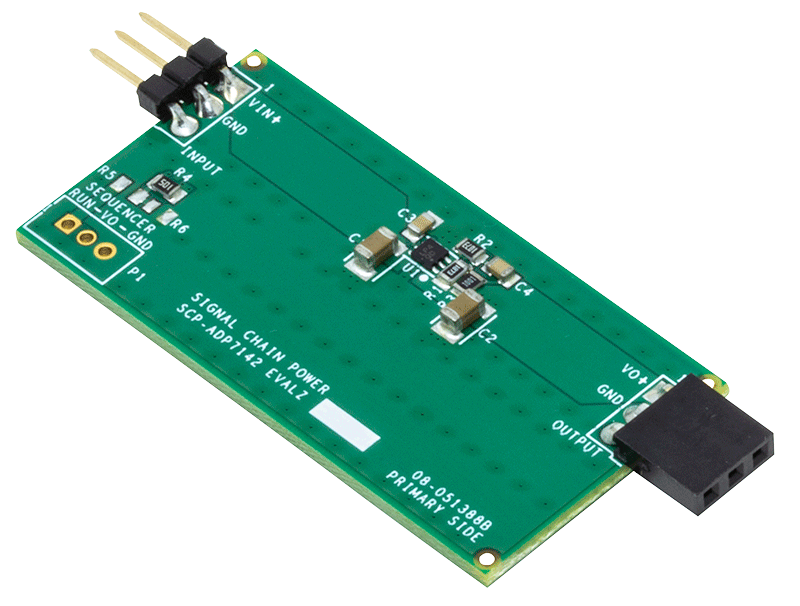

SCP-ADP7142-EVALZ

ADP7142 Signal Chain Evaluation Board | 200mA Low Noise Positive LDO

zoom

SCP-ADP7142-EVALZ

ADP7142 Signal Chain Evaluation Board | 200mA Low Noise Positive LDO

ADP7142 Signal Chain Evaluation Board | 200mA Low Noise Positive LDO

Product Detail

Demonstration circuit SCP-ADP7142-EVALZ is a 40V, 200mA low dropout (LDO) regulator designed to allow low noise operation in noise sensitive circuits. It is easily con-figured for a wide output range and can provide extremely quiet operation with its high PSRR.

Like all boards in the Signal Chain Power series, this board is designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains. To evaluate this board, some universal SCP hardware is required, namely:

  • SCP-INPUT-EVALZ
  • SCP-OUTPUT-EVALZ
  • SCP-1X5BKOUT-EVALZ
  • SCP-FILTER-EVALZ
  • SCP-1X2BKOUT-EVALZ
  • SCP-5X1-EVALZ
  • SCP-THRUBRD-EVALZ



To properly evaluate SCP series demo boards, you will need the SCP Configurator companion software. SCP Configurator can help you choose the right board and topology for your design.

Note that the Demo Manual does not cover details important to the operation and configuration regarding the ADP7142. Please refer to the ADP7142 datasheet for a complete description of the part.

reference details image

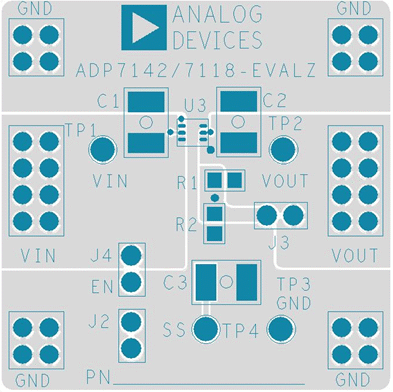

EVAL-ADP7118

ADP7118/ADP7142 Evaluation Board

zoom

EVAL-ADP7118

ADP7118/ADP7142 Evaluation Board

ADP7118/ADP7142 Evaluation Board

Features and Benefits

  • Input voltage range: 2.7 V to 20 V (40V for ADP7142)
  • Output current range: 0 mA to 200 mA
  • Output voltage accuracy: ±0.8 %
  • Operating temperature range: −40°C to +125°C
  • Adjustable option voltage set with two external resistors VOUT = 1.2 V × (1 + R1/R2)

Product Detail

The ADP7118/ADP7142 evaluation board is used to demonstrate the functionality of the ADP7118/ADP7142 series of linear regulators.

Simple device measurements such as line and load regulation, dropout, and ground current can be demonstrated with just a single voltage source, a voltmeter, an ammeter, and load resistors.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Reference Designs

Reference Designs 3

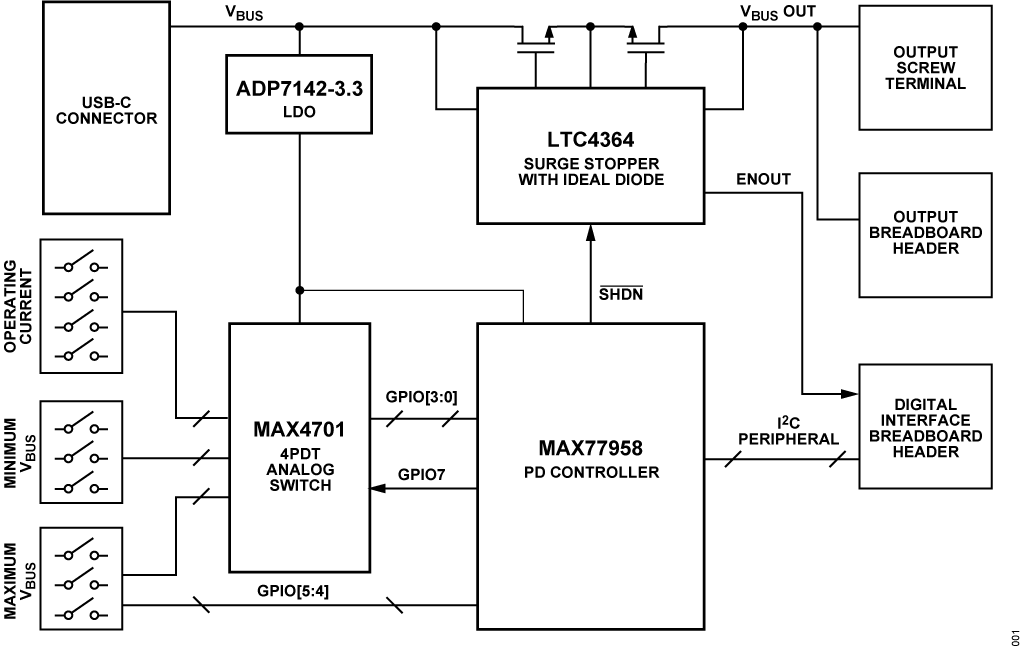

Figure 1. CN0581 Simplified Block Diagram
