  5. ADG839


Features and Benefits

  • 1.65 V to 3.6 V Operation
  • Ultralow on resistance:
    0.35 Ω Typical
    0.5 Ω Max at 2.7 V Supply
  • Excellent Audio Performance, Ultralow Distortion:
    0.055 Ω Typical
    0.09 Ω Max RON Flatness
  • High Current Carrying Capability:
    300 mA Continuous
    500 mA Peak Current at 3.3 V
  • Automotive Temperature Range: –40°C to +125°C
  • Rail-to-rail Switching Operation
  • Typical Power Consumption (<0.1 µW)

Product Details

The ADG839 is a low voltage CMOS device containing a single-pole, double-throw (SPDT) switch. This device offers ultralow on resistance of less than 0.6 Ω over the full temperature range. The ADG839 is fully specified for 1.8 V, 2.5 V, and 3.3 V supply operation.

Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG839 exhibits break-before-make switching action.

The ADG839 is available in a 6-lead SC70 package.


  1. 0.6 Ω over full temperature range of –40°C to +125°C.
  2. Compatible with 1.8 V CMOS logic.
  3. High current handling capability (300 mA continuous current at 3.3 V).
  4. Low THD + N (0.01% typ).
  5. Tiny SC70 package.


  • Cellular phones
  • PDAs
  • MP3 players
  • Power routing
  • Battery-powered systems
  • PCMCIA cards
  • Modems
  • Audio and video signal routing
  • Communication systems

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

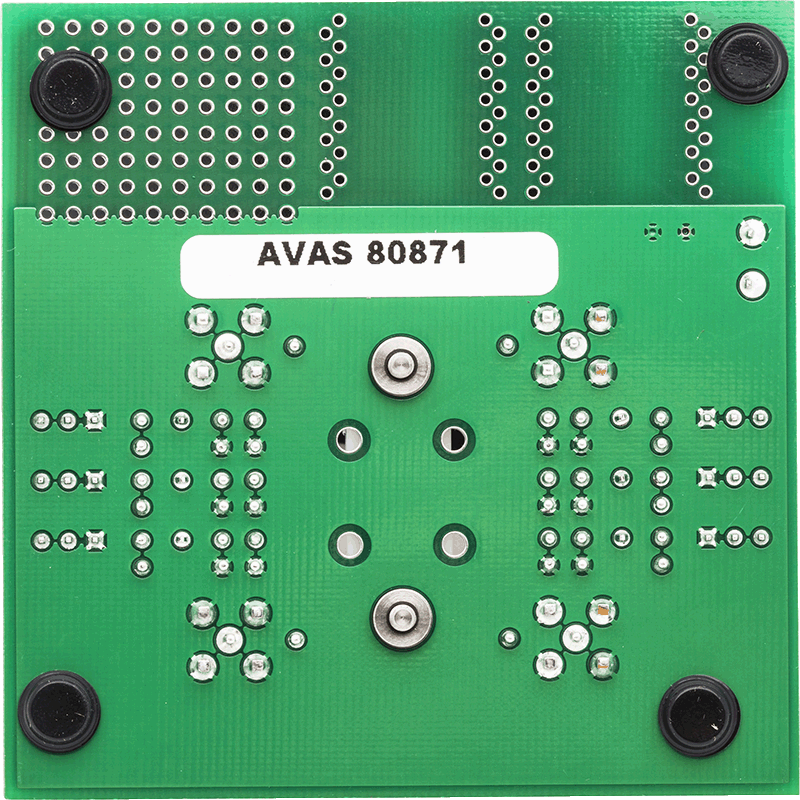

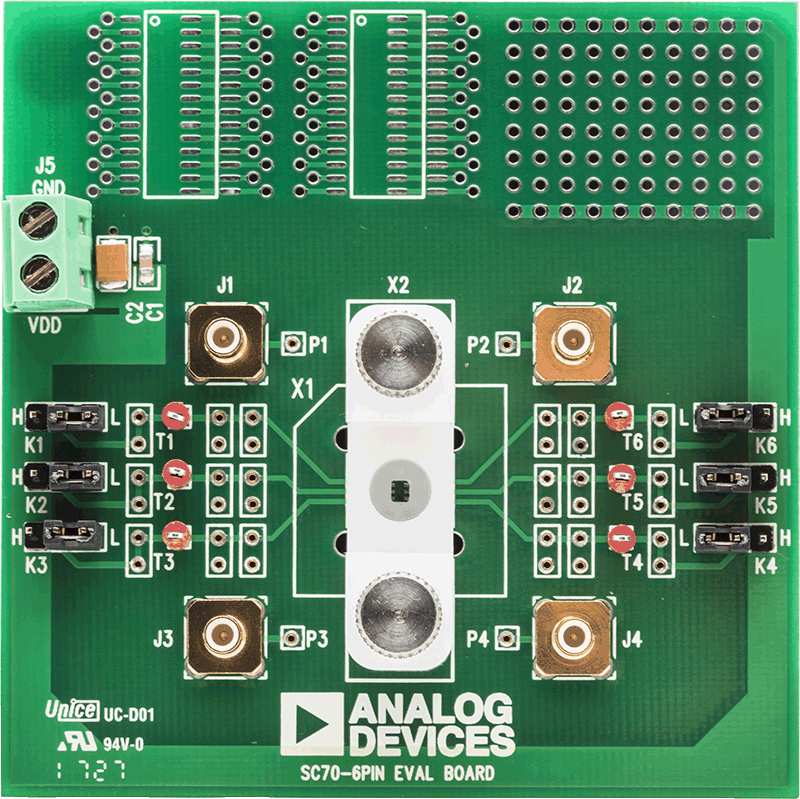

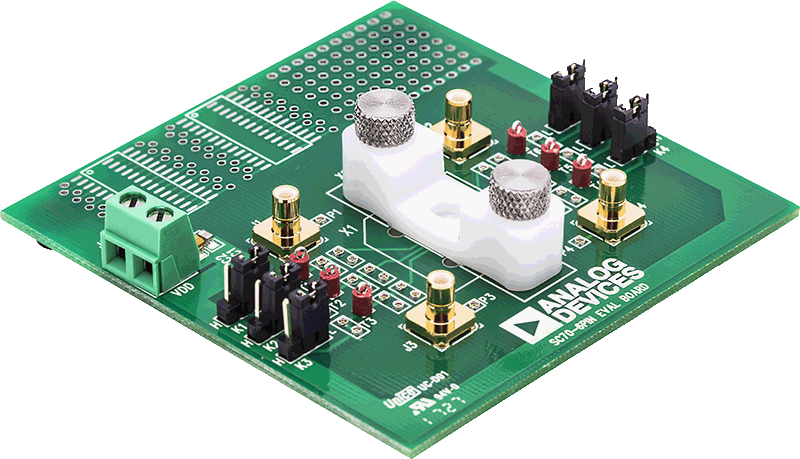

Evaluation Kits (1)
