AD9833

PRODUCTION

Low Power, 12.65 mW, 2.3 V to 5.5 V, Programmable Waveform Generator

Data Sheet (Rev. G) Product Selection Table

Part Models: 5
1ku List Price: Starting From $5.82

Viewing:

Overview

Digitally programmable frequency and phase
12.65 mW power consumption at 3 V
0 MHz to 12.5 MHz output frequency range
28-bit resolution: 0.1 Hz at 25 MHz reference clock
Sinusoidal, triangular, and square wave outputs
2.3 V to 5.5 V power supply
No external components required
3-wire SPI interface
Extended temperature range: −40°C to +105°C
Power-down option
10-lead MSOP package
AEC-Q100 qualified for automotive applications

AD9833-EP supports defense and aerospace applications (AQEC standard)

Download AD9833-EP data sheet (pdf)
Temperature range:
−55°C to +125°C
Controlled manufacturing baseline
1 assembly/test site
1 fabrication site
Enhanced product change notification
Qualification data available upon request
V62/14619-01XE DSCC Drawing Number

The AD9833 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, actuation, and time domain reflectometry (TDR) applications. The output frequency and phase are software programmable, allowing easy tuning. No external components are needed. The frequency registers are 28 bits wide: with a 25 MHz clock rate, resolution of 0.1 Hz can be achieved; with a 1 MHz clock rate, the AD9833 can be tuned to 0.004 Hz resolution.

The AD9833 is written to via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards. The device operates with a power supply from 2.3 V to 5.5 V.

The AD9833 has a power-down function (SLEEP). This function allows sections of the device that are not being used to be powered down, thus minimizing the current consumption of the part. For example, the DAC can be powered down when a clock output is being generated.

The AD9833 is available in a 10-lead MSOP package.

Applications

Frequency stimulus/waveform generation
Liquid and gas flow measurement
Sensory applications: proximity, motion, and defect detection
Line loss/attenuation
Test and medical equipment
Sweep/clock generators
Time domain reflectometry (TDR) applications

Part Models: 5
1ku List Price: Starting From $5.82

Documentation

Data Sheet 3

AD9833: Low Power, 12.65 mW, 2.3 V to 5.5 V, Programmable Waveform Generator Data Sheet (Rev.G) 04/10/2018

AD9833-EP: Enhanced Product Data Sheet (Rev.0) 09/30/2015

AD9833-DSCC: Military Data Sheet 09/30/2015

User Guide 1

UG-272: Evaluating the AD9833 Low Power 12.65 mW, 2.3 V to 5.5 V, Programmable Waveform Generator 04/27/2011

Application Note 24

AN-342: Analog Signal-Handling for High Speed and Accuracy 02/14/2015

AN-237: Choosing DACs for Direct Digital Synthesis 02/14/2015

AN-847: Measuring a Grounded Impedance Profile Using the AD5933 (Rev.A) 06/20/2006

AN-280: Mixed Signal Circuit Technologies 02/14/2015

AN-843: Measuring a Loudspeaker Impedance Profile Using the AD5933 (Rev.A) 06/27/2007

AN-851: A WiMax Double Downconversion IF Sampling Receiver Design (Rev.0) 07/26/2006

AN-419: A Discrete, Low Phase Noise, 125 MHz Crystal Oscillator for the AD9850 02/14/2015

AN-769: Generating Multiple Clock Outputs from the AD9540 (Rev.0) 02/14/2015

AN-823: Direct Digital Synthesizers in Clocking Applications Time (Rev.0) 02/14/2015

AN-345: Grounding for Low-and-High-Frequency Circuits 02/14/2015

AN-543: High Quality, All-Digital RF Frequency Modulation Generation with the ADSP-2181 and the AD9850 DDS 09/12/2002
- AN-543 - Monaural FM Transmitter
- AN-543 - Stereo FM Transmitter

AN-927: Determining if a Spur is Related to the DDS/DAC or to Some Other Source (For Example, Switching Supplies) (Rev.0) 02/14/2015

AN-632: Provisionary Data Rates Using the AD9951 DDS as an Agile Reference Clock for the ADN2812 Continuous-Rate CDR (Rev.0) 09/25/2003

AN-587: Synchronizing Multiple AD9850/AD9851 DDS-Based Synthesizers (Rev.0) 02/14/2015

AN-605: Synchronizing Multiple AD9852 DDS-Based Synthesizers (Rev.0) 02/14/2015

AN-423: Amplitude Modulation of the AD9850 Direct Digital Synthesizer 08/06/2023

AN-953: Direct Digital Synthesis (DDS) with a Programmable Modulus 12/01/2014

AN-1248: SPI Interface 09/01/2015

AN-939: Super-Nyquist Operation of the AD9912 Yields a High RF Output Signal 02/03/2025

AN-1044: Programming the AD5932 for Frequency Sweep and Single Frequency Outputs 11/01/2010

AN-772: A Design and Manufacturing Guide for the Lead Frame Chip Scale Package (LFCSP) 02/01/2006

AN-557: An Experimenter’s Project for Incorporating the AD9850 Complete-DDS Device as a Digital LO Function in an Amateur Radio Transceiver* 11/05/2020

AN-769: Generating Multiple Clock Outputs from the AD9540 10/30/2020

AN-1070: Programming the AD9833/AD9834 03/01/2010

Technical Articles 21

The Year of the Waveform Generator 12/01/2005

Speedy A/Ds Demand Stable Clocks 03/22/2004

Synchronized Synthesizers Aid Multichannel Systems 09/20/2005

Simple Circuit Controls Stepper Motors 01/08/2004

Integrated DDS Chip Takes Steps To 2.7 GHz 04/28/2004

Improved DDS Devices Enable Advanced Comm Systems 09/01/2006

DDS Simplifies Polar Modulation 08/05/2004

DDS IC Plus Frequency-To-Voltage Converter Make Low-Cost DAC 02/05/2004

DDS Device Provides Amplitude Modulation 09/02/1999

DDS Applications 09/26/2005

DDS Design 05/13/2004

Digital Potentiometers Vary Amplitude In DDS Devices 05/29/2000

Digital Waveform Generator Provides Flexible Frequency Tuning for Sensor Measurement 12/07/2004

DDS Circuit Generates Precise PWM Waveforms 10/02/2003

DDS Device Produces Sawtooth Waveform 07/10/2003

DDS IC Initiates Synchronized Signals 07/20/2005

Video Portables and Cameras Get HDMI Outputs 04/13/2007

Two DDS ICs Implement Amplitude-shift Keying 12/25/2003

ADI Buys Korean Mobile TV Chip Maker 06/07/2006

400-MSample DDSs Run On Only +1.8 VDC 12/01/2002

Basics of Designing a Digital Radio Receiver (Radio 101) 03/06/1998

Product Highlight 1

Introducing Digital Up/Down Converters: VersaCOMM™ Reconfigurable Digital Converters 03/08/2008

Frequently Asked Question 1

FAQ 12/31/2017

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD9833BRMZ	10 ld MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD9833BRMZ-REEL	10 ld MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD9833BRMZ-REEL7	10 ld MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD9833SRMZ-EP-RL7	10 ld MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD9833WBRMZ-REEL	10 ld MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
AD9833BRMZ	PRODUCTION
AD9833BRMZ-REEL	PRODUCTION
AD9833BRMZ-REEL7	PRODUCTION
AD9833WBRMZ-REEL	PRODUCTION
Nov 1, 2010 - 10_0303 AD9833 Datasheet Correction
		PCN10_0303_Form Material_Report Revised Datasheet Specification
AD9833BRMZ	PRODUCTION
AD9833BRMZ-REEL	PRODUCTION
AD9833BRMZ-REEL7	PRODUCTION
AD9833WBRMZ-REEL	PRODUCTION
Aug 25, 2009 - 09_0165 Test transfer of AD7683,AD7684, AD7685, AD7686, AD7942 and AD9833 from StatsChipPac Singapore (SCS) to Carsem Malaysia (CRS)
		Material_Report PCN09_0165_Form Qual Plan for PCN 09-0165
AD9833BRMZ	PRODUCTION
AD9833BRMZ-REEL	PRODUCTION
AD9833BRMZ-REEL7	PRODUCTION
Apr 3, 2019 - 19_0017 AD9833WBRMZ-REEL Assembly Site Transfer and Datasheet Specification Change
		PCN19_0017_Form Material_Report Other Delta Qualification Matrix Qualification Results Summary
AD9833WBRMZ-REEL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

FPGA/HDL 2

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
AD9837	PRODUCTION	Low Power, 8.5 mW, 2.3 V to 5.5 V, Programmable Waveform Generator
AD9838	PRODUCTION	11 mW Power, 2.3 V to 5.5 V, Complete DDS

Tools & Simulations

ADIsimDDS (Direct Digital Synthesis)

ADIsimDDS uses mathematical equations to model and illustrate the overall performance of the selected device. ADIsimDDS calculates the required FTW, given the reference clock frequency and desired output frequency. This tool also models an estimate of the overall spectral performance, and allows the user to explore the effects of external reconstruction filters.

IBIS Model 1

AD9833 IBIS Model

Evaluation Kits

schematic 1

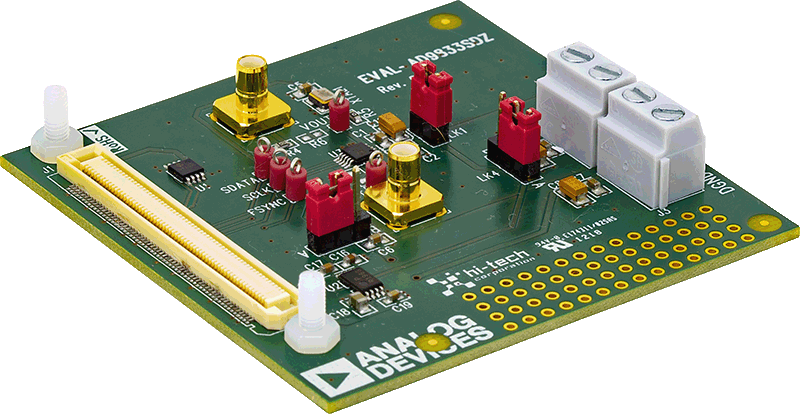

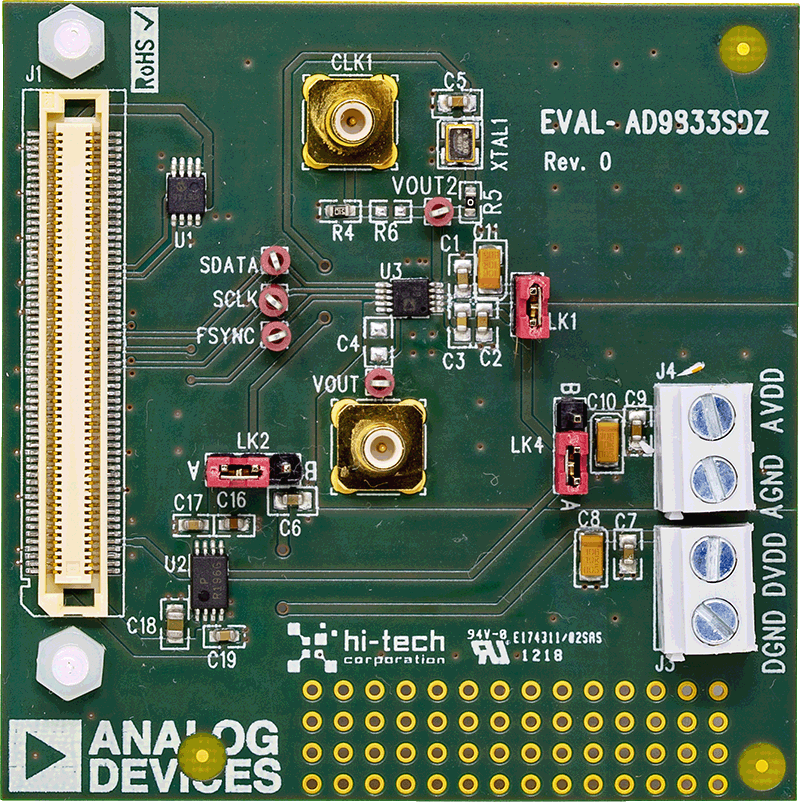

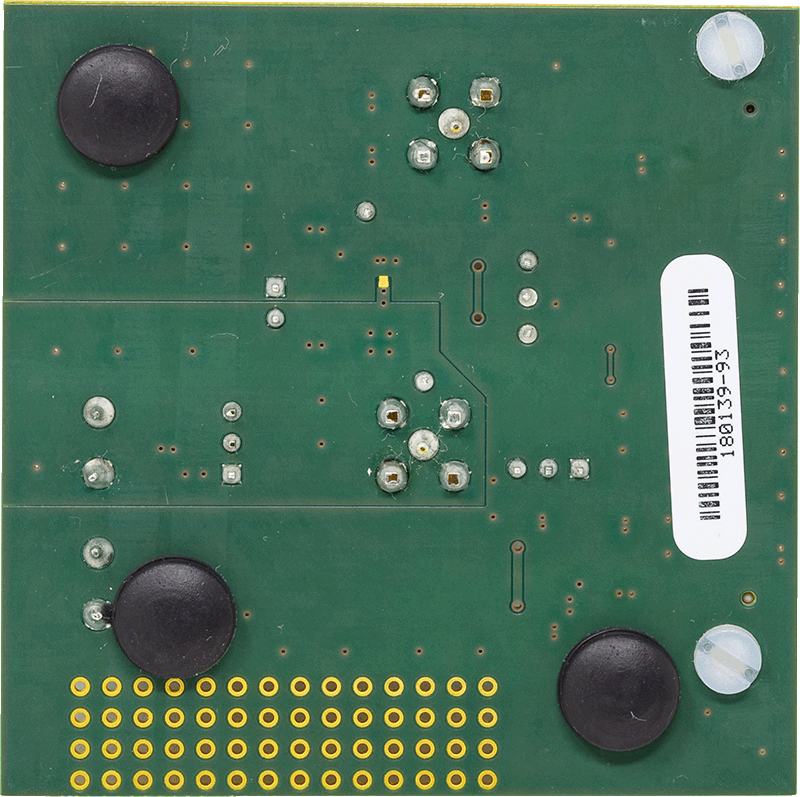

AD9833 Evaluation Board

Buy Now View Details

Product Details

The Evaluation board for the AD9833 contains a SDP-B connection and software allowing the AD9833 to be controlled from a SDP-B board.

Resources

UG-272: Evaluating the AD9833 Low Power 12.65 mW, 2.3 V to 5.5 V, Programmable Waveform Generator
4/27/2011

AD983x GitHub no-OS Driver Source Code
12/20/2012

Software

AD9833 Evaluation Software (Rev.B)
576.37 M

Reference Designs

Figure 1. CN0582 Simplified System Block Diagram

USB 3.0 Quad-Channel IEPE Vibration Sensor Measurement System

View Detailed Reference Design

Features and Benefits

4-Channels of Analog Input
IEPE, 4-20mA Sensor Compatible
Frequency Generator Output

Part Used

Design & Integration Tools

CN0582 Design Files
11.22 M
