AD5760

Ultra Stable 16-Bit ±0.5 LSB INL, Voltage Output DAC

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $10.54
Features
  • True 16-bit voltage output DAC, ±0.5 LSB INL
  • 8 nV/√Hz output noise spectral density
  • 0.00625 LSB long-term linearity error stability
  • ±0.018 ppm/°C gain error temperature coefficient
  • 2.5 µs output voltage settling time
  • 3.5 nV-sec midscale glitch impulse
  • Integrated precision reference buffers
  • Operating temperature range:
    −40°C to +125°C
  • 4mm x 5mm LFCSP package
  • Wide power supply range of up to ±16.5 V
  • 35 MHz Schmitt triggered digital interface
  • 1.8 V compatible digital interface
Additional Details
show more Icon

The AD5760 is a true 16-bit, unbuffered voltage out DAC that operates from a bipolar supply up to 33V. The AD5760 accepts a positive reference input in the range of 5V to VDD – 2.5V and a negative reference input in the range of VSS + 2.5v to 0V. The AD5760 offers relative accuracy of +/-0.5 LSB max and operation is guaranteed monotonic with a ±0.5 LSB DNL max range specification.

The part uses a versatile 3-wire serial interface that operates at clock rates of up to 35 MHz and is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0V in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides an output clamp feature that places the output in a defined load state.

PRODUCT HIGHLIGHTS

  1. True 16-Bit Accuracy.
  2. Wide Power Supply Range of Up to ±16.5 V.
  3. −40°C to +125°C Operating Temperature Range.
  4. Low 8 nV/√Hz Noise.
  5. Low 0.018 ppm/°C gain error temperature coefficient.

APPLICATIONS

  • Medical instrumentation
  • Test and measurement
  • Industrial control
  • Scientific and aerospace instrumentation
  • Data acquisition systems
  • Digital gain and offset adjustment
  • Power supply control
Part Models 4
1ku List Price Starting From $10.54

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5760ACPZ
  • HTML
  • HTML
AD5760ACPZ-REEL7
  • HTML
  • HTML
AD5760BCPZ
  • HTML
  • HTML
AD5760BCPZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 10, 2023

- 22_0142

Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

AD5760ACPZ

PRODUCTION

AD5760ACPZ-REEL7

PRODUCTION

AD5760BCPZ

PRODUCTION

AD5760BCPZ-REEL7

PRODUCTION

Jul 18, 2013

- 13_0159

AD5791/AD5791-EP/AD5781/AD5781-EP/AD5790/AD5780/AD5760 Datasheet Correction - Remove Daisy Chain Mode

AD5760ACPZ

PRODUCTION

AD5760ACPZ-REEL7

PRODUCTION

AD5760BCPZ

PRODUCTION

AD5760BCPZ-REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 10, 2023

- 22_0142

arrow down

Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

AD5760ACPZ

PRODUCTION

AD5760ACPZ-REEL7

PRODUCTION

AD5760BCPZ

PRODUCTION

AD5760BCPZ-REEL7

PRODUCTION

Jul 18, 2013

- 13_0159

arrow down

AD5791/AD5791-EP/AD5781/AD5781-EP/AD5790/AD5780/AD5760 Datasheet Correction - Remove Daisy Chain Mode

AD5760ACPZ

PRODUCTION

AD5760ACPZ-REEL7

PRODUCTION

AD5760BCPZ

PRODUCTION

AD5760BCPZ-REEL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

reference details image

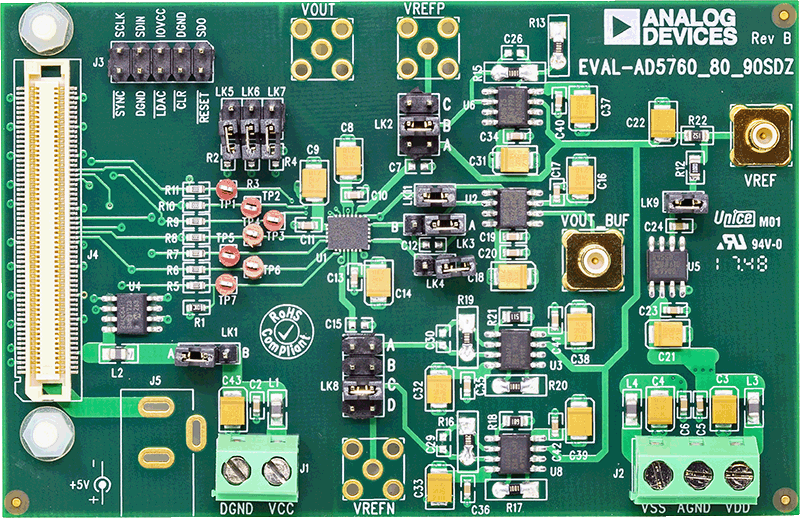

EVAL-AD5760

AD5760 Evaluation Board

zoom

EVAL-AD5760

AD5760 Evaluation Board

AD5760 Evaluation Board

Product Detail

The EVAL-AD5760 is a full-featured evaluation board designed to allow the user to easily evaluate all features of the AD5760 voltage output, 16-bit digital-to-analog converter (DAC). The AD5760 pins are accessible at on-board connectors for external connection. The board can be controlled by two means: via the on-board connector (J3), or via the system demonstration (SDP) platform connector (J4). The SDP board allows the evaluation board to be controlled through the USB port of a Windows® XP-based (SP2 or later) or Vista-based (32-bit) computer using the AD5760 evaluation software.

Tools & Simulations

Tools & Simulations 1

Reference Designs

Reference Designs 1

16-Bit Accurate, ±10 V Voltage Source

16-Bit, Linear, Ultra Stable, Low Noise, Bipolar ±10 V DC Voltage Source

zoomopens a dialog

cn0318

16-Bit, Linear, Ultra Stable, Low Noise, Bipolar ±10 V DC Voltage Source

cn0318

Circuits from the lab

tooltip Info:Circuits from the lab
16-Bit, Linear, Ultra Stable, Low Noise, Bipolar ±10 V DC Voltage Source

Features and Benefits

  • Bipolar ±10V dc voltage source
  • 16-bit resolution
  • Low noise
View Detailed Reference Design external link
