AD5790

PRODUCTION

System Ready 20-Bit, ±2 LSB INL, Voltage Output DAC

Data Sheet (Rev. E) Product Selection Table

Part Models: 2
1ku List Price: Starting From $79.45

Viewing:

Part Details

Single 20-bit voltage output DAC, ±2 LSB INL
8 nV/√Hz output noise spectral density
0.1 LSB long term linearity error stability
±0.018 ppm/°C gain error temperature coefficient
2.5 µs output voltage settling time
3.5 nV-sec midscale glitch impulse

Integrated Precision Reference Buffers
Operating temperature range: −40°C to +125°C

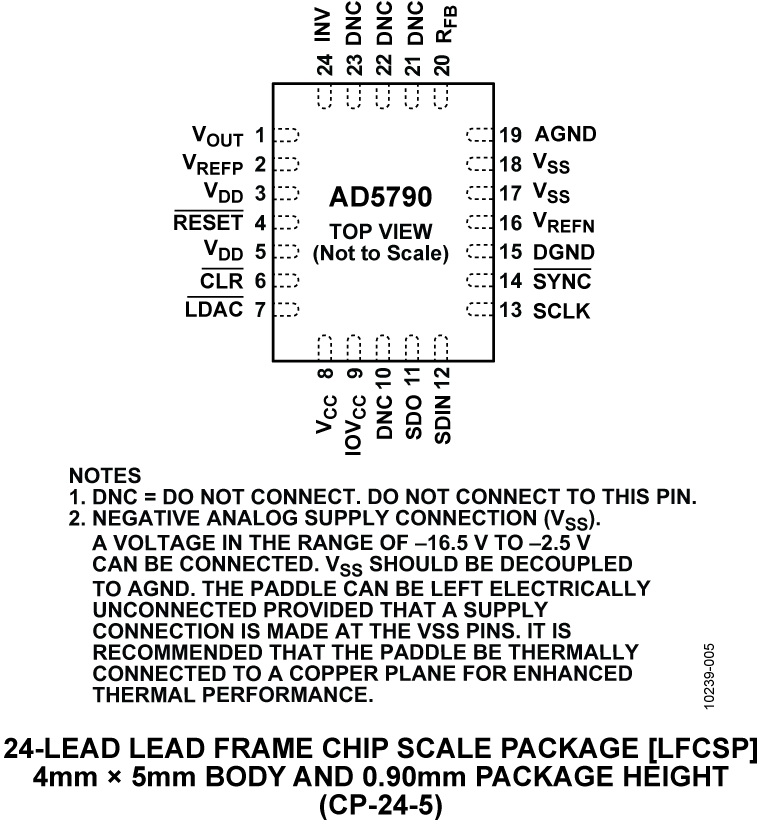

4mm × 5mm LFCSP package
Wide power supply range of up to ±16.5 V
35 MHz Schmitt-triggered digital interface
1.8 V compatible digital interface

Part Models: 2
1ku List Price: Starting From $79.45

Documentation

Data Sheet 1

AD5790: System Ready, 20-Bit, ±2 LSB INL, Voltage Output DAC Data Sheet (Rev.E) 11/29/2011

User Guide 2

AD5760/AD5780/AD5790 Quick Start Quide 04/24/2013

UG-342: Evaluation Board for a 20-Bit Serial Input, Voltage Output DAC with Integrated Precision Reference Buffer Amplifiers 12/19/2014
