  6. AD5780


Overview

Features and Benefits

  • True 18-bit voltage output DAC, ±1 LSB INL
  • 8 nV/√Hz output noise spectral density
  • 0.025 LSB long-term linearity error stability
  • ±0.018 ppm/°C gain error temperature coefficient
  • 2.5 µs output voltage settling time
  • 3.5 nV-sec midscale glitch impulse
  • Integrated precision reference buffers
  • Operating temperature range: −40°C to +125°C
  • 4 mm × 5 mm LFCSP package
  • Wide power supply range of up to ±16.5 V
  • 35 MHz Schmitt triggered digital interface
  • 1.8 V-compatible digital interface

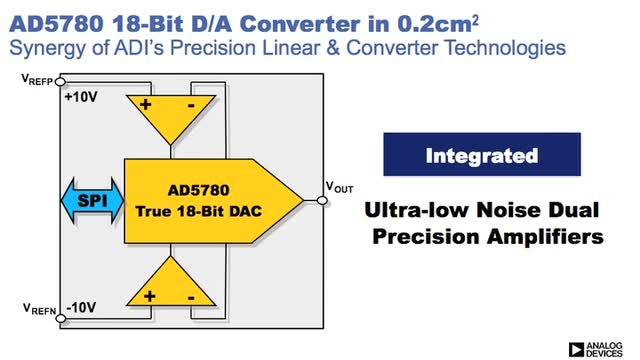

Product Details

The AD5780 is a true 18-bit, unbuffered voltage output digitalto-analog converter (DAC) that operates from a bipolar supply of up to 33 V. The AD5780 accepts a positive reference input range of 5 V to VDD − 2.5 V and a negative reference input range of VSS + 2.5 V to 0 V. Both reference inputs are buffered on chip and external buffers are not required. The AD5780 offers a relative accuracy specification of ±1 LSB maximum range, and operation is guaranteed monotonic with a ±1 LSB differential nonlinearity (DNL) maximum range specification.

The part uses a versatile 3-wire serial interface that operates at clock rates of up to 35 MHz and is compatible with standard serial peripheral interface (SPI), QSPI™, MICROWIRE™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides an output clamp feature that places the output in a defined load state.

Product Highlights

  1. True 18-bit accuracy.
  2. Wide power supply range of up to ±16.5 V.
  3. −40°C to +125°C operating temperature range.
  4. Low 8 nV/√Hz noise.
  5. Low ±0.018 ppm/°C gain error temperature coefficient.

Applications
  • Medical instrumentation
  • Test and measurement
  • Industrial control
  • Scientific and aerospace instrumentation
  • Data acquisition systems
  • Digital gain and offset adjustment
  • Power supply control

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

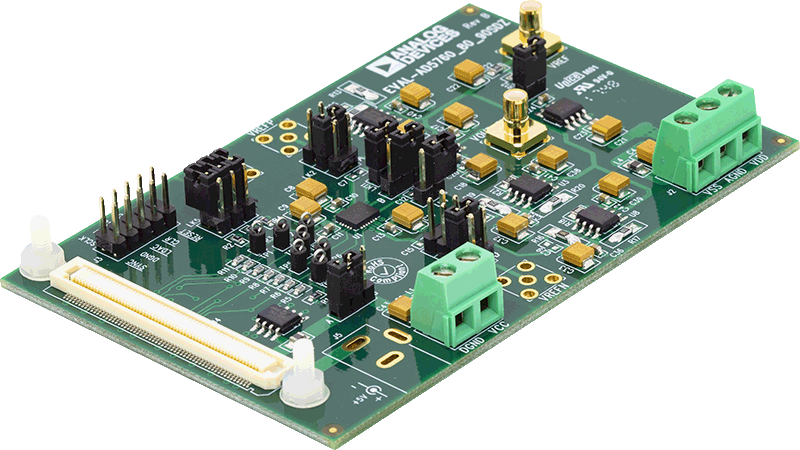

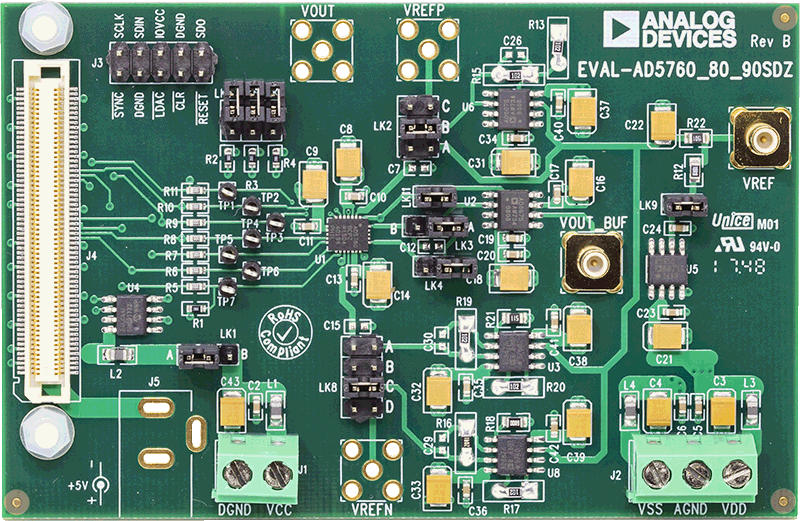

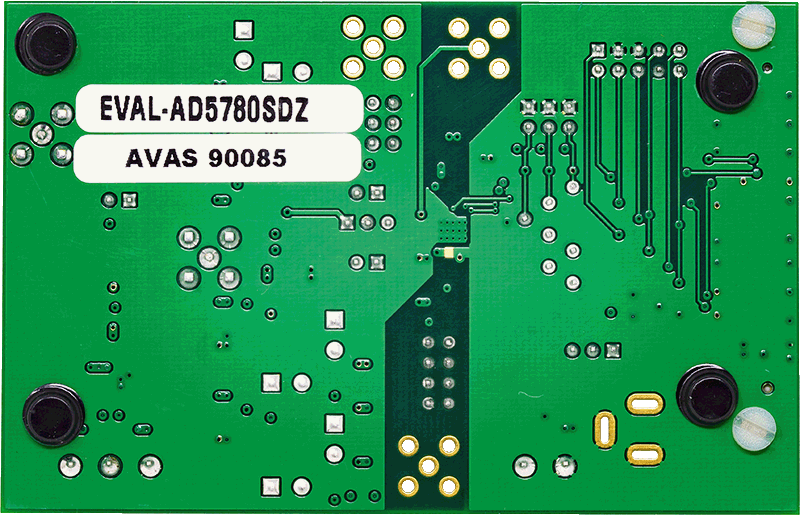

Evaluation Kits (1)

Tools & Simulations

Precision DAC Error Budget Tool

The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.

Precision DAC Error Budget Tool

Reference Designs (1)

Product Recommendations

AD5780 Companion Parts

Recommended Output Amplifier

  • For high precision, wide bandwidth, R-R output swing: AD8675.
  • For high voltage, high slew rates and low noise: ADA4898-1.
  • For high precision, low noise, small package: ADA4004-1.

Recommended External Reference
