AD5628

Octal, 12-Bit, SPI Voltage Output denseDAC With 5 ppm/°C On-Chip Reference

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $9.21
Features
  • Low power, small footprint, pin-compatible octal DACs: 12 bits
  • 14-lead/16-lead TSSOP, 16-lead LFCSP, and 16-ball WLCSP
  • On-chip 1.25 V/2.5 V, 5 ppm/°C reference
  • Power down to 400 nA at 5 V, 200 nA at 3 V
  • 2.7 V to 5.5 V power supply
  • Guaranteed monotonic by design
  • Power-on reset to zero scale or midscale
  • 3 power-down functions
  • Hardware LDAC and LDAC override function
  • CLR function to programmable code
  • Rail-to-rail operation
Additional Details
show more Icon

The AD5628 device is a low power, octal, 16-bit, buffered voltage-output DAC. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The AD5668 and AD5628 are available in both a 4 mm × 4 mm LFCSP and a 16-lead TSSOP, while the AD5648 is available in both a 14-lead and 16-lead TSSOP.

The AD5628/AD5648/AD5668 have an on-chip reference with an internal gain of 2. The AD5628-1/AD5648-1/AD5668-1 have a 1.25 V 5 ppm/°C reference, giving a full-scale output range of 2.5 V; the AD5628-2/AD5648-2/AD5668-2 and AD5668-3 have a 2.5 V 5 ppm/°C reference, giving a full-scale output range of 5 V. The on-board reference is off at power-up, allowing the use of an external reference. The internal reference is enabled via a software write.

The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V (AD5628-1/AD5648-1/AD5668-1, AD5628-2/AD5648-2/AD5668-2) or midscale (AD5668-3) and remains powered up at this level until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 400 nA at 5 V and provides software-selectable output loads while in power-down mode for any or all DAC channels. The outputs of all DACs can be updated simultaneously using the LDAC function, with the added functionality of user-selectable DAC channels to simultaneously update. There is also an asynchronous CLR that updates all DACs to a userprogrammable code—zero scale, midscale, or full scale.

The AD5628/AD5648/AD5668 utilize a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz and is compatible with standard SPI®, QSPI, MICROWIRE, and DSP interface standards. The on-chip precision output amplifier enables rail-to-rail output swing.

Product Highlights

  1. Octal, 12-/14-/16-bit DAC.
  2. On-chip 1.25 V/2.5 V, 5 ppm/°C reference.
  3. Available in 14-lead/16-lead TSSOP, 16-lead LFCSP, and 16-ball WLCSP.
  4. Power-on reset to 0 V or midscale.
  5. Power-down capability. When powered down, the DAC typically consumes 200 nA at 3 V and 400 nA at 5 V.

Applications

  • Process control
  • Data acquisition systems
  • Portable battery-powered instruments
  • Digital gain and offset adjustment
  • Programmable voltage and current sources
  • Programmable attenuators
Part Models 10
1ku List Price Starting From $9.21

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5628ACPZ-1-RL7
  • HTML
  • HTML
AD5628ACPZ-2-RL7
  • HTML
  • HTML
AD5628ARUZ-2
  • HTML
  • HTML
AD5628ARUZ-2REEL7
  • HTML
  • HTML
AD5628BCBZ-1-RL7
  • HTML
  • HTML
AD5628BCPZ-2-RL7
  • HTML
  • HTML
AD5628BRUZ-1
  • HTML
  • HTML
AD5628BRUZ-1REEL7
  • HTML
  • HTML
AD5628BRUZ-2
  • HTML
  • HTML
AD5628BRUZ-2REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 10, 2014

- 14_0005

Assembly Transfer to Amkor Philippines and Test Transfer to STATS ChipPAC China of Select LFCSP Products

Jan 20, 2014

- 13_0230

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

AD5628ACPZ-1-RL7

PRODUCTION

AD5628ACPZ-2-RL7

PRODUCTION

AD5628BCPZ-2-RL7

PRODUCTION

Apr 5, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Jan 20, 2012

- 11_0218

Halogen Free Material Change for Certain TSSOP Products at Carsem

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Dec 21, 2010

- 10_0215

AD5668 AD5648 AD5628 redesign

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-1REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-2

PRODUCTION

Mar 20, 2009

- 09_0032

AD5628/AD5648/AD5668 Data Sheet Specification Change

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-1REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Feb 28, 2012

- 11_0175

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-1REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 10, 2014

- 14_0005

arrow down

Assembly Transfer to Amkor Philippines and Test Transfer to STATS ChipPAC China of Select LFCSP Products

Jan 20, 2014

- 13_0230

arrow down

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

AD5628ACPZ-1-RL7

PRODUCTION

AD5628ACPZ-2-RL7

PRODUCTION

AD5628BCPZ-2-RL7

PRODUCTION

Apr 5, 2021

- 21_0035

arrow down

Amkor Philippines as an Alternate Site for TSSOP_4.4

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Jan 20, 2012

- 11_0218

arrow down

Halogen Free Material Change for Certain TSSOP Products at Carsem

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Dec 21, 2010

- 10_0215

arrow down

AD5668 AD5648 AD5628 redesign

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-1REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-2

PRODUCTION

Mar 20, 2009

- 09_0032

arrow down

AD5628/AD5648/AD5668 Data Sheet Specification Change

AD5628ARUZ-2

PRODUCTION

AD5628ARUZ-2REEL7

PRODUCTION

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-1REEL7

PRODUCTION

AD5628BRUZ-2

PRODUCTION

AD5628BRUZ-2REEL7

PRODUCTION

Feb 28, 2012

- 11_0175

arrow down

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

Feb 11, 2011

- 10_0005

arrow down

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD5628BRUZ-1

PRODUCTION

AD5628BRUZ-1REEL7

PRODUCTION

Evaluation Kit

Evaluation Kits 1

reference details image

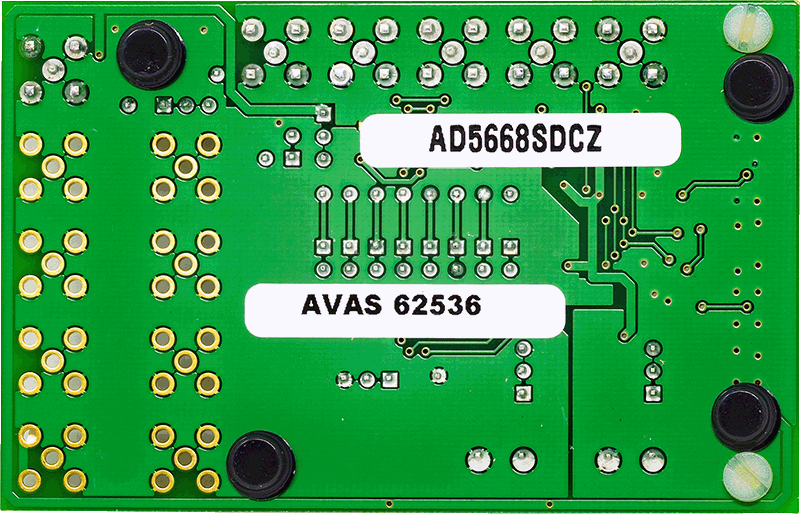

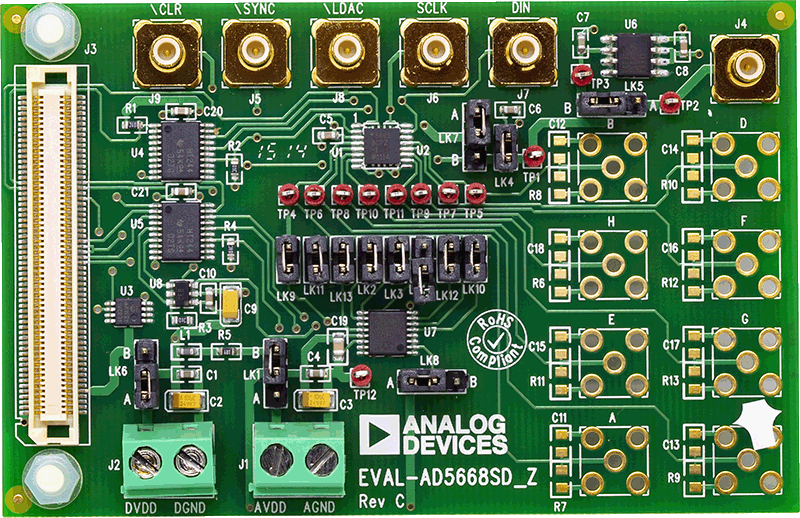

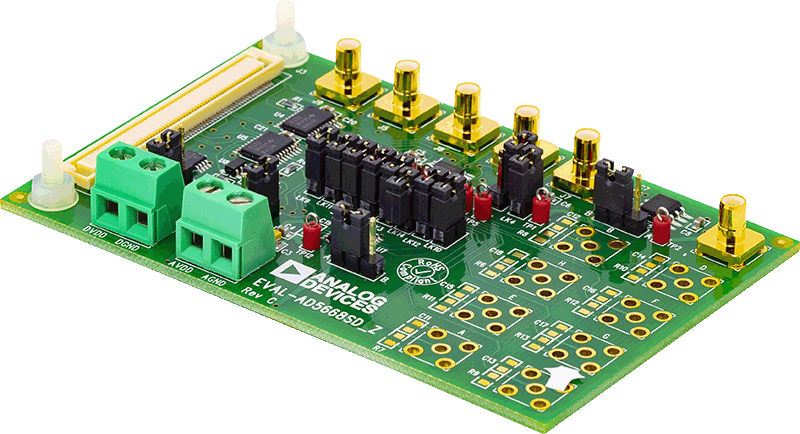

EVAL-AD5668

Evaluation Board for the AD5668, Octal, 16-Bit, Serial Voltage-Output DAC

zoom

EVAL-AD5668

Evaluation Board for the AD5668, Octal, 16-Bit, Serial Voltage-Output DAC

Evaluation Board for the AD5668, Octal, 16-Bit, Serial Voltage-Output DAC

Features and Benefits

  • Full featured evaluation board for the AD5668
  • On-board reference
  • Various link options
  • PC control in conjunction with Analog Devices
  • System development platform (SDP)
  • PC software for control of DACs
  • On-board ADC for voltage readback

Product Detail

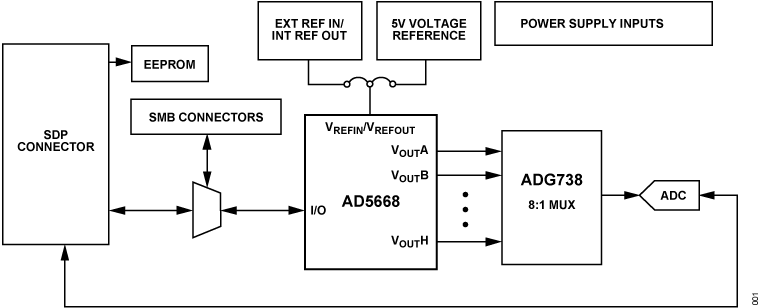

The Analog Devices AD5668 evaluation boards, the EVALAD5668SDCZ and EVAL-AD5668SDRZ, are designed to help customers quickly prototype new AD5668 circuits and reduce design time. The AD5668 operates from a single 2.7 V to 5.5 V supply. The device incorporates an internal 1.25 V or 2.5 V on-board reference to give an output voltage span of 2.5 V or 5 V, respectively. The on-board reference is off at power-up allowing the use of an external reference; the REF195 is used on this evaluation board. The device must be written to after power-up to turn on the internal reference.

Consult the AD5668 data sheet, available from Analog Devices, in conjunction with this user guide when using the evaluation board.

The evaluation board interfaces to the USB port of a PC via the SDP. Software is available with the evaluation board, which allows the user to easily program the AD5668.
