AD9739A

14-Bit, 2.5 GSPS, RF Digital-to-Analog Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $56.10
Features
  • Direct RF synthesis at 2.5 GSPS update rate
    • DC to 1.25 GHz in baseband mode
    • 1.25 GHz to 3.0 GHz in mix-mode
  • Industry leading single/multicarrier IF or RF synthesis
  • Dual-port LVDS data interface
    • Up to 1.25 GSPS operation
    • Source synchronous DDR clocking
  • Pin compatible with the AD9739
  • Programmable output current: 8.7 mA to 31.7 mA
  • Low power: 1.1 W at 2.5 GSPS
Additional Details
show more Icon

The AD9737A/AD9739A are 11-bit and 14-bit, 2.5 GSPS high performance RF DACs that are capable of synthesizing wideband signals from dc up to 3 GHz. The AD9737A/AD9739A are pin and functionally compatible with the AD9739 with the exception that the AD9737A/AD9739A do not support synchronization or RZ mode, and are specified to operate between 1.6 GSPS and 2.5 GSPS.

By elimination of the synchronization circuitry, some nonideal artifacts such as images and discrete clock spurs remain stationary on the AD9737A/AD9739A between power-up cycles, thus allowing for possible system calibration. AC linearity and noise performance remain the same between the AD9739 and the AD9737A/AD9739A.

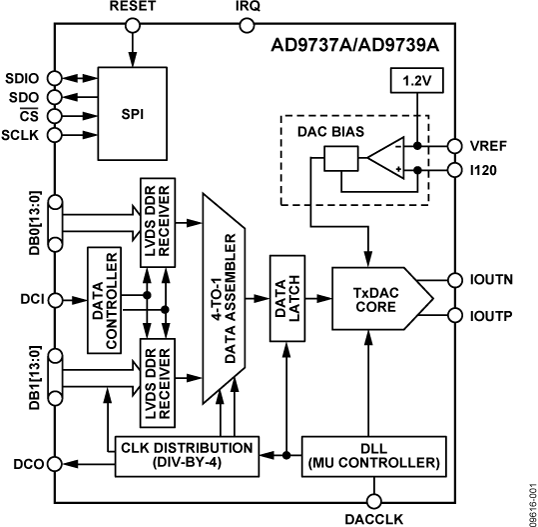

The inclusion of on-chip controllers simplifies system integration. A dual-port, source synchronous, LVDS interface simplifies the digital interface with existing FGPA/ASIC technology. On-chip controllers are used to manage external and internal clock domain variations over temperature to ensure reliable data transfer from the host to the DAC core. A serial peripheral interface (SPI) is used for device configuration as well as readback of status registers.

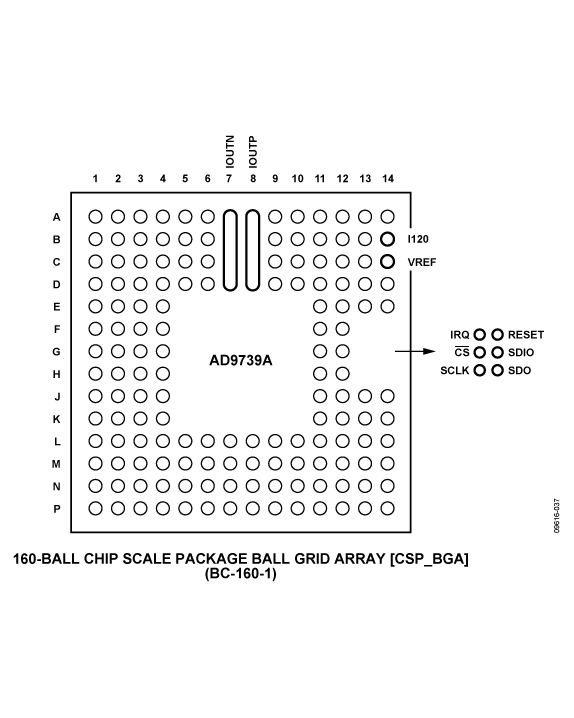

The AD9737A/AD9739A are manufactured on a 0.18 µm CMOS process and operate from 1.8 V and 3.3 V supplies. They are supplied in a 160-ball chip scale ball grid array for reduced package parasitics.

Product Highlights

  1. Ability to synthesize high quality wideband signals with bandwidths of up to 1.25 GHz in the first or second Nyquist zone.
  2. A proprietary quad-switch DAC architecture provides exceptional ac linearity performance while enabling mixmode operation.
  3. A dual-port, double data rate, LVDS interface supports the maximum conversion rate of 2500 MSPS.
  4. On-chip controllers manage external and internal clock domain skews.
  5. Programmable differential current output with an 8.66 mA to 31.66 mA range.

Applications

  • Broadband communications systems
    • DOCSIS CMTS systems
  • Military jammers
  • Instrumentation, automatic test equipment
  • Radar, avionics
Part Models 2
1ku List Price Starting From $56.10

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9739ABBCZ
  • HTML
  • HTML
AD9739ABBCZRL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 11, 2015

- 14_0254

Bump and Assembly Transfer of Select 10x10 and 12x12 Flip Chip Products

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 11, 2015

- 14_0254

arrow down

Bump and Assembly Transfer of Select 10x10 and 12x12 Flip Chip Products

Software & Part Ecosystem

Software & Part Ecosystem



ACE Evaluation Software

Info:False

Run this executable to install ACE on your computer to evaluate the AD9739A and AD9737A high-speed DACs.

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

reference details image

EVAL-AD9739A

AD9739A Evaluation Board

zoom

EVAL-AD9739A

AD9739A Evaluation Board

AD9739A Evaluation Board

Features and Benefits

  • Evaluation board for the AD9739A
  • Includes options to evaluate the DAC
  • USB interface for configuration
  • Internal or external power supply regulation
  • On-board or external clock distribution
  • Data pattern generator and SPI software interfaces
  • Compatible with EVAL-SDP-CH1Z or ADS7-V2EBZ

Product Detail

This page contains evaluation board documentation and ordering information for evaluating the AD9739A.
reference details image

ADS7-V2EBZ

FPGA Based Data Capture Kit

zoom

ADS7-V2EBZ

FPGA Based Data Capture Kit

FPGA Based Data Capture Kit

Features and Benefits

  • Based on Virtex-7 FPGA
  • One (1) FMC-HPC connector
  • Ten (10) 13.1 Gbps transceivers supported
  • Two (2) DDR3-1866 DIMMs
  • Simple USB port interface (2.0)



Product Detail

The ADS7-V2 Evaluation Board was developed to support the evaluation of Analog Devices high speed A/D converters, D/A converters and Transceivers with JESD204B bit rates up to 13.1 Gbps. The Quick Start Wiki site listed below provides a high level overview of the platform. In addition, each use case of the board has its own section (e.g. Using the ADS7-V2 for High Speed A/D Converter Evaluation). The ADS7-V2 is intended to be used only with specified Analog Devices Evaluation Boards. The ADS7-V2 is not intended to be used as a development platform, and no support is available for standalone operation. Please refer to Xilinx and its approved distributors for FPGA Development Kits
Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
