Overview
Features and Benefits
- Output frequency range: 137.5 MHz to 4400 MHz
- Fractional-N synthesizer and integer-N synthesizer
- Low phase noise VCO
- Programmable divide-by-1/-2/-4/-8/-16 output
- Typical rms jitter: <0.4 ps rms
- Power supply: 3.0 V to 3.6 V
- Logic compatibility: 1.8 V
- Programmable dual-modulus prescaler of 4/5 or 8/9
- Programmable output power level
- RF output mute function
- 3-wire serial interface
- Analog and digital lock detect
- Switched bandwidth fast-lock mode
- Cycle slip reduction
Product Details
The ADF4350 allows implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers if used with an external loop filter and external reference frequency.
The ADF4350 has an integrated voltage controlled oscillator (VCO) with a fundamental output frequency ranging from 2200 MHz to 4400 MHz. In addition, divide-by-1/2/4/8 or 16 circuits allow the user to generate RF output frequencies as low as 137.5 MHz. For applications that require isolation, the RF output stage can be muted. The mute function is both pin- and software-controllable. An auxiliary RF output is also available, which can be powered down if not in use.
Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
Applications
- Wireless infrastructure (W-CDMA, TD-SCDMA, WiMAX, GSM, PCS, DCS, DECT)
- Test equipment
- Wireless LANs, CATV equipment
- Clock generation
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

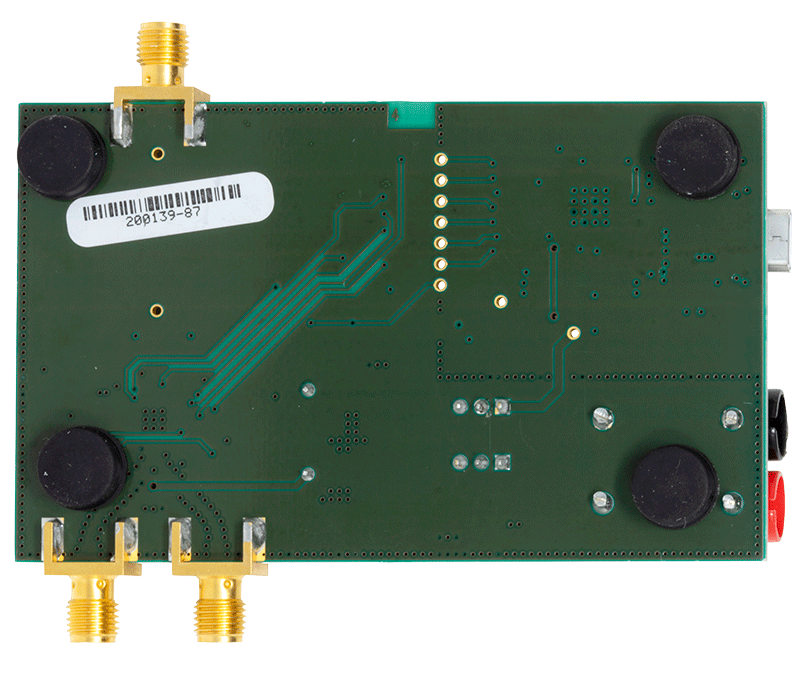

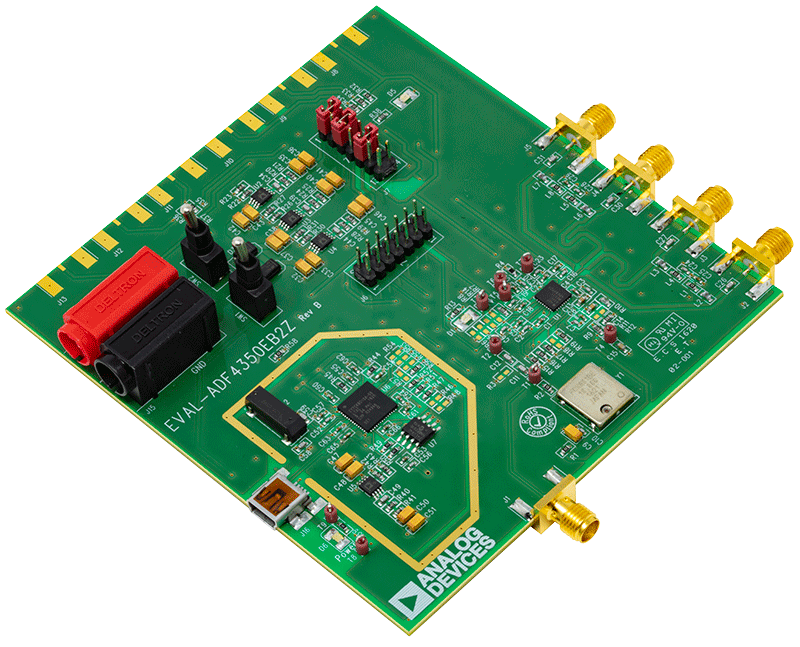

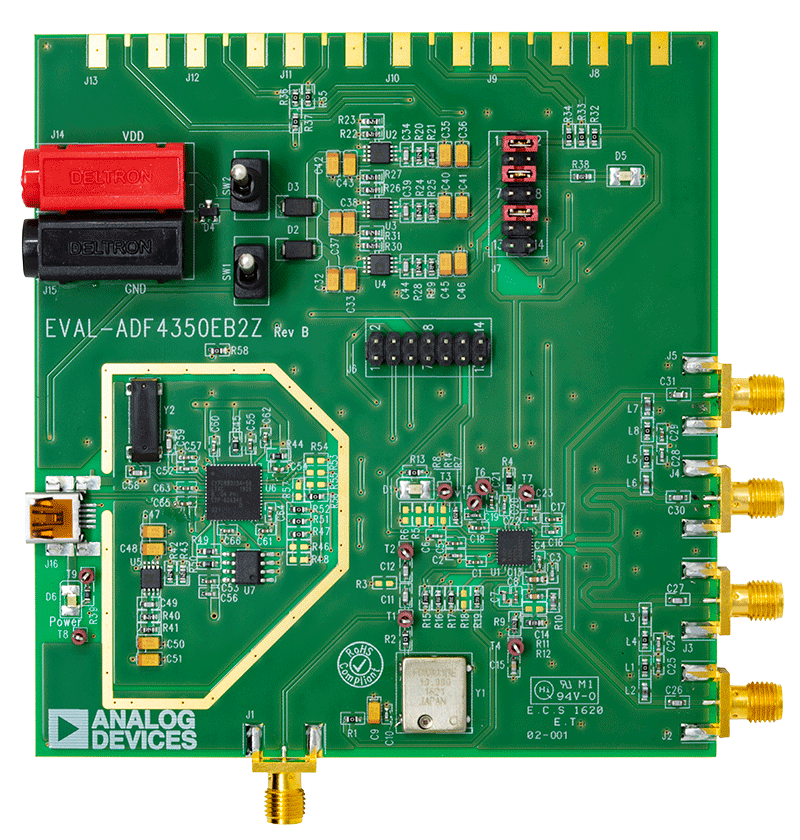

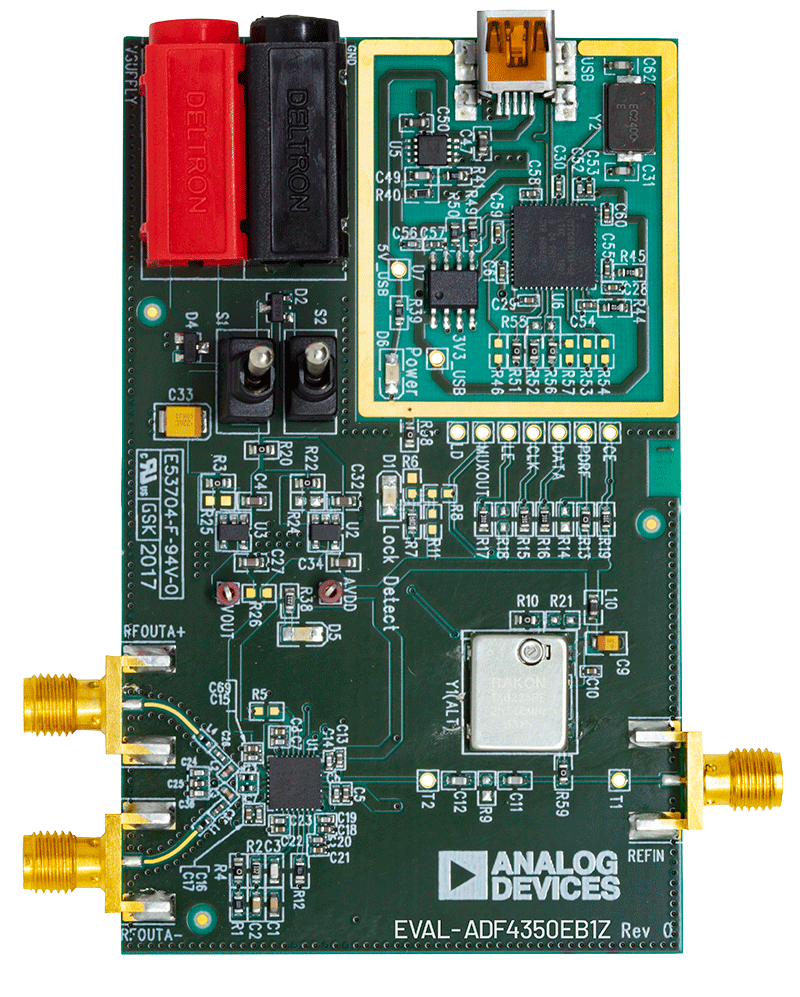

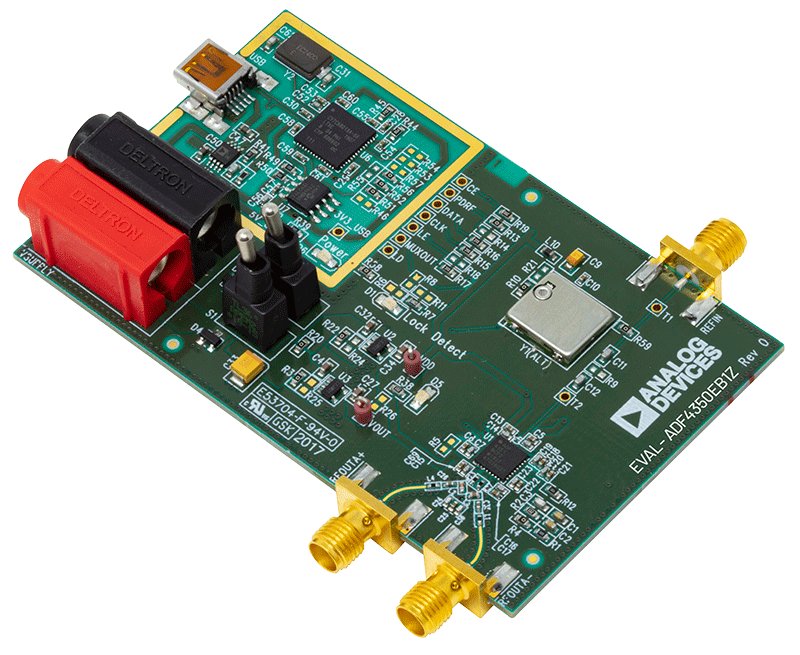

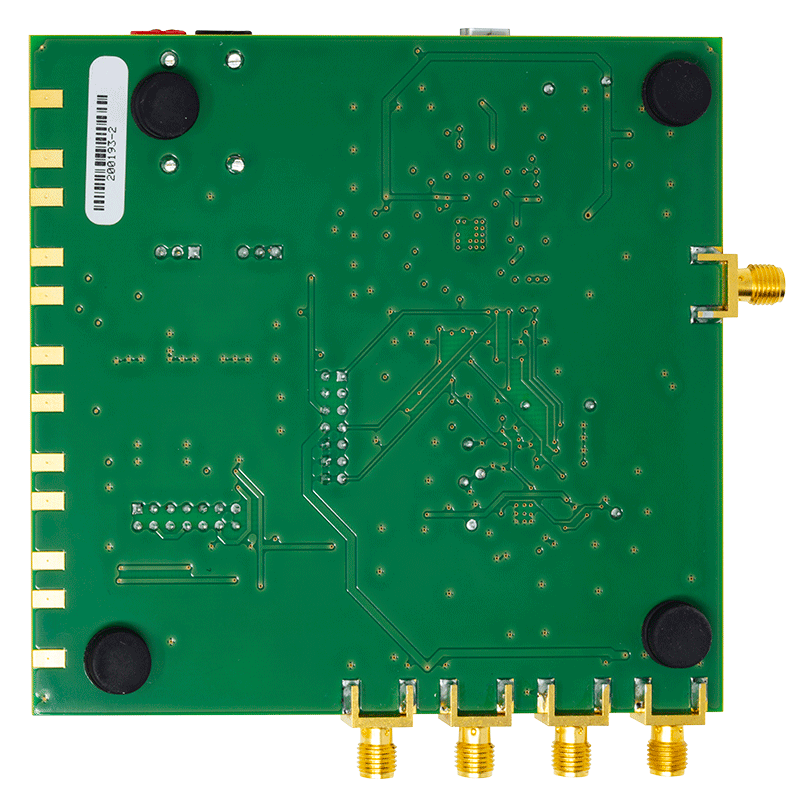

Evaluation Kits (1)
Documentation & Resources
-
FAQs7/26/2017
-
CN-0232: Minimizing Spurious Outputs Using a Synthesizer with an Integrated VCO and an External PLL Circuit6/13/2012
-
CN-0245: Wideband LO PLL Synthesizer with Simple Interface to Quadrature Demodulators6/13/2012
-
CN-0147: Powering a Fractional-N Voltage Controlled Oscillator (VCO) with Low Noise LDO Regulators for Reduced Phase Noise11/16/2010
-

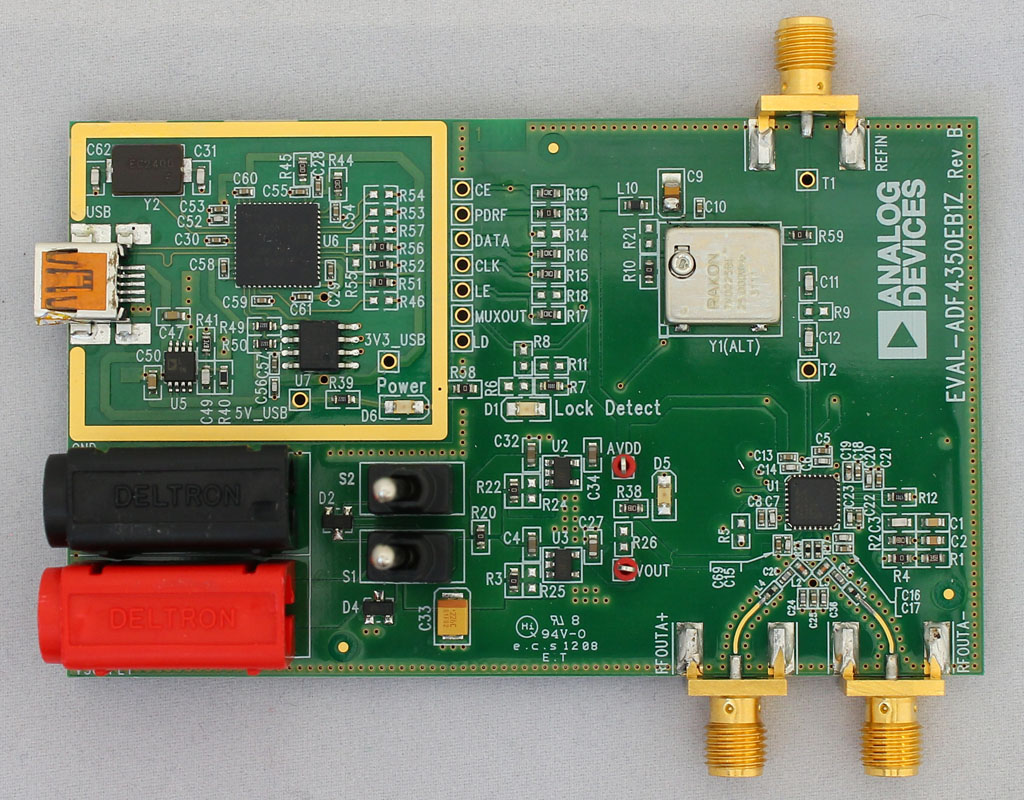

CN-0144: Broadband Low Error Vector Magnitude (EVM) Direct Conversion Transmitter Using LO Divide-by-2 Modulator11/16/2010
-

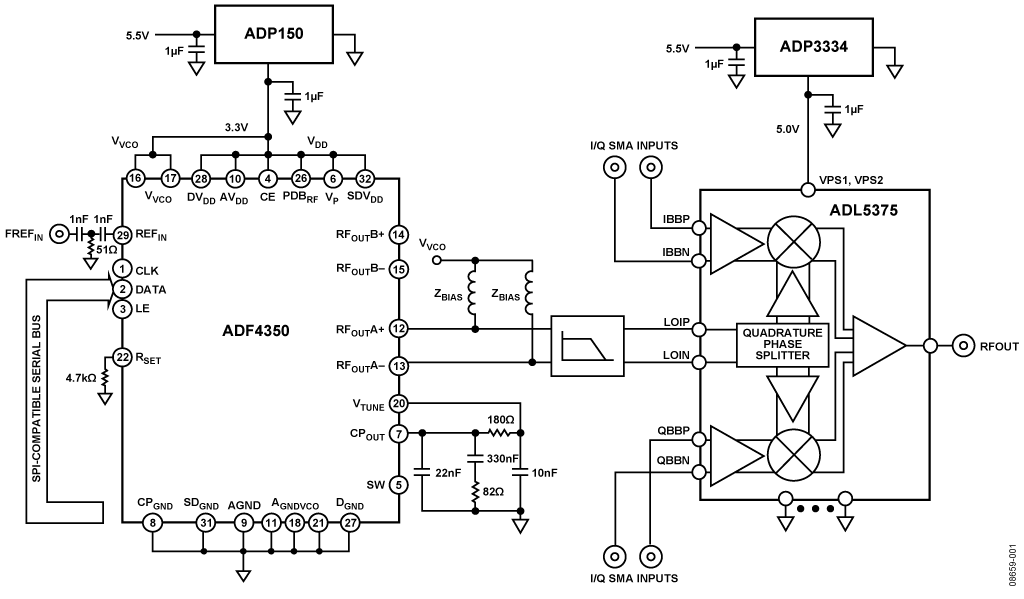

CN-0134: Broadband Low Error Vector Magnitude (EVM) Direct Conversion Transmitter11/15/2010
-
Power Management Design for PLLs9/1/2011 Analog Dialogue
-
Differential Interfaces Improve Performance in RF Transceiver Designs7/1/2011 Analog Dialogue
-
Designing High-Performance Phase-Locked Loops with High-Voltage VCOs12/1/2009 Analog Dialogue
-
Direct Conversion Receiver Designs Enable Multi-standard/Multi-band Operation2/16/2009
-
Get the Best from Your Low-Dropout Regulator2/18/1999
Software & Systems Requirements
Device Drivers
Tools & Simulations
IBIS Models
IBS
ADF4350 IBIS Model
97.56 K
Design Tools
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
Reference Designs (5)
Product Recommendations
ADF4350 Companion Parts
Recommended Low-Noise Voltage Regulators
- For a fixed 3.3V, 150mA low dropout regulator: ADP150.
- For a fixed 3.3V, 200mA low dropout regulator: ADP151.
Recommended Reference Buffer
- With integrated filters for improved noise: LTC6957.
Recommended Reference Clean Up PLL
Design Resources
