AD9122

Dual, 16-Bit, 1230 MSPS, TxDAC+® Digital-to-Analog Converter

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $44.30
Features
  • Flexible LVDS interface allows word, byte, or nibble load
  • Single-carrier W-CDMA ACLR = 82 dBc @ 122.88 MHz IF
  • Analog output: adjustable 8.7 mA to 31.7 mA, RL = 25 Ω to 50 Ω
  • Integrated 2×/4×/8× interpolator/complex modulator allows
    carrier placement anywhere in the DAC bandwidth
  • Gain, dc offset, and phase adjustment for sideband suppression
  • Multiple chip synchronization interfaces
  • High performance, low noise PLL clock multiplier
  • Digital inverse sinc filter
  • Low power: 1.5 W at 1.2 GSPS, 800 mW at 500 MSPS, full operating conditions
  • 72-lead, exposed paddle LFCSP
AD9122-EP supports defense and aerospace applications (AQEC standard)
  • Download AD9122-EP data sheet (pdf)
  • Military temperature range (such as −55°C to +105°C)
  • Controlled manufacturing baseline
  • One assembly/test site
  • One fabrication site
  • Enhanced product change notification
  • Qualification data available on request
  • V62/12654 DSCC Drawing Number
Additional Details
show more Icon

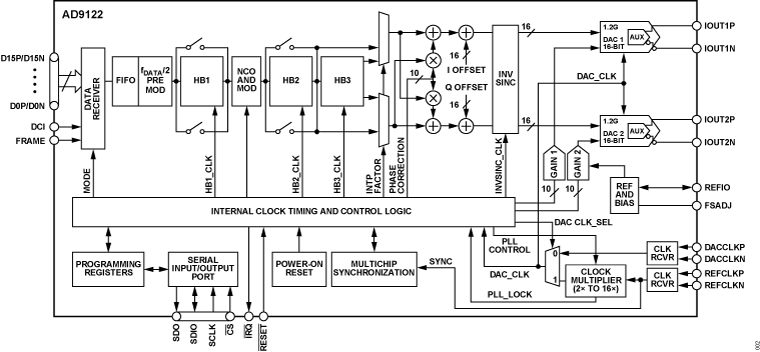

The AD9122 is a dual 16-bit, high dynamic range, digital-to-analog converter (DAC) that provides a sample rate of 1230 MSPS, permitting a multicarrier generation up to the Nyquist frequency. It includes features optimized for direct conversion transmit applications, including complex digital modulation, and gain and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators, such as the ADL537x F-MOD series from Analog Devices, Inc. A 4-wire serial port interface provides for programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 8.7 mA to 31.7 mA. The AD9122 comes in a 72-lead LFCSP.

The AD9122-EP supports defense and aerospace applications (AQEC).

PRODUCT HIGHLIGHTS

  1. Ultralow noise and intermodulation distortion (IMD) enable high quality synthesis of wideband signals from baseband to high intermediate frequencies.
  2. A proprietary DAC output switching technique enhances dynamic performance.
  3. The current outputs are easily configured for various single-ended or differential circuit topologies.
  4. Flexible LVDS digital interface allows the standard 32-wire bus to be reduced to ½ or ¼ of the width.



APPLICATIONS

  • Wireless infrastructure
  • W-CDMA, CDMA2000, TD-SCDMA, WiMAX, GSM, LTE
  • Digital high or low IF synthesis
  • Transmit diversity
  • Wideband communications: LMDS/MMDS, point-to-point
Part Models 4
1ku List Price Starting From $44.30

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9122BCPZ
  • HTML
  • HTML
AD9122BCPZRL
  • HTML
  • HTML
AD9122SCPZ-EP
  • HTML
  • HTML
AD9122SCPZ-EP-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 26, 2023

- 23_0025

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

AD9122BCPZ

PRODUCTION

AD9122BCPZRL

PRODUCTION

AD9122SCPZ-EP

PRODUCTION

AD9122SCPZ-EP-RL

PRODUCTION

Dec 2, 2010

- 10_0333

AD9122 Data Sheet Revision

Sep 13, 2010

- 10_0010

AD9122 Die Revision

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 26, 2023

- 23_0025

arrow down

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

AD9122BCPZ

PRODUCTION

AD9122BCPZRL

PRODUCTION

AD9122SCPZ-EP

PRODUCTION

AD9122SCPZ-EP-RL

PRODUCTION

Dec 2, 2010

- 10_0333

arrow down

AD9122 Data Sheet Revision

Sep 13, 2010

- 10_0010

arrow down

AD9122 Die Revision

Software and Part Ecosystem

Software and Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 4

reference details image

AD-FMCOMMS1-EBZ

FPGA Mezzanine Card for Wireless Communications

zoom

AD-FMCOMMS1-EBZ

FPGA Mezzanine Card for Wireless Communications

FPGA Mezzanine Card for Wireless Communications

Features and Benefits

  • Includes schematics, layout, BOM, Gerber files, HDL, Linux® drivers, IIO Oscilloscope, VisualANALOG
  • FMC-compatible form factor
  • Powered from FMC connector
  • Provides one channel of ADC and one channel of DAC with full synchronization capabilities

Product Detail

This board is no longer available for ordering.

The AD-FMCOMMS1-EBZ high-speed analog module is designed to showcase the latest generation high-speed data converters. The AD-FMCOMMS1-EBZ provides the analog front-end for a wide range of compute-intensive FPGA-based radio applications.

The AD-FMCOMMS1-EBZ is an analog front end hardware platform that addresses a broad range of research, academic, industrial and defense applications. The AD-FMCOMMS1-EBZ enables RF applications from 400MHz to 4 GHz. The module is customizable to a wide range of frequencies by software without any hardware changes, providing options for GPS or IEEE 1588 Synchronization, and MIMO configurations.

When combined with the Xilinx ZYNQ® Software-Defined Radio Kit, AD-FMCOMMS1-EBZ enables a variety of wireless communications functions at the physical layer, from baseband to RF. With up to 4 GB of flash storage space, 512 MB of RAM, Gigabit Ethernet interface (depending on the base platform) and a Linux image built specifically for the AD-FMCOMMS1-EBZ, you can get everything you need for a easy out of the box experience. The platform offers enough flexibility for many applications, and supports streaming data, and standard web interfaces to analyze transmitted RF data.

Applications

  • Electronic test and measurement equipment
  • General-purpose software radios
  • Radar systems
  • Ultra wideband satellite receivers
  • Point to point communication systems
reference details image

SDP-H1

High Speed Controller Board

zoom

SDP-H1

High Speed Controller Board

High Speed Controller Board

Features and Benefits

  • Xilinx® Spartan 6
  • 1 x FMC Low Pin Count ( LPC) connector
  • LVDS and single ended LVCMOS signaling
  • DDR2
  • JTAG header
  • Blackfin processor ADSP-BF527
  • 1 x small Footprint 120 pin connector
  • Configurable Peripheral Interfaces SPI, SPORT, I2C, GPIO, Asynchronous Parallel, PPI, Timers
  • USB 2.0 interface to the PC

Product Detail

The SDP-H1 is a high speed controller board for the System Demonstration Platform (SDP). The SDP-H1 has a Xilinx® Spartan 6 and an ADSP-BF527 processor with connectivity to the PC through a USB 2.0 high speed port. Controller boards allow for the configuration and capture of data on daughter boards from the PC via USB.

The SDP-H1 has a FMC low pin count ( LPC) connector with full differential LVDS and singled ended LVCMOS support. It also has the 120 pin connector, found on the SDP-B which exposes the Blackfin processors peripherals. This connector provides a configurable Serial, Parallel I2C and SPI and GPIO communications lines to the attached daughter board. The PC side software application for controlling the attached daughter board is provided with each of the daughter product evaluation boards or Circuits from the Lab reference Circuits.

The System Demonstration Platform is a collection of controller boards, interposer boards, and daughter boards, used for easy, low cost evaluation of ADI components and reference circuits. For a general overview of the entire platform visit the System Demonstration Platform homepage www.analog.com/sdp

See the full list of compatible Product Evaluation Boards and Circuits from the Lab Reference Circuit Boards that require the SDP-B. All SDP-S compatible daughter boards can be used with the SDP-B.

reference details image

ADS7-V2EBZ

FPGA Based Data Capture Kit

zoom

ADS7-V2EBZ

FPGA Based Data Capture Kit

FPGA Based Data Capture Kit

Features and Benefits

  • Based on Virtex-7 FPGA
  • One (1) FMC-HPC connector
  • Ten (10) 13.1 Gbps transceivers supported
  • Two (2) DDR3-1866 DIMMs
  • Simple USB port interface (2.0)



Product Detail

The ADS7-V2 Evaluation Board was developed to support the evaluation of Analog Devices high speed A/D converters, D/A converters and Transceivers with JESD204B bit rates up to 13.1 Gbps. The Quick Start Wiki site listed below provides a high level overview of the platform. In addition, each use case of the board has its own section (e.g. Using the ADS7-V2 for High Speed A/D Converter Evaluation). The ADS7-V2 is intended to be used only with specified Analog Devices Evaluation Boards. The ADS7-V2 is not intended to be used as a development platform, and no support is available for standalone operation. Please refer to Xilinx and its approved distributors for FPGA Development Kits
reference details image

EVAL-AD9122

AD9122 Evaluation Board

zoom

EVAL-AD9122

AD9122 Evaluation Board

AD9122 Evaluation Board

Features and Benefits

  • Full featured evaluation board for the AD9122
  • Includes options to evaluate:
    • DAC only (Two DAC output)
    • DAC and ADL537X quadrature modulator
  • USB interface for configuration
  • Internal or external power supply regulation
  • Data pattern generator and SPI software interfaces

Product Detail

This page contains evaluation board documentation and ordering information for evaluating the AD9122.

The AD9122 evaluation board, AD9122-M5375-EBZ, has the ADL5375 modulator on-board. To operate the evaluation boards, the user must apply power, a clock source, a digital data source, and be able to observe the DAC output on either a spectrum analyzer or an oscilloscope. The evaluation board comes with software which are ACE (Analysis | Control | Evaluation) and DPG Downloader Lite software that allows the user to program the SPI port. Via the SPI port, the DUT and clock circuitry can be programmed into any of its various operating modes.

Tools & Simulations

Tools & Simulations 3

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Reference Designs

Reference Designs 2

Interface Between the AD9122 and ADL5375-05 with 50 Ω Resistors to Ground

Interfacing the ADL5375 I/Q Modulator to the AD9122 Dual Channel, 1.2 GSPS High Speed DAC

zoomopens a dialog

CN0205

Interfacing the ADL5375 I/Q Modulator to the AD9122 Dual Channel, 1.2 GSPS High Speed DAC

CN0205

Circuits from the lab

tooltip Info:Circuits from the lab
Interfacing the ADL5375 I/Q Modulator to the AD9122 Dual Channel, 1.2 GSPS High Speed DAC

Features and Benefits

  • High speed DAC to IQ modulator interface
  • Requires zero IF frequencys
  • Dual DAC provides common biasing for level shifting
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

zip

3338 kB

AD9122, ADRF6702, and AD9516 Used in a High Dynamic Range Transmitter

High Dynamic Range RF Transmitter Signal Chain using Single External Frequency Reference for DAC Sample Clock and IQ Modulator LO Generation

zoomopens a dialog

cn0243

High Dynamic Range RF Transmitter Signal Chain using Single External Frequency Reference for DAC Sample Clock and IQ Modulator LO Generation

cn0243

Circuits from the lab

tooltip Info:Circuits from the lab
High Dynamic Range RF Transmitter Signal Chain using Single External Frequency Reference for DAC Sample Clock and IQ Modulator LO Generation

Features and Benefits

  • Zero IF from baseband
  • Complex modulation schemes like QAM
  • High dynamic range
View Detailed Reference Design external link
