AD3551R
Single Channel, 16-Bit, 33 MUPS, Multispan, Multi-IO SPI DAC
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 16-bit resolution
- 33 MUPS rate in fast mode
- 22 MUPS rate in precision mode
- 65 ns small signal settling time to 0.1% accuracy
- 100 ns large signal settling time to 0.1% accuracy
- Ultra small glitch: < 50 pV×s
- Ultra low latency: 5 ns
- THD: −105 dB at 1 kHz
- Highly configurable output voltage span and offset
- 1.2 V and 1.8 V logic level compatible
- Single (classic), dual, and quad SPI modes
- Multiple error detectors, both analog and digital domains
- 2.5 V internal voltage reference, 10 ppm/°C maximum temperature coefficient
- 5 mm × 5 mm LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

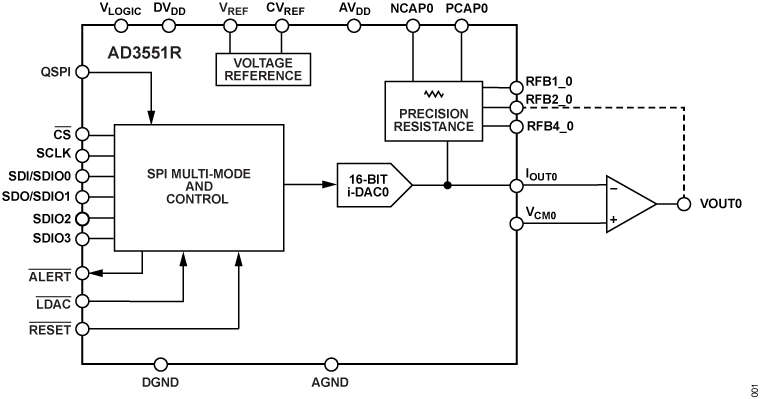

The AD3551R is a low drift, single channel, ultra-fast, 16-bit accuracy, current output digital-to-analog converter (DAC) that can be configured in multiple voltage span ranges. The AD3551R operates with a fixed 2.5 V reference.
Each DAC incorporates three drift compensating feedback resistors for the required external transimpedance amplifier (TIA) that scales the output voltage. Offset and gain scaling registers allow for generation of multiple output span ranges, such as 0 V to 2.5 V, 0 V to 5 V, 0 V to 10 V, −5 V to +5 V, and −10 V to +10 V, and custom intermediate ranges with full 16-bit resolution.
The DAC can operate in fast mode for maximum speed or precision mode for maximum accuracy.
The serial peripheral interface (SPI) can be configured in quad SPI mode, dual SPI mode, and single SPI (classic SPI) mode with single date rate (SDR) or double data rate (DDR), with logical levels from 1.2 V to 1.8 V.
The AD3551R is specified over the extended industrial temperature range (–40°C to +105°C).
APPLICATIONS
- Instrumentation
- Hardware in the loop
- Process control equipment
- Medical devices
- Automated test equipment
- Data acquisition system
- Programmable voltage sources
- Optical communications
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD3551R
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
Documentation
Device Drivers 4
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

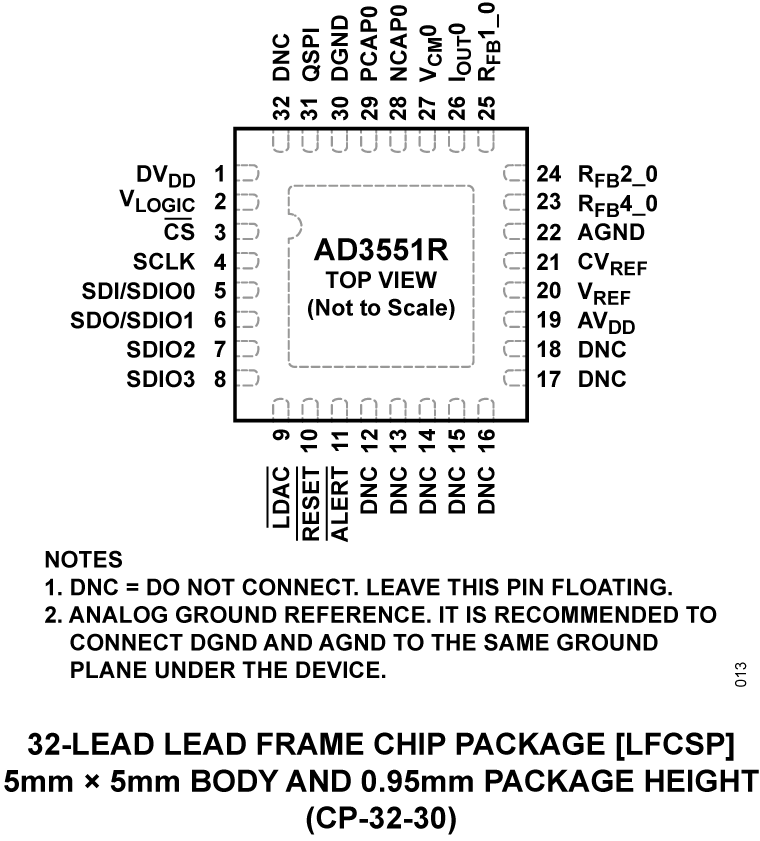

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD3551RBCPZ16 |
32-Lead LFCSP (5mm x 5mm x 0.95mm w/ EP)
|
|
|
| AD3551RBCPZ16-RL7 |
32-Lead LFCSP (5mm x 5mm x 0.95mm w/ EP)
|
|
- AD3551RBCPZ16
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.95mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD3551RBCPZ16-RL7
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.95mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
EVAL-AD3552R
Evaluation Board for the AD3552R-16 which is a low drift ultrafast, 16-bit accuracy, current output digital-to-analog converter (DAC)
Features and Benefits
- Full featured evaluation board for the AD3552R
- High speed and high precision transimpedance amplifiers
- Selectable transimpedance gain with rotary switch
- On-board or external power supply
- On-board or external voltage reference
- Usable with controller boards SDP-H1 and Digilent ZedBoard
- DAC channel aggregation
Product Detail

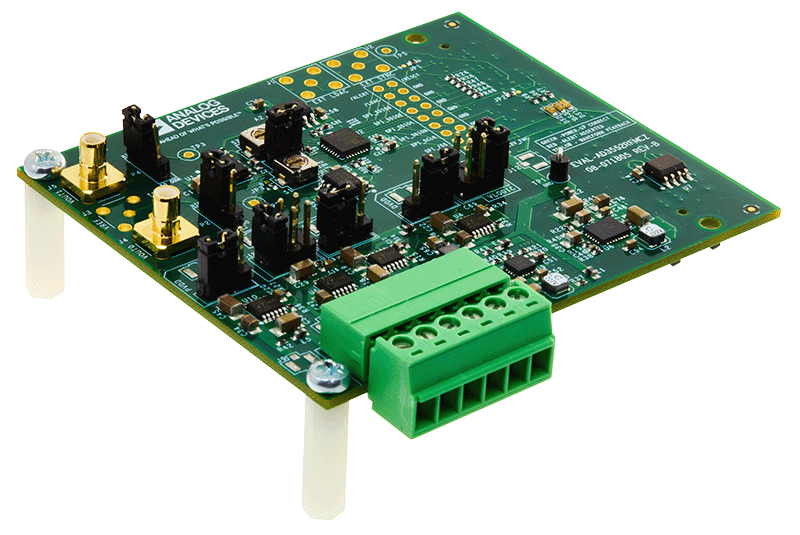

The EVAL-AD3552RFMCZ is an evaluation board for the AD3552R, a dual-channel, 16-bit fast precision digital-to-analog converter (DAC). Each channel of the AD3552R is equipped with a different transimpedance amplifier: Channel 0 has a fast amplifier that achieves the optimal dynamic performance and Channel 1 has a precision amplifier that guarantees the optimal DC precision over temperature.
