AD9744

14-Bit, 210 MSPS TxDAC® D/A Converter

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 10
1ku List Price Starting From $13.68
Features
  • High performance member of pin-compatible TxDAC product family
  • Excellent spurious-free dynamic range performance
  • SFDR to Nyquist
    • 83 dBc at 5 MHz output
    • 80 dBc at 10 MHz output
    • 73 dBc at 20 MHz output
  • SNR at 5 MHz output, 125 MSPS: 77 dB
  • Twos complement or straight binary data format
  • Differential current outputs: 2 mA to 20 mA
  • Power dissipation: 135 mW at 3.3 V
  • Power-down mode: 15 mW at 3.3 V
  • On-chip 1.2 V reference
  • CMOS-compatible digital interface

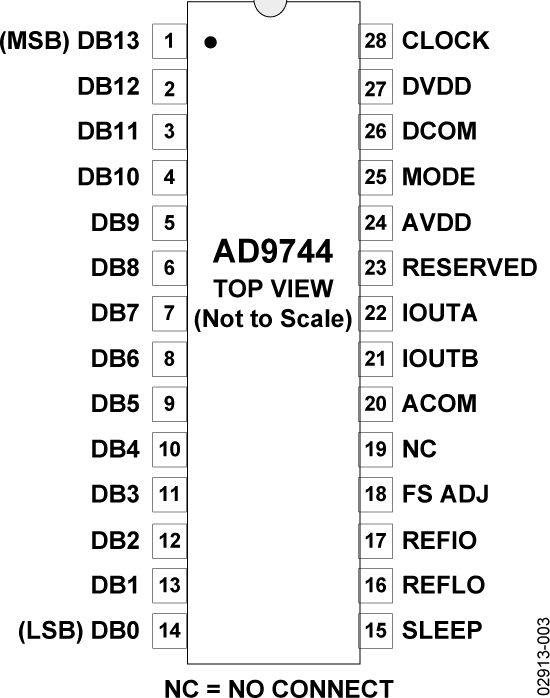

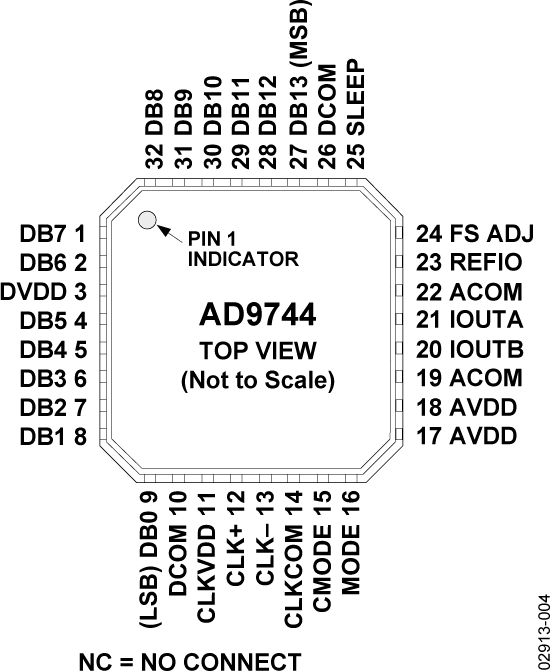

  • 28-lead SOIC, 28-lead TSSOP, and 32-lead LFCSP packages
  • Edge-triggered latches
Additional Details
show more Icon

The AD97441 is a 14-bit resolution, wideband, third generation member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC family, consisting of pin-compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD9744 offers exceptional ac and dc performance while supporting update rates up to 210 MSPS.

The AD9744’s low power dissipation makes it well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 60 mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 15 mW. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance.

Edge-triggered input latches and a 1.2 V temperature compensated band gap reference have been integrated to provide a complete monolithic DAC solution. The digital inputs support 3 V CMOS logic families.

Product Highlights

  1. The AD9744 is the 14-bit member of the pin compatible TxDAC family, which offers excellent INL and DNL performance.
  2. Data input supports twos complement or straight binary data coding.
  3. High speed, single-ended CMOS clock input supports 210 MSPS conversion rate.
  4. Low power: Complete CMOS DAC function operates on 135 mW from a 2.7 V to 3.6 V single supply. The DAC full-scale current can be reduced for lower power operation, and a sleep mode is provided for low power idle periods.
  5. On-chip voltage reference: The AD9744 includes a 1.2 V temperature compensated band gap voltage reference.
  6. Industry-standard 28-lead SOIC, 28-lead TSSOP, and 32-lead LFCSP packages.

Applications

  • Wideband communication transmit channel
  • Direct IFs
  • Base stations
  • Wireless local loops
  • Digital radio links
  • Direct digital synthesis (DDS) Instrumentation
Part Models 10
1ku List Price Starting From $13.68

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9744ACPZ
  • HTML
  • HTML
AD9744ACPZRL7
  • HTML
  • HTML
AD9744AR
  • HTML
  • HTML
AD9744ARU
  • HTML
  • HTML
AD9744ARURL7
  • HTML
  • HTML
AD9744ARUZ
  • HTML
  • HTML
AD9744ARUZN
  • HTML
  • HTML
AD9744ARUZRL7
  • HTML
  • HTML
AD9744ARZ
  • HTML
  • HTML
AD9744ARZRL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 23, 2012

- 11_0104

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

Feb 7, 2011

- 10_0003

Halogen Free Material Change for SOIC Wide Body Products Assembled at Amkor

AD9744AR

Obsolete

AD9744ARZ

PRODUCTION

AD9744ARZRL

PRODUCTION

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD9744ARU

Obsolete

AD9744ARURL7

Obsolete

AD9744ARUZ

PRODUCTION

AD9744ARUZRL7

PRODUCTION

Jan 29, 2014

- 14_0014

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

AD9744AR

Obsolete

AD9744ARU

Obsolete

AD9744ARURL7

Obsolete

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 23, 2012

- 11_0104

arrow down

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

Feb 7, 2011

- 10_0003

arrow down

Halogen Free Material Change for SOIC Wide Body Products Assembled at Amkor

AD9744AR

Obsolete

AD9744ARZ

PRODUCTION

AD9744ARZRL

PRODUCTION

Feb 11, 2011

- 10_0005

arrow down

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD9744ARU

Obsolete

AD9744ARURL7

Obsolete

AD9744ARUZ

PRODUCTION

AD9744ARUZRL7

PRODUCTION

Jan 29, 2014

- 14_0014

arrow down

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

AD9744AR

Obsolete

AD9744ARU

Obsolete

AD9744ARURL7

Obsolete

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits 2

reference details image

SDP-H1

High Speed Controller Board

zoom

SDP-H1

High Speed Controller Board

High Speed Controller Board

Features and Benefits

  • Xilinx® Spartan 6
  • 1 x FMC Low Pin Count ( LPC) connector
  • LVDS and single ended LVCMOS signaling
  • DDR2
  • JTAG header
  • Blackfin processor ADSP-BF527
  • 1 x small Footprint 120 pin connector
  • Configurable Peripheral Interfaces SPI, SPORT, I2C, GPIO, Asynchronous Parallel, PPI, Timers
  • USB 2.0 interface to the PC

Product Detail

The SDP-H1 is a high speed controller board for the System Demonstration Platform (SDP). The SDP-H1 has a Xilinx® Spartan 6 and an ADSP-BF527 processor with connectivity to the PC through a USB 2.0 high speed port. Controller boards allow for the configuration and capture of data on daughter boards from the PC via USB.

The SDP-H1 has a FMC low pin count ( LPC) connector with full differential LVDS and singled ended LVCMOS support. It also has the 120 pin connector, found on the SDP-B which exposes the Blackfin processors peripherals. This connector provides a configurable Serial, Parallel I2C and SPI and GPIO communications lines to the attached daughter board. The PC side software application for controlling the attached daughter board is provided with each of the daughter product evaluation boards or Circuits from the Lab reference Circuits.

The System Demonstration Platform is a collection of controller boards, interposer boards, and daughter boards, used for easy, low cost evaluation of ADI components and reference circuits. For a general overview of the entire platform visit the System Demonstration Platform homepage www.analog.com/sdp

See the full list of compatible Product Evaluation Boards and Circuits from the Lab Reference Circuit Boards that require the SDP-B. All SDP-S compatible daughter boards can be used with the SDP-B.

reference details image

EVAL-AD9744

AD9744 Evaluation Board

zoom

EVAL-AD9744

AD9744 Evaluation Board

AD9744 Evaluation Board

Features and Benefits

  • High performance member of pin-compatible TxDAC product family
  • Excellent SFDR performance
  • Twos complement or straight binary data format
  • Differential current outputs: 2 mA to 20 mA
  • Power dissipation: 135 mW at 3.3 V
  • Power-down mode: 15 mW at 3.3 V
  • On-chip 1.2 V reference
  • CMOS-compatible digital interface
  • 32-lead LFCSP package
  • Edge triggered latches

Product Detail

The AD9740, AD9742, AD9744, and AD9748 evaluation board is an FMC form-factor board with FMC connector that complies to the Vita 57.1 standard. This board provides the user with the flexibility to operate the AD9740/AD9742/AD9744/AD9748 in various configurations. Output configurations include transformer-coupled, resistor terminated, and single and differential outputs. The digital inputs are designed to be driven from various word generators with the onboard option to add a resistor network for proper load termination. Provisions are also made to operate the AD9744 with either the onboard clock source (ADF4351) or with external clock configuration.

The SDP-H1 automatically formats the data and sends it to the evaluation board, which simplifies the evaluation of the device. The evaluation board receives power from the SDP-H1 power supply.
