EVAL-AD9744
Overview
Features and Benefits
- High performance member of pin-compatible TxDAC product family
- Excellent SFDR performance
- Twos complement or straight binary data format
- Differential current outputs: 2 mA to 20 mA
- Power dissipation: 135 mW at 3.3 V
- Power-down mode: 15 mW at 3.3 V
- On-chip 1.2 V reference
- CMOS-compatible digital interface
- 32-lead LFCSP package
- Edge triggered latches
Product Details

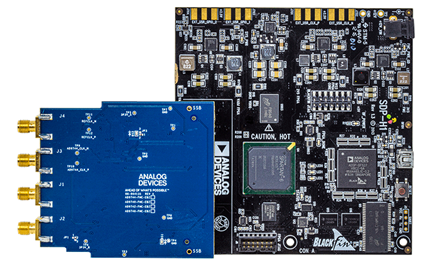

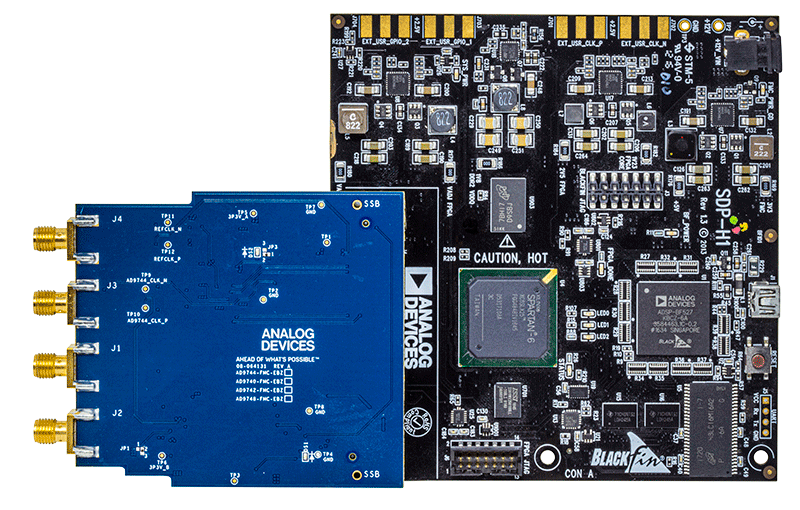

The AD9740, AD9742, AD9744, and AD9748 evaluation board is an FMC form-factor board with FMC connector that complies to the Vita 57.1 standard. This board provides the user with the flexibility to operate the AD9740/AD9742/AD9744/AD9748 in various configurations. Output configurations include transformer-coupled, resistor terminated, and single and differential outputs. The digital inputs are designed to be driven from various word generators with the onboard option to add a resistor network for proper load termination. Provisions are also made to operate the AD9744 with either the onboard clock source (ADF4351) or with external clock configuration.
The SDP-H1 automatically formats the data and sends it to the evaluation board, which simplifies the evaluation of the device. The evaluation board receives power from the SDP-H1 power supply.
Documentation & Resources
-
AD974x-ACP-PCBZ - User Guide (Rev. A)4/9/2021PDF1 M
-
AD974x-FMC-EBZ User Guide4/9/2021WIKI
-
SDP-H1 for High-Speed DAC Evaluation4/9/2021WIKI
-
UG-502: SDP-H1 Controller Board4/5/2013PDF1896 kB
-
PCB Layout4/9/2021PDF
-
Schematic4/9/2021PDF
-
BRD File4/9/2021BRD
-
BOM4/9/2021CSV
-
PCB Layout Top2/4/2020PDF
-
PCB Layout Bottom2/4/2020PDF
-
Schematic2/4/2020PDF
-
BOM2/4/2020PDF
