AD5112

Single Channel, 64-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 9
1ku List Price Starting From $0.80
Features
  • Nominal resistor tolerance error: ±8% maximum
  • Wiper current: ±6 mA
  • Rheostat mode temperature coefficient: 35 ppm/°C
  • Low power consumption: 2.5 μA max @ 2.7 V and 125°C
  • Wide bandwidth: 4 MHz (5 kΩ option)
  • Power-on EEPROM refresh time < 50 μs
  • 50-year typical data retention at 125°C
  • 1 million write cycles
  • 2.3 V to 5.5 V analog supply operation
  • 1.8 V to 5.5 V logic supply operation
  • Wide operating temperature: −40°C to +125°C
  • Thin, 2 mm × 2 mm × 0.55 mm 8-lead LFCSP package
Additional Details
show more Icon

The AD5112 provides a nonvolatile solution for 64-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins. The low resistor tolerance, low nominal temperature coefficient and high bandwidth simplify open-loop applications, as well as tolerance matching applications.

The new low wiper resistance feature minimizes the wiper resistance in the extremes of the resistor array to only 45 Ω, typical.

The wiper settings are controllable through an I2C-compatible digital interface that is also used to readback the wiper register and EEPROM content. Resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%.

The AD5112 is available in a 2 mm × 2 mm LFCSP package. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.

APPLICATIONS

  • Mechanical potentiometer replacement
  • Portable electronics level adjustment
  • Audio volume control
  • Low resolution DAC
  • LCD panel brightness and contrast control
  • Programmable voltage to current conversion
  • Programmable filters, delays, time constants
  • Feedback resistor programmable power supply
  • Sensor calibration
Part Models 9
1ku List Price Starting From $0.80

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5112BCPZ10-1-RL7
  • HTML
  • HTML
AD5112BCPZ10-500R7
  • HTML
  • HTML
AD5112BCPZ10-RL7
  • HTML
  • HTML
AD5112BCPZ5-1-RL7
  • HTML
  • HTML
AD5112BCPZ5-500R7
  • HTML
  • HTML
AD5112BCPZ5-RL7
  • HTML
  • HTML
AD5112BCPZ80-1-RL7
  • HTML
  • HTML
AD5112BCPZ80-500R7
  • HTML
  • HTML
AD5112BCPZ80-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

AD5112BCPZ10-1-RL7

PRODUCTION

AD5112BCPZ10-500R7

PRODUCTION

AD5112BCPZ10-RL7

PRODUCTION

AD5112BCPZ5-1-RL7

PRODUCTION

AD5112BCPZ5-500R7

PRODUCTION

AD5112BCPZ5-RL7

PRODUCTION

AD5112BCPZ80-1-RL7

PRODUCTION

AD5112BCPZ80-500R7

PRODUCTION

AD5112BCPZ80-RL7

PRODUCTION

Oct 18, 2016

- 16_0036

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

AD5112BCPZ10-1-RL7

PRODUCTION

AD5112BCPZ10-500R7

PRODUCTION

AD5112BCPZ10-RL7

PRODUCTION

AD5112BCPZ5-1-RL7

PRODUCTION

AD5112BCPZ5-500R7

PRODUCTION

AD5112BCPZ5-RL7

PRODUCTION

AD5112BCPZ80-1-RL7

PRODUCTION

AD5112BCPZ80-500R7

PRODUCTION

AD5112BCPZ80-RL7

PRODUCTION

Aug 6, 2014

- 13_0244

Assembly and Test Transfer of Select 2x2 and 1.6x1.6 mm Mini-LFCSP Products to STATS ChipPAC China

AD5112BCPZ10-1-RL7

PRODUCTION

AD5112BCPZ10-500R7

PRODUCTION

AD5112BCPZ10-RL7

PRODUCTION

AD5112BCPZ5-1-RL7

PRODUCTION

AD5112BCPZ5-500R7

PRODUCTION

AD5112BCPZ5-RL7

PRODUCTION

AD5112BCPZ80-1-RL7

PRODUCTION

AD5112BCPZ80-500R7

PRODUCTION

AD5112BCPZ80-RL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

AD5112BCPZ10-1-RL7

PRODUCTION

AD5112BCPZ10-500R7

PRODUCTION

AD5112BCPZ10-RL7

PRODUCTION

AD5112BCPZ5-1-RL7

PRODUCTION

AD5112BCPZ5-500R7

PRODUCTION

AD5112BCPZ5-RL7

PRODUCTION

AD5112BCPZ80-1-RL7

PRODUCTION

AD5112BCPZ80-500R7

PRODUCTION

AD5112BCPZ80-RL7

PRODUCTION

Oct 18, 2016

- 16_0036

arrow down

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

AD5112BCPZ10-1-RL7

PRODUCTION

AD5112BCPZ10-500R7

PRODUCTION

AD5112BCPZ10-RL7

PRODUCTION

AD5112BCPZ5-1-RL7

PRODUCTION

AD5112BCPZ5-500R7

PRODUCTION

AD5112BCPZ5-RL7

PRODUCTION

AD5112BCPZ80-1-RL7

PRODUCTION

AD5112BCPZ80-500R7

PRODUCTION

AD5112BCPZ80-RL7

PRODUCTION

Aug 6, 2014

- 13_0244

arrow down

Assembly and Test Transfer of Select 2x2 and 1.6x1.6 mm Mini-LFCSP Products to STATS ChipPAC China

AD5112BCPZ10-1-RL7

PRODUCTION

AD5112BCPZ10-500R7

PRODUCTION

AD5112BCPZ10-RL7

PRODUCTION

AD5112BCPZ5-1-RL7

PRODUCTION

AD5112BCPZ5-500R7

PRODUCTION

AD5112BCPZ5-RL7

PRODUCTION

AD5112BCPZ80-1-RL7

PRODUCTION

AD5112BCPZ80-500R7

PRODUCTION

AD5112BCPZ80-RL7

PRODUCTION

Evaluation Kit

Evaluation Kits 1

reference details image

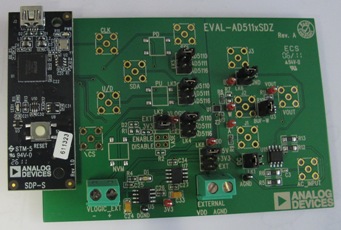

EVAL-AD5110SDZ

AD5110 Evaluation Board

zoom

EVAL-AD5110SDZ

AD5110 Evaluation Board

Product Detail

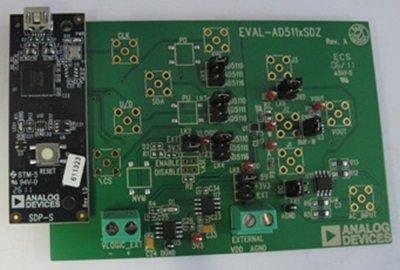

The Evaluation board for the AD5110 contains a SDP connection and software which allows the AD5110 to be controlled from an SDP board.
