Features and Benefits
- 16 Bits Resolution
- Throughput: 250 kSPS
- INL: ±4 LSB Max
- Power Dissipation:
800 µA @ 5V/100 kSPS
540 µA @ 2.7V/100 kSPS
- Pseudo-Differential Analog Input Range: 0 V to VREF with VREF up to VDD
- S/(N+D): 92 dB @ 20 kHz
- No Pipeline Delay
- Single Supply Operation 2.7 V or 5 V
- Serial Interface SPI®/QSPI™/µWire/DSP compatible
- µSOIC Package (µSO8)
- Improved 2nd Source of LTC1864 and LTC1864L

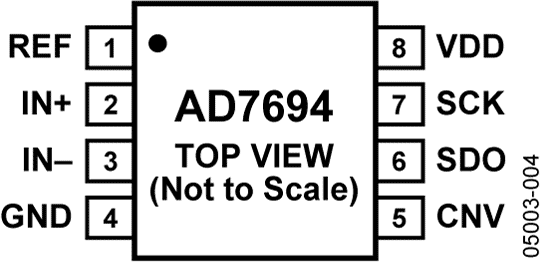

The AD7694 is a 16-bit, 250 kSPS, charge redistribution successive-approximation Analog-to-Digital Converter which operates from a single power supply, VDD between 2.7 V to 5.25 V. It contains a very low power high-speed 16-bit sampling ADC with no missing codes (B grade), an internal conversion clock and a SPI compatible serial interface port. The part also contains a low noise, wide bandwidth, very short aperture delay track/hold circuit. On the CNV rising edge, it samples an analog input IN+ between 0 V to REF with respect to a ground sense IN-. The reference voltage REF is applied externally and can be set up to the supply voltage.
Its power scales linearly with throughput.
The AD7694 is housed in a 8-lead µSOIC with operation specified from –40°C to +85°C.
- Battery Powered Equipments:
- Medical instruments
- Mobile communications
- Personal digital assistants
- Data Acquisition
- Process Control
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The EVAL-AD7694SDZ is a fully featured evaluation kit for the AD7694. This board operates in standalone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z . When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the System Development Platform . When operated in standalone mode the ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.
Documentation & Resources
AD7694 Companion Parts
Recommended Digital Isolators
- For SPI Interface, enhanced system-level ESD performance, 2.5 kVrms isolation: ADUM3401.
- For SPI Interface, smallest package, low voltage I/O (1.8 V to 5.5 V): ADUM3481.
- For SPI Interface, low power, 5.0 kVrms isolation: ADUM4401.
- For SPI Interface, lowest power, 2.5 kVrms isolation: ADUM1401.
Recommended External Voltage References
Recommended Driver Amplifiers
