AD5248

256-Position Dual Channel I2C Compatible Digital Resistor

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 8
1ku List Price Starting From $1.33
Features
  • 2-channel, 256-position potentiometers
  • End-to-end resistance: 2.5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ
  • Compact 10-lead MSOP (3 mm × 4.9 mm) package
  • Fast settling time: tS = 5 µs typical on power-up
  • Full read/write of wiper register
  • Power-on preset to midscale

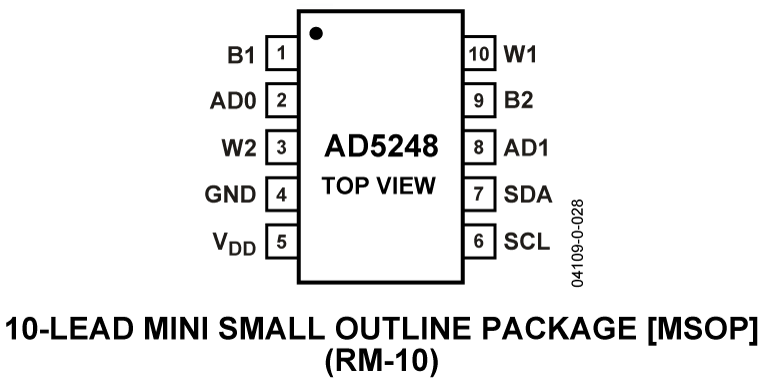

  • Extra package address decode pins:AD0 and AD1
  • Computer software replaces microcontroller in factory programming applications
  • Single supply: 2.7 V to 5.5 V
  • Low temperature coefficient: 35 ppm/°C
  • Low power: IDD = 6 µA maximum
  • Wide operating temperature: −40°C to +125°C
  • Evaluation board available
Additional Details
show more Icon

The AD5243 and AD5248 provide a compact 3 mm × 4.9 mm packaged solution for dual, 256-position adjustment applications. The AD5243 performs the same electronic adjustment function as a 3-terminal mechanical potentiometer, and the AD5248 performs the same adjustment function as a 2-terminal variable resistor. Available in four end-to-end resistance values (2.5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ), these low temperature coefficient devices are ideal for high accuracy and stability-variable resistance adjustments. The wiper settings are controllable through the I2C-compatible digital interface. The AD5248 has extra package address decode pins, AD0 and AD1, allowing multiple parts to share the same I2C, 2-wire bus on a PCB. The resistance between the wiper and either endpoint of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch. (The terms digital potentiometer, VR, and RDAC are used interchangeably.)

Operating from a 2.7 V to 5.5 V power supply and consuming less than 6 µA allows the AD5243/AD5248 to be used in portable battery-operated applications.

For applications that program the AD5243/AD5248 at the factory, Analog Devices, Inc., offers device programming software running on Windows® NT/2000/XP operating systems. This software effectively replaces the need for external I2C controllers, which in turn enhances the time to market of systems. An AD5243/AD5248 evaluation kit and software are available. The kit includes a cable and instruction manual.

Applications

  • Systems calibrations
  • Electronics level settings
  • Mechanical trimmers replacement in new designs
  • Permanent factory printed circuit board (PCB) setting
  • Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
  • RF amplifier biasing
  • Gain control and offset adjustment
Part Models 8
1ku List Price Starting From $1.33

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5248BRMZ10
  • HTML
  • HTML
AD5248BRMZ10-RL7
  • HTML
  • HTML
AD5248BRMZ100
  • HTML
  • HTML
AD5248BRMZ100-RL7
  • HTML
  • HTML
AD5248BRMZ2.5
  • HTML
  • HTML
AD5248BRMZ2.5-RL7
  • HTML
  • HTML
AD5248BRMZ50
  • HTML
  • HTML
AD5248BRMZ50-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 22, 2021

- 21_0001

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

AD5248BRMZ50-RL7

PRODUCTION

Oct 30, 2017

- 15_0176

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

AD5248BRMZ50-RL7

PRODUCTION

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

AD5248BRMZ50-RL7

PRODUCTION

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

Feb 11, 2009

- 09_0008

AD5162, AD5170, AD5172, AD5173, AD5243 and AD5248 Datasheet Update

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 22, 2021

- 21_0001

arrow down

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

AD5248BRMZ50-RL7

PRODUCTION

Oct 30, 2017

- 15_0176

arrow down

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

AD5248BRMZ50-RL7

PRODUCTION

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

AD5248BRMZ50-RL7

PRODUCTION

Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD5248BRMZ10

PRODUCTION

AD5248BRMZ10-RL7

PRODUCTION

AD5248BRMZ100

PRODUCTION

AD5248BRMZ100-RL7

PRODUCTION

AD5248BRMZ2.5

PRODUCTION

AD5248BRMZ2.5-RL7

PRODUCTION

AD5248BRMZ50

PRODUCTION

Feb 11, 2009

- 09_0008

arrow down

AD5162, AD5170, AD5172, AD5173, AD5243 and AD5248 Datasheet Update

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-AD5243

AD5243 Evaluation Board

zoom

EVAL-AD5243

AD5243 Evaluation Board

AD5243 Evaluation Board

Features and Benefits

  • Full-featured evaluation board for the AD5243
  • Various test circuits
  • Various ac/dc input signals
  • PC control via a separately purchased system demonstration platform (SDP-B)
  • PC software for control

Product Detail

The AD5243 supports single-supply 2.7 V to 5.5 V operation, making the device suited for battery-powered applications and many other applications.

In addition, the AD5243 uses a versatile I2C serial interface that operates in fast mode, allowing speeds of up to 400 kbps.

The EVAL-AD5243SDZ can operate in single-supply mode and incorporates an internal power supply from the USB.

Complete specifications for the AD5243 part are in the AD5243 data sheet.
