ADMV8526

RECOMMENDED FOR NEW DESIGNS

ADMV8526

1.25 GHz to 2.60 GHz Digitally Tunable Band-Pass Filter

RECOMMENDED FOR NEW DESIGNS

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $44.13

Features

Digitally tunable, octave, band-pass tuning
3 dB bandwidth: 9% ± 2%
Rejection (20 dB): 16% away from f_CENTER

Single chip replacement for discrete filter banks
Compact 10 mm × 10 mm × 1.99 mm LGA package

Additional Details

The ADMV8526 is an RF band-pass filter that features a digitally selectable frequency of operation. The filter center frequency (f_CENTER) can be adjusted from 1.25 GHz to 2.60 GHz, using an 8-bit value (256 states) that incorporates a patent pending interpolation technique.

The typical 3 dB bandwidth is 9% and adjustability is ±2%. Insertion loss is typically 4 dB, and the 20 dB rejection is 16% away from f_CENTER, which is ideally suited for minimizing system interferers.

This tunable filter can be used as a smaller alternative to large switched filter banks and discrete component-based tunable filters, and this device provides a dynamically adjustable solution in advanced communications applications.

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $44.13

Documentation

Technical Documents 2

ADMV8526: 1.25 GHz to 2.60 GHz Digitally Tunable Band-Pass Filter Data Sheet (Rev.A) 01/17/2022

UG2020: Evaluating the ADMV8526 1.25 GHz to 2.60 GHz Digitally Tunable Band-Pass Filter (Rev.0) 01/17/2022

Reference Materials 2

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

RF Front End Design for the ADRV9002 Narrow/Wideband Transceiver 12/09/2021

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADMV8526ACCZ	40-Terminal LGA (10 mm x 10 mm x 1.99 mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADMV8526ACCZ-R7	40-Terminal LGA (10 mm x 10 mm x 1.99 mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADMV8526ACCZ
Pin/Package Drawing
40-Terminal LGA (10 mm x 10 mm x 1.99 mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADMV8526ACCZ-R7
Pin/Package Drawing
40-Terminal LGA (10 mm x 10 mm x 1.99 mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Companion Parts 2

Parts	Product Life Cycle	Description
Digital Tunable Filters1
ADMV8052	RECOMMENDED FOR NEW DESIGNS	30 MHz to 520 MHz Digitally Tunable Band-Pass Filter
Wideband Transceiver IC1
ADRV9002	RECOMMENDED FOR NEW DESIGNS	Dual Narrow-Band and Wideband RF Transceiver

Evaluation Kit

EVAL-ADMV8526

Evaluating the ADMV8526 1.25 GHz to 2.60 GHz Digitally Tunable Band-Pass Filter

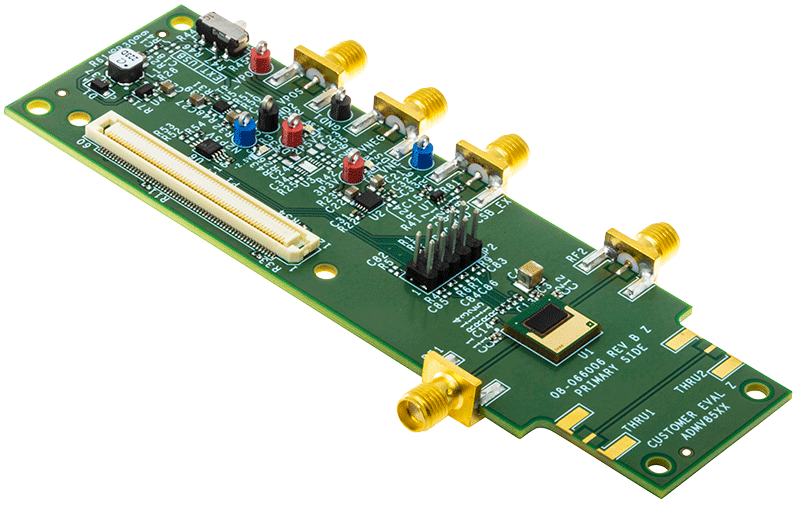

ADMV8526 Evaluation Board Kit - Angle View

ADMV8526 Evaluation Board Kit - Top View

ADMV8526 Evaluation Board Kit - Bottom View

Evaluating the ADMV8526 1.25 GHz to 2.60 GHz Digitally Tunable Band-Pass Filter

Download

EVAL-ADMV8526

Evaluating the ADMV8526 1.25 GHz to 2.60 GHz Digitally Tunable Band-Pass Filter

Features and Benefits

Fully featured evaluation board for the ADMV8526
On-board system demonstration platform (SDP-S) connector for the SPI

Evaluation using on-board LDO regulators powered by the USB
ACE software interface for SPI control

Buy Now View Details

Product Detail

The ADMV8526-EVALZ is available for evaluating the ADMV8526 digitally tunable, band-pass filter (BPF). The ADMV8526-EVALZ incorporates the ADMV8526 chip, as well as a negative voltage generator, low dropout (LDO) regulators, and an interface to the EVAL-SDP-CS1Z (SDP-S) system demonstration platform (SDP) to allow simple and efficient evaluation. The negative voltage generator and LDO regulators allow the ADMV8526 to be powered by either the 5 V USB supply voltage from the PC via the SDP-S or by using two external power supplies.

The ADMV8526 is an IC that features a digitally selectable frequency of operation. The chip can be programmed using a 4-wire serial peripheral interface (SPI), and the SDP-S controller allows the user to interface with the SPI of the ADMV8526 through the Analog Devices, Inc., Analysis, Control Evaluation (ACE) software.

For full details on the ADMV8526, see the ADMV8526 data sheet, which must be consulted in conjunction with this user guide when using the ADMV8526-EVALZ.
