- 10 kΩ, 100 kΩ, 1 MΩ
- Low temperature coefficient: 30 ppm/°C
- Internal power on midscale preset
- Single-supply 2.7 V to 5.5 V or dual-supply ±2.7 V for ac or bipolar operation
- 256 positions
- I2C-compatible interface with readback capability
- Extra programmable logic outputs
- Self contained shutdown feature
- Extended temperature range: −40°C to +105°C
The AD5241/AD5242 provide a single-/dual-channel, 256-position, digitally controlled variable resistor (VR) device. These devices perform the same electronic adjustment function as a potentiometer, trimmer, or variable resistor. Each VR offers a completely programmable value of resistance between the A terminal and the wiper, or the B terminal and the wiper. For the AD5242, the fixed A-to-B terminal resistance of 10 kΩ, 100 kΩ, or 1 MΩ has a 1% channel-to-channel matching tolerance. The nominal temperature coefficient of both parts is 30 ppm/°C.
Wiper position programming defaults to midscale at system power on. When powered, the VR wiper position is programmed by an I2C-compatible, 2-wire serial data interface. Both parts have two extra programmable logic outputs available that enable users to drive digital loads, logic gates, LED drivers, and analog switches in their system.

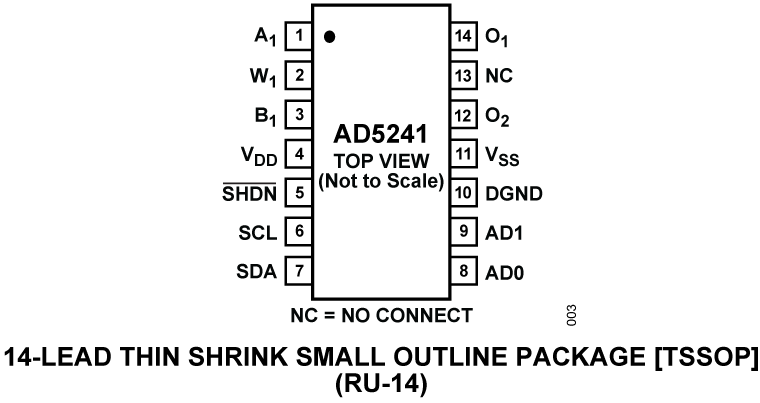

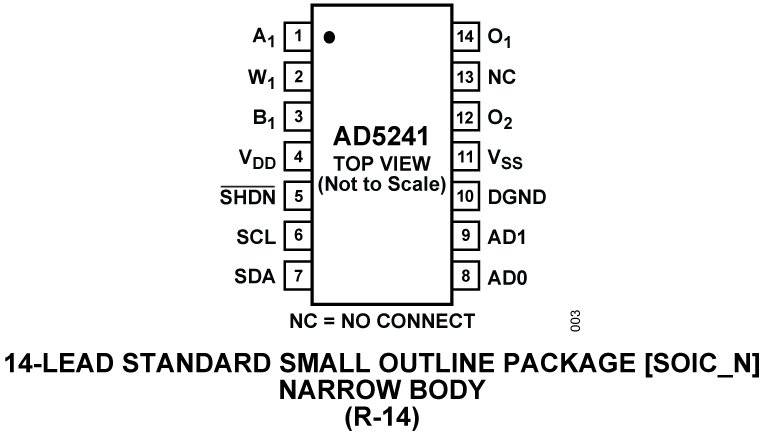

The AD5241/AD5242 are available in surface-mount, 14-lead SOIC and 16-lead SOIC packages and, for ultracompact solutions, 14-lead TSSOP and 16-lead TSSOP packages. All parts are guaranteed to operate over the extended temperature range of −40°C to +105°C.
Applications
- Multimedia, video, and audio
- Communications
- Mechanical potentiometer replacement
- Instrumentation: gain, offset adjustment
- Programmable voltage-to-current conversion
- Line impedance matching
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5241
Documentation
Filters
1 Applied
Data Sheet
1
Application Note
7
263 kB
288 kB
Frequently Asked Question
1
HTML
Documentation
Data Sheet 1
Application Note 3
Frequently Asked Question 1
Product Selection Guide 1
3rd Party Solutions 1
Device Drivers 1
Webcast 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
AD5241BRUZ10 | 14-Lead TSSOP |
|
|
AD5241BRUZ10-R7 | 14-Lead TSSOP |
|
|
AD5241BRUZ100 | 14-Lead TSSOP |
|
|
AD5241BRUZ100-R7 | 14-Lead TSSOP |
|
|
AD5241BRZ10 | 14-Lead SOIC |
|
|
AD5241BRZ10-RL7 | 14-Lead SOIC |
|
|
AD5241BRZ100 | 14-Lead SOIC |
|
|
AD5241BRZ1M | 14-Lead SOIC |
|
|
AD5241BRZ1M-REEL | 14-Lead SOIC |
|
- AD5241BRUZ10
- Pin/Package Drawing
- 14-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRUZ10-R7
- Pin/Package Drawing
- 14-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRUZ100
- Pin/Package Drawing
- 14-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRUZ100-R7
- Pin/Package Drawing
- 14-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRZ10
- Pin/Package Drawing
- 14-Lead SOIC
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRZ10-RL7
- Pin/Package Drawing
- 14-Lead SOIC
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRZ100
- Pin/Package Drawing
- 14-Lead SOIC
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRZ1M
- Pin/Package Drawing
- 14-Lead SOIC
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5241BRZ1M-REEL
- Pin/Package Drawing
- 14-Lead SOIC
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 11, 2011
- 10_0005
Halogen Free Material Change for TSSOP Products Assembled at Amkor
AD5241BRUZ10
PRODUCTION
AD5241BRUZ10-R7
PRODUCTION
AD5241BRUZ100
PRODUCTION
AD5241BRUZ100-R7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5241BRUZ10
PRODUCTION
AD5241BRUZ10-R7
PRODUCTION
AD5241BRUZ100
PRODUCTION
AD5241BRUZ100-R7
PRODUCTION
AD5241BRZ10
PRODUCTION
AD5241BRZ10-RL7
PRODUCTION
AD5241BRZ100
PRODUCTION
AD5241BRZ1M
PRODUCTION
Mar 25, 2021
- 21_0080
Amkor Philippines as an Alternate Site for SOICN
AD5241BRZ10
PRODUCTION
AD5241BRZ10-RL7
PRODUCTION
AD5241BRZ100
PRODUCTION
AD5241BRZ1M
PRODUCTION
AD5241BRZ1M-REEL
PRODUCTION
Oct 5, 2010
- 10_0146
Halogen Free Material Change for 14/16L SOIC_N Products
AD5241BRZ10
PRODUCTION
AD5241BRZ10-RL7
PRODUCTION
AD5241BRZ100
PRODUCTION
AD5241BRZ1M
PRODUCTION
AD5241BRZ1M-REEL
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 11, 2011
- 10_0005
Halogen Free Material Change for TSSOP Products Assembled at Amkor
AD5241BRUZ10
PRODUCTION
AD5241BRUZ10-R7
PRODUCTION
AD5241BRUZ100
PRODUCTION
AD5241BRUZ100-R7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5241BRUZ10
PRODUCTION
AD5241BRUZ10-R7
PRODUCTION
AD5241BRUZ100
PRODUCTION
AD5241BRUZ100-R7
PRODUCTION
AD5241BRZ10
PRODUCTION
AD5241BRZ10-RL7
PRODUCTION
AD5241BRZ100
PRODUCTION
AD5241BRZ1M
PRODUCTION
Mar 25, 2021
- 21_0080
Amkor Philippines as an Alternate Site for SOICN
AD5241BRZ10
PRODUCTION
AD5241BRZ10-RL7
PRODUCTION
AD5241BRZ100
PRODUCTION
AD5241BRZ1M
PRODUCTION
AD5241BRZ1M-REEL
PRODUCTION
Oct 5, 2010
- 10_0146
Halogen Free Material Change for 14/16L SOIC_N Products
AD5241BRZ10
PRODUCTION
AD5241BRZ10-RL7
PRODUCTION
AD5241BRZ100
PRODUCTION
AD5241BRZ1M
PRODUCTION
AD5241BRZ1M-REEL
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
EVAL-AD5242
AD5242 Evaluation Board
Product Detail
The AD5242 supports single-supply 2.7 V to 5.5 V operation, making the device suitable for battery-powered applications and many applications requiring superior low temperature coefficient performance.
In addition, the AD5242 uses a versatile I2C-compatible serial interface that operates in fast mode, allowing speeds of up to 400 kHz. This interface can be used to read back the wiper register and EEPROM content.
The EVAL-AD5242DBZ daughter board and the EVAL-MB-LV-SDZ motherboard can operate in single-supply mode and incorporate an internal power supply from the USB.
Complete specifications for the AD5242 can be found in the AD5242 data sheet.
