AD9121

Dual, 14-Bit, 1230 MSPS, TxDAC+ Digital-to-Analog Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $37.88
Features
  • Flexible LVDS interface allows word or byte load
  • Single-carrier W-CDMA ACLR = 82 dBc at 122.88 MHz IF
  • Analog output: adjustable 8.7 mA to 31.7 mA, RL = 25 Ω to 50 Ω
  • Integrated 2×/4×/8× interpolator/complex modulator allows carrier placement anywhere in the DAC bandwidth
  • Gain, dc offset, and phase adjustment for sideband suppression
  • Multiple chip synchronization interfaces
  • High performance, low noise PLL clock multiplier
  • Digital inverse sinc filter
  • Low power: 1.5 W at 1.2 GSPS, 800 mW at 500 MSPS, full operating conditions
  • 72-lead, exposed paddle LFCSP
Additional Details
show more Icon

The AD9121 is a dual, 14-bit, high dynamic range digital-to-analog converter (DAC) that provides a sample rate of 1230 MSPS, permitting multicarrier generation up to the Nyquist frequency.

The AD9121 TxDAC+® includes features optimized for direct conversion transmit applications, including complex digital modulation, and gain and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators, such as the ADL537x F-MOD series from Analog Devices, Inc. A 4-wire serial port interface provides for programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 8.7 mA to 31.7 mA. The AD9121 comes in a 72-lead LFCSP.

PRODUCT HIGHLIGHTS

  1. Ultralow noise and intermodulation distortion (IMD) enable high quality synthesis of wideband signals from baseband to high intermediate frequencies (IF).
  2. Proprietary DAC output switching technique enhances dynamic performance.
  3. Current outputs are easily configured for various single-ended or differential circuit topologies.
  4. Flexible LVDS digital interface allows the standard 28-wire bus to be reduced to one-half of the width.

APPLICATIONS

  • Wireless infrastructure
  • W-CDMA, CDMA2000, TD-SCDMA, WiMAX, GSM, LTE
  • Digital high or low IF synthesis
  • Transmit diversity
  • Wideband communications: LMDS/MMDS, point-to-point
Part Models 2
1ku List Price Starting From $37.88

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9121BCPZ
  • HTML
  • HTML
AD9121BCPZRL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 26, 2023

- 23_0025

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 26, 2023

- 23_0025

arrow down

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 3

reference details image

EVAL-AD9121

AD9121 Evaluation Board

zoom

EVAL-AD9121

AD9121 Evaluation Board

AD9121 Evaluation Board

Features and Benefits

  • Full featured evaluation board for the AD9121
  • Includes options to evaluate:
    • DAC only (Two DAC output)
    • DAC and ADL537X quadrature modulator
  • USB interface for configuration
  • Internal or external power supply regulation
  • Data pattern generator and SPI software interfaces

Product Detail

This page contains evaluation board documentation and ordering information for evaluating the AD9121.

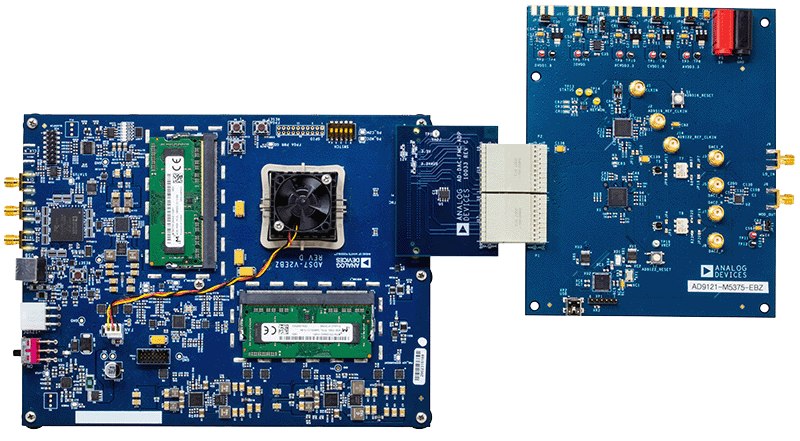

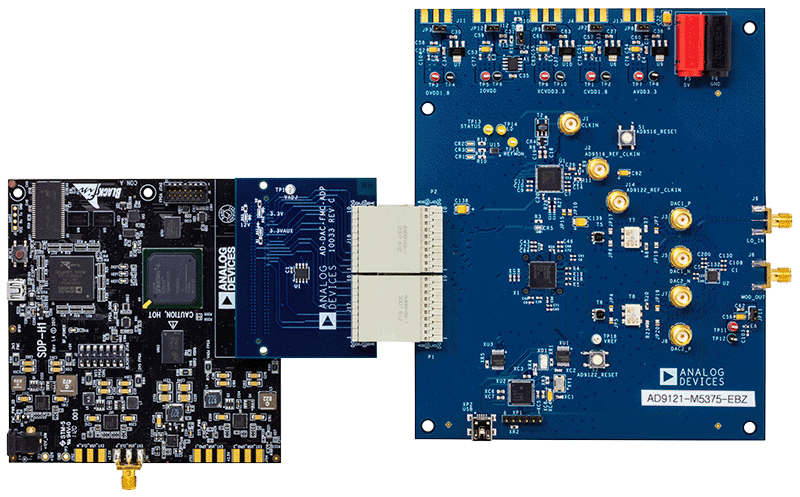

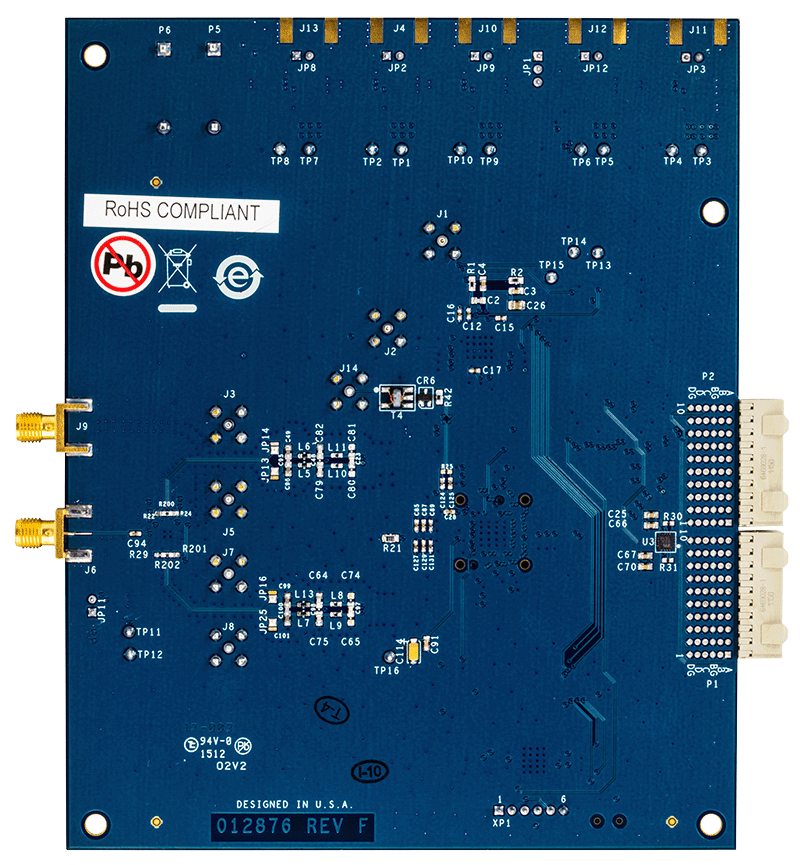

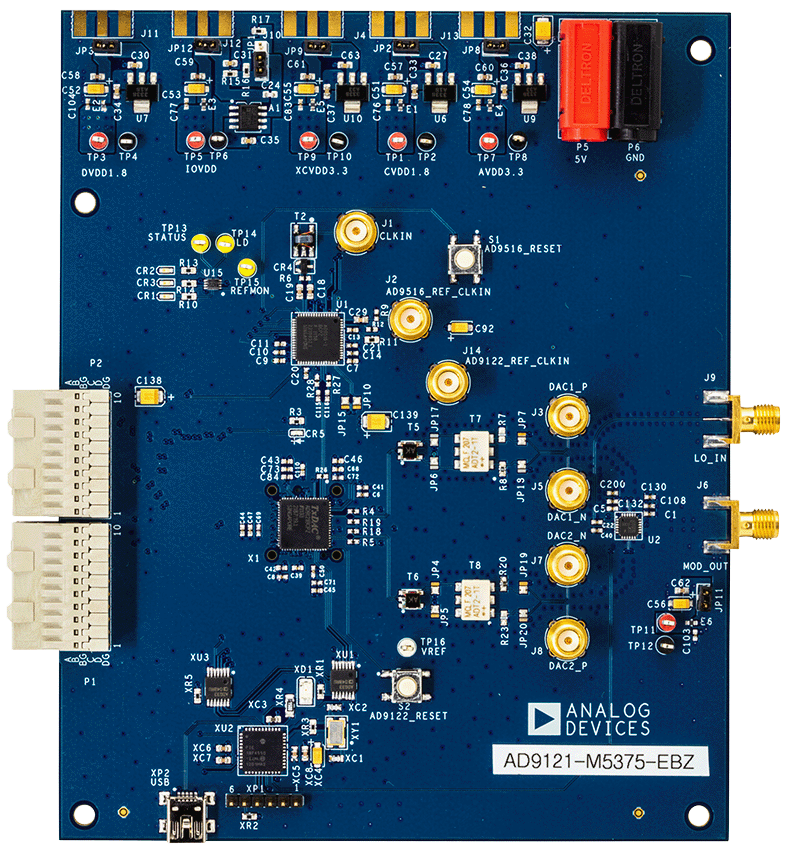

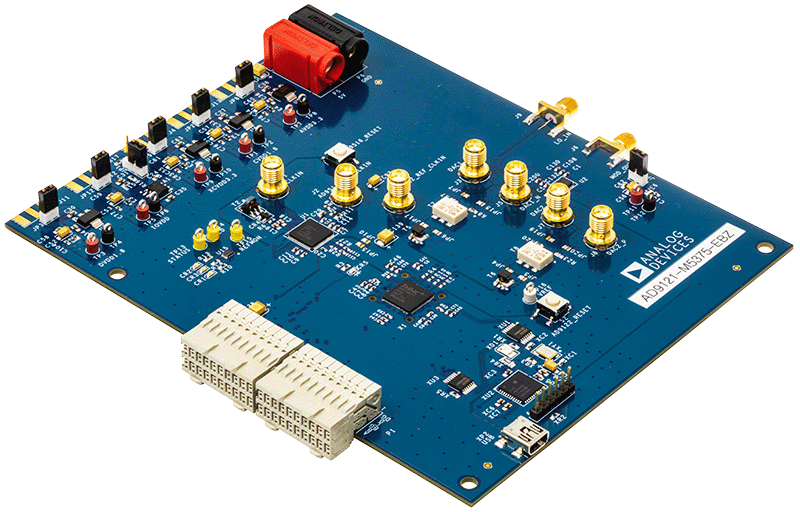

The AD9121 evaluation board, AD9121-M5375-EBZ, has the ADL5375 modulator on-board. To operate the evaluation boards, the user must apply power, a clock source, a digital data source, and be able to observe the DAC output on either a spectrum analyzer or an oscilloscope. The evaluation board comes with software which are ACE (Analysis | Control | Evaluation) and DPG Downloader Lite software that allows the user to program the SPI port. Via the SPI port, the DUT and clock circuitry can be programmed into any of its various operating modes.
