AD5541A
2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-/12-Bit nanoDAC™ in 8-lead 3 mm × 3 mm LFCSP
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 16-bit resolution
- 11.8 nV/√Hz noise spectral density
- 1 μs settling time
- 1.1 nV-sec glitch energy
- 0.05 ppm/°C temperature drift
- 5 kV HBM ESD classification
- 0.375 mW power consumption at 3 V
- 2.7 V to 5.5 V single-supply operation
- Hardware CS and LDAC functions
- 50 MHz SPI-/QSPI-/MICROWIRE-/DSP-compatible interface
- Power-on reset clears DAC output to zero scale
- Available in 3 mm × 3 mm, 8-/10-lead LFCSP and 10-lead MSOP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The DAC output range extends from 0 V to VREF and is guaranteed monotonic, providing ±1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +125°C. The AD5541A is available in a 3 mm × 3 mm, 10-lead LFCSP and 10-lead MSOP. The AD5541A-1 is available in a 3 mm × 3 mm, 8-lead LFCSP.
Offering unbuffered outputs, the AD5541A achieves a 1 μs set-tling time with low power consumption and low offset errors. Providing low noise performance of 11.8 nV/√Hz and low glitch, the AD5541A is suitable for deployment across multiple end systems.
The AD5541A uses a versatile 3-wire interface that is compatible with a 50 MHz SPI, QSPI™, MICROWIRE™, and DSP interface standards.
PRODUCT HIGHLIGHTS
- 16-bit performance without adjustment.
- 2.7 V to 5.5 V single operation.
- Low 11.8 nV/√Hz noise spectral density.
- Low 0.05 ppm/°C temperature drift.
- 3 mm × 3 mm LFCSP and MSOP packaging.
Applications
- Automatic test equipment
- Precision Source-measure Instruments
- Data Acquisition Systems
- Medical Instrumentation
- Aerospace Instrumentation
- Communications Infrastructure equipment
- Industrial Control
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5541A
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
Documentation
Data Sheet 1
User Guide 1
Circuit Note 3
Solutions Bulletin & Brochure 1
Device Drivers 5
Analog Dialogue 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5541AACPZ-REEL7 |
10-Lead LFCSP (3mm x 3mm)
|
|
|
| AD5541AARMZ |
10-Lead MSOP
|
|
|
| AD5541AARMZ-REEL7 |
10-Lead MSOP
|
|
|
| AD5541ABCPZ-1-RL7 |
8-Lead LFCSP (3mm x 3mm w/ EP)
|
|
|
| AD5541ABCPZ-500RL7 |
10-Lead LFCSP (3mm x 3mm)
|
|
|
| AD5541ABCPZ-REEL7 |
10-Lead LFCSP (3mm x 3mm)
|
|
|
| AD5541ABRMZ |
10-Lead MSOP
|
|
|
| AD5541ABRMZ-REEL7 |
10-Lead MSOP
|
|
- AD5541AACPZ-REEL7
- Pin/Package Drawing
-
10-Lead LFCSP (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5541AARMZ
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5541AARMZ-REEL7
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5541ABCPZ-1-RL7
- Pin/Package Drawing
-
8-Lead LFCSP (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5541ABCPZ-500RL7
- Pin/Package Drawing
-
10-Lead LFCSP (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5541ABCPZ-REEL7
- Pin/Package Drawing
-
10-Lead LFCSP (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5541ABRMZ
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5541ABRMZ-REEL7
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2014
- 13_0223
Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China
AD5541AACPZ-REEL7
PRODUCTION
AD5541ABCPZ-1-RL7
PRODUCTION
AD5541ABCPZ-500RL7
PRODUCTION
AD5541ABCPZ-REEL7
PRODUCTION
Oct 30, 2017
- 15_0176
Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines
AD5541AARMZ
PRODUCTION
AD5541AARMZ-REEL7
PRODUCTION
AD5541ABRMZ
PRODUCTION
AD5541ABRMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5541AARMZ
PRODUCTION
AD5541AARMZ-REEL7
PRODUCTION
AD5541ABRMZ
PRODUCTION
AD5541ABRMZ-REEL7
PRODUCTION
Jul 5, 2018
- 16_0235
Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2014
- 13_0223
Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China
AD5541AACPZ-REEL7
PRODUCTION
AD5541ABCPZ-1-RL7
PRODUCTION
AD5541ABCPZ-500RL7
PRODUCTION
AD5541ABCPZ-REEL7
PRODUCTION
Oct 30, 2017
- 15_0176
Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines
AD5541AARMZ
PRODUCTION
AD5541AARMZ-REEL7
PRODUCTION
AD5541ABRMZ
PRODUCTION
AD5541ABRMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5541AARMZ
PRODUCTION
AD5541AARMZ-REEL7
PRODUCTION
AD5541ABRMZ
PRODUCTION
AD5541ABRMZ-REEL7
PRODUCTION
Jul 5, 2018
- 16_0235
Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.
Software & Part Ecosystem
FPGA/HDL
Device Drivers
Looking for Evaluation Software? You can find it here
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
High Voltage Op Amps ≥12V1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
4 MHz, 7 nV/√Hz, Low Offset and Drift, High Precision Dual Amplifier |
|||
|
Low Input Bias Current Op Amps (≤100 pA)1 |
||||
|
PRODUCTION |
Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifier |
|||
|
Positive Linear Regulators (LDO)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
20V, 200mA, Ultralow Noise, Ultrahigh PSRR Precision DAC/Reference Buffer |
|||
|
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)3 |
||||
|
PRODUCTION |
Micropower, RRIO Single Op Amp |
|||
|
PRODUCTION |
Low Noise, Precision CMOS Amplifier |
|||
|
PRODUCTION |
Precision Low Noise, Low Input Bias Current Single Operational Amplifier |
|||
|
Series Voltage References4 |
||||
|
PRODUCTION |
Ultraprecision, Low Noise, 2.500 V XFET® Voltage References |
|||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 2.5V Voltage Reference |
|||
|
PRODUCTION |
Ultraprecision, Low Noise, 5.00 V XFET® Voltage Reference |
|||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference |
|||
|
Standard Digital Isolators2 |
||||
|
PRODUCTION |
Quad-Channel Digital Isolator (4/0 Channel Directionality) |
|||
|
PRODUCTION |
Triple-Channel Digital Isolator |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1

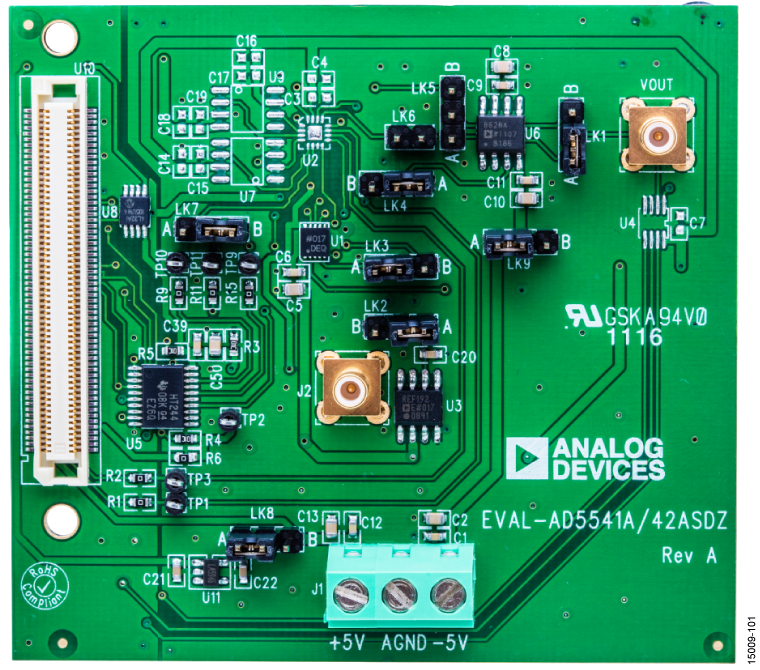

EVAL-AD5541A
AD5541A Evaluation Board
Product Detail
The EVAL-AD5541ASDZ evaluation board and the EVAL-AD5542ASDZ evaluation board are designed to quickly prototype the AD5541A and AD5542A circuits, respectively, and reduce design time. The AD5541A and the AD5542A operate from a single 2.7 V to 5.5 V supply. The REF192 is the on-board reference chip.
The EVAL-AD5541ASDZ evaluation board and the EVAL-AD5542ASDZ evaluation board interface to the USB port of a PC via the EVAL-SDP-CB1Z board. The AD5541A/42A Evaluation Software is available with the evaluation boards or from the evaluation board webpage, which allows the user to program the AD5541A or the AD5542A.
Full specifications for the AD5541A are listed in the AD5541A data sheet and full specifications for the AD5542A are listed in the AD5542A data sheet available from Analog Devices and should be consulted in conjunction with user guide (UG-1046) when using the evaluation boards.
Resources
Evaluation Kits1
Tools & Simulations 2
Precision DAC Error Budget Tool
IBIS Model 1
IBIS Model
Reference Designs 3
CN0169
How to Achieve High Precision Voltage Level Setting Using the AD5542A/AD5541A 16-Bit Voltage Output DAC
Circuits from the lab
Info:Circuits from the lab

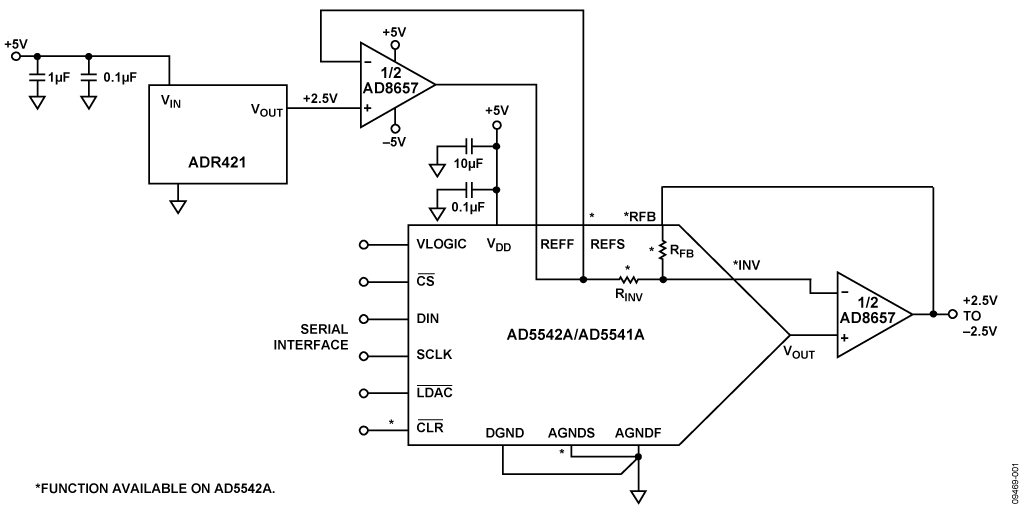

CN0181
Precision, 16-Bit, Voltage Level Setting with Less than 5 mW Total Power Dissipation
Circuits from the lab
Info:Circuits from the lab
CN0348
16-Bit Single-Supply Buffered Voltage Output Digital-to Analog Conversion with Less Than ±1 LSB Integral and Differential Nonlinearity
Circuits from the lab
Info:Circuits from the lab
Resources
Reference Designs3
CN0169
How to Achieve High Precision Voltage Level Setting Using the AD5542A/AD5541A 16-Bit Voltage Output DAC
CN0181
Precision, 16-Bit, Voltage Level Setting with Less than 5 mW Total Power Dissipation
CN0348
16-Bit Single-Supply Buffered Voltage Output Digital-to Analog Conversion with Less Than ±1 LSB Integral and Differential Nonlinearity
