AD9148

Quad 16-Bit,1GSPS DAC TxDAC+ Digital-to-Analog Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $72.93
Features
  • Single carrier WCDMA ACLR = 80 dBc @ 150 MHz IF
  • Channel to Channel Isolation > 90dB
  • Analog output
    • Adjustable 8.7 mA to 31.7 mA
    • RL = 25 Ω to 50 Ω
  • Novel 2×, 4× and 8x interpolator eases data interface
  • On-chip fine complex NCO allows carrier placement anywhere in DAC bandwidth
  • High performance, low noise PLL clock multiplier
  • Multiple chip synchronization interface
  • Programmable digital inverse sinc filter
  • Auxiliary DACs allow for offset control
  • Gain DACs allow for I and Q gain matching
  • Programmable I and Q phase compensation
  • Digital gain control
  • Flexible LVDS digital I/F supports 32- or 16-bit bus width
  • 196-ball CSP_BGA, 12 mm × 12 mm
Additional Details
show more Icon

The AD9148 is a quad, 16-bit, high dynamic range, digital-to-analog converter (DAC) that provides a sample rate of 1000 MSPS. These devices include features optimized for direct conversion transmit applications, including gain, phase, and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators such as the ADL5371 / ADL5372 / ADL5373 / ADL5374 /ADL5375. A serial peripheral interface (SPI) is provided for programming of the internal device parameters. Full-scale output current can be programmed over a range of 10 mA to 30 mA. The devices operate from 1.8 V and 3.3 V supplies for a total power consumption of 3 W at the maximum sample rate. They are enclosed in 196-ball chip scale package ball grid array with the option of an attached heat spreader.

PRODUCT HIGHLIGHTS

  1. Low noise and intermodulation distortion (IMD) enable high quality synthesis of wideband signals from baseband to high intermediate frequencies.
  2. A proprietary DAC output switching technique enhances dynamic performance.
  3. The current outputs are easily configured for various single-ended or differential circuit topologies.
  4. The LVDS data input interface includes FIFO to ease input timing.

APPLICATIONS

  • Wireless infrastructure
    • LTE, TD-SCDMA, WiMAX, W-CDMA, CDMA2000, GSM
  • MIMO/transmit diversity
  • Digital high or low IF synthesis
Part Models 4
1ku List Price Starting From $72.93

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9148BBCZ
  • HTML
  • HTML
AD9148BBCZRL
  • HTML
  • HTML
AD9148BBPZ
  • HTML
  • HTML
AD9148BBPZRL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 11, 2015

- 14_0254

Bump and Assembly Transfer of Select 10x10 and 12x12 Flip Chip Products

AD9148BBCZ

PRODUCTION

AD9148BBCZRL

PRODUCTION

AD9148BBPZ

PRODUCTION

AD9148BBPZRL

PRODUCTION

Nov 2, 2011

- 11_0269

AD9148 Datasheet and Die Revision

AD9148BBCZ

PRODUCTION

AD9148BBCZRL

PRODUCTION

AD9148BBPZ

PRODUCTION

AD9148BBPZRL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 11, 2015

- 14_0254

arrow down

Bump and Assembly Transfer of Select 10x10 and 12x12 Flip Chip Products

AD9148BBCZ

PRODUCTION

AD9148BBCZRL

PRODUCTION

AD9148BBPZ

PRODUCTION

AD9148BBPZRL

PRODUCTION

Nov 2, 2011

- 11_0269

arrow down

AD9148 Datasheet and Die Revision

AD9148BBCZ

PRODUCTION

AD9148BBCZRL

PRODUCTION

AD9148BBPZ

PRODUCTION

AD9148BBPZRL

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 3

reference details image

SDP-H1

High Speed Controller Board

zoom

SDP-H1

High Speed Controller Board

High Speed Controller Board

Features and Benefits

  • Xilinx® Spartan 6
  • 1 x FMC Low Pin Count ( LPC) connector
  • LVDS and single ended LVCMOS signaling
  • DDR2
  • JTAG header
  • Blackfin processor ADSP-BF527
  • 1 x small Footprint 120 pin connector
  • Configurable Peripheral Interfaces SPI, SPORT, I2C, GPIO, Asynchronous Parallel, PPI, Timers
  • USB 2.0 interface to the PC

Product Detail

The SDP-H1 is a high speed controller board for the System Demonstration Platform (SDP). The SDP-H1 has a Xilinx® Spartan 6 and an ADSP-BF527 processor with connectivity to the PC through a USB 2.0 high speed port. Controller boards allow for the configuration and capture of data on daughter boards from the PC via USB.

The SDP-H1 has a FMC low pin count ( LPC) connector with full differential LVDS and singled ended LVCMOS support. It also has the 120 pin connector, found on the SDP-B which exposes the Blackfin processors peripherals. This connector provides a configurable Serial, Parallel I2C and SPI and GPIO communications lines to the attached daughter board. The PC side software application for controlling the attached daughter board is provided with each of the daughter product evaluation boards or Circuits from the Lab reference Circuits.

The System Demonstration Platform is a collection of controller boards, interposer boards, and daughter boards, used for easy, low cost evaluation of ADI components and reference circuits. For a general overview of the entire platform visit the System Demonstration Platform homepage www.analog.com/sdp

See the full list of compatible Product Evaluation Boards and Circuits from the Lab Reference Circuit Boards that require the SDP-B. All SDP-S compatible daughter boards can be used with the SDP-B.

reference details image

EVAL-AD9148

AD9148 Evaluation Board

zoom

EVAL-AD9148

AD9148 Evaluation Board

AD9148 Evaluation Board

Features and Benefits

  • Full featured evaluation board for the AD9148
  • AD9148-EBZ includes options to evaluate all four DAC outputs
  • AD9148-M5375-EBZ includes options to evaluate DAC and ADL5375 quadrature modulator
  • USB interface for configuration
  • Internal or external power supply regulation
  • On-board clock distribution
  • Data pattern generator and SPI software interfaces

Product Detail

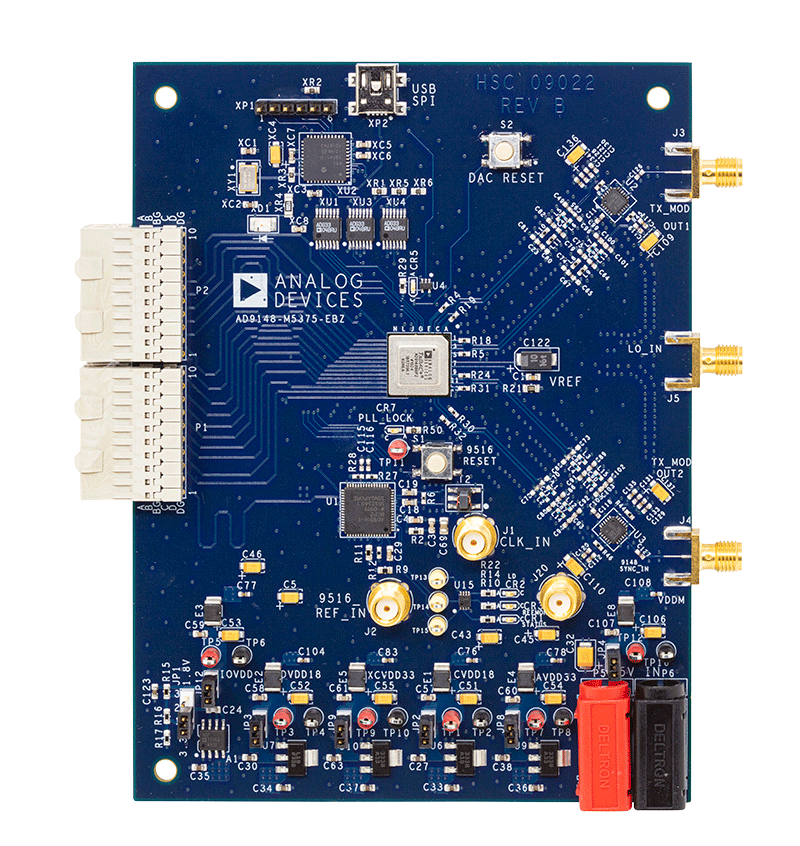

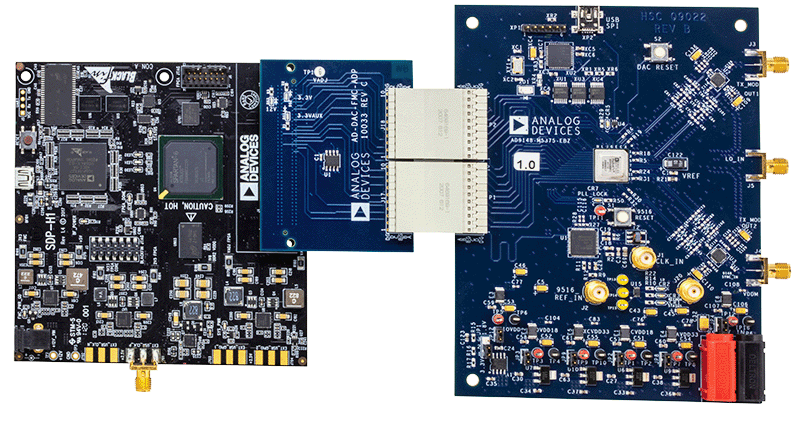

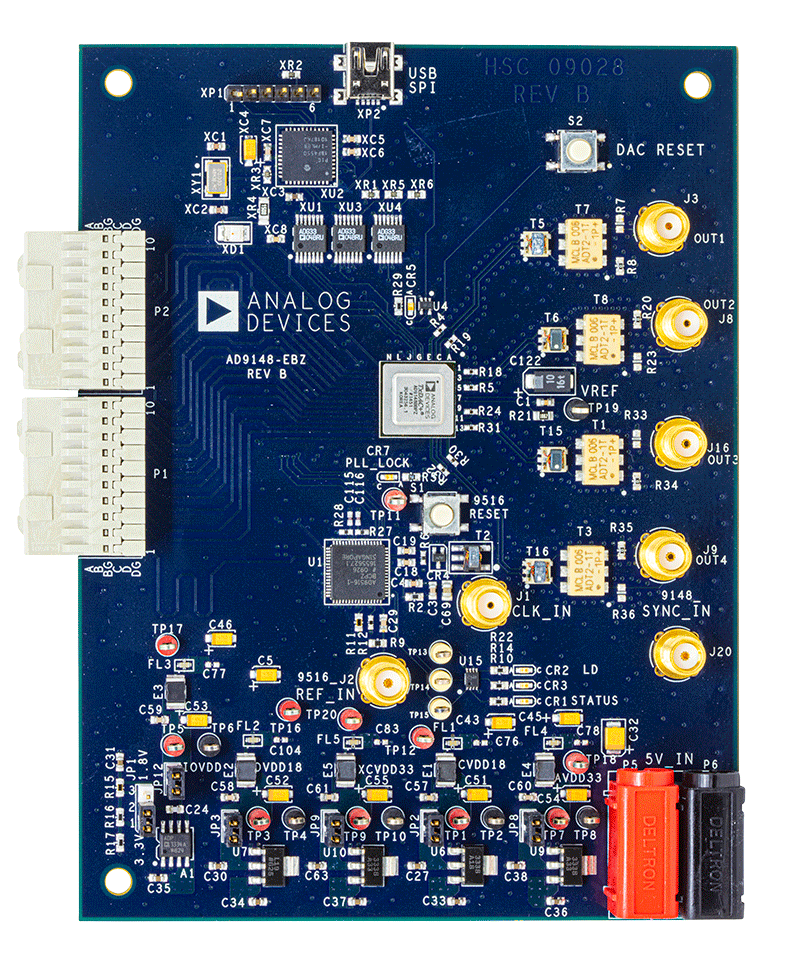

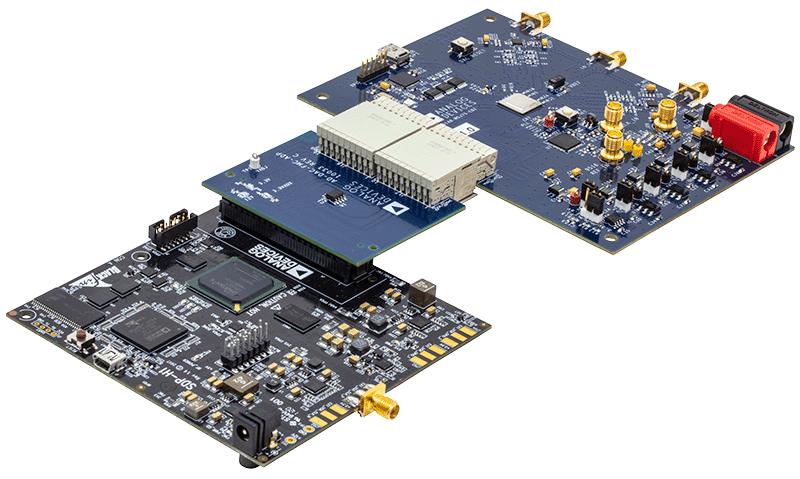

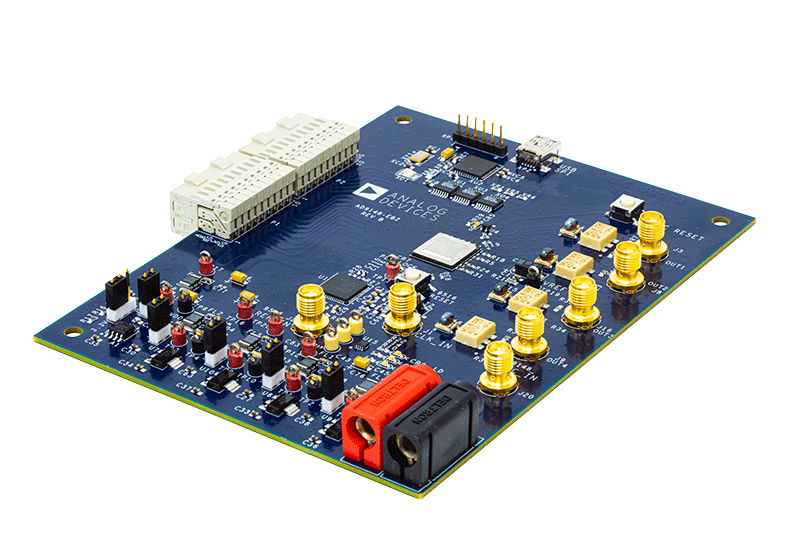

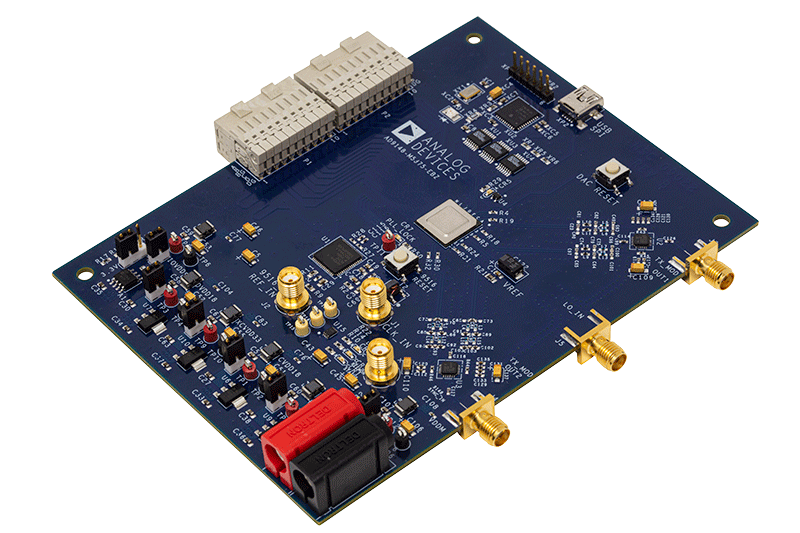

The AD9148-EBZ or the AD9148-M5375-EBZ connects to a digital pattern generator (DPG3) or a system demonstration platform (SDP-H1) to evaluate the AD9148 device. The AD9148-EBZ is a digital-to-analog converter (DAC) only evaluation board, and the AD9148-M5375-EBZ has two ADL5375 modulators on-board.

The DAC Software Suite includes the DPGDownloader and the serial peripheral interface (SPI) application to control the evaluation board SPI port. Via the SPI port, the device under test (DUT) and clock circuitry can be programmed into any of the various operating modes. To ease the subsystem evaluation, the AD9516-0 clock distribution chip and two ADL5375 modulators are designed into the AD9148-M5375-EBZ.

For full details, see the AD9148 data sheet, which must be used in conjunction with this user guide and the AD9148-EBZ or the AD9148-M5375-EBZ evaluation board.

reference details image

ADS7-V2EBZ

FPGA Based Data Capture Kit

zoom

ADS7-V2EBZ

FPGA Based Data Capture Kit

FPGA Based Data Capture Kit

Features and Benefits

  • Based on Virtex-7 FPGA
  • One (1) FMC-HPC connector
  • Ten (10) 13.1 Gbps transceivers supported
  • Two (2) DDR3-1866 DIMMs
  • Simple USB port interface (2.0)



Product Detail

The ADS7-V2 Evaluation Board was developed to support the evaluation of Analog Devices high speed A/D converters, D/A converters and Transceivers with JESD204B bit rates up to 13.1 Gbps. The Quick Start Wiki site listed below provides a high level overview of the platform. In addition, each use case of the board has its own section (e.g. Using the ADS7-V2 for High Speed A/D Converter Evaluation). The ADS7-V2 is intended to be used only with specified Analog Devices Evaluation Boards. The ADS7-V2 is not intended to be used as a development platform, and no support is available for standalone operation. Please refer to Xilinx and its approved distributors for FPGA Development Kits
