Features
- RMS noise: 8.5 nV @ 4.7 Hz (gain = 128)
- 16 noise free bits @ 2.4 kHz (gain = 128)
- Up to 22.5 noise free bits (gain = 1)
- Offset drift: 5 nV/°C
- Gain drift: 1 ppm/°C
- Specified drift over time
- 2 differential/4 pseudo differential input channels
- Qualified for automotive applications
- See Data Sheet for Additional Information
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD7190 is a low noise, complete analog front end for high precision measurement applications. It contains a low noise, 24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC). The on-chip low noise gain stage means that signals of small amplitude can be interfaced directly to the ADC.
The device can be configured to have two differential inputs or four pseudo differential inputs. The on-chip channel sequencer allows several channels to be enabled, and the AD7190 sequentially converts on each enabled channel. This simplifies communication with the part. The on-chip 4.92 MHz clock can be used as the clock source to the ADC or, alternatively, an external clock or crystal can be used. The output data rate from the part can be varied from 4.7 Hz to 4.8 kHz.
The device has two digital filter options. The choice of filter affects the rms noise/noise-free resolution at the programmed output data rate, the settling time, and the 50 Hz/60 Hz rejection. For applications that require all conversions to be settled, the AD7190 includes a zero latency feature.
The part operates with 5 V analog power supply and a digital power supply from 2.7 V to 5.25 V. It consumes a current of 6 mA. It is housed in a 24-lead TSSOP package.
APPLICATIONS
- Weigh scales
- Strain gauge transducers
- Pressure measurement
- Temperature measurement
- Chromatography
- PLC/DCS analog input modules
- Data acquisition
- Medical and scientific instrumentation
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD7190
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Application Note
-
Frequently Asked Question
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
Application Note
7
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Frequently Asked Question
1
HTML
Documentation
Data Sheet 1
Application Note 4
Frequently Asked Question 1
Circuit Note 1
Tutorial 1
Device Drivers 3
Analog Dialogue 1
Video
3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

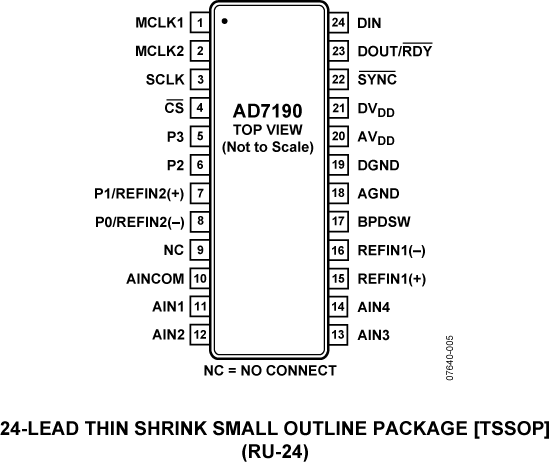

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD7190BRUZ |
24-Lead TSSOP
|
|
|
| AD7190BRUZ-REEL |
24-Lead TSSOP
|
|
|
| AD7190WBRUZ |
24-Lead TSSOP
|
|
- AD7190BRUZ
- Pin/Package Drawing
-
24-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7190BRUZ-REEL
- Pin/Package Drawing
-
24-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7190WBRUZ
- Pin/Package Drawing
-
24-Lead TSSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
May 20, 2024
- 23_0143
Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process
AD7190BRUZ
PRODUCTION
AD7190BRUZ-REEL
PRODUCTION
Aug 10, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
AD7190BRUZ
PRODUCTION
AD7190BRUZ-REEL
PRODUCTION
Jan 20, 2012
- 11_0218
Halogen Free Material Change for Certain TSSOP Products at Carsem
AD7190BRUZ
PRODUCTION
AD7190BRUZ-REEL
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
May 20, 2024
- 23_0143
Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process
AD7190BRUZ
PRODUCTION
AD7190BRUZ-REEL
PRODUCTION
Aug 10, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
AD7190BRUZ
PRODUCTION
AD7190BRUZ-REEL
PRODUCTION
Jan 20, 2012
- 11_0218
Halogen Free Material Change for Certain TSSOP Products at Carsem
AD7190BRUZ
PRODUCTION
AD7190BRUZ-REEL
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
isoPower1 |
||||
|
PRODUCTION |
Isolated Switching Regulators (4/0 Channel Directionality) |
|||
|
Low Input Bias Current Op Amps (≤100 pA)2 |
||||
|
PRODUCTION |
16V Dual Auto-Zero, Rail-to-Rail Output, Precision Amplifier |
|||
|
PRODUCTION |
1.8V, µPower, Zero-Drift, RRIO Dual Amplifier |
|||
|
Positive Linear Regulators (LDO)1 |
||||
|
NOT RECOMMENDED FOR NEW DESIGNS |
High Accuracy anyCAP™ 200 mA Low Dropout Linear Regulator |
|||
|
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)1 |
||||
|
PRODUCTION |
Low Power, Precision, Auto-Zero Op Amp |
|||
|
Series Voltage References2 |
||||
|
PRODUCTION |
Ultraprecision, Low Noise, 2.500 V XFET® Voltage References |
|||
|
PRODUCTION |
Ultralow Noise XFET® Voltage References with Current Sink and Source Capability |
|||
| Parts | Product Life Cycle | Description |
|---|---|---|
|
RECOMMENDED FOR NEW DESIGNS |
Low Power, 24-Bit, 31.25 kSPS, Sigma-Delta ADC with True Rail-to-Rail Buffers |
|
|
RECOMMENDED FOR NEW DESIGNS |
24-Bit, 250 kSPS, Sigma-Delta ADC with 20 µs Settling and True Rail-to-Rail Buffers |
|
|
RECOMMENDED FOR NEW DESIGNS |
32-Bit, 10 kSPS, Sigma-Delta ADC with 100 µs Settling and True Rail-to-Rail Buffers |
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 2

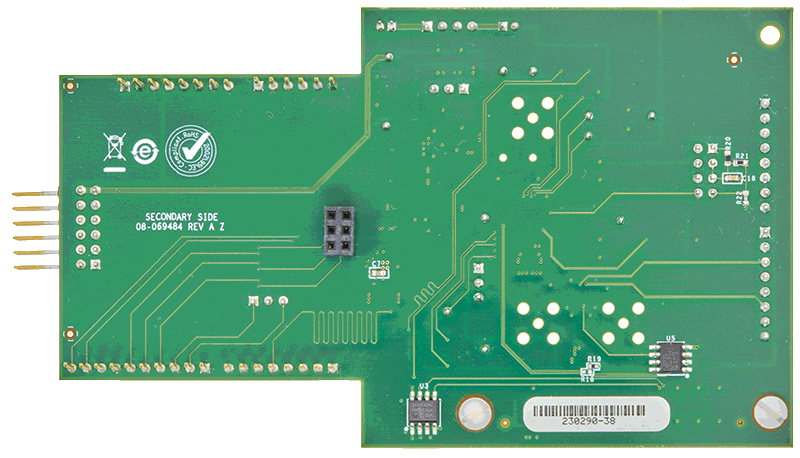

EVAL-AD7190ASDZ
AD7190 Evaluation Board
Product Detail
The EVAL-AD7190ASDZ evaluation kit features the AD7190 which is 4.8 kHz ultralow noise 24-bit sigma-delta (Σ-Δ) ADCs .The on-chip low noise gain stage means that signals of small amplitude can interface directly to the ADC.The internal clock option provides a compact solution for low BW requirements.
The AD7190 ACE Plugin fully configures the AD7190 device register functionality and provides dc time domain analysis in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation.
APPLICATIONS
- Weigh scales
- Strain gauge transducers
- Pressure measurement
- Temperature measurement
- Chromatography
- PLC/DCS analog input modules
- Data acquisition
- Medical and scientific instrumentation
Resources
EVAL-AD7190
OBSOLETE: AD7190 Evaluation Board
Product Detail
This evaluation board is obsolete and no longer recommended. The replacement board is the EVAL-AD7190ASDZ.
The EVAL-AD7190EBZ is a fully featured evaluation board for the AD7190. The evaluation board can be operated in standalone mode (either battery-powered or with external power supply) or connected to a PC via a standard USB interface. When operated with a PC, software is provided enabling the user to perform detailed analysis of the ADC's performance.
Please note: This Evaluation software does not run on Windows 8 or Windows 10 (USB driver is non-compliant with OS >Windows 7).
Tools & Simulations 3
Virtual Eval - BETA
Design Tool
Design Tool
Design Tool
Reference Designs 1
CN0102
Precision Weigh Scale Design Using the AD7190 24-Bit Sigma-Delta ADC with Internal PGA
