Overview

Features and Benefits

  • 2 Blackfin cores capable of 500 MHz/1000 MMACs (2000 MMACs total) for demanding signal processing applications.
  • 552 K bytes of on-chip SRAM composed of 148kB of L1 SRAM per core with parity support and a shared L2 256kB SRAM with ECC support.
  • Pipeline Vision Processor (PVP) with VGA support.
  • Pixel Compositor.
  • Fully integrated DMA controller supporting DMA transfers to and from all on-chip and off-chip memories and peripherals.
  • 3x Enhanced Parallel Peripheral Interfaces (ePPIs) supporting up to 24-bit data widths, ITU-R BT.656 modes, and direct connection to TFT LCD panels, parallel converters, video encoders and decoders, image sensors, and other general-purpose peripherals.
  • USB 2.0 HS OTG.
  • Removable Storage Interface (RSI).
  • 2 10/100 Ethernet MACs with IEEE 1588 support.
  • Controller Area Network (CAN) Interface.
  • 4 Link Ports supporting 8-bit wide DMA enabled data transfer.
  • 2 Watch Dog Timers and 8 Timer/Counters with PWM support.
  • CRC engine.
  • 2 SPI-compatible ports supporting master and slave modes.
  • 2 UART and 2 Two-Wire Interfaces.
  • 2 16-bit Pulse Width Modulation (PWM) channels.
  • 19×19 mm CSP BGA package.
  • Commercial, Industrial, and automotive temperature ranges available.
  • See datasheet for additional features

Product Details

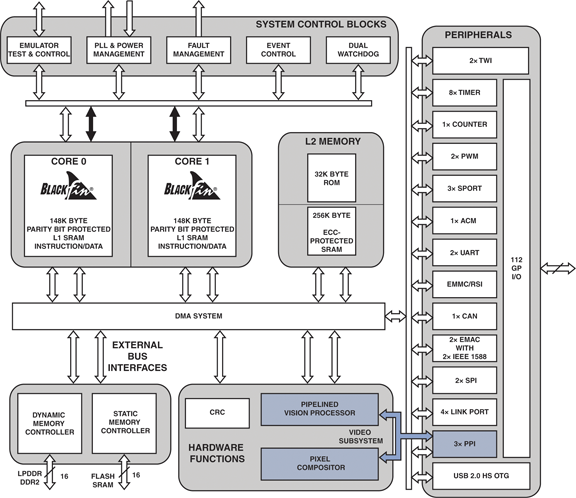

The ADSP-BF608 Blackfin processor is optimized for embedded vision and video analytics applications using a dual-core fixed-point DSP processor with a unique pipelined vision processor (PVP). The PVP is a set of functional blocks next to the Blackfin cores designed to accelerate image processing algorithms and reduce overall bandwidth requirements.

Other features include a high performance enhanced infrastructure, large on-chip memory and a feature rich peripheral set with expanded connectivity options. In addition to these the ADSP-BF608 processor contains features for safety-critical applications, including a CRC for memory protection, Parity and ECC protection in the internal memory blocks and a Fault Management Unit.

The ADSP-BF608 processor is ideal for many embedded vision applications such as automotive advanced driver assistance systems (ADAS), machine vision and robotics for industrial manufacturing systems, security and surveillance system analytics and bar code scanners.

Product Categories

Markets and Technologies

EDN China Innovation Award Winner 2012

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (2)

Documentation & Resources

  • View All (29)
  • Data Sheets (1)
  • Application Notes (15)
  • User Guides (4)
  • Processor Manuals (2)
  • Emulator Manuals (3)
  • Integrated Circuit Anomalies (1)
  • Informational (1)
  • Videos (2)
    • Document Type
    Application Notes

    Software & Systems Requirements

    Middleware

    Lightweight TCP/IP (lwIP) Stack

    OBSOLETE: The Lightweight TCP/IP (lwIP) Stack for CrossCore Embedded Studio is an implementation of this widely accepted TCP/IP stack for embedded platforms supporting most of the networking protocols in the TCP/IP suite.

    Software Development Tools

    CrossCore® Embedded Studio

    CCES is a world-class integrated development environment (IDE) for the ADI Blackfin®, SHARC® and Arm® processor families.

    Tools & Simulations

    BSDL Model Files

    IBIS Models

    Design Tools

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    ADSP-BF608BBCZ-5 Material Declaration Reliability Data 349-Ball CSPBGA (19mm x 19mm)
    ADSP-BF608KBCZ-5 Material Declaration Reliability Data 349-Ball CSPBGA (19mm x 19mm)
    Wafer Fabrication Data

    PCN-PDN Information

    Select a model from the dropdown below to subscribe to PCN/PDN notifications and view past notifications as well.

    Select Model for PCN Information
    • ADSP-BF608BBCZ-5 Production
    • ADSP-BF608KBCZ-5 Production
