ADRF6755

RECOMMENDED FOR NEW DESIGNS

ADRF6755

100 MHz TO 2400 MHz I/Q Modulator with Integrated Fractional-N PLL and VCO

RECOMMENDED FOR NEW DESIGNS

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $10.26

Features

I/Q modulator with integrated fractional-N PLL and VCO
Gain control span: 47 dB in 1 dB steps
Output frequency range: 100 MHz to 2400 MHz

Output IP3: 20.5 dBm at LO = 1800 MHz
Noise floor: −161 dBm/Hz at LO = 1800 MHz
Baseband modulation bandwidth: 600 MHz (3 dB)
See datasheet for additional features

Additional Details

The ADRF6755 is a highly integrated quadrature modulator, frequency synthesizer, and programmable attenuator. The device covers an operating frequency range from 100 MHz to 2400 MHz for use in satellite, cellular, and broadband communications.

The ADRF6755 modulator includes a high modulus, fractional-N frequency synthesizer with integrated VCO, providing less than 1 Hz frequency resolution, and a 47 dB digitally controlled output attenuator with 1 dB steps.

Control of all the on-chip registers is through a user-selected SPI interface or I²C interface. The device operates from a single power supply ranging from 4.75 V to 5.25 V.

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $10.26

Technical Documents 2

ADRF6755:100MHz TO 2400 MHz I/Q Modulator With Integrated Fractional-N PLL And VCO (Rev.B) 07/01/2012

EVAL-ADRF6755 Quick Start Guide 08/10/2021

Reference Materials 1

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADRF6755ACPZ	56-Lead LFCSP (8mm x 8mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADRF6755ACPZ-R7	56-Lead LFCSP (8mm x 8mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADRF6755ACPZ
Pin/Package Drawing
56-Lead LFCSP (8mm x 8mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADRF6755ACPZ-R7
Pin/Package Drawing
56-Lead LFCSP (8mm x 8mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Jun 9, 2021

- 20_0126

Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea

ADRF6755ACPZ

PRODUCTION

ADRF6755ACPZ-R7

PRODUCTION

pdf

PCN20_0126_Form

pdf

Qualification Results Summary

xls

Material_Report

pdf

Detailed Change Description

pdf

Package Outline Drawing

pdf

Package Outline Drawing

pdf

Qualification Results Summary

pdf

Qualification Results Summary

pdf

Qualification Results Summary

pdf

Qualification Results Summary

Filter by Model

Part Models

Product Lifecycle

PCN

Jun 9, 2021

- 20_0126

Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea

ADRF6755ACPZ

PRODUCTION

ADRF6755ACPZ-R7

PRODUCTION

pdf

PCN20_0126_Form

pdf

Qualification Results Summary

xls

Material_Report

pdf

Detailed Change Description

pdf

Package Outline Drawing

pdf

Package Outline Drawing

pdf

Qualification Results Summary

pdf

Qualification Results Summary

pdf

Qualification Results Summary

pdf

Qualification Results Summary

Evaluation Software 1

ZIP ADRF6755 Evaluation Software

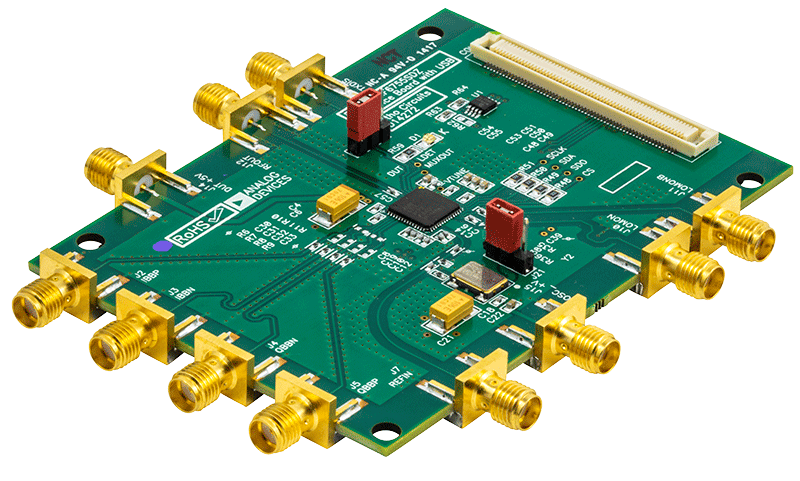

EVAL-ADRF6755

ADRF6755 Evaluation Board

ADRF6755 Evaluation Board

Download

EVAL-ADRF6755

ADRF6755 Evaluation Board

Buy Now View Details

Product Detail

This page contains ordering information for the evaluation board used to evaluate the ADRF6755 300 MHz to 2310 MHz I/Q Modulator with Integrated Fractional-N PLL and VCO.

Resources

WIKI

EVAL-ADRF6755 Quick Start Guide

ZIP

ADRF6755 Gerber Files

284.15 K

EVAL-ADRF6755

ADRF6755 Evaluation Board

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool
