Overview

Features and Benefits

  • 12-/16-bit resolution
  • 16 MUPS single channel rate in fast mode
  • 11 MUPS single channel rate in precision mode
  • 78 ns small signal settling time to 0.1% accuracy
  • 100 ns large signal settling time to 0.1% accuracy
  • Ultrasmall glitch: <50 pV×s
  • Ultralow latency: 5 ns
  • THD
    • −105 dB at 1 kHz for AD3542R-16
    • −95 dB at 1 kHz for AD3542R-12
  • 5 selectable output voltage ranges
  • 1.2 V and 1.8 V logic level compatible
  • Single (classic) and dual SPI modes
  • Multiple error detectors, both analog and digital domains
  • 2.5 V internal voltage reference, 10 ppm/°C maximum TC

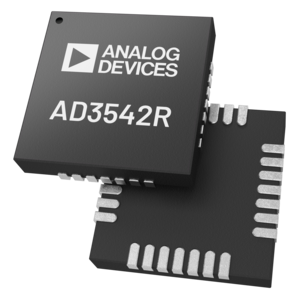

  • Small package: 4 mm × 4 mm LFCSP

Product Details

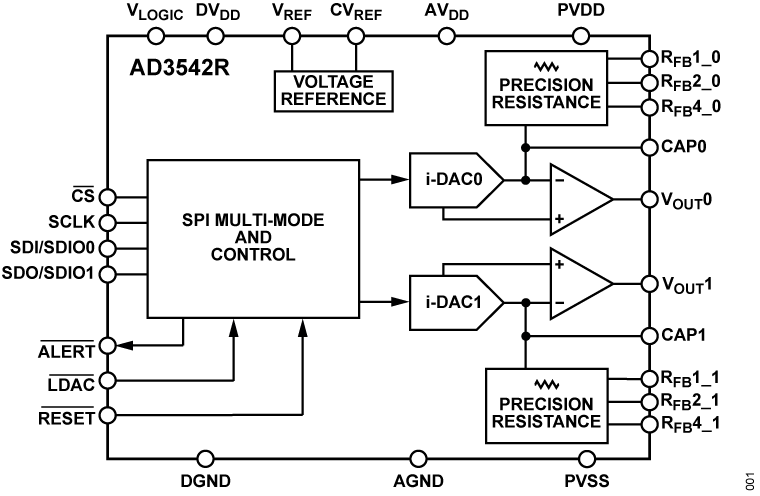

The AD3542R is a low drift, dual channel, ultra-fast, 12-/16-bit accuracy, voltage output digital-to-analog converter (DAC) that can be configured in multiple voltage span ranges. The AD3542R operates with a fixed 2.5 V reference.

Each DAC incorporates three drift compensating feedback resistors for the internal transimpedance amplifier (TIA) that scales the output voltage. The device has five preconfigured output voltage ranges: 0 V to 2.5 V, 0 V to 5 V, 0 V to 10 V, −5 V to +5 V, and −2.5 V to +7.5 V.

The AD3542RBCPZ16 (hereafter referred to as AD3542R-16) can operate in fast mode for maximum speed or precision mode for maximum accuracy. The AD3542RBCPZ12 (hereafter referred to as AD3542R-12) has a single operation mode.

The serial peripheral interface (SPI) can be configured in dual synchronous SPI, dual SPI and single SPI (classic SPI) mode with single date rate (SDR) or double data rate (DDR), with logical levels from 1.2 V to 1.8 V.

The AD3542R is specified over the extended industrial temperature range (–40°C to +105°C).

APPLICATIONS

  • Instrumentation
  • Hardware in the loop
  • Process control equipment
  • Medical devices
  • Automated test equipment
  • Data acquisition system
  • Programmable voltage sources
  • Optical communications

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

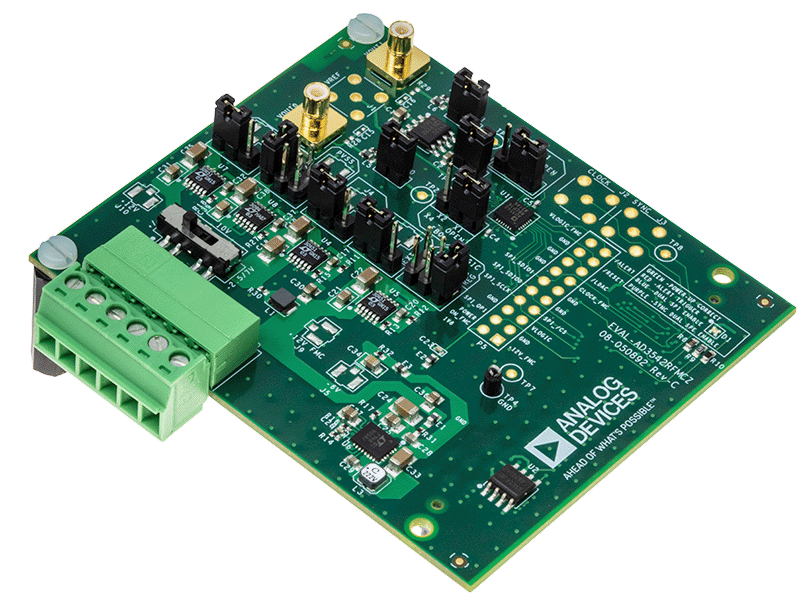

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • User Guides (1)
  • Videos (2)
  • Webcasts (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    AD3542R

    IBIS Models

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

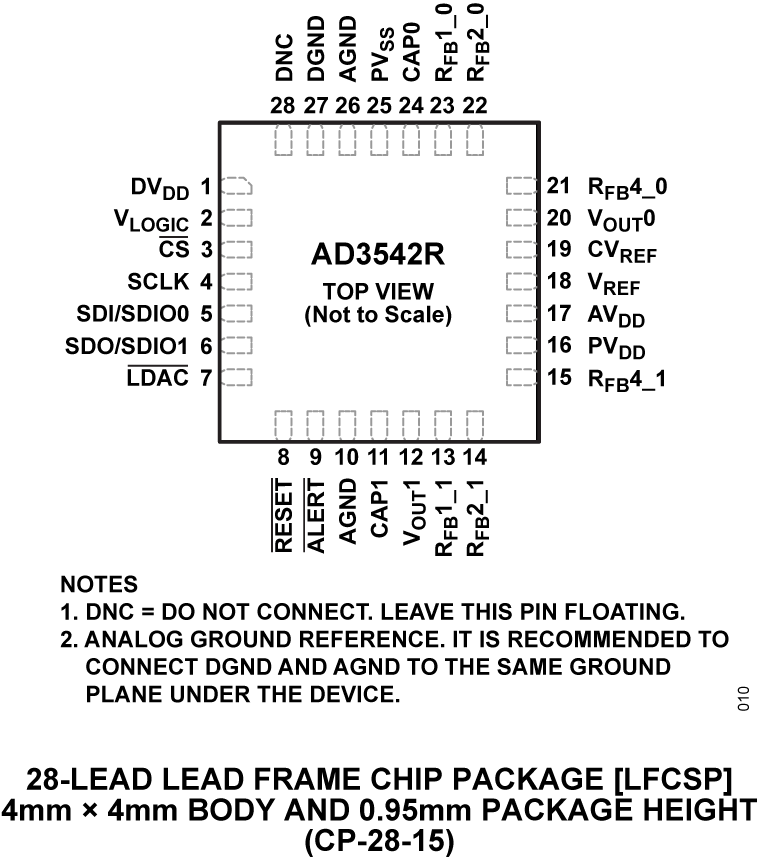

    AD3542RBCPZ12-RL7 Material Declaration Reliability Data 28-Lead LFCSP (4mm x 4mm x 0.95 mm)
    AD3542RBCPZ16 Material Declaration Reliability Data 28-Lead LFCSP (4mm x 4mm x 0.95 mm)
    AD3542RBCPZ16-RL7 Material Declaration Reliability Data 28-Lead LFCSP (4mm x 4mm x 0.95 mm)
