AD7684

16-Bit, 100 kSPS PulSAR®, Differential ADC in MSOP

Data Sheet
Rev. A
icon-recommended Production
Top
Datasheet
Data Sheet Rev. A
User Guides
2 View All

Overview

Features and Benefits

  • 16-bit resolution with no missing codes
  • Throughput: 100 kSPS
  • INL: ±1 LSB typical, ±3 LSB maximum
  • True differential analog input range: ±VREF
    0 V to VREF with VREF up to VDD on both inputs
  • Single-supply operation: 2.7 V to 5.5 V
  • Standby current: 1 nA
  • Serial interface SPI®-/QSPI-™/MICROWIRE-™/DSP-compatible
  • Power dissipation
    4 mW @ 5 V
    1.5 mW @ 2.7 V
    150 μW @ 2.7 V/10 kSPS

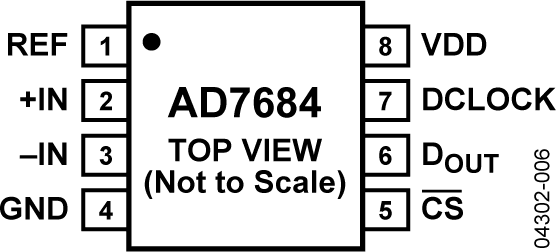

  • 8-lead MSOP package

Product Details

The AD7684 is a 16-bit, charge redistribution, successive approximation, PulSAR® analog-to-digital converter (ADC) that operates from a single power supply, VDD, between 2.7 V to 5.5 V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes, an internal conversion clock, and a serial, SPI-compatible interface port. The part also contains a low noise, wide bandwidth, short aperture delay, track-and-hold circuit. On the CS falling edge, it samples the voltage difference between +IN and –IN pins. The reference voltage, REF, is applied externally and can be set up to the supply voltage. Its power scales linearly with throughput.

The AD7684 is housed in an 8-lead MSOP, with an operating temperature specified from −40°C to +85°C.

Applications

  • Battery-powered equipment
  • Data acquisition
  • Instrumentation
  • Medical instruments
  • Process control

Data Sheet, Rev. A, 10/07
