Overview

Features and Benefits

  • PSRR performance of 54 dB at 100 kHz
  • Ultralow noise independent of VOUT
    3 μV rms, 0.1 Hz to 10 Hz
    9.5 μV rms, 0.1 Hz to 100 kHz
    9 µV rms, 10Hz to 100KHz
    17 µV rms, 10Hz to 1MHz
  • Low dropout voltage:
    150 mV at 200 mA load
  • Maximum output current: 200 mA
  • Input voltage range: 2.2 V to 5.5 V
  • Low quiescent and shutdown current
  • Initial accuracy: ±1%
  • Accuracy over line, load, and temperature: −2.5%/+1.5%
  • 5-lead TSOT package and
  • 6-lead LFCSP package

Product Details

The ADM7160 is an ultralow noise, low dropout linear regulator that operates from 2.2 V to 5.5 V and provides up to 200 mA of output current. The low 150 mV dropout voltage at 200 mA load improves efficiency and allows operation over a wide input voltage range.

Using an innovative circuit topology, the ADM7160 achieves ultralow noise performance without the need for a bypass capacitor, making it ideal for noise-sensitive analog front end and RF applications. The ADM7160 also achieves ultralow noise performance without compromising PSRR or transient line and load performance.

Current-limit and thermal overload protection circuits prevent damage under adverse conditions. The ADM7160 also includes an internal pull-down resistor on the EN input.

The ADM7160 is specifically designed for stable operation with tiny 1 μF, ±30% ceramic input and output capacitors to meet the requirements of high performance, space constrained applications.

The ADM7160 is available in tiny 5-lead TSOT and 6-lead LFCSP packages with 16 fixed output voltage options, ranging from 1.1 V to 3.3 V. The LFCSP offers a very compact solution that provides excellent thermal performance for applications that require up to 200 mA of output current in a small, low profile footprint.

Applications

  • ADC/DAC power supplies
  • RF, VCO, and PLL power supplies
  • Post dc-to-dc regulation

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

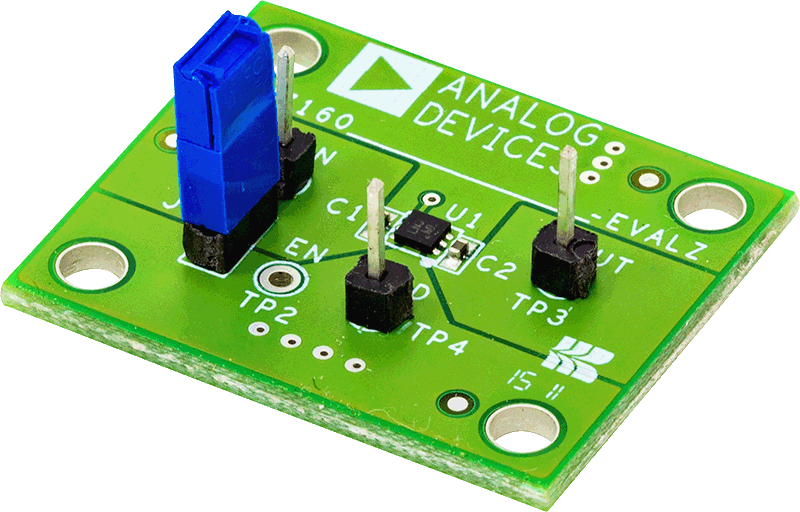

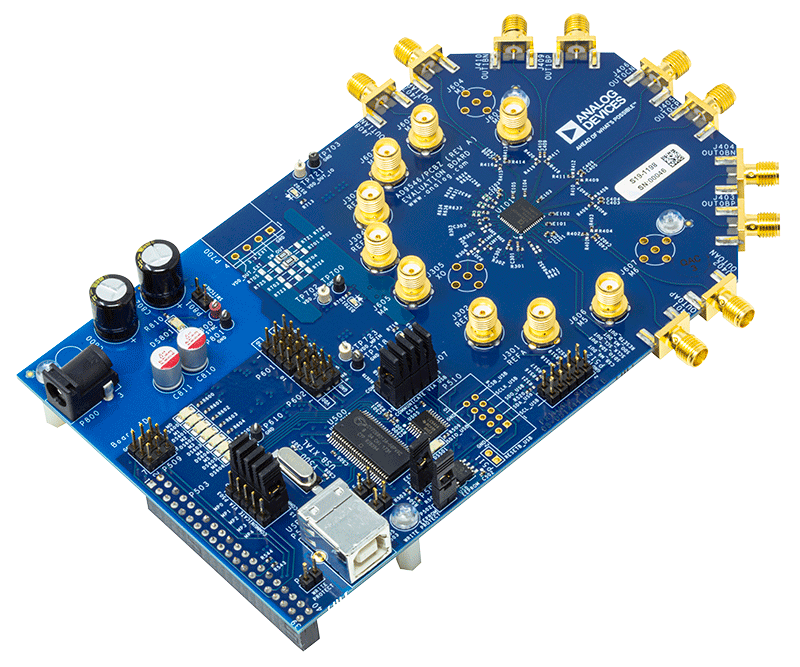

Evaluation Kits (3)

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

ADM7160-1.8
ADM7160-2.5
ADM7160-3.3

Design Tool

ADI Linear Regulator Design Tool and Parametric Search

Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

Reference Designs (2)

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
ADM7160ACPZN1.8-R2 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
ADM7160ACPZN1.8-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
ADM7160ACPZN2.5-R2 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
ADM7160ACPZN2.5-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
ADM7160ACPZN3.3-R2 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
ADM7160ACPZN3.3-R7 Material Declaration Reliability Data 6-Lead LFCSP (2mm x 2mm w/ EP)
ADM7160AUJZ-1.8-R2 Material Declaration Reliability Data 5-Lead TSOT
ADM7160AUJZ-1.8-R7 Material Declaration Reliability Data 5-Lead TSOT
ADM7160AUJZ-2.5-R2 Material Declaration Reliability Data 5-Lead TSOT
ADM7160AUJZ-2.5-R7 Material Declaration Reliability Data 5-Lead TSOT
ADM7160AUJZ-3.3-R2 Material Declaration Reliability Data 5-Lead TSOT
ADM7160AUJZ-3.3-R7 Material Declaration Reliability Data 5-Lead TSOT
