System Demonstration Platform (SDP)

The System Demonstration Platform (SDP) is a collection of controller boards, interposer boards, and daughter boards used for easy, low cost evaluation of ADI components and reference circuits. It is a reusable platform where by a single controller board can be reused in various daughter board evaluation systems. Platform elements can also be used to build, demonstrate, and prototype embedded systems connected to daughter evaluation boards, through the use of interposer and 3rd party boards.

Reusing the SDP Controller

See the full list of compatible Product Evaluation Boards and Circuits from the Lab Reference Circuit Boards that require a SDP Controller. All SDP-S compatible daughter boards can be used with the SDP-B.

View Compatible Evaluation Boards

Controller Boards

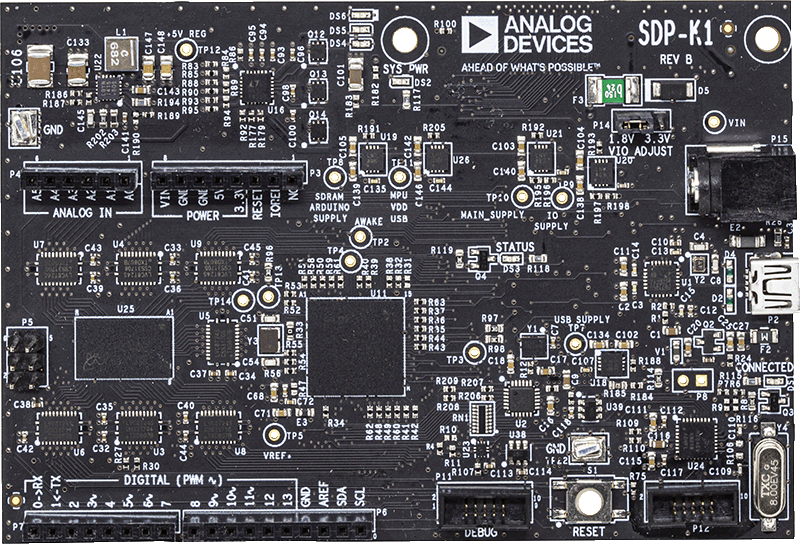

EVAL-SDP-CK1Z TOP
Peripherals
  • GPIO
  • I2C
  • SPI
  • SPORT
  • Timers
  • QuadSPI
Connectors
  • 1 x 120 Pin SDP
  • Arduino headers
SDP-H1 - Angle View
Peripherals
  • GPIO
  • I2C
  • SPI
  • SPORT
  • Asynchronous Parallel
  • PPI
  • Timers
  • LVDS
  • SE LVCMOS
Connectors
  • 1 x FMC LPC
  • 1 x 120 Pin SDP

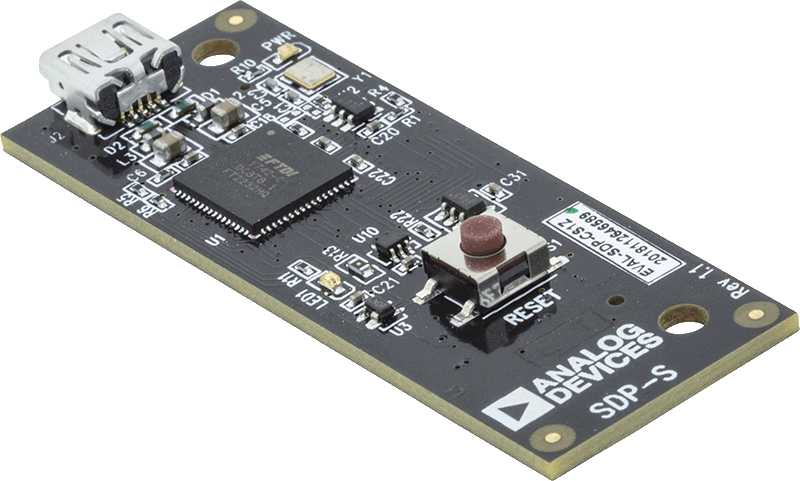

EVAL-SDP-CS1ZANGLE
Peripherals
  • GPIO
  • I2C
  • SPI
Connectors
  • 1 x 120 Pin SDP
EVAL-SDP-B - Top
Peripherals
  • GPIO
  • I2C
  • SPI
  • SPORT
  • Asynchronous Parallel
  • PPI
  • Timers

Connectors

  • 2 x 120 Pin SDP

Interposer Boards

BeMicro SDK/SDP Interposer
Connect SDP daughter boards to Arrow's BeMicro SDK, the Cyclone IV based FPGA embedded development kit, with the BeMicro SDK/SDP Interposer.
SDP-PMD-IB1Z Evaluation Board

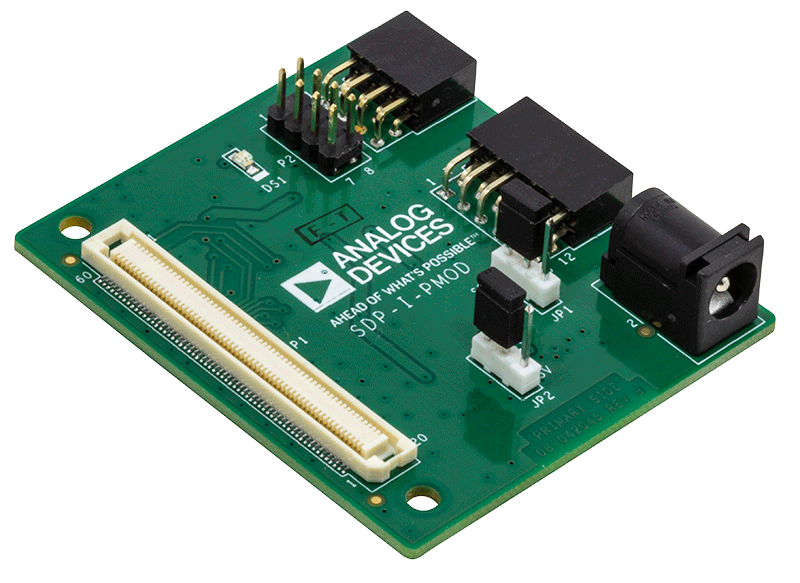

SDP-I-PMOD
The SDP-I-PMD is be used to connect ADI PMOD boards directly to the System Demonstration Platform (SDP) controller boards.

SDP-I-FMC
Connect SDP daughter board to Xilinx® FPGA evaluation boards (3.3VIO Only), with the SDP-I-FMC interposer board.


SDP_Breakout_Board_sm
Signal Monitoring
  • 120 Pin SDP Header
  • 120 Pin SDP Receptacle

Daughter Boards

daughter boards_sm
SDP Controller boards are used for product evaluation in data converters, RF IC's and Mems products. See the full list of compatible evaluation boards.
View SDP Compatible Product Evaluation Boards
daughter boards_sm
SDP controller boards are used to evaluation reference circuits across all applications areas, Aerospace & Defense , Automotive, communications, Consumer, Energy, Healthcare, Instrumentation & Measurement, Motor and Power Control, Process Control & Industrial Automation.
View SDP Compatible Reference Circuits
