LTC4357

正高电压理想二极管控制器

立即购买

推荐新设计使用

顶部

概览

优势和特点
产品详情

优势和特点

通过采用一个 N 沟道 MOSFET 替代一个功率肖特基二极管来降低功耗
0.5μs 关断时间限制峰值故障电流
宽工作电压范围：9V 至 80V
无振荡现象的平滑切换
无反向 DC 电流
采用 6 引脚 (2mm x 3mm) DFN 和 8 引脚 MSOP 封装

产品详情

LTC^®4357 是一款正高电压理想二极管控制器，用于驱动一个外部 N 沟道 MOSFET 以取代一个肖特基二极管。当在二极管“或”和高电流二极管应用中使用时，LTC4357 能够降低功耗、热耗散、电压损失并缩减 PC 板面积。

LTC4357 能够很容易地对电源进行“或”操作，以提高总体系统可靠性。在二极管“或”应用中，LTC4357 用于控制 MOSFET 两端的正向电压降，以确保从一条路径至另一条路径的平滑电流转移而没有振荡现象。在电源发生故障或短路的情况下，快速关断操作可较大限度地减小反向电流瞬变。

应用

N+1 冗余电源
高可用性系统
AdvancedTCA 系统
电信基础设施
汽车系统

产品分类

电源监视器，控制器和保护
- PowerPath、理想二极管和负载开关

类似器件点击在参数搜索中查看所有

产品生命周期推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

评估套件 (1)

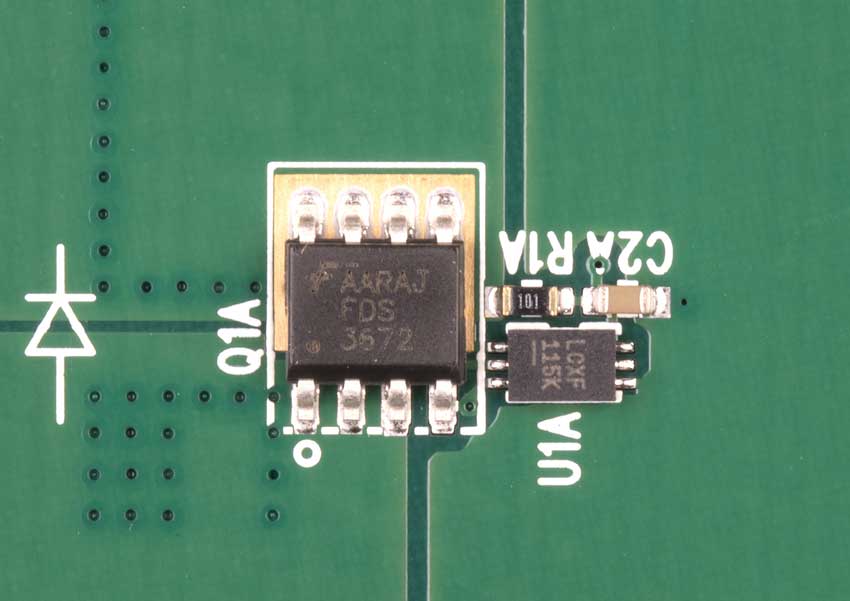

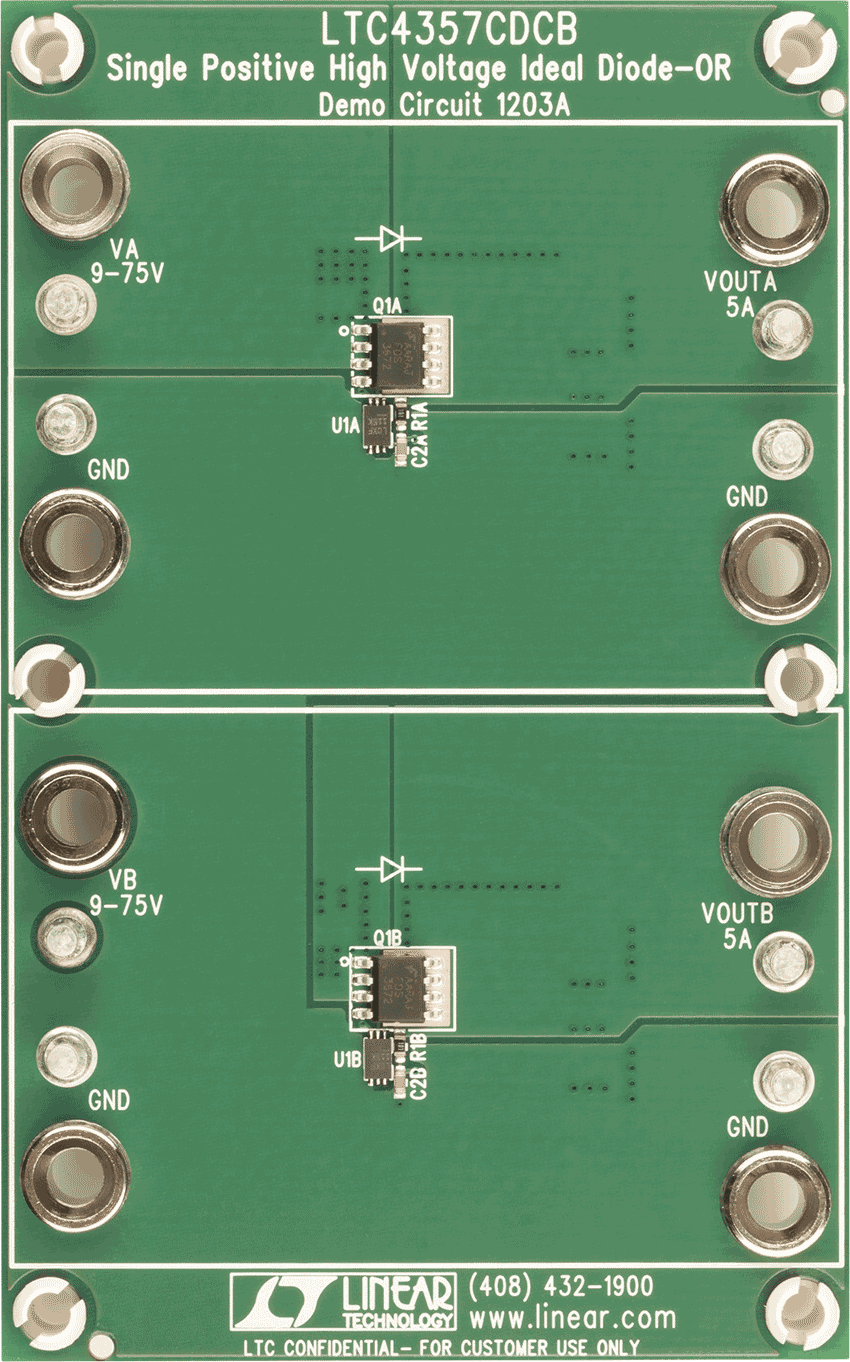

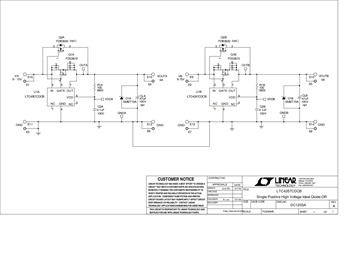

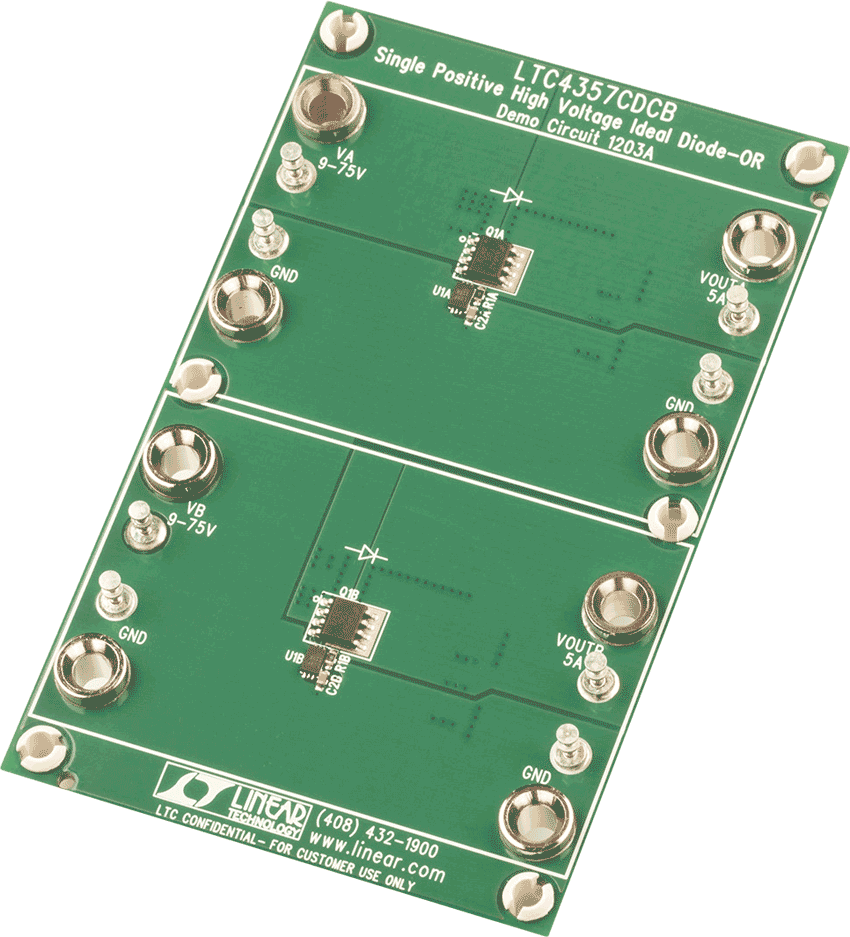

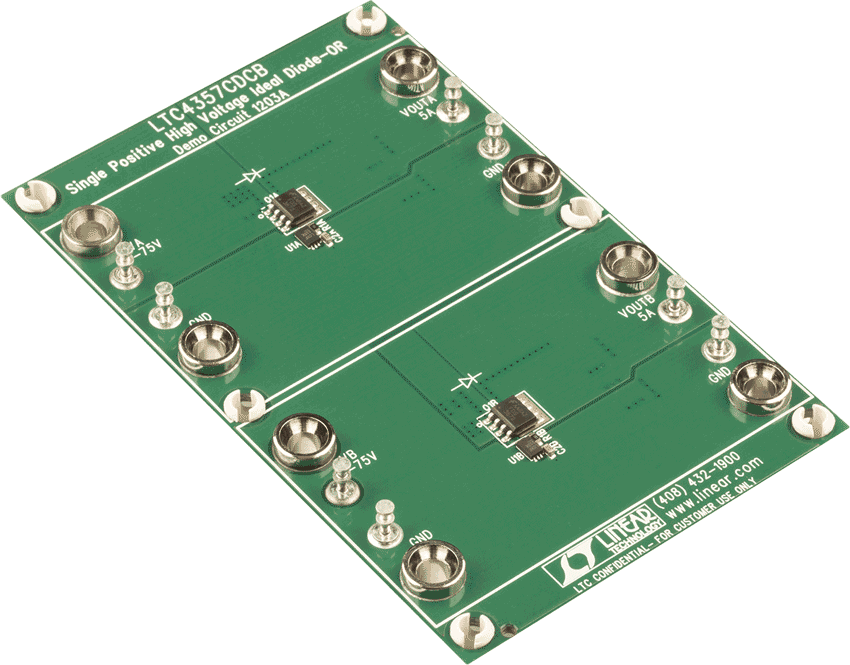

DC1203A

LTC4357 Positive High Voltage Ideal Diode Controller
