LT3009

3μA IQ、20mA 低压差线性稳压器

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
查看： 产品详情
arrow-icon

不是您想寻找的产品？

viewall 去产品选项表
file 查看数据手册
Documentation 查看所有文档
LTspice LTC2955 / LTC4412 / LT3009-3.3 Demo Circuit - Pushbutton On/Off Control with Automatic Turn-On When 12V Applied (12V or 3.6V Battery Backup to 3.3V @ 20mA) Download 4.00KB LTspice LT3009 Demo Circuit - 3µA IQ, 20mA LDP Linear Regulator (20V to 3.3V @ 20mA) Download 1.00KB LTspice LT3009 - LDO Linear Regulators Download 0.73 KB
产品模型 42
特性
  • 超低静态电流：3μA
  • 输入电压范围：1.6V 至 20V
  • 输出电流：20mA

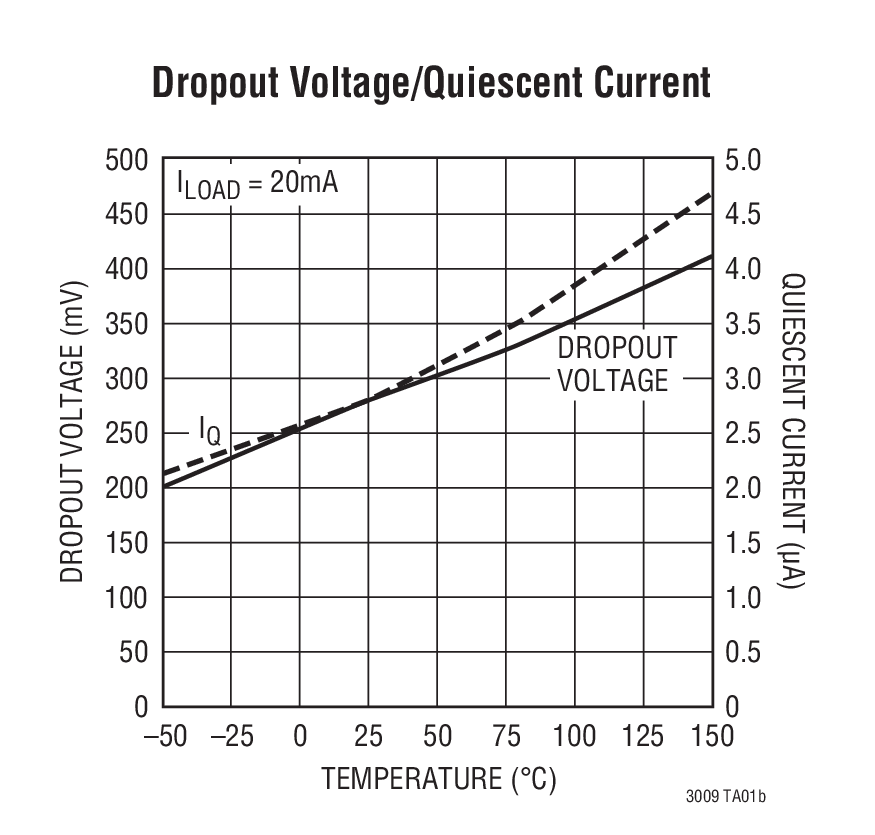

  • 压差电压：280mV
  • 可调输出 (VADJ = VOUT(MIN) = 600mV)
  • 固定输出电压：1.2V、1.5V、1.8V、2.5V、3.3V、5V
  • 输出容差：±2% (在整个负载、输入电压和温度范围内)
  • 可在采用低 ESR、陶瓷输出电容器 (最小值为 1μF) 时稳定
  • 停机电流：< 1μA
  • 电流限制保护
  • 反向电池保护
  • 热限制保护

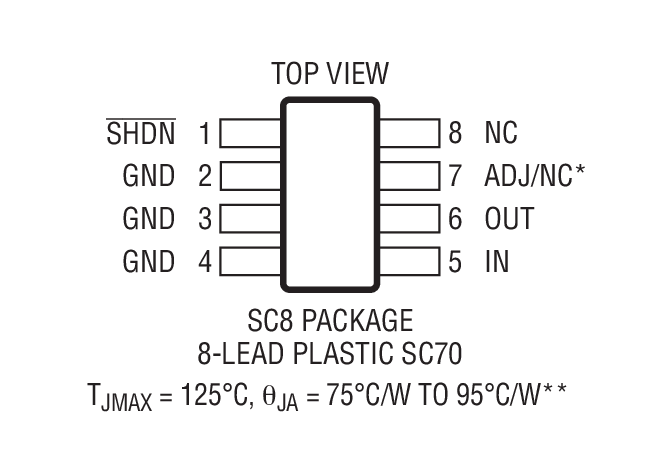

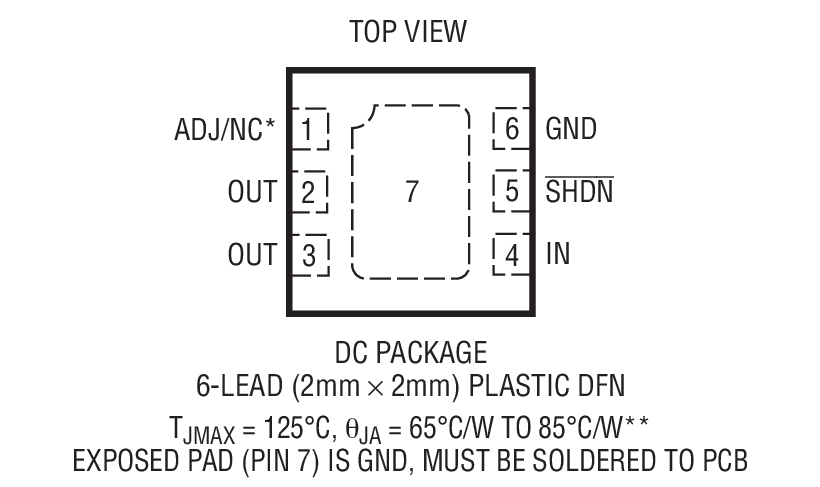

  • 8 引脚 SC70 和 2mm x 2mm DFN 封装



更多细节
show more Icon

LT®3009 系列是微功率、低压差电压 (LDO) 线性稳压器。这些器件可提供 20mA 输出电流和一个 280mV 的压差电压。无负载静态电流为 3μA。当负载增加时，接地引脚电流保持在低于 5% 输出电流的水平上。在停机模式中，静态电流
LT3009 稳压器利用低 ESR 陶瓷电容器 (所需的最小电容值仅为 1μF) 来优化稳定性和瞬态响应。这些稳压器不像其他稳压器所常见的那样需要额外的 ESR。内部保护电路包括电流限制、热限制、反向电池保护和反向电流保护。

对于那些需要中等输出驱动能力以及超低待机功耗的应用而言，LT3009 系列是理想的选择。该器件可提供 1.2V、1.5V、1.8V、2.5V、3.3V 和 5V 固定输出电压，而且也可以用作一款具一个低至 600mV 基准的输出电压范围的可调型器件。LT3009 采用 6 引脚 DFN 和 8 引脚 SC70 封装。


Applications

  • 低电流电池供电型系统
  • 保活电源
  • 远程监视
    • 公用事业表
    • 旅馆门锁



Show More Arrow image
file 查看数据手册
Documentation 查看所有文档
LTspice LTC2955 / LTC4412 / LT3009-3.3 Demo Circuit - Pushbutton On/Off Control with Automatic Turn-On When 12V Applied (12V or 3.6V Battery Backup to 3.3V @ 20mA) Download 4.00KB LTspice LT3009 Demo Circuit - 3µA IQ, 20mA LDP Linear Regulator (20V to 3.3V @ 20mA) Download 1.00KB LTspice LT3009 - LDO Linear Regulators Download 0.73 KB
产品模型 42
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3009

文档

8
overlayclose

筛查

1 应用

mobileoverlaydownarrow
  • 全部
    TickIcon
  • 数据手册
  • 用户手册
  • 可靠性数据
  • 技术文章
  • 全部
    TickIcon
  • 英文
  • 日文
  • 中文
resetfilter

重置过滤器

数据手册

2

PDF Vector

PDF

更新 04/03/2012
英文

LT3009: 3µA IQ, 20mA Low Dropout Linear Regulators Data Sheet

打开PDF文件

redirect
262.00K
download

下载 PDF

PDF Vector

PDF

更新 06/10/2012
日文

LT3009: 消費電流3μAの20mA低損失リニア・レギュレータ データシート

打开PDF文件

redirect
631.00K
download

下载 PDF

用户手册

1

PDF Vector

PDF

更新 09/24/2009
英文
DC1156A - Demo Manual redirect icon

348.00K

download

下载 PDF

可靠性数据

1

PDF Vector

PDF

更新 03/26/2018
英文
R531 Reliability Data redirect icon

23.66 K

download

下载 PDF

技术文章

4

PDF Vector

HTML

更新 06/01/2007
英文
3µA Quiescent Current LDO Improves Efficiency for Low Power Circuits in Industrial, Automotive and Battery-Powered Systems redirect icon

PDF Vector

HTML

更新 06/01/2008
英文
500nA Supply Supervisors Extend Battery Life in Portable Electronics redirect icon

PDF Vector

HTML

更新 07/01/2016
英文
Baseband Design Example for LTC5589/LTC5599 Low-Power IQ Modulator redirect icon

PDF Vector

HTML

更新 07/01/2016
中文
低功率 IQ 调制器的基带设计实例 redirect icon

没有符合要求的搜索结果。请尝试重置您的筛选或搜索一个不同的术语

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

技术文档 6
show more Icon

数据手册 1

LT3009: 3µA IQ, 20mA Low Dropout Linear Regulators Data Sheet

可靠性数据 1

R531 Reliability Data

用户手册 1

DC1156A - Demo Manual

技术文章 3

低功率 IQ 调制器的基带设计实例
3µA Quiescent Current LDO Improves Efficiency for Low Power Circuits in Industrial, Automotive and Battery-Powered Systems
500nA Supply Supervisors Extend Battery Life in Portable Electronics

解决方案设计及宣传手册 1

Linear Low Dropout (LDO) Regulator Solutions

新闻 1

采用 2mm x 2mm DFN 和 SC-70 封装的 3uA IQ 20mA LDO

模拟对话 1

使用热插拔控制器增强系统可靠性

视频

1

Thumbnail Image

视频

2017-09-18

LT3009 Video Product Brief

了解更多
更多 Arrow image

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号 引脚/封装图-中文版 文档 CAD 符号，脚注和 3D模型
LT3009EDC#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-1.2#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-1.2#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-1.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-1.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-1.8#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-1.8#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-2.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-2.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-3.3#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-3.3#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009EDC-5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8#TRMPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8#TRPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-1.2#TRMPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-1.2#TRPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-1.5#TRMPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-1.5#TRPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-1.8#TRMPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-1.8#TRPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-2.5#TRMPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-2.5#TRPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-3.3#TRMPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-3.3#TRPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-5#TRMPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009ESC8-5#TRPBF 8-Lead SC70 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-1.2#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-1.2#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-1.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-1.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-1.8#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-1.8#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-2.5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-2.5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-3.3#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-3.3#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-5#TRMPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3009IDC-5#TRPBF 6-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

软件和型号相关生态系统

部分模型 产品周期 描述

PowerPath、理想二极管和负载开关1
LTC4412
popup image
Cart

推荐新设计使用

采用 ThinSOT 封装的低损耗 PowerPath 控制器

按钮控制器1
LTC2955
popup image
Cart

推荐新设计使用

具自动接通功能的按钮接通 / 关断控制器

单电源监控器1
LTC2934
popup image
Cart

量产

具电源故障输出的超低功率可调监控器

部分模型 产品周期 描述
LTC2934
popup image
Cart

量产

具电源故障输出的超低功率可调监控器

LTC4412
popup image
Cart

推荐新设计使用

采用 ThinSOT 封装的低损耗 PowerPath 控制器

LTC2955
popup image
Cart

推荐新设计使用

具自动接通功能的按钮接通 / 关断控制器

评估套件 1

reference details image

DC1156A

LT3009EDC Demo Board | Micropower Low Dropout Linear Regulator, 1.6V ≤ VIN ≤ 20V, VOUT = 1.2V/1.5V/1.8V/2.0V/2.5V/3.3V/5V/Adjustable @ 20mA

zoom

DC1156A

LT3009EDC Demo Board | Micropower Low Dropout Linear Regulator, 1.6V ≤ VIN ≤ 20V, VOUT = 1.2V/1.5V/1.8V/2.0V/2.5V/3.3V/5V/Adjustable @ 20mA

download icon

下载

 print icon

打印
DC1156A
LT3009EDC Demo Board | Micropower Low Dropout Linear Regulator, 1.6V ≤ VIN ≤ 20V, VOUT = 1.2V/1.5V/1.8V/2.0V/2.5V/3.3V/5V/Adjustable @ 20mA
立即购买 更多内容

产品详情

Demonstration circuit 1156A is an ultralow quiescent current and low dropout voltage linear regulator featuring the 20mA output current LT3009 in the  which comes in the 2mm × 2mm DFN package. The DC1156A has an input voltage range from 1.6V to 20V and has jumper-selectable output voltages of 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5V or a user-defined value.


With the 3µA quiescent current of the LT3009, the DC1156A is ideal for supplying power to low current battery-powered systems, keep-alive power supply and remote monitoring utility meters and hotel door locks.

资料

pdf icon

PDF

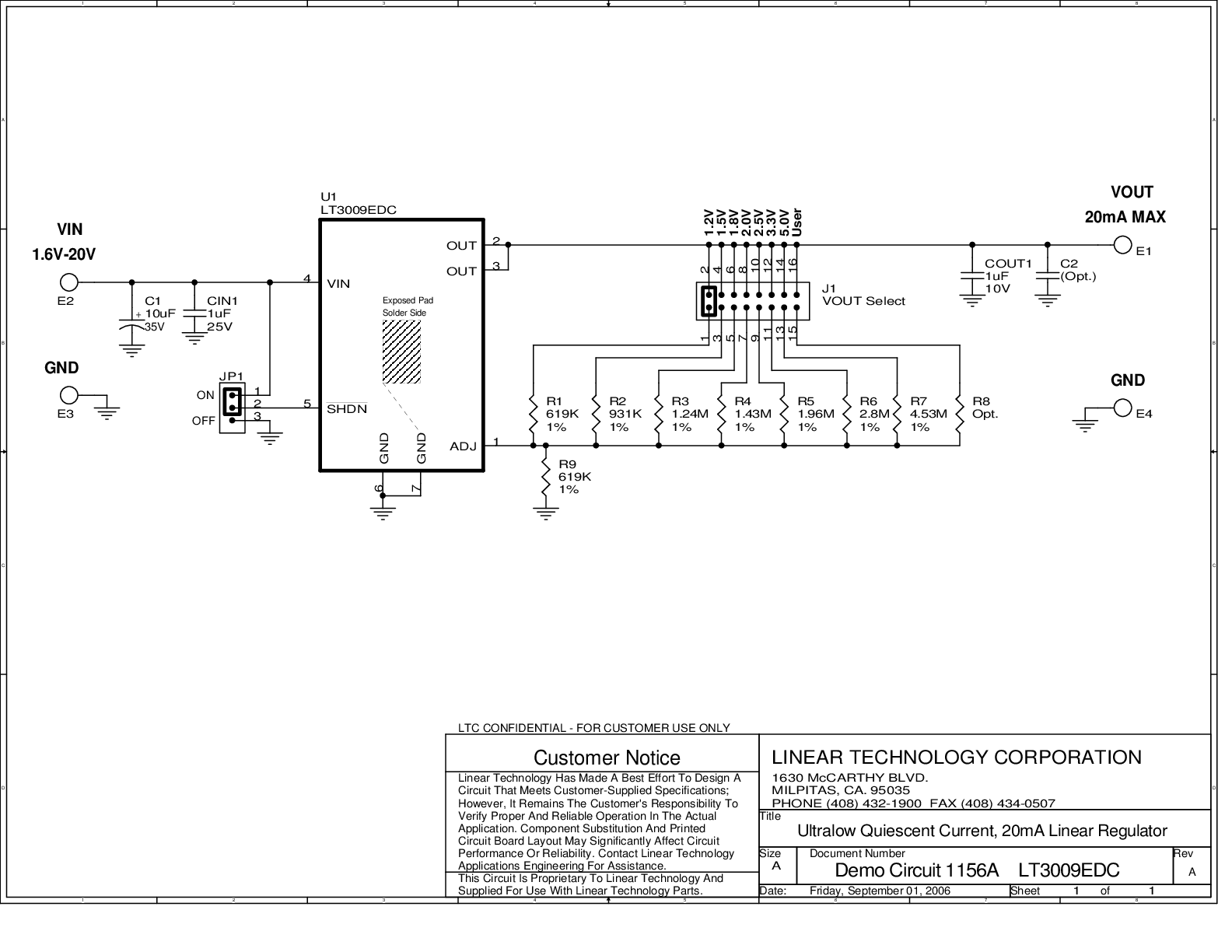

DC1156A - Schematic Download

23.00K

pdf icon

PDF

DC1156A - Demo Manual Download

348.00K

pdf icon

ZIP

DC1156A - Design File Download

417.00K

更多 Arrow image

评估套件1

evaluation kit item images

DC1156A

LT3009EDC Demo Board | Micropower Low Dropout Linear Regulator, 1.6V ≤ VIN ≤ 20V, VOUT = 1.2V/1.5V/1.8V/2.0V/2.5V/3.3V/5V/Adjustable @ 20mA

工具及仿真模型 1

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

启动此部分的现成LTspice演示电路：

第1步：下载并在计算机上安装LTspice。

第2步：单击下面的链接，下载演示电路。

第3步：如果在单击以下链接之后LTspice未自动打开，可通过右击该链接并选择“目标另存为”来运行该仿真。将文件保存到计算机之后，请启动LTspice并从“文件”菜单中选择“打开”来打开演示电路。

spice tool Lt Spice

LTC2955 / LTC4412 / LT3009-3.3 Demo Circuit - Pushbutton On/Off Control with Automatic Turn-On When 12V Applied (12V or 3.6V Battery Backup to 3.3V @ 20mA) Download

4.00K

spice tool Lt Spice

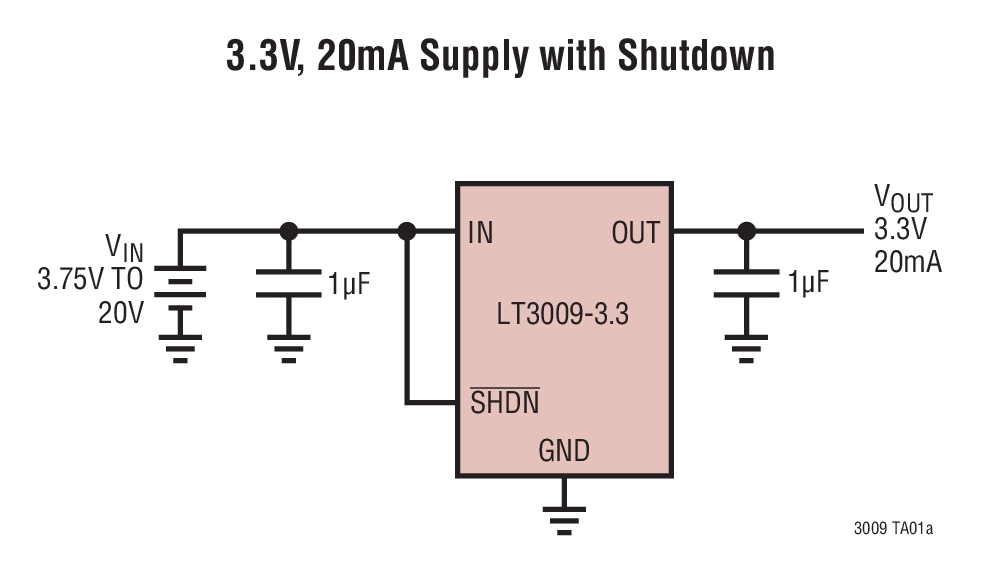

LT3009 Demo Circuit - 3µA IQ, 20mA LDP Linear Regulator (20V to 3.3V @ 20mA) Download

1.00K

spice tool Lt Spice

LT3009 - LDO Linear Regulators Download

0.73 K

参考电路 4

DK-DEV-5CEA7N Dev Kit

Altera Cyclone V E Development Kit

zoomopens a dialog

Altera Cyclone V E Development Kit

download icon

下载

 print icon

打印
Altera Cyclone V E Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 8

LTC3026-1 reference design link

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4 reference design link

LTC3103 reference design link

LTC3025 reference design link

LT3009 reference design link

LTC3026 reference design link

LTC3600 reference design link

LTC3608 reference design link

DK-DEV-5CGTD9N Dev Kit

Altera Cyclone V GT FPGA Development Kit

zoomopens a dialog

Altera Cyclone V GT FPGA Development Kit

download icon

下载

 print icon

打印
Altera Cyclone V GT FPGA Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 8

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4 reference design link

LT3009 reference design link

LTC3855 reference design link

LT3085 reference design link

LT3022 reference design link

LTC3605 reference design link

LTC3608 reference design link

LTC3613 reference design link

DK-DEV-5SGXEA7N Dev Kit

Altera Stratix V GX FPGA Development Kit

zoomopens a dialog

Altera Stratix V GX FPGA Development Kit

download icon

下载

 print icon

打印
Altera Stratix V GX FPGA Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 16

LTC4352 reference design link

LTC2990 reference design link

LTC4357 reference design link

LTC2418 reference design link

LTC2915 reference design link

LT3083 reference design link

LT3022 reference design link

LT3029 reference design link

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4 reference design link

LTC3855 reference design link

LT3080-1 reference design link

LT3021 reference design link

LTM4614 reference design link

LTM4628 reference design link

LT3009 reference design link

LTC3880 reference design link

Stratix V Advanced System Development Board

Stratix V Advanced System Development Board

zoomopens a dialog

Stratix V Advanced System Development Board

download icon

下载

 print icon

打印
Stratix V Advanced System Development Board

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

使用部分 11

LT3009 reference design link

LTC3115-1 reference design link

LT3083 reference design link

LTC3615 reference design link

LT3070 reference design link

LT3022 reference design link

LT3080 reference design link

LTM4628 reference design link

LTC3612 reference design link

LTC3855 reference design link

LTM4620 reference design link

参考电路4

DK-DEV-5CEA7N Dev Kit

Altera Cyclone V E Development Kit

DK-DEV-5CGTD9N Dev Kit

Altera Cyclone V GT FPGA Development Kit

DK-DEV-5SGXEA7N Dev Kit

Altera Stratix V GX FPGA Development Kit

Stratix V Advanced System Development Board

Stratix V Advanced System Development Board

近期浏览

产品详情
参考资料
软件和型号相关生态系统
评估套件
工具及仿真模型
参考电路
最新评论
