LTC3608

量产

18V、8A 单片式同步降压型 DC/DC 转换器

数据手册 产品选型表
产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 8A 输出电流
  • 宽 VIN 范围 = 4V 至 18V
  • 内部 N 沟道 MOSFET
  • 真正的电流模式控制
  • 专为高降压比而优化
  • tON(MIN) ≤ 100nsec
  • 极快的瞬态响应
  • 采用陶瓷输出电容器 COUT 时可稳定
  • ±1% 0.6V 电压基准
  • 电源良好输出电压监视器
  • 可调接通时间/开关频率
  • 可调电流限值
  • 可编程软起动功能
  • 输出过压保护功能
  • 可任选的短路停机定时器
  • 低停机 IQ：15μA

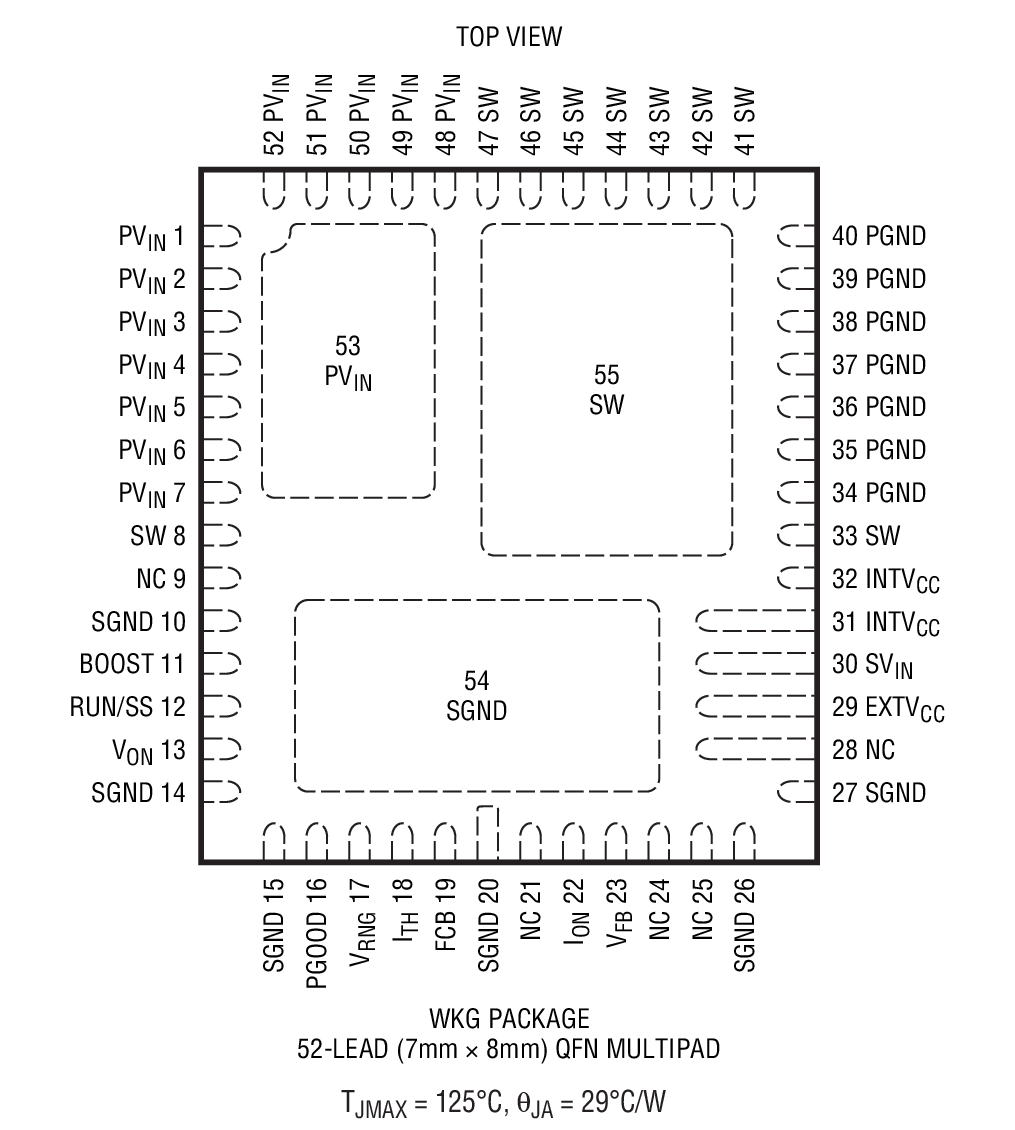

  • 采用 7mm x 8mm 52 引脚 QFN 封装


LTC3608
18V、8A 单片式同步降压型 DC/DC 转换器

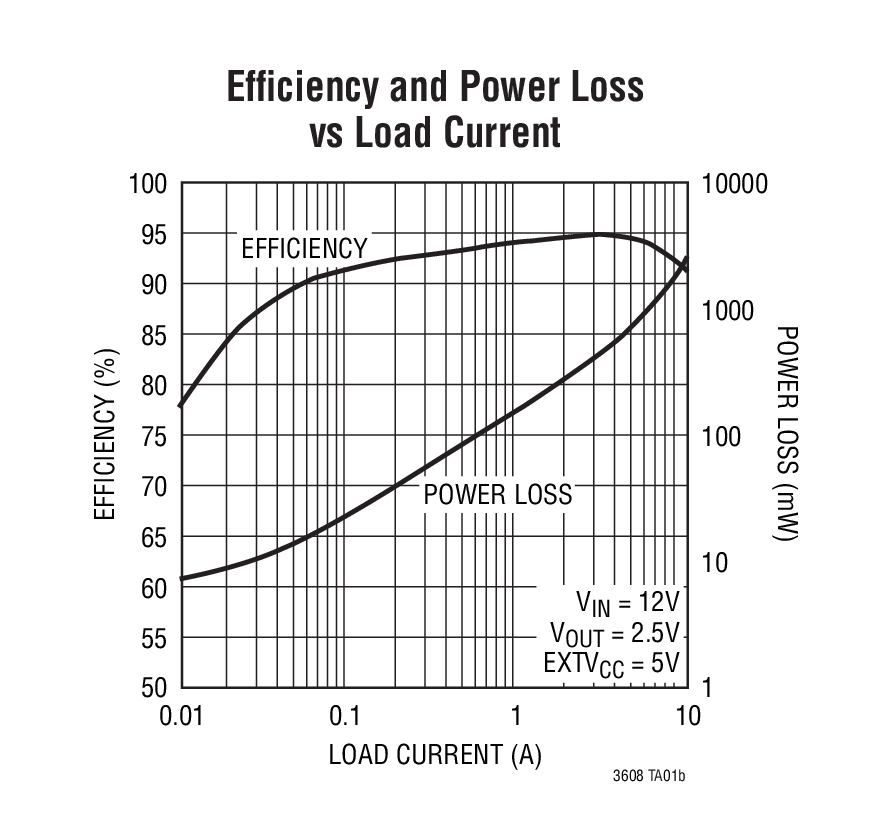

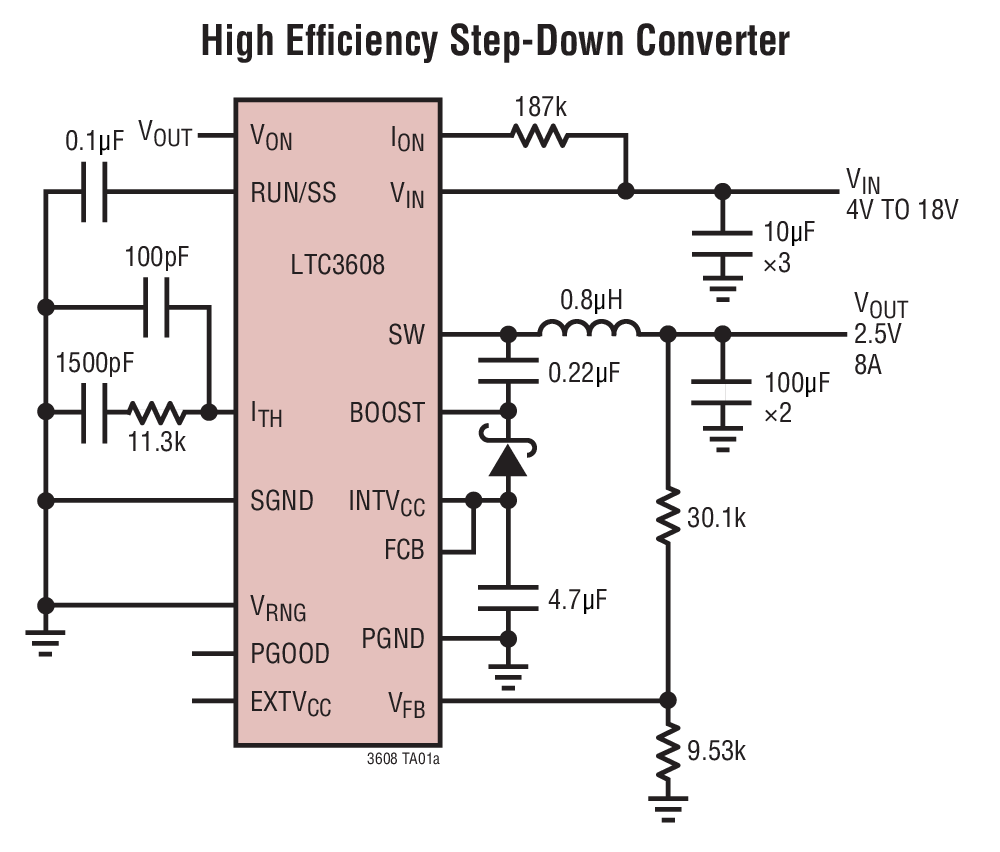

High Efficiency Step-Down Converter Efficiency and Power Loss vs Load Current Product Package 1
