LTC3605

量产

15V、5A、同步降压型稳压器

数据手册 (Rev. I) 产品选型表
产品模型
8
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 高效率：高达96%
  • 输出电流：5A
  • VIN 范围：4V至15V
  • 集成电源N通道MOSFET
    （70mΩ顶部和35mΩ底部）
  • 可调频率：800kHz至4MHz
  • PolyPhase® 操作（最多12个相位）
  • 输出跟踪
  • 0.6V ±1%基准精度
  • 电流工作模式提供出色的线路和负载瞬态响应
  • 关断模式下的电源电流消耗小于15μA
  • 采用24引脚(4mm × 4mm) QFN封装
  • 通过AEC-Q100汽车应用认证
LTC3605
15V、5A、同步降压型稳压器
High Efficiency 1MHz, 5A Step-Down Regulator Efficiency and Power Loss Product Package 1
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

可靠性数据 1

用户手册 1

设计笔记 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型 产品周期 描述
硅振荡器 1
LTC6908
具扩频调制功能、采用电阻器设定频率的 SOT-23 封装振荡器
浪涌抑制器、过压和过流保护 1
LT4363
推荐新设计使用 具电流限制功能的高电压浪涌抑制器
数字电源系统管理器 1
LTC2974
推荐新设计使用 具有精确输出电流的4通道PMBus电源系统管理器
双电源监控器 1
LTC2960
推荐新设计使用 36V、纳安级电流、两输入电压监视器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice 1

LTspice中提供以下器件型号：

  • LTC3605
  • LTC3605A

LTpowerCAD 1

LTpowerCAD中提供以下器件的设计工具：

  • LTC3605
  • LTC3605A
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

LTpowerCAD

LTpowerCAD®是一种电源设计程序，它选择功率级元件，提供详细效率信息，显示快速环路波特图稳定性和负载瞬态分析，并可导出至LTspice进行仿真。

评估套件

eval board
schematic 1
DC1215A

LTC3605EUF演示板 | 4V ≤ VIN ≤ 15V，VOUT = 2.5V/3.3V/5V (5A)

立即购买 更多内容

产品详情

演示电路1215是一款降压转换器，采用LTC3605单芯片同步降压稳压器。DC1215A具有最大15V的输入电压，能够通过4V的最小输入电压提供高达5A的输出电流。DC1215A的输出电压可以设置为低至0.6V，LTC3605的基准电压。



DC1215A
LTC3605EUF演示板 | 4V ≤ VIN ≤ 15V，VOUT = 2.5V/3.3V/5V (5A)

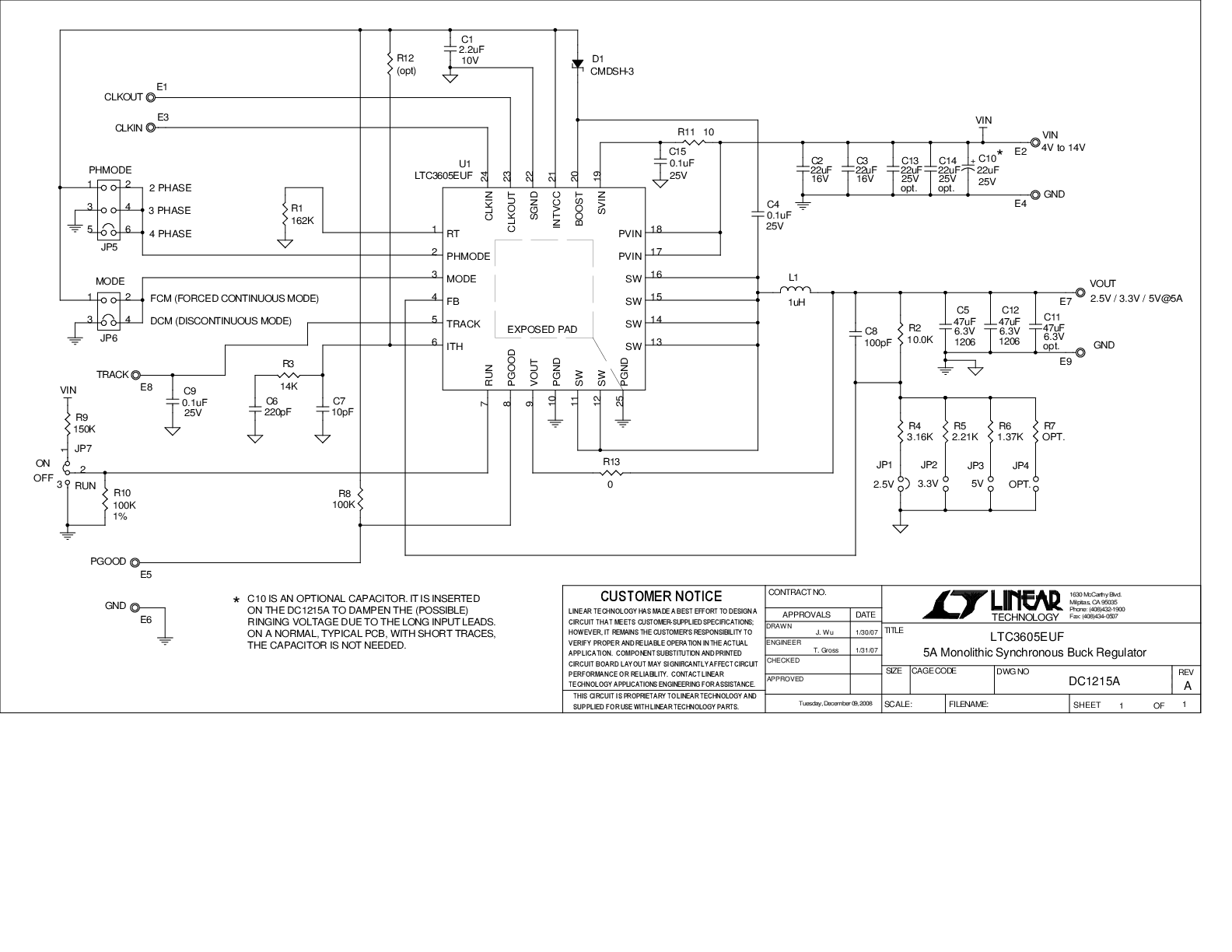

DC1215A - Schematic
