Features and Benefits
- High Efficiency: Up to 96%
- 5A Output Current
- 4V to 20V VIN Range
- Integrated Power N-Channel MOSFETs (70mΩ Top and 35mΩ Bottom)
- Adjustable Frequency 800kHz to 4MHz
- PolyPhase® Operation (Up to 12 Phases)
- Output Tracking
- 0.6V ±1% Reference Accuracy
- Current Mode Operation for Excellent Line and Load Transient Response
- Shutdown Mode Draws Less Than 15μA Supply Current
- LTC3605: 15V Absolute Maximum VIN
- LTC3605A: 22V Absolute Maximum VIN
- The LTC3605A Is Pin Compatible with the LTC3605
- Available in 24-Pin (4mm × 4mm) QFN Package
The LTC3605A is a high efficiency, monolithic synchronous buck regulator using a phase lockable controlled on-time constant frequency, current mode architecture. PolyPhase operation allows multiple LTC3605A regulators to run out of phase while using minimal input and output capacitance. The operating supply voltage range is from 20V down to 4V, making it suitable for dual, triple or quadruple lithium-ion battery inputs as well as point of load power supply applications from a 12V or 5V rail.
The operating frequency is programmable from 800kHz to 4MHz with an external resistor. The high frequency capability allows the use of small surface mount inductors. For switching noise sensitive applications, it can be externally synchronized from 800kHz to 4MHz. The PHMODE pin allows user control of the phase of the outgoing clock signal. The unique constant frequency/controlled on-time architecture is ideal for high step-down ratio applications that are operating at high frequency while demanding fast transient response. Two internal phase-lock loops synchronize the internal oscillator to the external clock and also servos the regulator on-time to lock on to either the internal clock or the external clock if it’s present.
|Input Voltage Range|
|LTC3605||4V to 15V|
|LTC3605A||4V to 20V|
- Point of Load Power Supply
- Portable Instruments
- Distributed Power Systems
- Battery-Powered Equipment
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

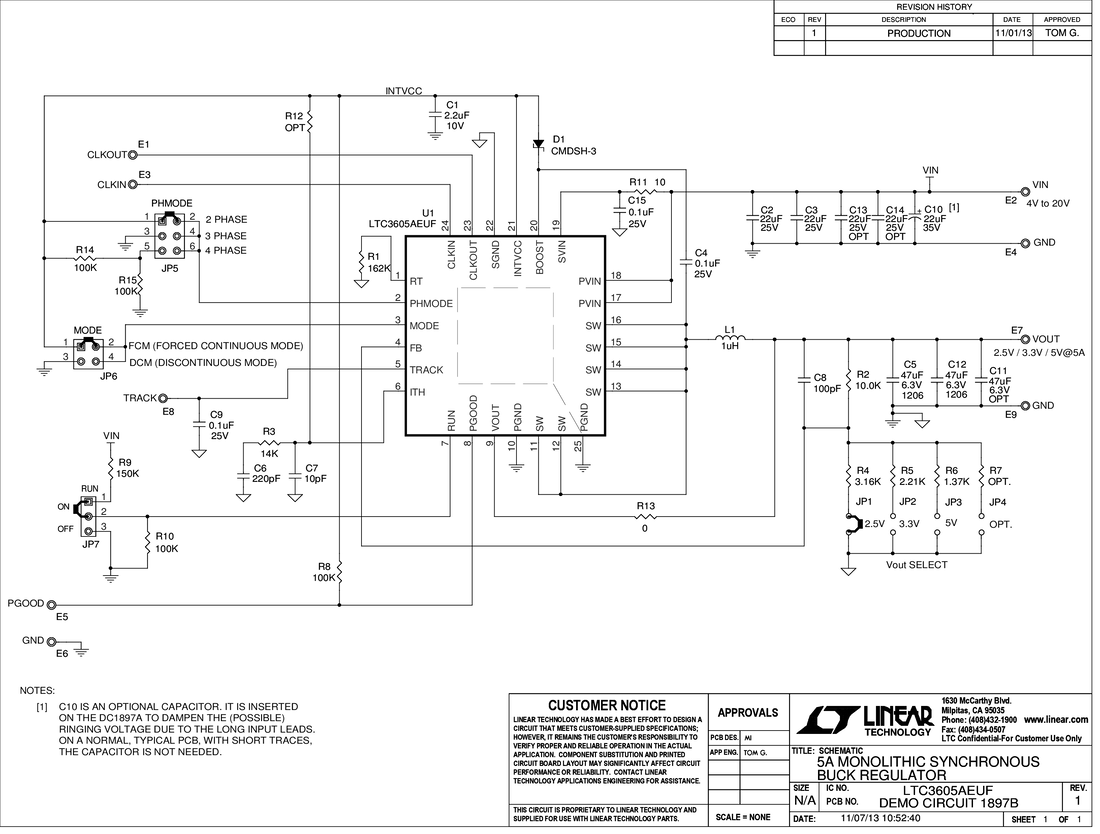

Demonstration circuit 1897 is a step-down converter, using the LTC3605A monolithic synchronous buck regulator. The DC1897B has a maximum input voltage of 20V, and is capable of delivering up to 5A of output current at a minimum input voltage of 4V. The output voltage of the DC1897B can be set as low as 0.6V, the reference voltage of the LTC3605A. It has a jumper that allows the output to be set at 2.5V, 3.3V or 5V. The LTC3605A has a phase-lock-loop circuit, allowing high current multiphase operation of several DC1897Bs in parallel.
