LTC3600

15V, 1.5A Synchronous Rail-to-Rail Single Resistor Step-Down Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $3.37
Features
  • Single Resistor Programmable VOUT
  • ±1% ISET Accuracy
  • Tight VOUT Regulation Independent of VOUT Voltage
  • Easy to Parallel for Higher Current and Heat Spreading
  • Wide VOUT Range 0V to VIN – 0.5V

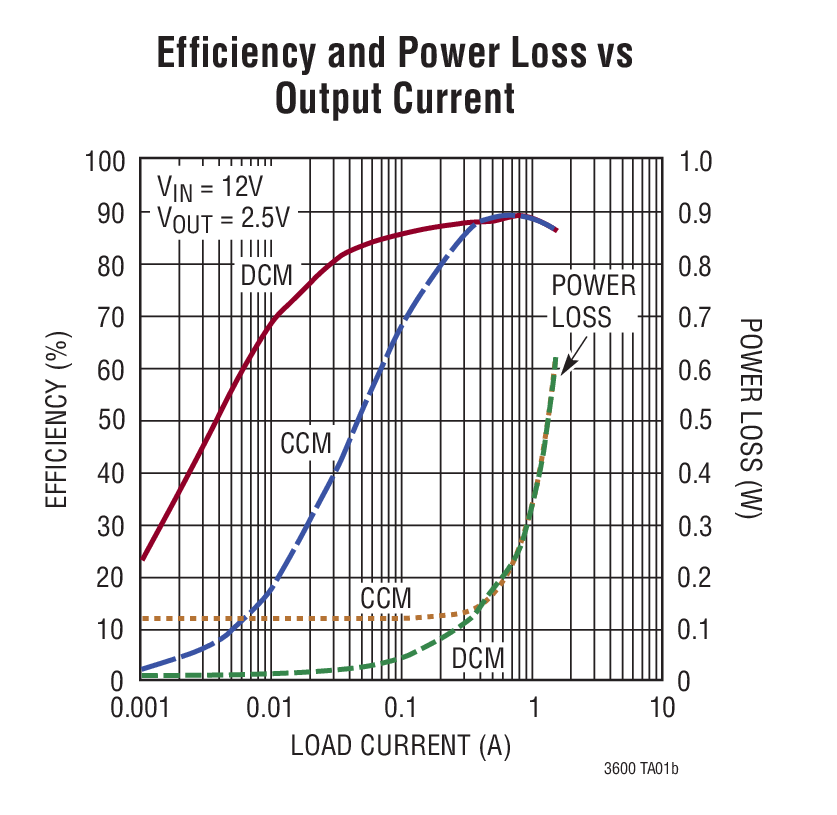

  • High Efficiency: Up to 96%
  • 1.5A Output Current
  • Adjustable Frequency: 200kHz to 4MHz
  • 4V to 15V VIN Range
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Zero Supply Current in Shutdown

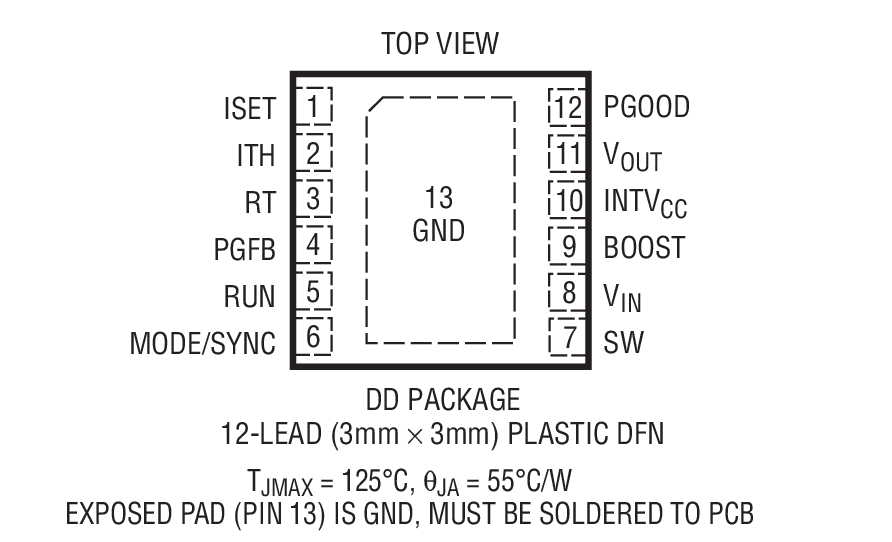

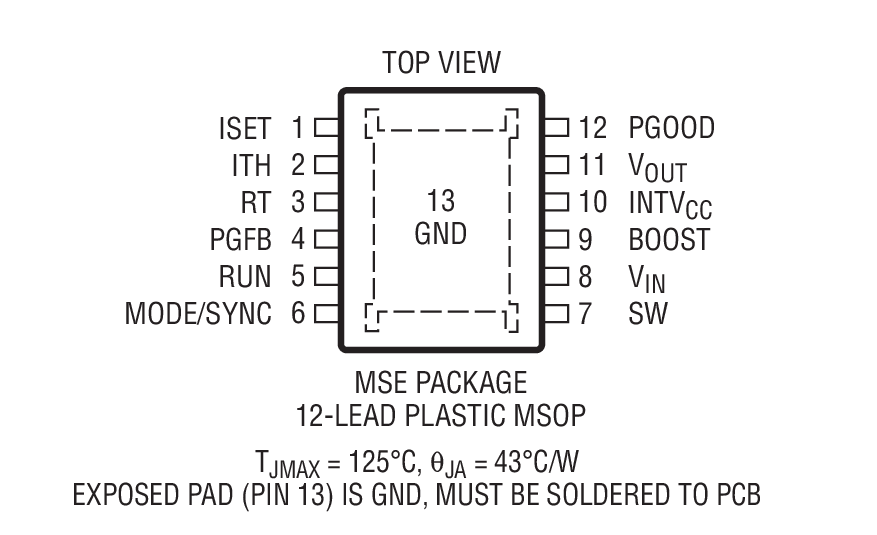

  • Available in Thermally Enhanced 12-Pin (3mm × 3mm) DFN and MSOP Packages
Additional Details
show more Icon

The LTC3600 is a high efficiency, monolithic synchronous buck regulator whose output is programmed with just one external resistor. The accurate internally generated 50μA current source on the ISET pin allows the use of a single external resistor to program an output voltage that ranges from 0V to 0.5V below VIN. The VOUT voltage feeds directly back to the error amplifier in unity gain fashion and equals the ISET voltage. The operating supply voltage range is 4V to 15V, making it suitable for dual lithium-ion battery and 5V or 12V input point-of-load power supply applications.

The operating frequency is synchronizable to an external clock or programmable from 200kHz to 4MHz with an external resistor. High switching frequency allows the use of small surface mount inductors. The unique constant on-time architecture is ideal for operating at high frequency in high step-down ratio applications that also demand fast load transient response.

Applications

  • Voltage Tracking Supplies
  • Point-of-Load Power Supplies
  • Portable Instruments
  • Distributed Power Systems
Part Models 8
1ku List Price Starting From $3.37

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3600EDD#PBF
  • HTML
  • HTML
LTC3600EDD#TRPBF
  • HTML
  • HTML
LTC3600EMSE#PBF
  • HTML
  • HTML
LTC3600EMSE#TRPBF
  • HTML
  • HTML
LTC3600IDD#PBF
  • HTML
  • HTML
LTC3600IDD#TRPBF
  • HTML
  • HTML
LTC3600IMSE#PBF
  • HTML
  • HTML
LTC3600IMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC3600EMSE#PBF

PRODUCTION

LTC3600EMSE#TRPBF

PRODUCTION

LTC3600IMSE#PBF

PRODUCTION

LTC3600IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3600EMSE#PBF

PRODUCTION

LTC3600EMSE#TRPBF

PRODUCTION

LTC3600IMSE#PBF

PRODUCTION

LTC3600IMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC3600EMSE#PBF

PRODUCTION

LTC3600EMSE#TRPBF

PRODUCTION

LTC3600IMSE#PBF

PRODUCTION

LTC3600IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3600EMSE#PBF

PRODUCTION

LTC3600EMSE#TRPBF

PRODUCTION

LTC3600IMSE#PBF

PRODUCTION

LTC3600IMSE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1667A

LTC3600EDD Demo Board | 4.5V to 15V Input, Adjustable Output with 1.5A IOUT

zoom

DC1667A

LTC3600EDD Demo Board | 4.5V to 15V Input, Adjustable Output with 1.5A IOUT

LTC3600EDD Demo Board | 4.5V to 15V Input, Adjustable Output with 1.5A IOUT

Product Detail

Demonstration circuit DC1667A is a step-down DC/DC converter using LTC3600 monolithic synchronous buck regulator. DC1667A has an input voltage range of 4.5V to 15V, and is capable of delivering up to 1.5A of output current. The output voltage of the DC1667 can be set by a single resistor from 0V to (VIN – 0.5)V. At light load conditions, DC1667 can operate in discontinuous mode to improve the efficiency.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
