LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

PRODUCTION

500mA Micropower VLDO Linear Regulators

Data Sheet (Rev. H) Product Selection Table
Viewing:

Overview

  • Wide Input Voltage Range: 0.9V to 5.5V
  • Stable with Ceramic Capacitors
  • Very Low Dropout: 85mV at 500mA
  • Adjustable Output Range: 0.4V to 3.6V (LTC3025-1)
  • Fixed Output: 1.2V(LTC3025-2), 1.5V(LTC3025-3), 1.8V(LTC3025-4)
  • ±2% Voltage Accuracy over Temperature, Supply and Load
  • Low Noise: 80μVRMS (10Hz to 100kHz)
  • BIAS Voltage Range: 2.5V to 5.5V
  • Fast Transient Recovery
  • Shutdown Disconnects Load from VIN and VBIAS
  • Low Operating Current: IIN = 4μA, IBIAS = 50μA Typ
  • Low Shutdown Current: IIN = 1μA, IBIAS = 0.01μA Typ
  • Output Current Limit
  • Thermal Overload Protection
  • Available in 6-Lead (2mm × 2mm) DFN Package
  • AEC-Q100 Qualified for Automotive Applications
LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4
500mA Micropower VLDO Linear Regulators
LTC3025-1/LTC3025-2/LTC3025-3/LTC3025-4 Application Circuit LTC3025-1/LTC3025-2/LTC3025-3/LTC3025-4 Pin Configuration LTC3025-1/LTC3025-2/LTC3025-3/LTC3025-4 Performance Graph
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Design Note 1

Technical Articles 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Power System Management (PSM) & Sequencers 1
LTC2974
RECOMMENDED FOR NEW DESIGNS 4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 1

Models for the following parts are available in LTspice:

  • LTC3025
  • LTC3025-1
  • LTC3025-2
  • LTC3025-3
  • LTC3025-4
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5

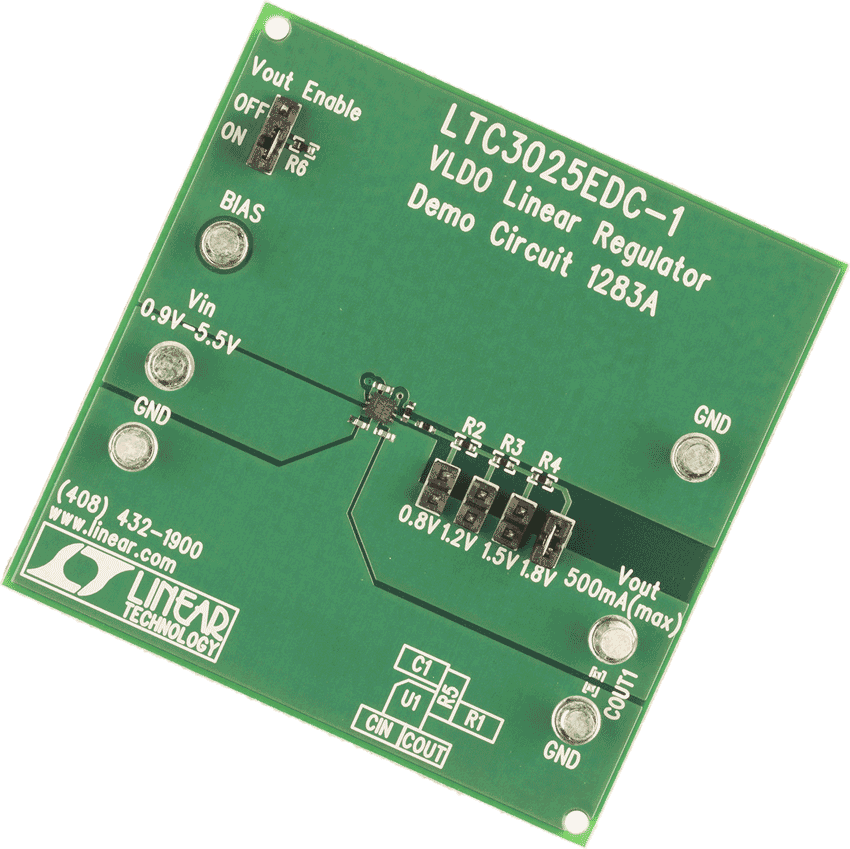

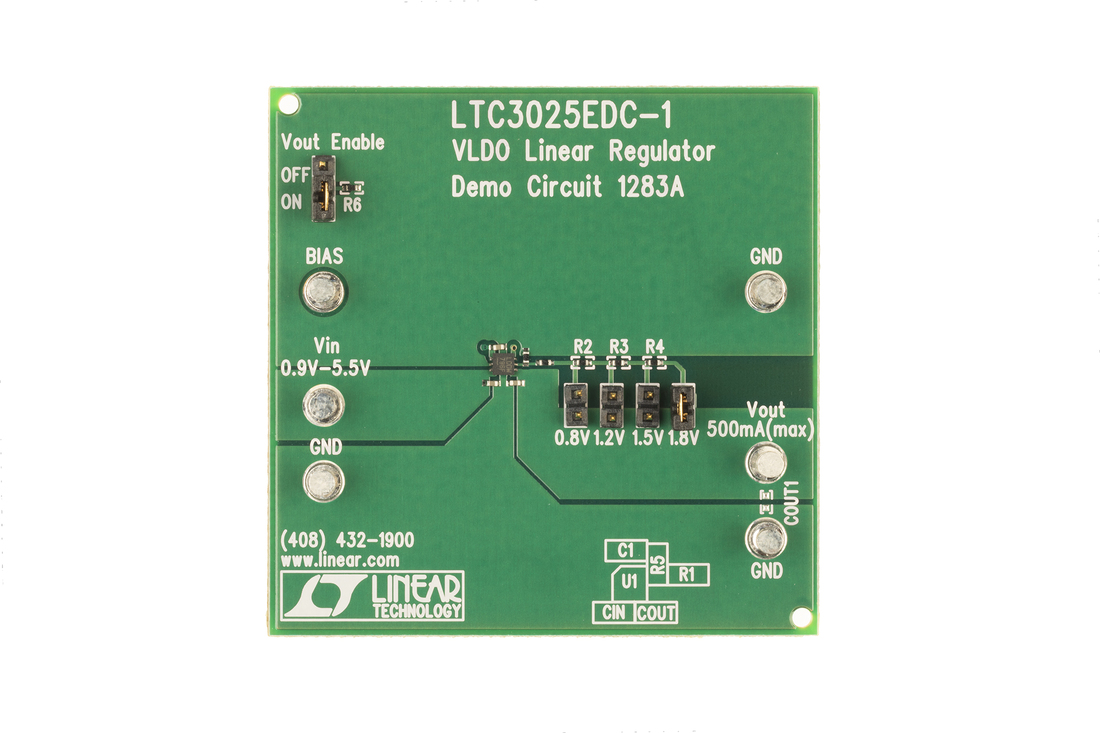

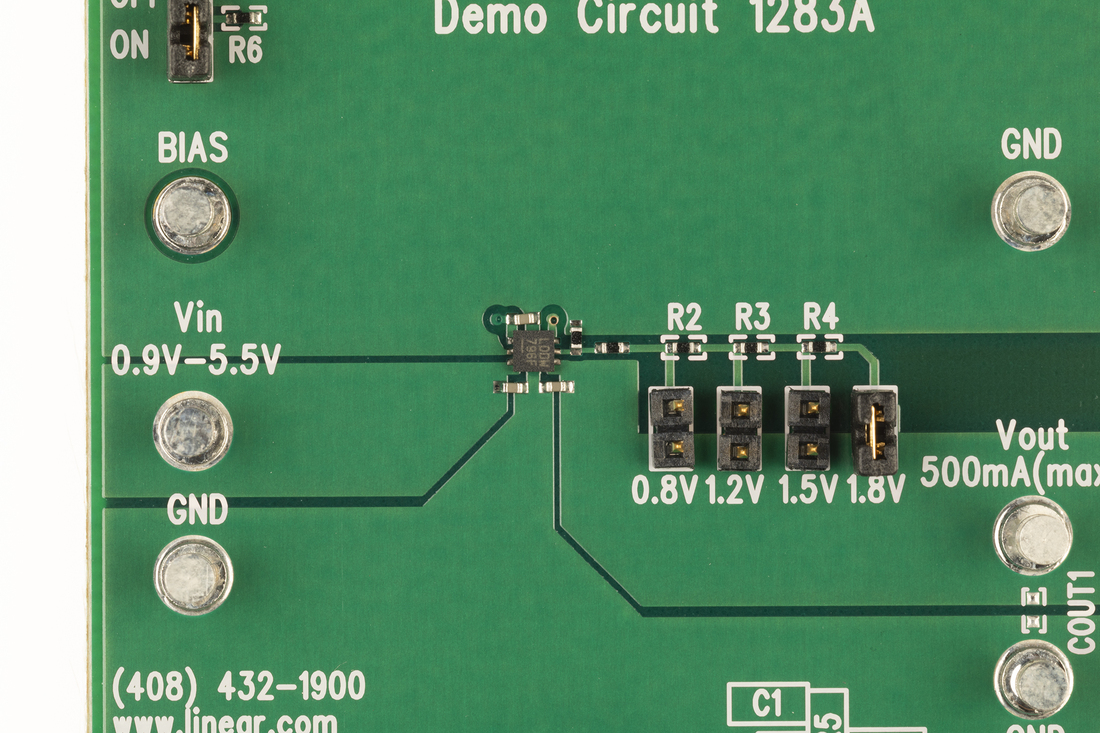

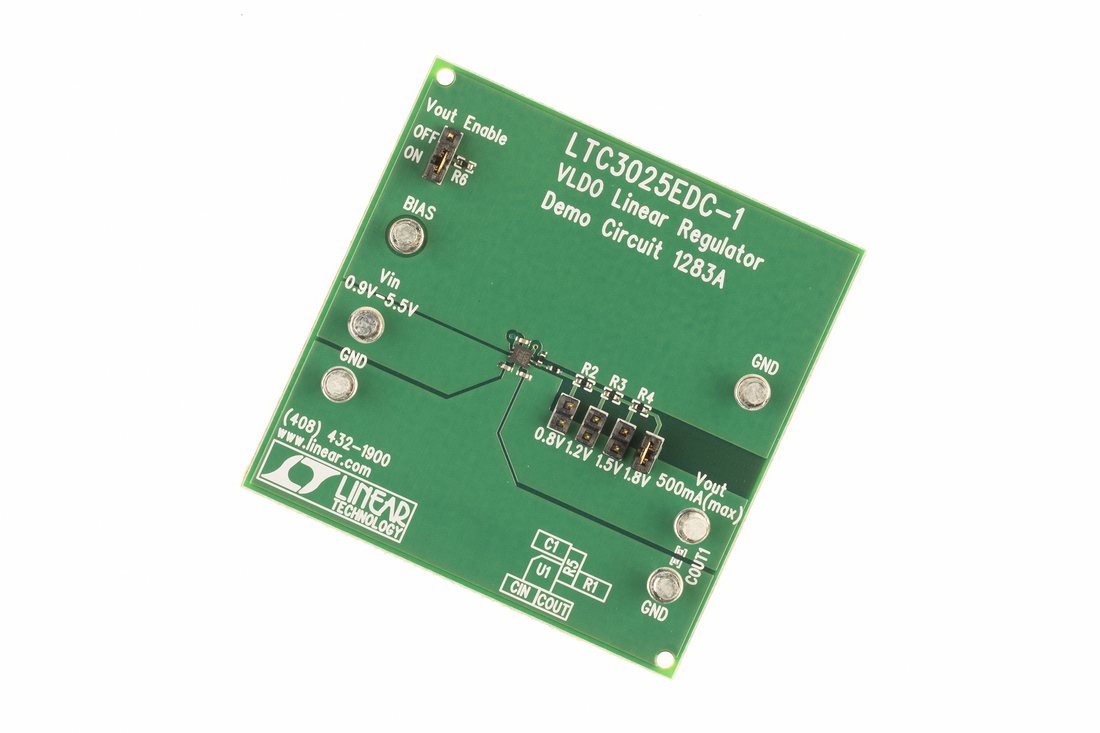

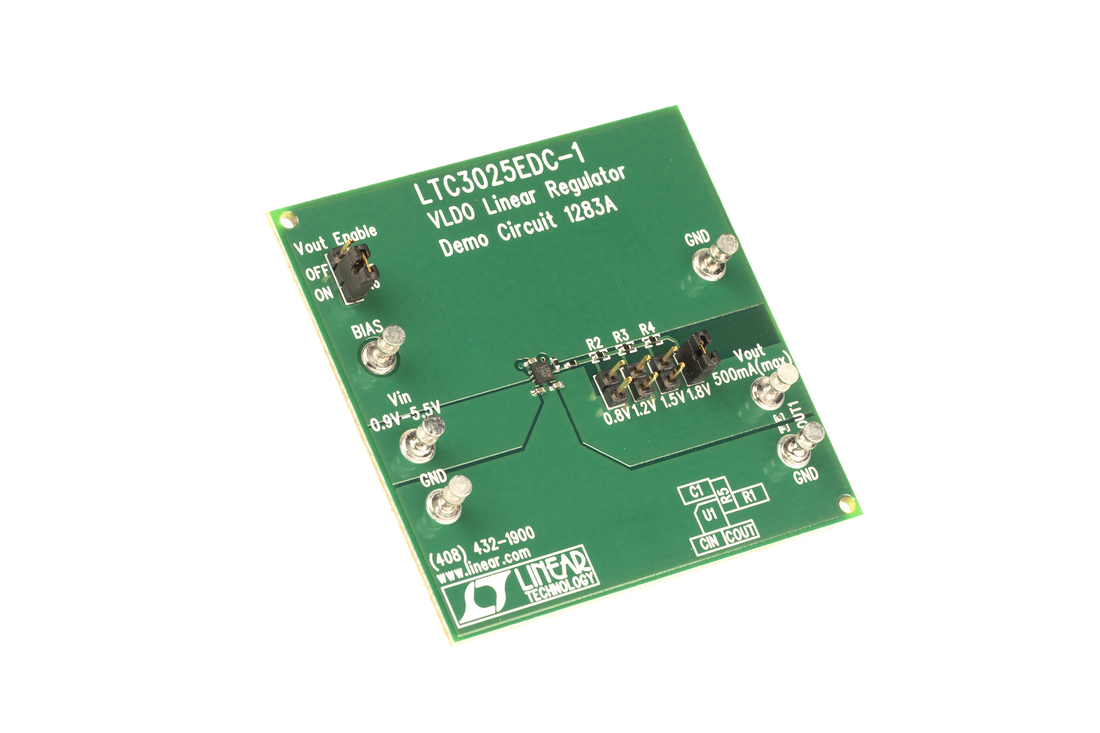

DC1283A

LTC3025EDC-1 Demo Board | Micropower VLDO Linear Regulator, 0.9V ≤ VIN ≤ 5.5V, VOUT = 0.8V/1.2V/1.5V/1.8V/Adjusted @ 500mA

Buy Now View Details

Product Details

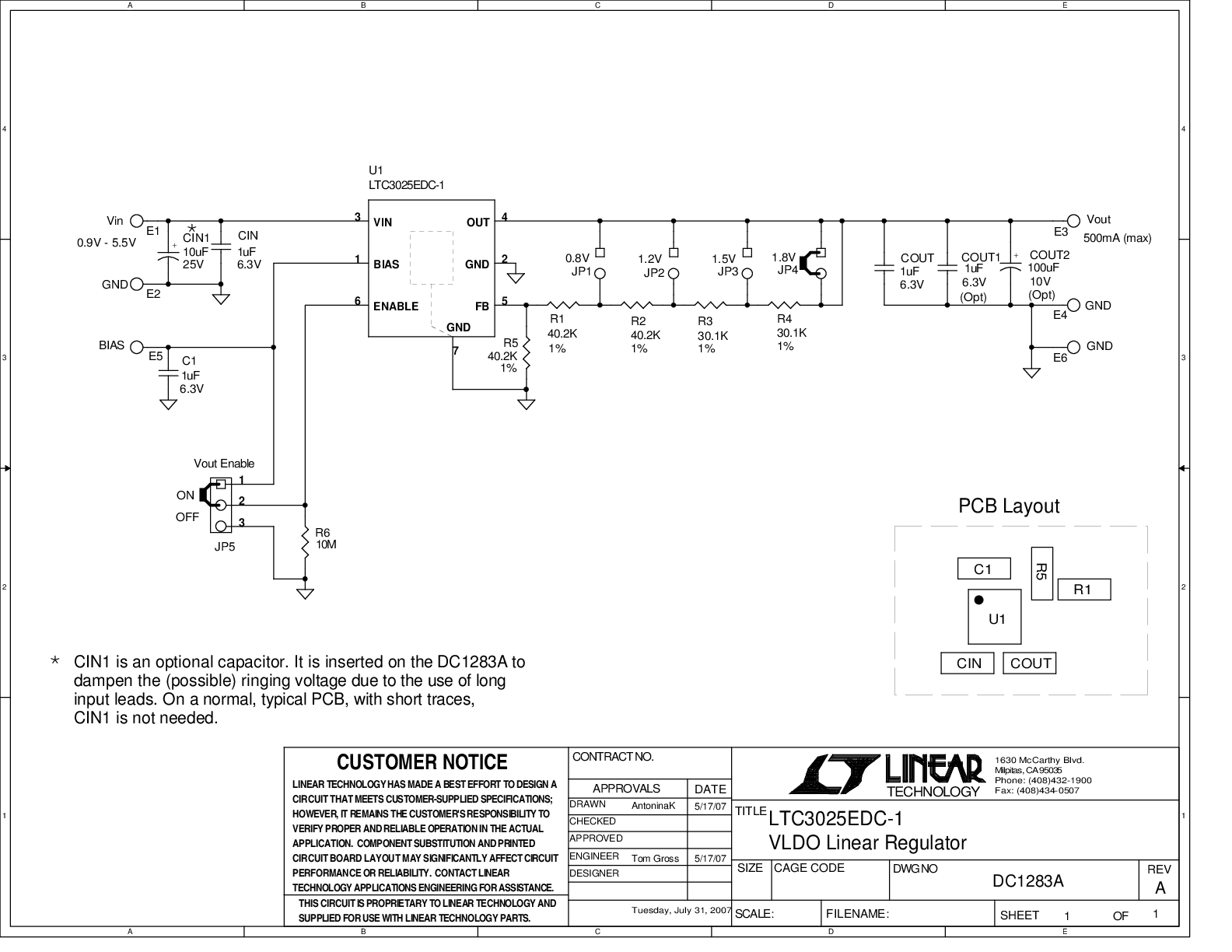

Demonstration circuit 1283 is an ultralow dropout voltage supply using the LTC3025-1 500mA output current linear regulator in a small 2mm x 2mm 6-Pin DFN package. The DC1283A has an input voltage range from 0.9V to 5.5V and has a jumper-selectable output that can be set to 0.8V, 1.2V, 1.5V, 1.8V or a user defined value between 0.4V and 3.6V.

The 0.4V reference of the LTC3025-1 allows the DC1283A to supply power to very low voltage applications. The DC1283A is also an excellent choice for post regulation of step-down switching regulators, combining to create a high efficiency low-noise supply. The DC1283 uses small ceramic capacitors, showing the LTC3025-1's ability to maintain stability with ceramic output capacitors.

eval board
schematic 6
schematic 7
schematic 8
schematic 9
schematic 10
DC1283A

LTC3025EDC-1 Demo Board | Micropower VLDO Linear Regulator, 0.9V ≤ VIN ≤ 5.5V, VOUT = 0.8V/1.2V/1.5V/1.8V/Adjusted @ 500mA

Buy Now View Details

Product Details

Demonstration circuit 1283 is an ultralow dropout voltage supply using the LTC3025-1 500mA output current linear regulator in a small 2mm x 2mm 6-Pin DFN package. The DC1283A has an input voltage range from 0.9V to 5.5V and has a jumper-selectable output that can be set to 0.8V, 1.2V, 1.5V, 1.8V or a user defined value between 0.4V and 3.6V.

The 0.4V reference of the LTC3025-1 allows the DC1283A to supply power to very low voltage applications. The DC1283A is also an excellent choice for post regulation of step-down switching regulators, combining to create a high efficiency low-noise supply. The DC1283 uses small ceramic capacitors, showing the LTC3025-1's ability to maintain stability with ceramic output capacitors.

DC1283A
LTC3025EDC-1 Demo Board | Micropower VLDO Linear Regulator, 0.9V ≤ VIN ≤ 5.5V, VOUT = 0.8V/1.2V/1.5V/1.8V/Adjusted @ 500mA
DC1283A Demo Board DC1283A Demo Board DC1283A Demo Board DC1283A Demo Board DC1283A - Schematic
DC1283A
LTC3025EDC-1 Demo Board | Micropower VLDO Linear Regulator, 0.9V ≤ VIN ≤ 5.5V, VOUT = 0.8V/1.2V/1.5V/1.8V/Adjusted @ 500mA
DC1283A Demo Board DC1283A Demo Board DC1283A Demo Board DC1283A Demo Board DC1283A - Schematic
