LTC3855

PRODUCTION

LTC3855

Dual, Multiphase Synchronous DC/DC Controller with Differential Remote Sense

PRODUCTION

High Efficiency Dual 1.8V/1.2V Step-Down Converter slide

Load Step (Forced Continuous Mode) slide

High Efficiency Dual 1.8V/1.2V Step-Down Converter

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 8

1ku List Price Starting From $3.81

Features

Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
High Efficiency: Up to 95%
R_SENSE or DCR Current Sensing
Programmable DCR Temperature Compensation
±0.75% 0.6V Output Voltage Accuracy
Phase-Lockable Fixed Frequency 250kHz to 770kHz
True Remote Sensing Differential Amplifier
Dual N-Channel MOSFET Synchronous Drive
Wide V_IN Range: 4.5V to 38V
V_OUT Range: 0.6V to 12.5V without Differential Amplifier
V_OUT Range: 0.6V to 3.3V with Differential Amplifier
Clock Input and Output for Up to 12-Phase Operation
Adjustable Soft-Start or V_OUT Tracking
Foldback Output Current Limiting
Output Overvoltage Protection
40-Pin (6mm × 6mm) QFN and 38-Lead FE Packages

Additional Details

The LTC3855 is a dual PolyPhase^® current mode synchronous step-down switching regulator controller that drives all N-channel power MOSFET stages. It includes a high speed differential remote sense amplifier. The maximum current sense voltage is programmable for either 30mV, 50mV or 75mV, allowing the use of either the inductor DCR or a discrete sense resistor as the sensing element.

The LTC3855 features a precision 0.6V reference and can produce output voltages up to 12.5V. A wide 4.5V to 38V input supply range encompasses most intermediate bus voltages and battery chemistries. Power loss and supply noise are minimized by operating the two controller output stages out of phase. Burst Mode^® operation, continuous or pulse-skipping modes are supported.

The LTC3855 can be configured for up to 12-phase operation, has DCR temperature compensation, two power good signals and two current limit set pins. The LTC3855 is available in low profile 40-pin 6mm × 6mm QFN and 38-lead exposed pad FE packages.

Applications

Computer Systems
Telecom Systems
Industrial and Medical Instruments
DC Power Distribution Systems

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 8

1ku List Price Starting From $3.81

Technical Documents 10

LTC3855: Dual, Multiphase Synchronous DC/DC Controller with Differential Remote Sense Data Sheet 10/26/2009

R526 Reliability Data 03/26/2018

DC1586A - Demo Manual 01/18/2012

DC1617A - Demo Manual 12/02/2011

DC1441A - Demo Manual 01/13/2010

AN149 - Modeling and Loop Compensation Design of Switching Mode Power Supplies 02/04/2016

AN136 - PCB Layout Considerations for Non-Isolated Switching Power Supplies 09/20/2012

DN478 - Dual Output Step-Down Controller Produces Accurate, Efficient and Reliable High Current Rails 03/26/2014

Switch Mode Power Supply Current Sensing - Part 3: Current Sensing Methods 11/22/2016

6mm × 6mm DC/DC Controller for High Current DCR Sensing Applications 04/01/2010

Reference Materials 2

High Power Dual Output Multiphase Step-Down DC/DC Controller with Differential Output Voltage Sensing, Tracking and PLL 11/11/2009

Analysis of Switch-Mode Power Supply and Rectification: Sense Resistor Violations 03/12/2024

Design Resources 8

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3855EFE#PBF	38-Lead TSSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3855EFE#TRPBF	38-Lead TSSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3855EUJ#PBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3855EUJ#TRPBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3855IFE#PBF	38-Lead TSSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3855IFE#TRPBF	38-Lead TSSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3855IUJ#PBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3855IUJ#TRPBF	40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC3855EFE#PBF
Pin/Package Drawing
38-Lead TSSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3855EFE#TRPBF
Pin/Package Drawing
38-Lead TSSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3855EUJ#PBF
Pin/Package Drawing
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3855EUJ#TRPBF
Pin/Package Drawing
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3855IFE#PBF
Pin/Package Drawing
38-Lead TSSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3855IFE#TRPBF
Pin/Package Drawing
38-Lead TSSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3855IUJ#PBF
Pin/Package Drawing
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3855IUJ#TRPBF
Pin/Package Drawing
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3855EFE#PBF

PRODUCTION

LTC3855EFE#TRPBF

PRODUCTION

LTC3855IFE#PBF

PRODUCTION

LTC3855IFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Nov 8, 2021

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3855EFE#PBF

PRODUCTION

LTC3855EFE#TRPBF

PRODUCTION

LTC3855EUJ#PBF

PRODUCTION

LTC3855EUJ#TRPBF

PRODUCTION

LTC3855IFE#PBF

PRODUCTION

LTC3855IFE#TRPBF

PRODUCTION

LTC3855IUJ#PBF

PRODUCTION

LTC3855IUJ#TRPBF

PRODUCTION

pdf

PCN20_0245_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

pdf

Other

pdf

Qualification Results Summary

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3855EFE#PBF

PRODUCTION

LTC3855EFE#TRPBF

PRODUCTION

LTC3855IFE#PBF

PRODUCTION

LTC3855IFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Nov 8, 2021

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3855EFE#PBF

PRODUCTION

LTC3855EFE#TRPBF

PRODUCTION

LTC3855EUJ#PBF

PRODUCTION

LTC3855EUJ#TRPBF

PRODUCTION

LTC3855IFE#PBF

PRODUCTION

LTC3855IFE#TRPBF

PRODUCTION

LTC3855IUJ#PBF

PRODUCTION

LTC3855IUJ#TRPBF

PRODUCTION

pdf

PCN20_0245_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

pdf

Other

pdf

Qualification Results Summary

Companion Parts 4

Parts	Product Life Cycle	Description
Digital Power System Managers1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Dual-Supply Monitors1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
High Voltage Hot Swap Controllers1
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode
Multiple Output Buck Regulators1
LTC3880	RECOMMENDED FOR NEW DESIGNS	Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

DC1617A-A

LTC3855EFE Demo Board | Dual Output VIN = 4.5V to 26V, VOUT1 = 2.5V @ 15A, VOUT2 = 1.8V @ 15A

DC1617A-A

LTC3855EFE Demo Board | Dual Output VIN = 4.5V to 26V, VOUT1 = 2.5V @ 15A, VOUT2 = 1.8V @ 15A

Buy Now View Details

Product Detail

Demonstration circuit DC1617A is a dual output synchronous buck converter featuring the LTC3855EFE in a high density, two sided drop-in layout with power components on the top and the control circuit on the bottom. The package style for the LTC3855EFE is a 38-lead TSSOP. The board comes in two assembly types. The –A assembly provides 2.5V/15A and 1.8V/15A from a 4.5V to 26V input. DCR inductor sensing is used to provide the highest efficiency. The current limit is NTC compensated to provide the minimal amount of variation over temperature. The -A also features remote sensing for V_OUT2.

Resources

PDF

DC1617A - Demo Manual

307.00K

PDF

DC1617A - Schematic

181.00K

ZIP

DC1617A - Design Files

4.00M

DC1617A-B

LTC3855EFE Demo Board | Dual Output VIN = 13V to 36V, VOUT1 = 12V @ 6A, VOUT2 = 5V @ 10A

DC1617A-B

LTC3855EFE Demo Board | Dual Output VIN = 13V to 36V, VOUT1 = 12V @ 6A, VOUT2 = 5V @ 10A

Buy Now View Details

Product Detail

Demonstration circuit DC1617A is a dual output synchronous buck converter featuring the LTC3855EFE in a high density, two sided drop-in layout with power components on the top and the control circuit on the bottom. The package style for the LTC3855EFE is a 38-lead TSSOP. The board comes in two assembly types. The –B assembly is a high power, 12V/6A and 5V/10A converter with a 13V to 36V input. A sense resistor is used to provide a precise current limit. Unlike the –A assembly, on the –B assembly the remote sense diff amp is bypassed since V_OUT2 is > 3.3V.

Resources

PDF

DC1617A - Demo Manual

307.00K

PDF

DC1617A - Schematic

181.00K

ZIP

DC1617A - Design Files

4.00M

DC1441A

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 14V, VOUT1 = 1.8V @ 17A, VOUT2 = 1.2V @ 17A

DC1441A

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 14V, VOUT1 = 1.8V @ 17A, VOUT2 = 1.2V @ 17A

Buy Now View Details

Product Detail

Demonstration circuit DC1441A is a dual output synchronous buck converter featuring the LTC3855EUJ. The board provides two outputs of 1.8V/17A and 1.2V/17A from an input voltage of 4.5V to 14V at a switching frequency of 400kHz.

Resources

PDF

DC1441A - Demo Manual

234.00K

PDF

DC1441A - Schematic

77.00K

ZIP

DC1441A - Design Files

4.00M

DC1586A

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 25V, VOUT1 = 3.3V @ 5A, VOUT2 = 2.5V @ 5A

DC1586A

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 25V, VOUT1 = 3.3V @ 5A, VOUT2 = 2.5V @ 5A

Buy Now View Details

Product Detail

Demonstration circuit 1586A is a high efficiency, dual-output (3.3V and 2.5V), synchronous buck converter with 4.5V to 25V input range. It can supply 5A maximum load current at 3.3V and 2.5V outputs. The demo board uses the LTC3855EUJ controller. The LTC3855 is a feature-rich dual-output dual-phase synchronous buck controller with on-chip drivers, remote output voltage sensing (V_OUT2) and inductor DCR temperature compensation.

Resources

PDF

DC1586A - Demo Manual

162.00K

PDF

DC1586A - Schematic

76.00K

ZIP

DC1586A - Design Files

1.00M

DC1617A-A

LTC3855EFE Demo Board | Dual Output VIN = 4.5V to 26V, VOUT1 = 2.5V @ 15A, VOUT2 = 1.8V @ 15A

DC1617A-B

LTC3855EFE Demo Board | Dual Output VIN = 13V to 36V, VOUT1 = 12V @ 6A, VOUT2 = 5V @ 10A

DC1441A

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 14V, VOUT1 = 1.8V @ 17A, VOUT2 = 1.2V @ 17A

DC1586A

LTC3855EUJ Demo Board | Dual Output, VIN = 4.5V to 25V, VOUT1 = 3.3V @ 5A, VOUT2 = 2.5V @ 5A

LTspice 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Lt Spice

LTC3855 Demo Circuit - Dual, Multiphase Synchronous DC/DC Controller (4.5-14V to 1.8V @ 17A & 1.2V @ 17A)

8.00K

Lt Spice

LTC3855 - Step-Down (Buck) Regulators

6.87 K

LTpowerCAD 6

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

To open the project file for this circuit:

Step 1: Download and install LTpowerCAD on your computer.

Step 2: Click on the link(s) in the section below to download part-specific project files.

Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.

LTpowerCAD download and documentation

Simulation Model

LTpowerCAD

LTC3855 Project - Dual, 2-Phase Synchronous Step-Down Controller with Rsense Current Sensing (4.5-26V to 2.5V @ 15A & 1.8V @ 15A)

LTpowerCAD

LTC3855 Project - Dual, 2-Phase Synchronous Step-Down Controller with Rsense Current Sensing (4.5-14V to 1.8V @ 17A & 1.2V @ 17A)

LTpowerCAD

LTC3855 Project - Dual, 2-Phase Synchronous Step-Down Controller with Rsense Current Sensing (13-36V to 12V @ 6A & 5V @ 10A)

LTpowerCAD

LTC3855 Project - Dual, 2-Phase Synchronous Step-Down Controller with Inductor DCR Current Sensing (4.5-26V to 2.5V @ 15A & 1.8V @ 15A)

LTpowerCAD

LTC3855 Project - Dual, 2-Phase Synchronous Step-Down Controller with Inductor DCR Current Sensing (13-36V to 12V @ 6A & 5V @ 10A)

LTpowerCAD

LTC3855 Project - Dual, 2-Phase Synchronous Step-Down Controller with Inductor DCR Current Sensing (4.5-14V to 1.8V @ 17A & 1.2V @ 17A)

Stratix V Advanced System Development Board

Stratix V Advanced System Development Board Block Diagram

Stratix V Advanced Systems Development Board Power Tree

Download

Stratix V Advanced System Development Board

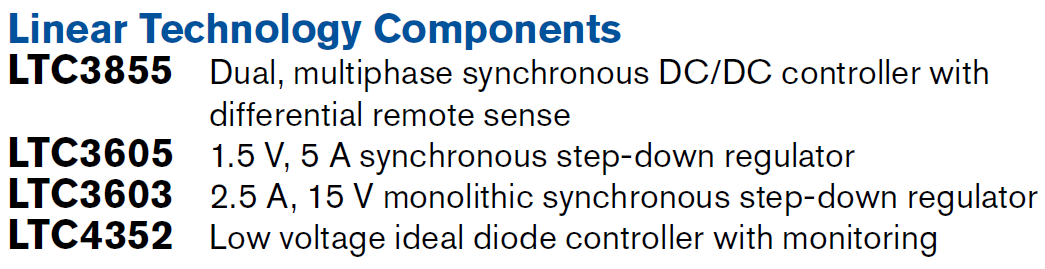

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 11

LT3009

LTC3115-1

LT3083

LTC3615

LT3070

LT3022

LT3080

LTM4628

LTC3612

LTC3855

LTM4620

Altera Arria V GX FPGA Development Kit

Download

Altera Arria V GX FPGA Development Kit

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 9

LTM4628

LTM4618

LTM4601
LTM4601-1

LTC3855

LTC3026

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

LT3980

LT3080

LT3029

Terasic DE2i-150 Cyclone IV Board

Terasic DE2i-150 Cyclone IV Block Diagram

Download

Terasic DE2i-150 Cyclone IV Board

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 6

LT3083

LTC3026

LTC3855

LTM4628

LTC3609

LT3023

Altera Cyclone V GT FPGA Development Kit

DK-DEV-5CGTD9N Power Tree No TI DDR Regulator

Download

Altera Cyclone V GT FPGA Development Kit

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 8

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

LT3009

LTC3855

LT3085

LT3022

LTC3605

LTC3608

LTC3613

Altera Transceiver Signal Integrity Development Kit, Stratix V GT Edition

Download

Altera Transceiver Signal Integrity Development Kit, Stratix V GT Edition

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 5

LTC2978

LTC3026

LTM4608

LTM4615

LTC3855

Altera Arria V SoC Development Kit and SoC Embedded Design Suite

Download

Altera Arria V SoC Development Kit and SoC Embedded Design Suite

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 6

LTM8025

LTC3866

LTC3855

LTC3605

LT3509

LTC3026

Altera Stratix V GX FPGA Development Kit

Download

Altera Stratix V GX FPGA Development Kit

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 16

LTC4352

LTC2990

LTC4357

LTC2418

LTC2915

LT3083

LT3022

LT3029

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

LTC3855

LT3080-1

LT3021
LT3021-1.2
LT3021-1.5
LT3021-1.8

LTM4614

LTM4628

LT3009

LTC3880

Altera DSP Development Kit, Stratix V Edition

Download

Altera DSP Development Kit, Stratix V Edition

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 5

LTC3855

LTM4628

LT3080

LTM4614

LTC3880

Altera Cyclone V GX Development Kit (Discontinued)

Download

Altera Cyclone V GX Development Kit (Discontinued)

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 4

LTC4352

LTC3603

LTC3605

LTC3855

Altera Transceiver Signal Integrity Kit, Stratix V GX Edition

Download

Altera Transceiver Signal Integrity Kit, Stratix V GX Edition

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 4

LTC2978

LTC3026

LTM4608

LTC3855

Altera Arria V GT FPGA Development Kit

Download

Altera Arria V GT FPGA Development Kit

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design

Part Used 6

LTM4601
LTM4601-1

LTC3855

LTM4618

LTC3026

LTM4628

LTC3880

Altera Cyclone V SoC Development Kit and SoC Embedded Design Suite

Download

Altera Cyclone V SoC Development Kit and SoC Embedded Design Suite

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

View Detailed Reference Design
