LT3029

Dual 500mA/500mA Low Dropout, Low Noise, Micropower Linear Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 14
1ku List Price Starting From $3.45
Features
  • Output Current: 500mA per Channel

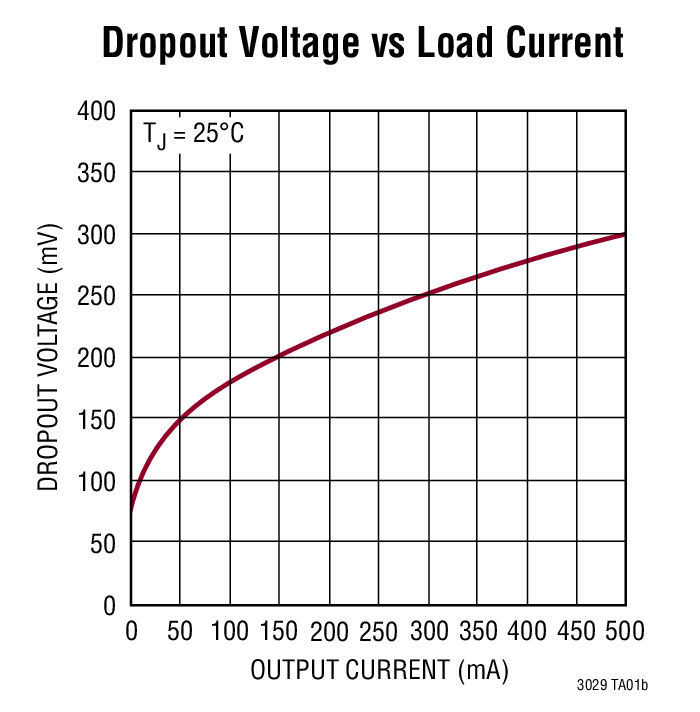

  • Low Dropout Voltage: 300mV
  • Low Noise: 20μVRMS (10Hz to 100kHz)
  • Low Quiescent Current: 55μA per Channel
  • Wide Input Voltage Range: 1.8V to 20V (Common or Independent Input Supply)
  • Adjustable Output: 1.215V Reference Voltage
  • Very Low Quiescent Current in Shutdown: <1μA per Channel
  • Stable with 3.3μF Minimum Output Capacitor
  • Stable with Ceramic, Tantalum or Aluminum Electrolytic Capacitors
  • Reverse-Battery and Reverse Output-to-Input Protection
  • Current Limit with Foldback and Thermal Shutdown
  • Tracking/Sequencing Capability: Compatible with LTC292X Power Supply Tracking ICs

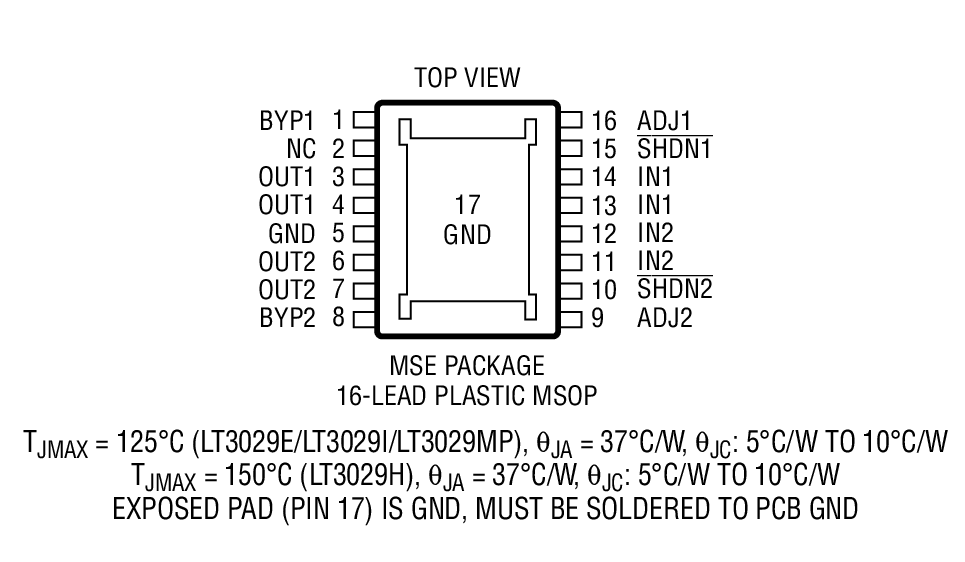

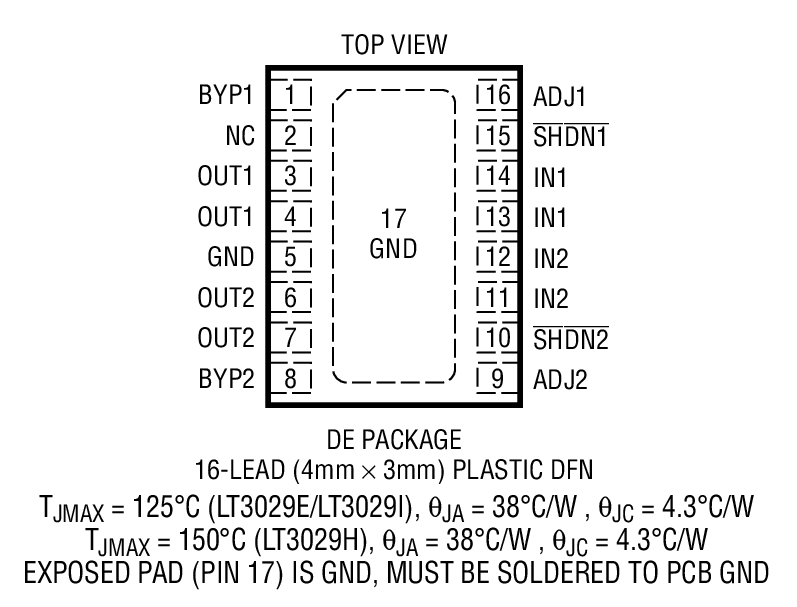

  • Thermally Enhanced 16-Lead MSOP and 16-Lead (4mm × 3mm) DFN Packages
Additional Details
show more Icon

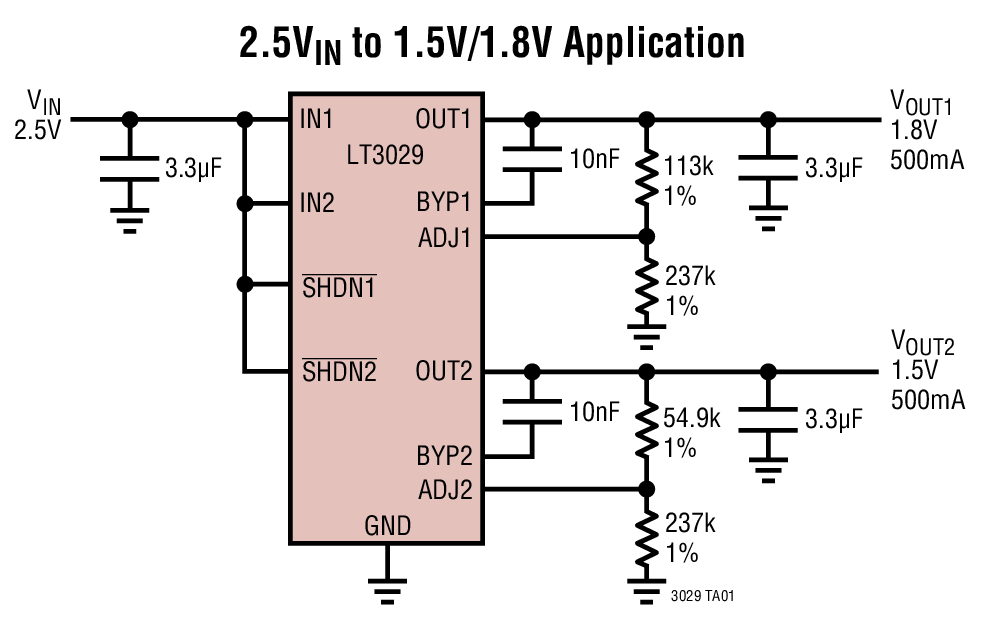

The LT3029 is a dual, micropower, low noise, low dropout linear regulator. The device operates either with a common input supply or independent input supplies for each channel, over an input voltage range of 1.8V to 20V. Each output supplies up to 500mA of output current with a typical dropout voltage of 300mV. Quiescent current is well controlled in dropout. With an external 10nF bypass capacitor, output noise is only 20μVRMS over a 10Hz to 100kHz bandwidth. Designed for use in battery-powered systems, the low 55μA quiescent current per channel makes it an ideal choice. In shutdown, quiescent current drops to less than 1μA. Shutdown control is independent for each channel, allowing for flexible power management.

The LT3029 optimizes stability and transient response with low ESR ceramic output capacitors, requiring a minimum of only 3.3μF. The regulator does not require the addition of ESR, as is common with other regulators.

Internal circuitry provides reverse-battery protection, reverse-current protection, current limiting with foldback and thermal shutdown. The device is available as an adjustable output voltage device with a 1.215V reference voltage. The LT3029 is offered in the thermally enhanced 16-lead MSOP and 16-lead, low profile (4mm × 3mm × 0.75mm) DFN packages.

Applications

  • General Purpose Linear Regulator
  • Battery-Powered Systems
  • Microprocessor Core/Logic Supplies
  • Post Regulator for Switching Supplies
  • Tracking/Sequencing Power Supplies
Part Models 14
1ku List Price Starting From $3.45

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3029EDE#PBF
  • HTML
  • HTML
LT3029EDE#TRPBF
  • HTML
  • HTML
LT3029EMSE#PBF
  • HTML
  • HTML
LT3029EMSE#TRPBF
  • HTML
  • HTML
LT3029HDE#PBF
  • HTML
  • HTML
LT3029HDE#TRPBF
  • HTML
  • HTML
LT3029HMSE#PBF
  • HTML
  • HTML
LT3029HMSE#TRPBF
  • HTML
  • HTML
LT3029IDE#PBF
  • HTML
  • HTML
LT3029IDE#TRPBF
  • HTML
  • HTML
LT3029IMSE#PBF
  • HTML
  • HTML
LT3029IMSE#TRPBF
  • HTML
  • HTML
LT3029MPMSE#PBF
  • HTML
  • HTML
LT3029MPMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT3029EMSE#PBF

PRODUCTION

LT3029EMSE#TRPBF

PRODUCTION

LT3029HMSE#PBF

PRODUCTION

LT3029HMSE#TRPBF

PRODUCTION

LT3029IMSE#PBF

PRODUCTION

LT3029IMSE#TRPBF

PRODUCTION

LT3029MPMSE#PBF

PRODUCTION

LT3029MPMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT3029EMSE#PBF

PRODUCTION

LT3029EMSE#TRPBF

PRODUCTION

LT3029HMSE#PBF

PRODUCTION

LT3029HMSE#TRPBF

PRODUCTION

LT3029IMSE#PBF

PRODUCTION

LT3029IMSE#TRPBF

PRODUCTION

LT3029MPMSE#PBF

PRODUCTION

LT3029MPMSE#TRPBF

PRODUCTION

Software and Part Ecosystem

Software and Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1408A

LT3029EDE Demo Board | Dual Input, Dual Low Dropout, Low Noise, Micropower Linear Regulator, 2.3V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 1.5V/1.8V/2.5V/3.3V/5V/Adjustable @ 500mA

zoom

DC1408A

LT3029EDE Demo Board | Dual Input, Dual Low Dropout, Low Noise, Micropower Linear Regulator, 2.3V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 1.5V/1.8V/2.5V/3.3V/5V/Adjustable @ 500mA

LT3029EDE Demo Board | Dual Input, Dual Low Dropout, Low Noise, Micropower Linear Regulator, 2.3V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 1.5V/1.8V/2.5V/3.3V/5V/Adjustable @ 500mA

Product Detail

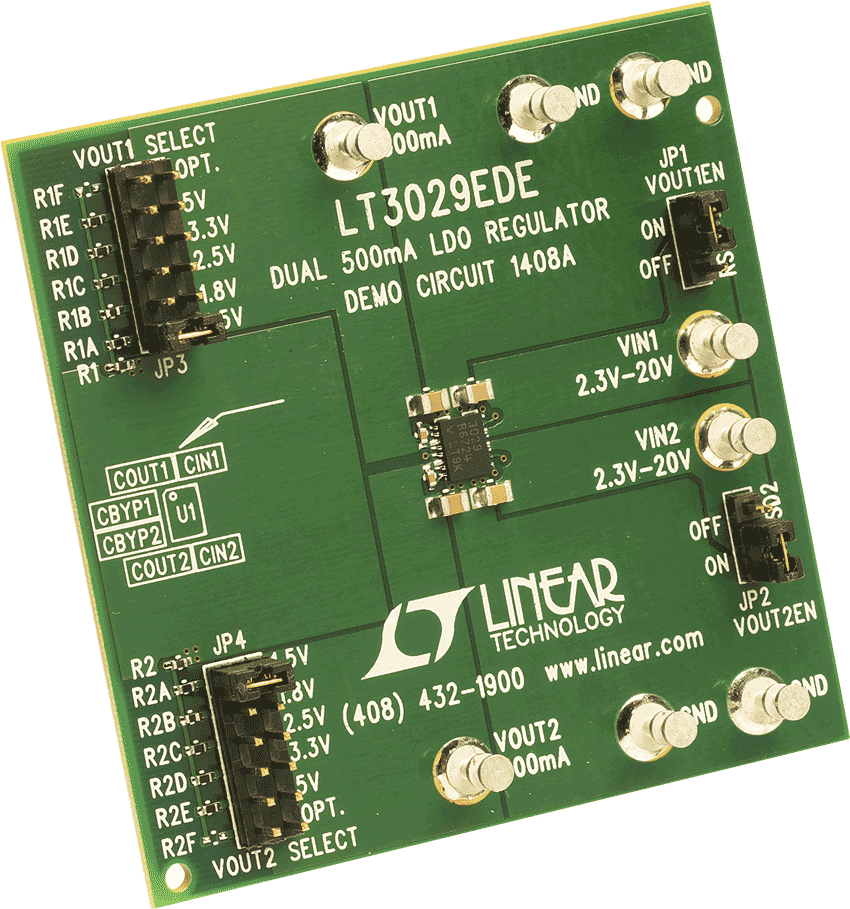

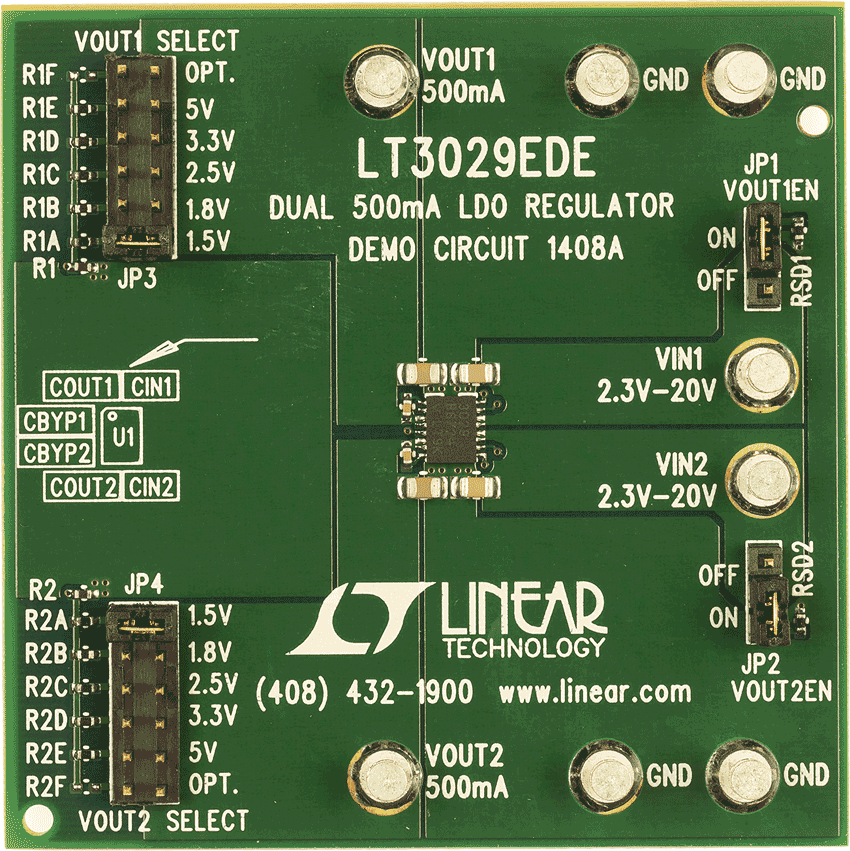

Demonstration circuit 1408 is a dual input, 500mA/500mA linear regulator featuring the LT3029. The LT3029 is a dual, micro-power, low noise and low dropout voltage linear regulator. The device operates either with a common input supply or independent input supplies for each channel, over an input range of 1.8V to 20V; the demo board has a minimum input voltage of 2.3V. Each output supplies up to 500mA of output current with a typical dropout voltage of 300mV. The output voltage is jumper-selectable for each channel and can be set to 1.5V, 1.8V, 2.5V, 3.3V, 5V or a user-defined value.


A 10nF bypass capacitor reduces output noise to 20μVRMS (10Hz to 100kHz bandwidth). The low 55μA quiescent current per channel makes it an idea choice for battery-powered systems. Shutdown control is independent for each channel, allowing flexible power management.
