LT3083

Adjustable 3A Single Resistor Low Dropout Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 22
1ku List Price Starting From $4.55
Features
  • Outputs May be Paralleled for Higher Current and Heat Spreading
  • Output Current: 3A
  • Single Resistor Programs Output Voltage
  • 50µA Set Pin Current: 1% Initial Accuracy
  • Output Adjustable to 0V
  • Low Output Noise: 40µVRMS (10Hz to 100kHz)
  • Wide Input Voltage Range: 1.2V to 23V (DD-Pak and TO-220 Packages)
  • Low Dropout Voltage: 310mV
  • <1mV Load Regulation
  • <0.001%/V Line Regulation
  • Minimum Load Current: 1mA
  • Stable with Minimum 10µF Ceramic Capacitor
  • Current Limit with Foldback and Overtemperature Protection
  • Available in 16-Lead TSSOP, 12-Lead 4mm × 4mm DFN, 5-Lead TO-220 and 5-Lead Surface Mount DD-PAK Packages
Additional Details
show more Icon

The LT3083 is a 3A low dropout linear regulator that can be paralleled to increase output current or spread heat on surface mounted boards. Architected as a precision current source and voltage follower, this new regulator finds use in many applications requiring high current, adjustability to zero, and no heat sink. The device also brings out the collector of the pass transistor to allow low dropout operation—down to 310mV—when used with multiple supplies.

A key feature of the LT3083 is the capability to supply a wide output voltage range. By using a reference current through a single resistor, the output voltage is programmed to any level between zero and 23V (DD-PAK and TO-220 packages). The LT3083 is stable with 10μF of capacitance on the output, and the IC is stable with small ceramic capacitors that do not require additional ESR as is common with other regulators.

Internal protection circuitry includes current limiting and thermal limiting. The LT3083 is offered in the 16-lead TSSOP (with an exposed pad for better thermal characteristics), 12-lead 4mm × 4mm DFN (also with an exposed pad), 5-lead TO-220, and 5-lead surface mount DD-PAK packages.

Applications

  • High Efficiency Linear Regulator
  • Post Regulator for Switching Supplies
  • Low Parts Count Variable Voltage Supply
  • Low Output Voltage Power Supplies
Part Models 22
1ku List Price Starting From $4.55

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3083EDF#PBF
  • HTML
  • HTML
LT3083EDF#TRPBF
  • HTML
  • HTML
LT3083EFE#PBF
  • HTML
  • HTML
LT3083EFE#TRPBF
  • HTML
  • HTML
LT3083EQ#PBF
  • HTML
  • HTML
LT3083EQ#TRPBF
  • HTML
  • HTML
LT3083ET#PBF
  • HTML
  • HTML
LT3083IDF#PBF
  • HTML
  • HTML
LT3083IDF#TRPBF
  • HTML
  • HTML
LT3083IFE#PBF
  • HTML
  • HTML
LT3083IFE#TRPBF
  • HTML
  • HTML
LT3083IQ#PBF
  • HTML
  • HTML
LT3083IQ#TRPBF
  • HTML
  • HTML
LT3083IT#40PBF
  • HTML
  • HTML
LT3083IT#PBF
  • HTML
  • HTML
LT3083MPDF#PBF
  • HTML
  • HTML
LT3083MPDF#TRPBF
  • HTML
  • HTML
LT3083MPFE#PBF
  • HTML
  • HTML
LT3083MPFE#TRPBF
  • HTML
  • HTML
LT3083MPQ#PBF
  • HTML
  • HTML
LT3083MPQ#TRPBF
  • HTML
  • HTML
LT3083MPT#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3083EFE#PBF

PRODUCTION

LT3083EFE#TRPBF

PRODUCTION

LT3083IFE#PBF

PRODUCTION

LT3083IFE#TRPBF

PRODUCTION

LT3083MPFE#PBF

PRODUCTION

LT3083MPFE#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0175

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3083EQ#PBF

PRODUCTION

LT3083EQ#TRPBF

PRODUCTION

LT3083ET#PBF

PRODUCTION

LT3083IQ#PBF

PRODUCTION

LT3083IQ#TRPBF

PRODUCTION

LT3083IT#40PBF

PRODUCTION

LT3083IT#PBF

PRODUCTION

LT3083MPQ#PBF

PRODUCTION

LT3083MPQ#TRPBF

PRODUCTION

LT3083MPT#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3083EFE#PBF

PRODUCTION

LT3083EFE#TRPBF

PRODUCTION

LT3083IFE#PBF

PRODUCTION

LT3083IFE#TRPBF

PRODUCTION

LT3083MPFE#PBF

PRODUCTION

LT3083MPFE#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0175

arrow down

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3083EQ#PBF

PRODUCTION

LT3083EQ#TRPBF

PRODUCTION

LT3083ET#PBF

PRODUCTION

LT3083IQ#PBF

PRODUCTION

LT3083IQ#TRPBF

PRODUCTION

LT3083IT#40PBF

PRODUCTION

LT3083IT#PBF

PRODUCTION

LT3083MPQ#PBF

PRODUCTION

LT3083MPQ#TRPBF

PRODUCTION

LT3083MPT#PBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1585A

LT3083EQ Demo Board | Single Resistor Prog Low Dropout Linear Regulator, 1.7V ≤ VIN ≤ 23V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5.0V @ 3A

zoom

DC1585A

LT3083EQ Demo Board | Single Resistor Prog Low Dropout Linear Regulator, 1.7V ≤ VIN ≤ 23V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5.0V @ 3A

LT3083EQ Demo Board | Single Resistor Prog Low Dropout Linear Regulator, 1.7V ≤ VIN ≤ 23V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5.0V @ 3A

Product Detail

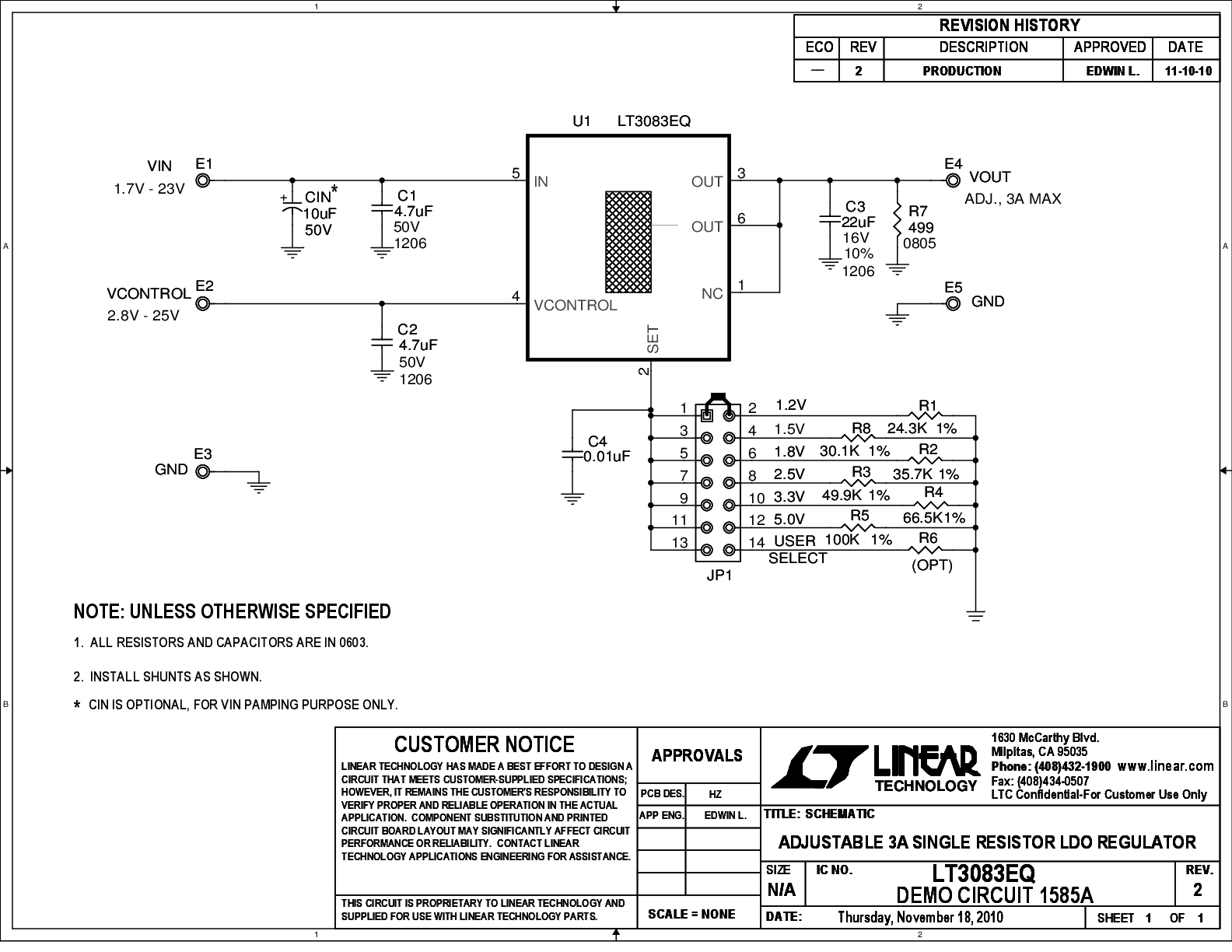

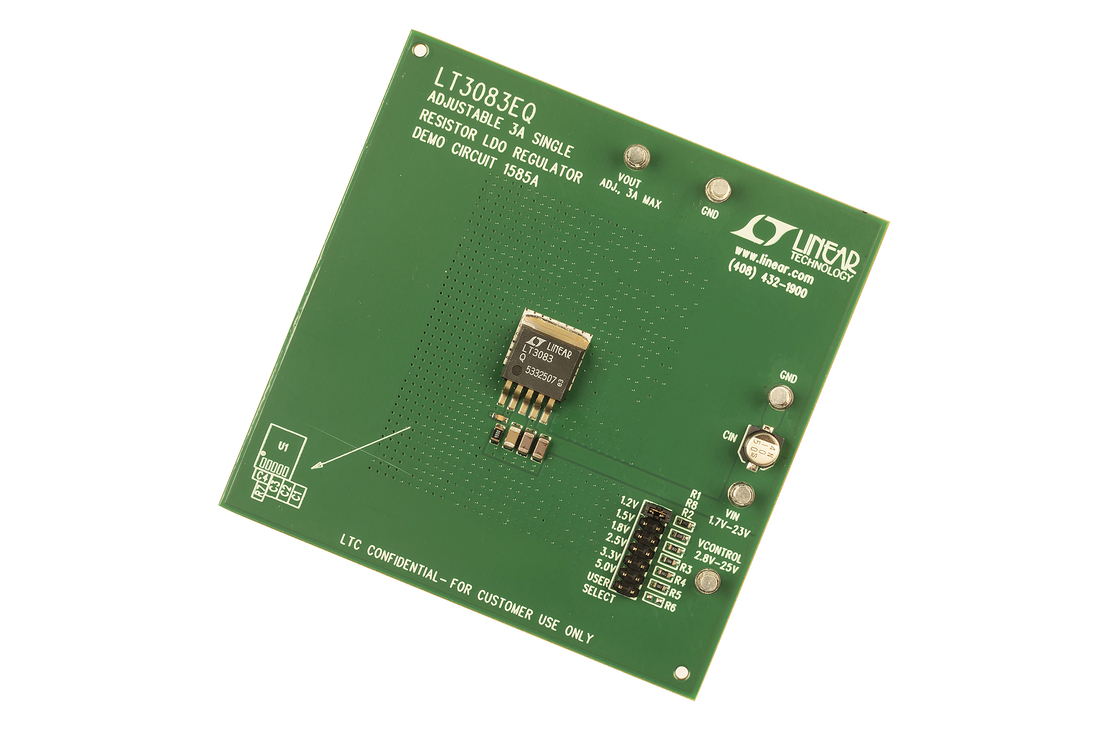

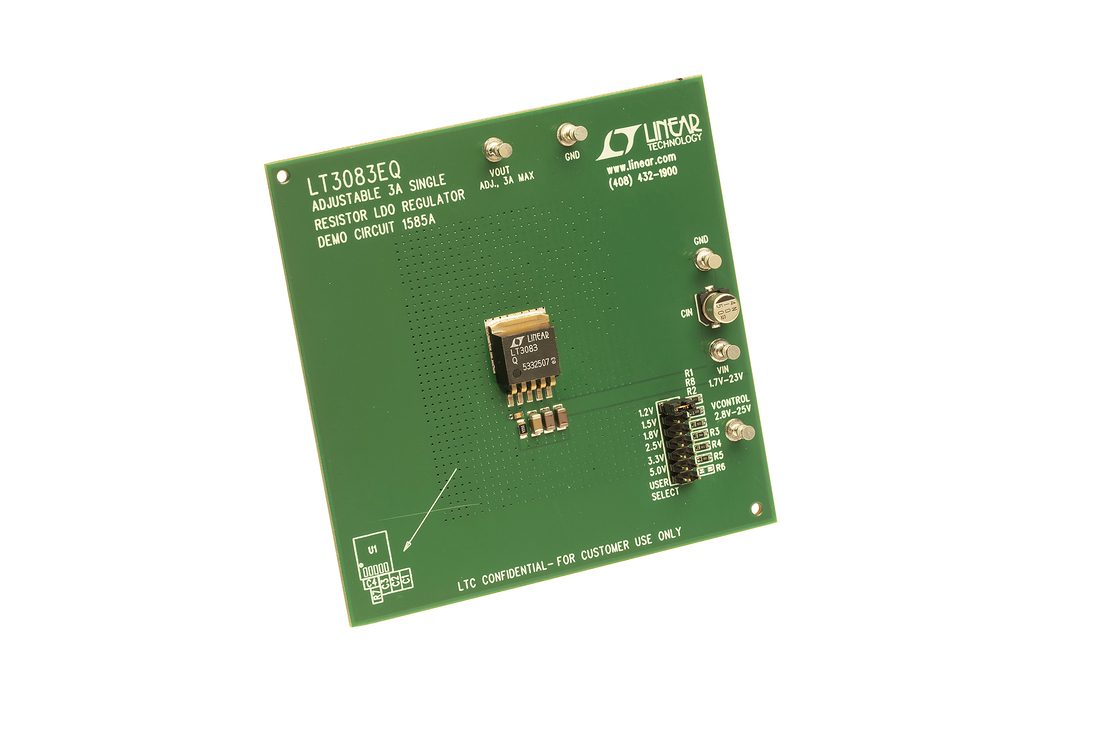

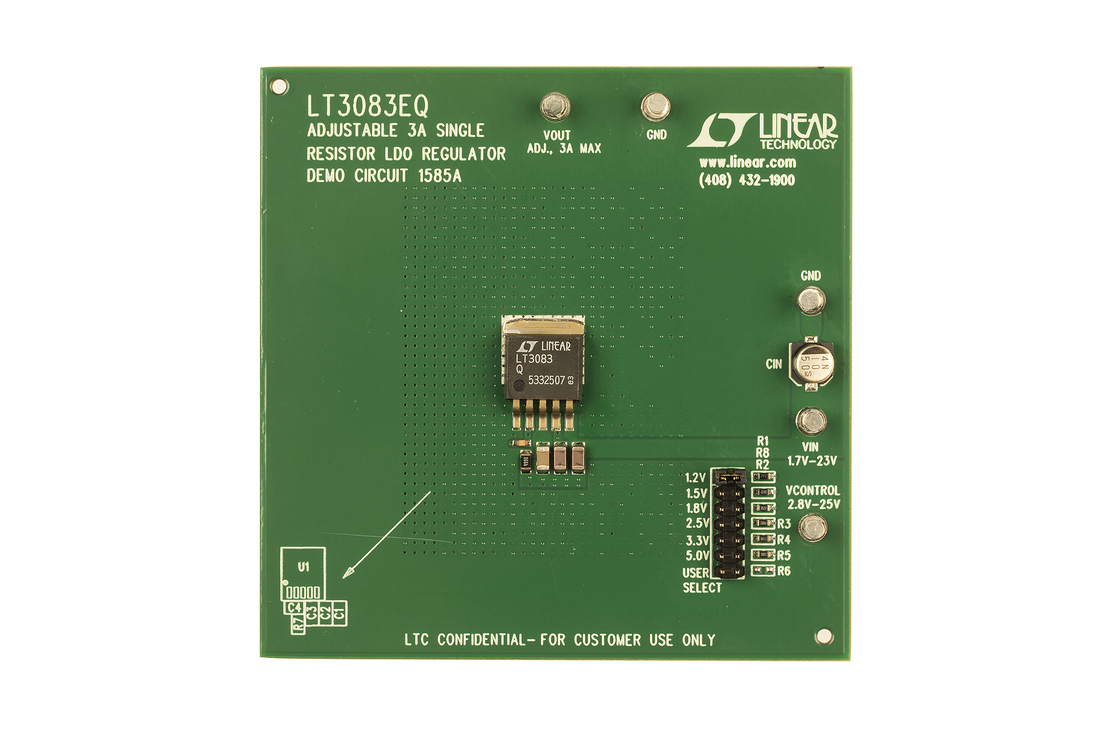

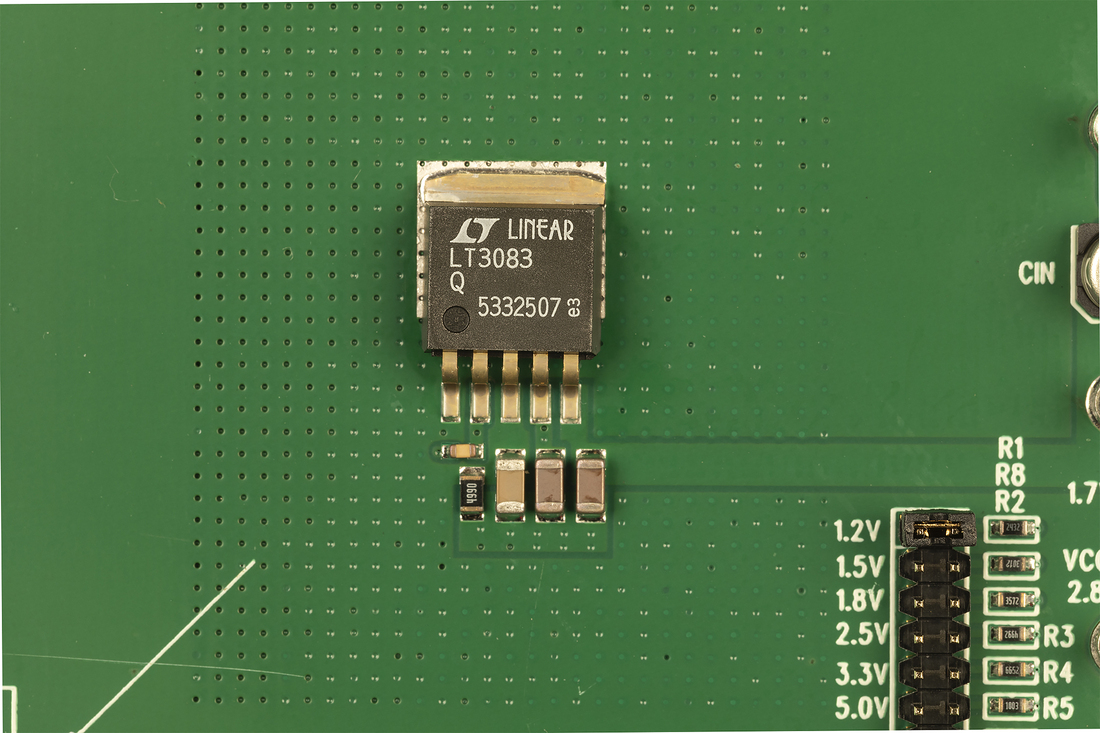

Demonstration circuit 1585A is an adjustable 3A linear regulator featuring the LT3083 in the DD-PAK-5 package. Architected as a precision current source and voltage follower, the LT3083 can be used in many applications requiring high current, adjustability to zero output, and no heat sink. Internal protection circuitry includes current limiting and thermal limiting.The device brings out the collector of the pass transistor to allow low dropout operation when used with multiple supplies.


The demo board oprerates with an input supply voltage range of 1.7V to 23V. A control voltage bias supply that is 1.2V to 1.4V higher than the input voltage is required for proper regulation. A key feature of the LT3083 is its wide output voltage range. The DC1585A's jumper-selectable output voltage can be set to 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V, or a user-selectable value. DC1585A can be used as a high current linear regulator, a post regulator for switching supplies, a variable voltage supply or a low output voltage power supply.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 3

DK-DEV-5SGXEA7N Dev Kit

zoomopens a dialog

altera-stratix-v-gx-fpga-development-kit

altera-stratix-v-gx-fpga-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
Stratix V Advanced System Development Board

zoomopens a dialog

stratix-v-advanced-system-development-board

stratix-v-advanced-system-development-board

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link

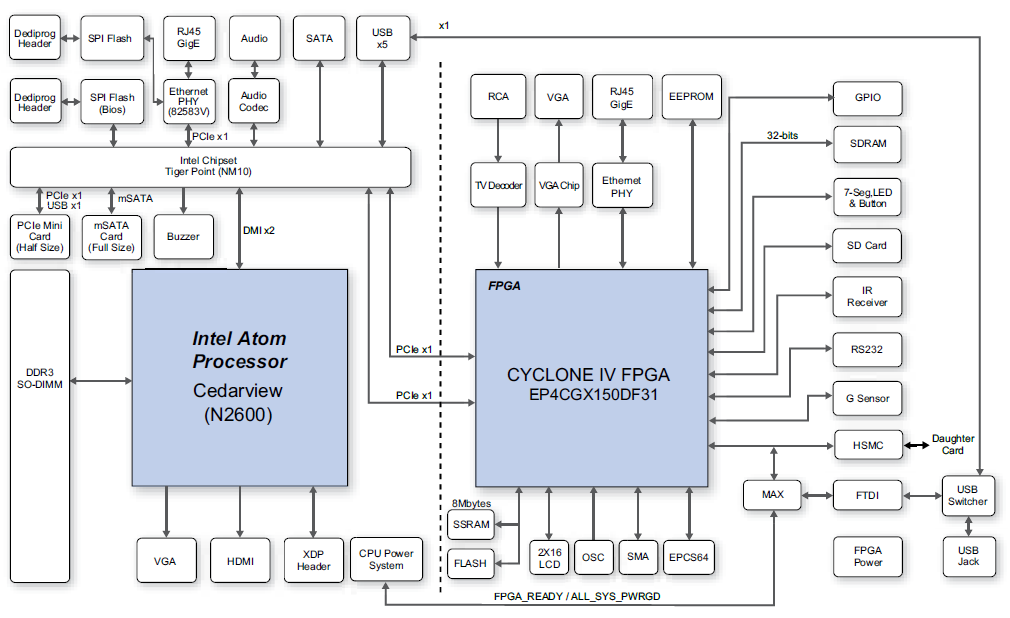

Terasic DE2i-150 Cyclone IV Board
