LT3081

1.5A Single Resistor Rugged Linear Regulator with Monitors

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 21
1ku List Price Starting From $3.14
Features
  • Extended Safe Operating Area
  • Maximum Output Current: 1.5A
  • Stable with or without Input/Output Capacitors
  • Wide Input Voltage Range: 1.2V to 36V
  • Single Resistor Sets Output Voltage
  • Output Current Monitor: IMON = IOUT/5000
  • Junction Temperature Monitor: 1μA/°C
  • Output Adjustable to 0V
  • 50μA SET Pin Current: 1% Initial Accuracy
  • Output Voltage Noise: 27μVRMS
  • Parallel Multiple Devices for Higher Current or Heat Spreading
  • Programmable Current Limit
  • Reverse-Battery and Reverse-Current Protection
  • <1mV Load Regulation Typical Independent of VOUT
  • <0.001%/V Line Regulation Typical
  • Available in Thermally-Enhanced 12-Lead 4mm × 4mm DFN and 16-Lead TSSOP, 7-Lead DD-Pak and 7-Lead TO-220
Additional Details
show more Icon

The LT3081 is a 1.5A low dropout linear regulator designed for rugged industrial applications. Key features of the IC are the extended safe operating area (SOA), output current monitor, temperature monitor and programmable current limit. The LT3081 can be paralleled for higher output current or heat spreading. The device withstands reverse input and reverse output-to-input voltages without reverse current flow.

The LT3081’s precision 50μA reference current source allows a single resistor to program output voltage to any level between zero and 34.5V. The current reference architecture makes load regulation independent of output voltage. The LT3081 is stable with or without input and output capacitors.

The output current monitor (IOUT/5000) and die junction temperature output (1μA/°C) provide system monitoring and debug capability. In addition, a single resistor programs current limit.

Internal protection circuitry includes reverse-battery and reverse-current protection, current limiting and thermal limiting. The LT3081 is offered in the 16-lead TSSOP (with exposed pad for improved thermal performance), 7-lead TO-220, 7-lead DD-Pak, and an 12-lead 4mm × 4mm DFN.

Applications

  • All Surface Mount Power Supply
  • Rugged Industrial Power Supply
  • Post Regulator for Switching Supplies
  • Low Output Voltage Supply
  • Intrinsic Safety Applications
Part Models 21
1ku List Price Starting From $3.14

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3081EDF#PBF
  • HTML
  • HTML
LT3081EDF#TRPBF
  • HTML
  • HTML
LT3081EFE#PBF
  • HTML
  • HTML
LT3081EFE#TRPBF
  • HTML
  • HTML
LT3081ER#PBF
  • HTML
  • HTML
LT3081ER#TRPBF
  • HTML
  • HTML
LT3081ET7#06PBF
  • HTML
  • HTML
LT3081ET7#PBF
  • HTML
  • HTML
LT3081HFE#PBF
  • HTML
  • HTML
LT3081HFE#TRPBF
  • HTML
  • HTML
LT3081HT7#PBF
  • HTML
  • HTML
LT3081IDF#PBF
  • HTML
  • HTML
LT3081IDF#TRPBF
  • HTML
  • HTML
LT3081IFE#PBF
  • HTML
  • HTML
LT3081IFE#TRPBF
  • HTML
  • HTML
LT3081IR#PBF
  • HTML
  • HTML
LT3081IR#TRPBF
  • HTML
  • HTML
LT3081IT7#PBF
  • HTML
  • HTML
LT3081MPFE#PBF
  • HTML
  • HTML
LT3081MPFE#TRPBF
  • HTML
  • HTML
LT3081MPT7#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3081EFE#PBF

PRODUCTION

LT3081EFE#TRPBF

PRODUCTION

LT3081HFE#PBF

PRODUCTION

LT3081HFE#TRPBF

PRODUCTION

LT3081IFE#PBF

PRODUCTION

LT3081IFE#TRPBF

PRODUCTION

LT3081MPFE#PBF

PRODUCTION

LT3081MPFE#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0175

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3081ER#PBF

PRODUCTION

LT3081ER#TRPBF

PRODUCTION

LT3081ET7#06PBF

PRODUCTION

LT3081ET7#PBF

PRODUCTION

LT3081HT7#PBF

PRODUCTION

LT3081IR#PBF

PRODUCTION

LT3081IR#TRPBF

PRODUCTION

LT3081IT7#PBF

PRODUCTION

LT3081MPT7#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3081EFE#PBF

PRODUCTION

LT3081EFE#TRPBF

PRODUCTION

LT3081HFE#PBF

PRODUCTION

LT3081HFE#TRPBF

PRODUCTION

LT3081IFE#PBF

PRODUCTION

LT3081IFE#TRPBF

PRODUCTION

LT3081MPFE#PBF

PRODUCTION

LT3081MPFE#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0175

arrow down

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3081ER#PBF

PRODUCTION

LT3081ER#TRPBF

PRODUCTION

LT3081ET7#06PBF

PRODUCTION

LT3081ET7#PBF

PRODUCTION

LT3081HT7#PBF

PRODUCTION

LT3081IR#PBF

PRODUCTION

LT3081IR#TRPBF

PRODUCTION

LT3081IT7#PBF

PRODUCTION

LT3081MPT7#PBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

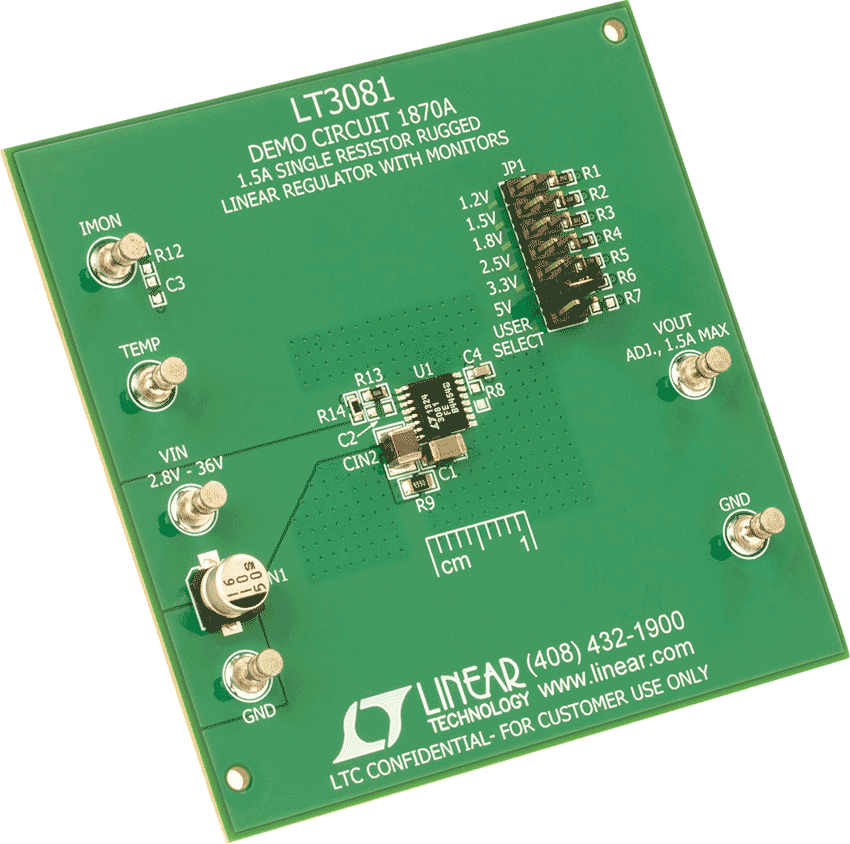

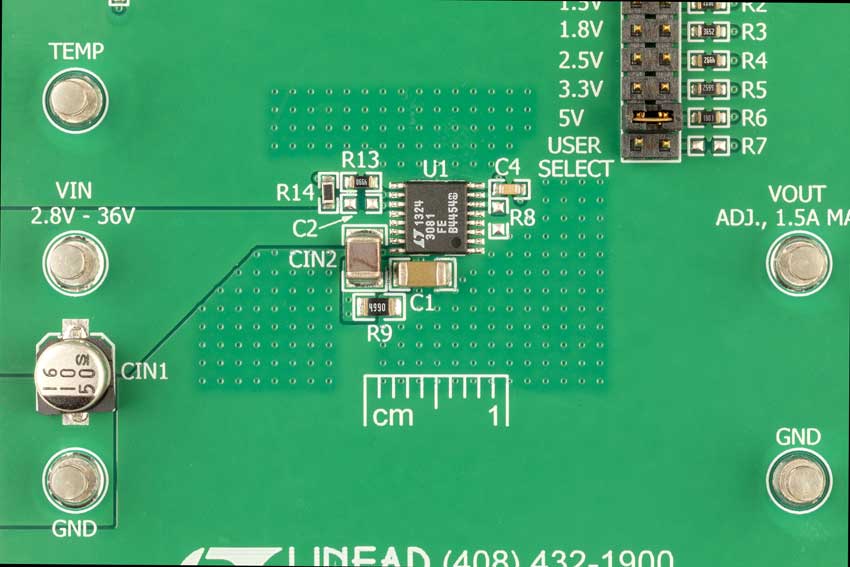

DC1870A

LT3081EFE Demo Board | Single Resistor Rugged Linear Regulator with Monitors, 2.8V ≤ VIN ≤ 36V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5V/12V @ 1.5A

zoom

DC1870A

LT3081EFE Demo Board | Single Resistor Rugged Linear Regulator with Monitors, 2.8V ≤ VIN ≤ 36V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5V/12V @ 1.5A

LT3081EFE Demo Board | Single Resistor Rugged Linear Regulator with Monitors, 2.8V ≤ VIN ≤ 36V, VOUT = 1.2V/1.5V/1.8V/2.5V/3.3V/5V/12V @ 1.5A

Product Detail

DC1870A is a 1.5A low dropout linear regulator featuring the LT3081. The device is designed for rugged industrial applications and can be paralleled for higher output current or heat spreading. Besides paralleling, the LT3081 also presents other features including adjustability to zero VOUT, reverse protection for input and output-to-input voltages, temperature monitor, output current monitor, etc. A key feature of the LT3081 is the extended safe operating area (SOA). With the precision zero TC 50μA reference current source, a single resistor programs the output voltage to any level between zero and 34.5V. Internal protection circuitry includes reverse-battery and reverse-current protection, current limiting and thermal limiting.

reference details image

DC2132A

24V 3A Constant Voltage, Constant Current Bench Supply Featuring LT3081, LT8612, LT3092

zoom

DC2132A

24V 3A Constant Voltage, Constant Current Bench Supply Featuring LT3081, LT8612, LT3092

24V 3A Constant Voltage, Constant Current Bench Supply Featuring LT3081, LT8612, LT3092

Product Detail

DC2132A is a 24V 3A constant voltage, constant current bench supply. It regulates any output voltage from 0V to 24V and any output current from 0A to 3A. It runs from 10V to 40V input although the output voltage should remain 5V or more below the input voltage.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 1

CN0508 Block Diagram

75 Watt, Single-Output Benchtop Power Supply

zoomopens a dialog

cn0508

75 Watt, Single-Output Benchtop Power Supply

cn0508

Circuits from the lab

tooltip Info:Circuits from the lab
75 Watt, Single-Output Benchtop Power Supply

Features and Benefits

  • 75 Watt Power Supply
  • Constant Current (>3A) and Constant Voltage (>25V) Modes
  • True 0V and 0A operation
  • Manual or Software Controlled
View Detailed Reference Design external link
