LT6015

3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amps

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT6015/LTC6560 DC Cancel Circuit LTspice Download 2.19 KB LTspice LTC3630/LT6015 Demo Circuit - Positive to Negative Converter with Variable Output (24V to -20V @ 200mA) Download 3.00KB LTspice LT6015 Demo Circuit - Precision Voltage Limiter Download 2.00KB LTspice LT8614/LT6015 Demo Circuit - Hybrid Wide Dimming Ratio Linear LED Current Controller (3.4-42V to 41V @ 3A Max) Download 4.00KB LTspice LT6015 - Operational Amplifiers (Op Amps) Download 1.54 KB
Part Models 6
1ku List Price Starting From $1.85
Features
  • Input Common Mode Range: V– to V– + 76V
  • Rail-to-Rail Input and Output
  • Low Power: 315μA/Amplifier
  • Operating Temperature Range: –55°C to 150°C
  • VOS: ±50μV (Maximum)
  • CMRR, PSRR: 126dB
  • Reverse Battery Protection to 50V
  • Gain Bandwidth Product: 3.2MHz
  • Specified on 5V and ±15V Supplies
  • High Voltage Gain: 1000V/mV
  • No Phase Reversal
  • No Supply Sequencing Problems

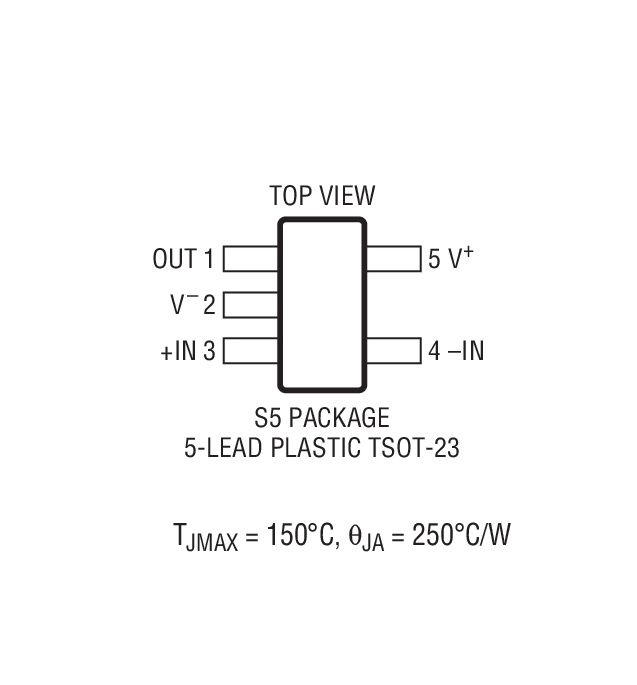

  • Single 5-Lead SOT-23 (ThinSOT™) Package

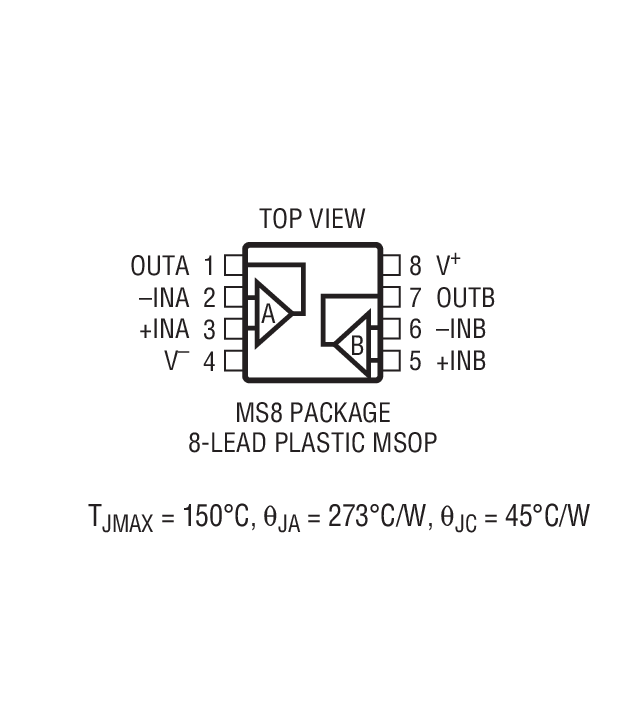

  • Dual 8-Lead MSOP

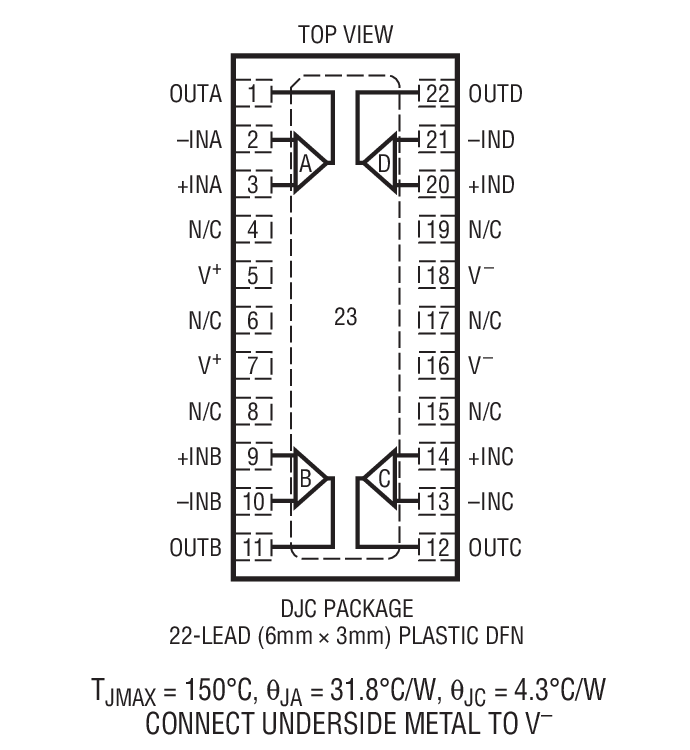

  • Quad 22-Lead DFN (6mm × 3mm)
Additional Details
show more Icon

The LT6015/LT6016/LT6017 are single/dual/quad rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.

The Over-The-Top® input stage of the LT6015/LT6016/LT6017 is designed to provide added protection in tough environments. The input common mode range extends from V– to V+ and beyond: these amplifiers operate with inputs up to 76V above V– independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6015/LT6016/LT6017 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.

The LT6015 is offered in a 5-lead SOT package. The LT6016 dual op amp is available in an 8-lead MSOP package. The LT6017 is offered in a 22-pin leadless DFN package.

Applications

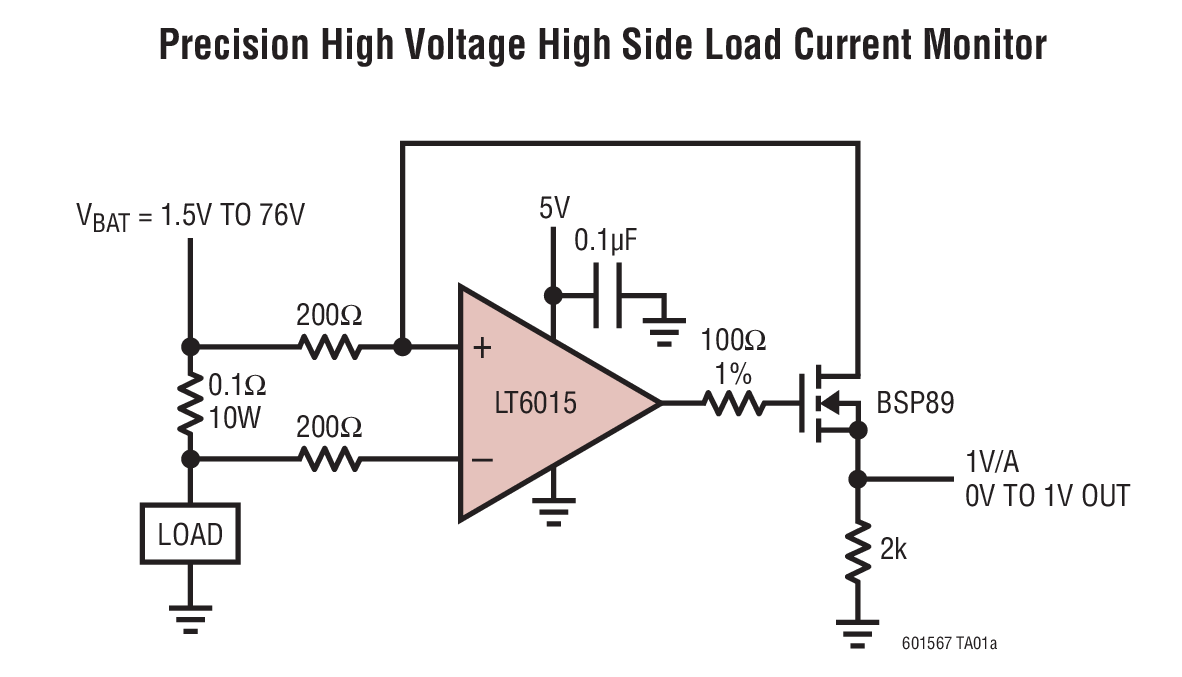

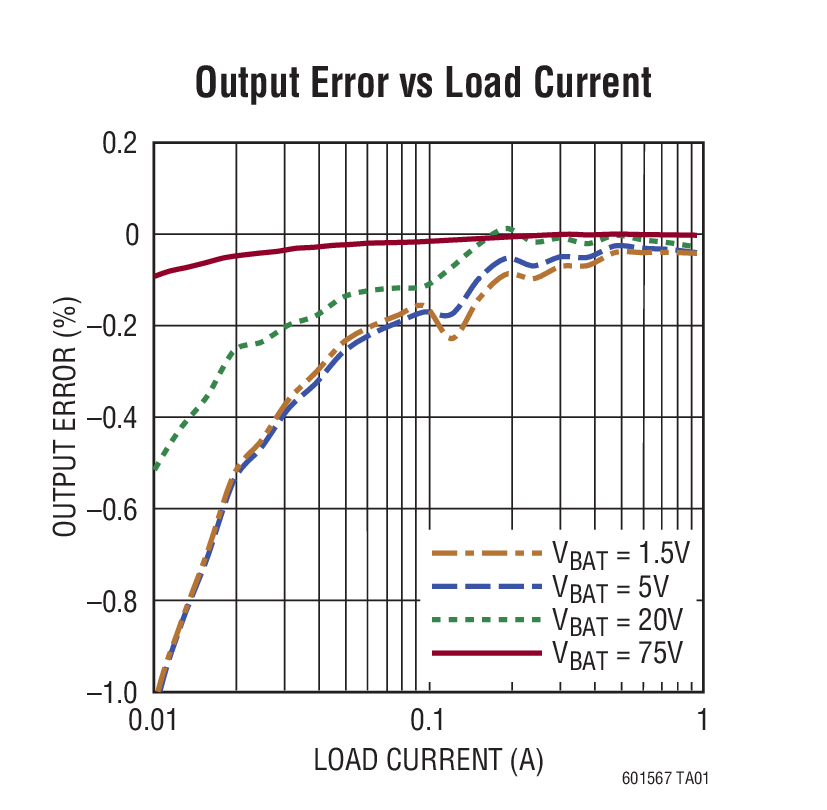

  • High Side or Low Side Current Sensing
  • Battery/Power Supply Monitoring
  • 4mA to 20mA Transmitters
  • High Voltage Data Acquisition
  • Battery/Portable Instrumentation
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT6015/LTC6560 DC Cancel Circuit LTspice Download 2.19 KB LTspice LTC3630/LT6015 Demo Circuit - Positive to Negative Converter with Variable Output (24V to -20V @ 200mA) Download 3.00KB LTspice LT6015 Demo Circuit - Precision Voltage Limiter Download 2.00KB LTspice LT8614/LT6015 Demo Circuit - Hybrid Wide Dimming Ratio Linear LED Current Controller (3.4-42V to 41V @ 3A Max) Download 4.00KB LTspice LT6015 - Operational Amplifiers (Op Amps) Download 1.54 KB
Part Models 6
1ku List Price Starting From $1.85
